Its not just a Gyro, its Smooth Flite
Based on its incredibly popular 26 Channel bigger brother the Smooth Flite 26 channel expander, the Sixteen boasts all the same great features plus a few new innovations which stamp the Smooth Flite Sixteen as one of the best RC Gyros out now.
With the rise of smaller and smaller turbines and more compact models, we saw a need for a product that is light weight and compact enough while still boasting all of the features such as the auto gain control, dual battery redundancy and dual receiver redundancy which has made the Smooth Flite a popular contender in todays competitive Gyro market.
Smooth Flite gives you the confidence of dual redundant receivers high current regulated power with 16 fully programmable channels, 3 axis gyro, 3 axis accelerometer, compass and a barometer and easy setup with a full colour touch screen interface. The Smooth Flite system allows you to assign as many Gyro outputs as necessary, both scale and turbine models of all sizes are now a breeze to setup program and fly with the Smooth Flite 16.
We have focussed extensively on the user experience being ultra simple-to-use and all reports we have had back from our test team say we have hit the nail on the head. Super simple to use compared to all other well know systems.
The only gyro system on the market with a dual fly and feel, the Smooth Flite algorithm has been specially designed for all types of RC models so that you can guarantee locked in performance. With our new proprietary sports mode deigned for more 3D focused pilots and models as well as the already popular Smooth mode for more scale models. We use state of the art programming to predict and calculate where your model is headed, giving Smooth Flite an advantage over other Gyros.
Secure Technology with Optional Exclusive Personalization
We all know how valuable our giant scale models are so the Smooth Flite 16 can be factory ordered with your own personalized startup screen that is displayed every time you power up the Smooth Flite 16 and is also availble from the Information menu. Your personalized Smooth Flite 16 will have you looking pro and will make your model exclusive to you so and easy trackable if necessary. To order your exclusive version select the option from the drop down list and fill out the Startup screen message you require. Our team will verify this information with you prior to shipping your personalized Exclusive Smooth Flite 16.
Supports multiple Protocols
What do you fly, Futaba, JR/DFA, Spektrum, Graupner, Jeti, FrSky or Powerbox. Whatever you fly, Smooth Flite has you covered. With build in downlink telemetry for each radio system and the ability to change the protocol at the touch of a button, the Smooth Flite system can be easy changed from model to model with different receivers in each.
Sixteen fully assignable and programmable outputs
Looking at that next big project and wondering how you’re going to power all those servos, the Smooth Flite system is equipped with 16 fully programmable outputs, all via a single cable connected to your receiver. Each channel is freely assignable to any input and can be reversed and matched to any other channel on the Smooth Flite. Building that next giant scale model Smooth Flite has got it covered.
Easy to Use
Smooth Flite comes with pre-configured channel mapping that matches your chosen radio brand so model setup is really simple. Of course for advanced setups all 16 channels can freely assigned to any transmitter channel
Based on its incredibly popular 26 Channel bigger brother the Smooth Flite 26 channel expander, the Sixteen boasts all the same great features plus a few new innovations which stamp the Smooth Flite Sixteen as one of the best RC Gyros out now.
With the rise of smaller and smaller turbines and more compact models, we saw a need for a product that is light weight and compact enough while still boasting all of the features such as the auto gain control, dual battery redundancy and dual receiver redundancy which has made the Smooth Flite a popular contender in todays competitive Gyro market.
Smooth Flite gives you the confidence of dual redundant receivers high current regulated power with 16 fully programmable channels, 3 axis gyro, 3 axis accelerometer, compass and a barometer and easy setup with a full colour touch screen interface. The Smooth Flite system allows you to assign as many Gyro outputs as necessary, both scale and turbine models of all sizes are now a breeze to setup program and fly with the Smooth Flite 16.
We have focussed extensively on the user experience being ultra simple-to-use and all reports we have had back from our test team say we have hit the nail on the head. Super simple to use compared to all other well know systems.
The only gyro system on the market with a dual fly and feel, the Smooth Flite algorithm has been specially designed for all types of RC models so that you can guarantee locked in performance. With our new proprietary sports mode deigned for more 3D focused pilots and models as well as the already popular Smooth mode for more scale models. We use state of the art programming to predict and calculate where your model is headed, giving Smooth Flite an advantage over other Gyros.
Secure Technology with Optional Exclusive Personalization
We all know how valuable our giant scale models are so the Smooth Flite 16 can be factory ordered with your own personalized startup screen that is displayed every time you power up the Smooth Flite 16 and is also availble from the Information menu. Your personalized Smooth Flite 16 will have you looking pro and will make your model exclusive to you so and easy trackable if necessary. To order your exclusive version select the option from the drop down list and fill out the Startup screen message you require. Our team will verify this information with you prior to shipping your personalized Exclusive Smooth Flite 16.
Supports multiple Protocols
What do you fly, Futaba, JR/DFA, Spektrum, Graupner, Jeti, FrSky or Powerbox. Whatever you fly, Smooth Flite has you covered. With build in downlink telemetry for each radio system and the ability to change the protocol at the touch of a button, the Smooth Flite system can be easy changed from model to model with different receivers in each.
Sixteen fully assignable and programmable outputs
Looking at that next big project and wondering how you’re going to power all those servos, the Smooth Flite system is equipped with 16 fully programmable outputs, all via a single cable connected to your receiver. Each channel is freely assignable to any input and can be reversed and matched to any other channel on the Smooth Flite. Building that next giant scale model Smooth Flite has got it covered.
Easy to Use
Smooth Flite comes with pre-configured channel mapping that matches your chosen radio brand so model setup is really simple. Of course for advanced setups all 16 channels can freely assigned to any transmitter channel

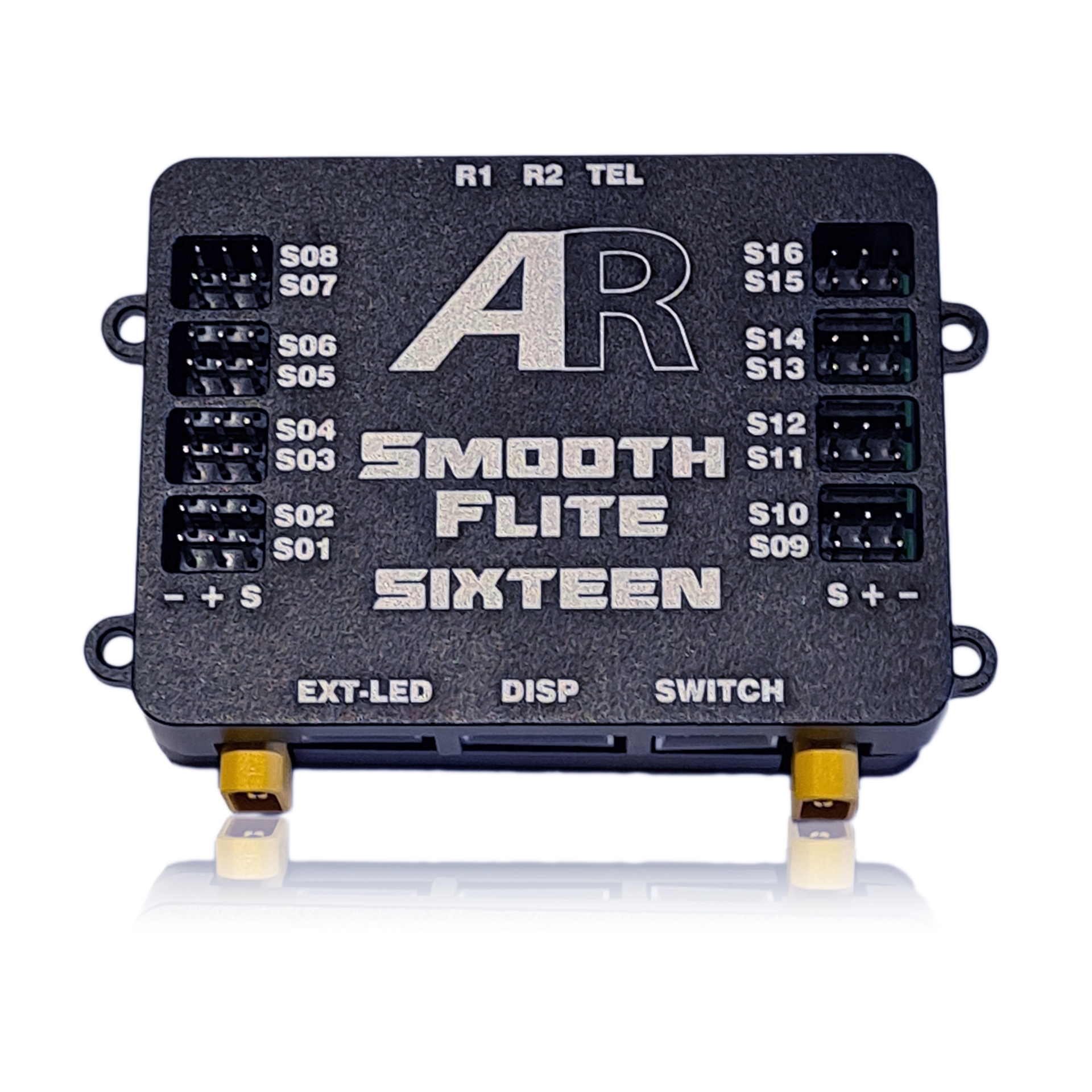

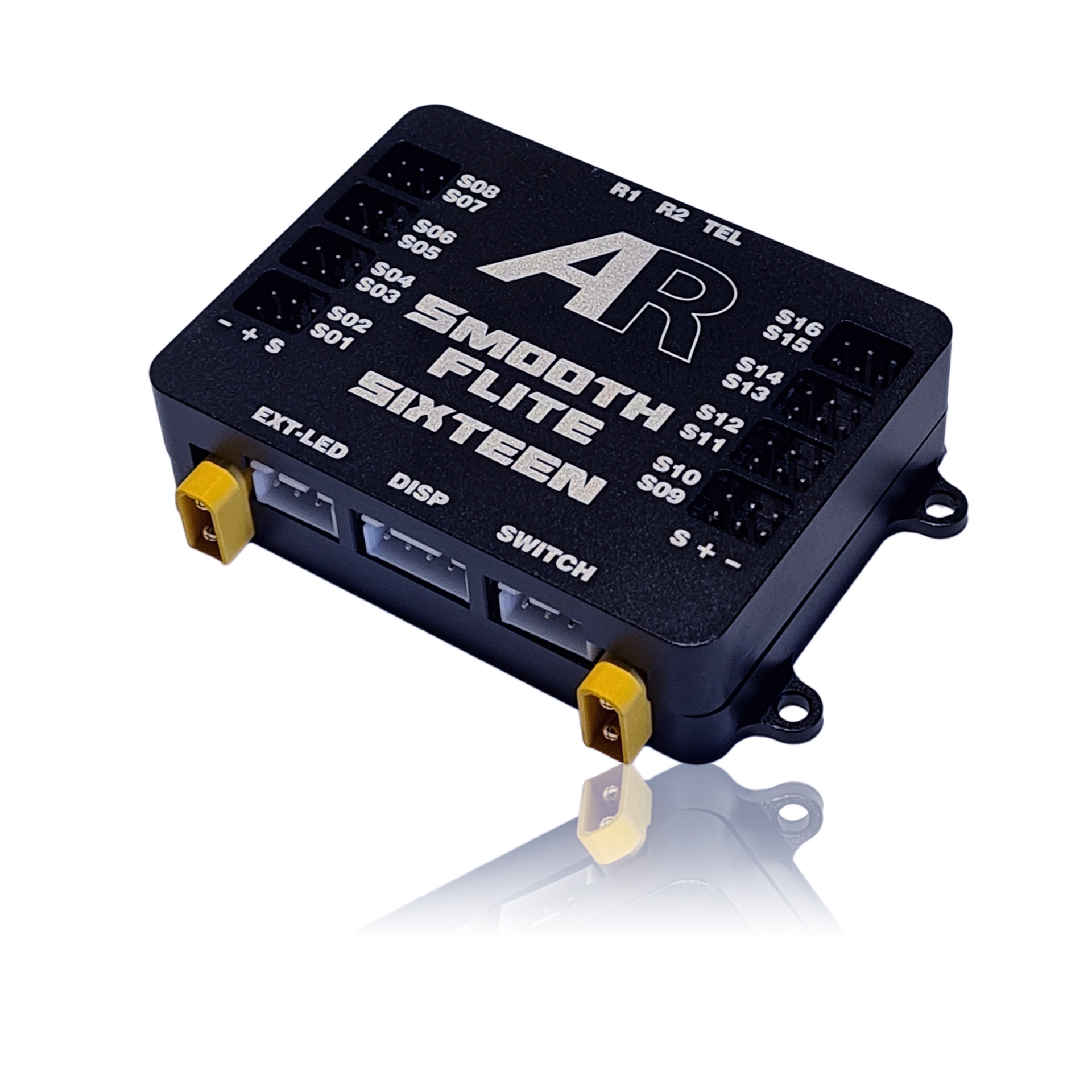

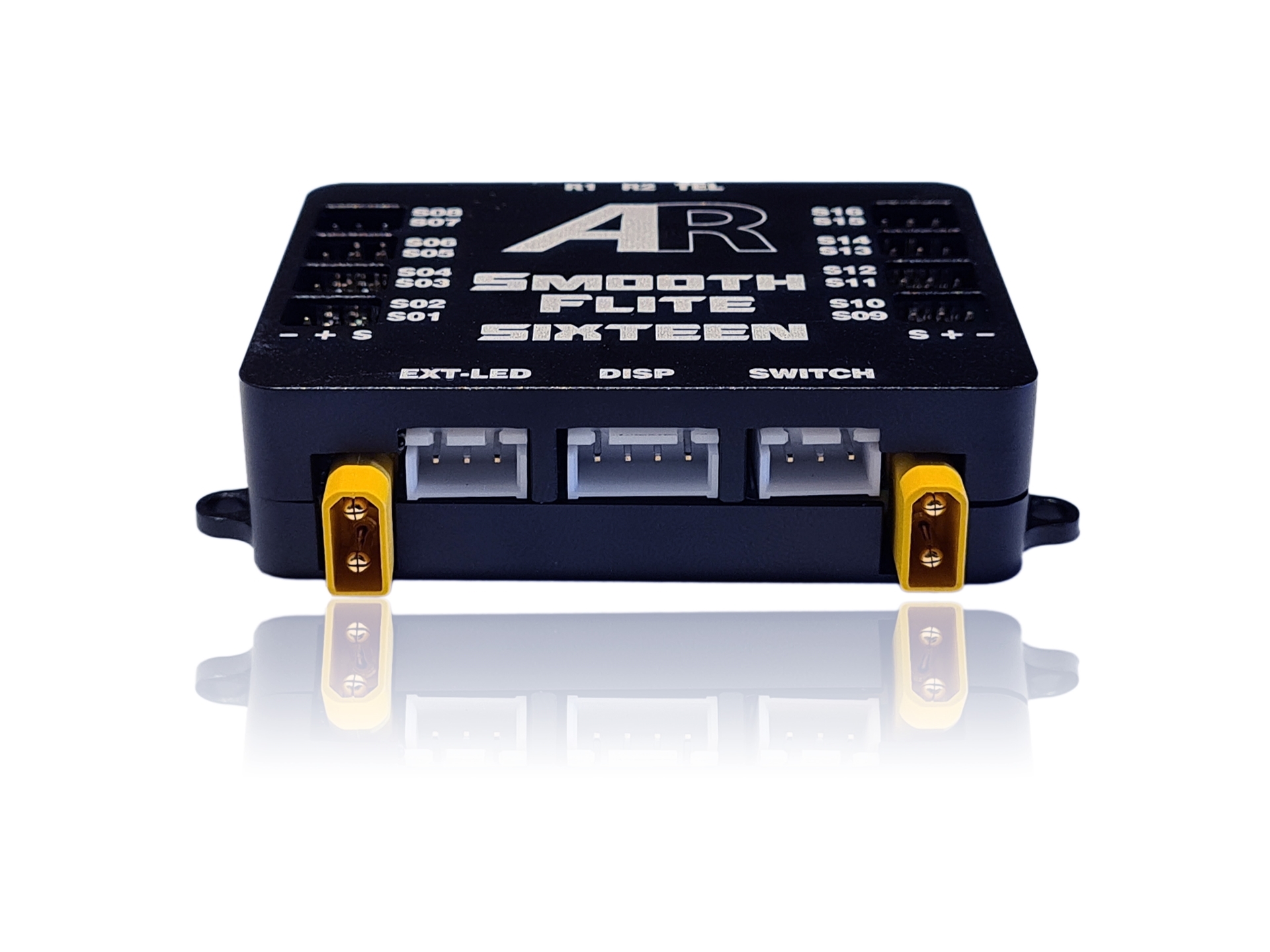

Smooth Flite 16 ML
Redundant Receiver system - works with dual or single receiver system
* Mutli-protocol support SBus2,SRXL,XBus,HoTT, EXBus, SRXL2, SBus
* Telemetry ready
* 16 fully programmable and assignable channels
* Works with single or dual battery configuration.
* Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD.
* Full Dual Battery Redundancy - If one battery fails the other battery takes full control..

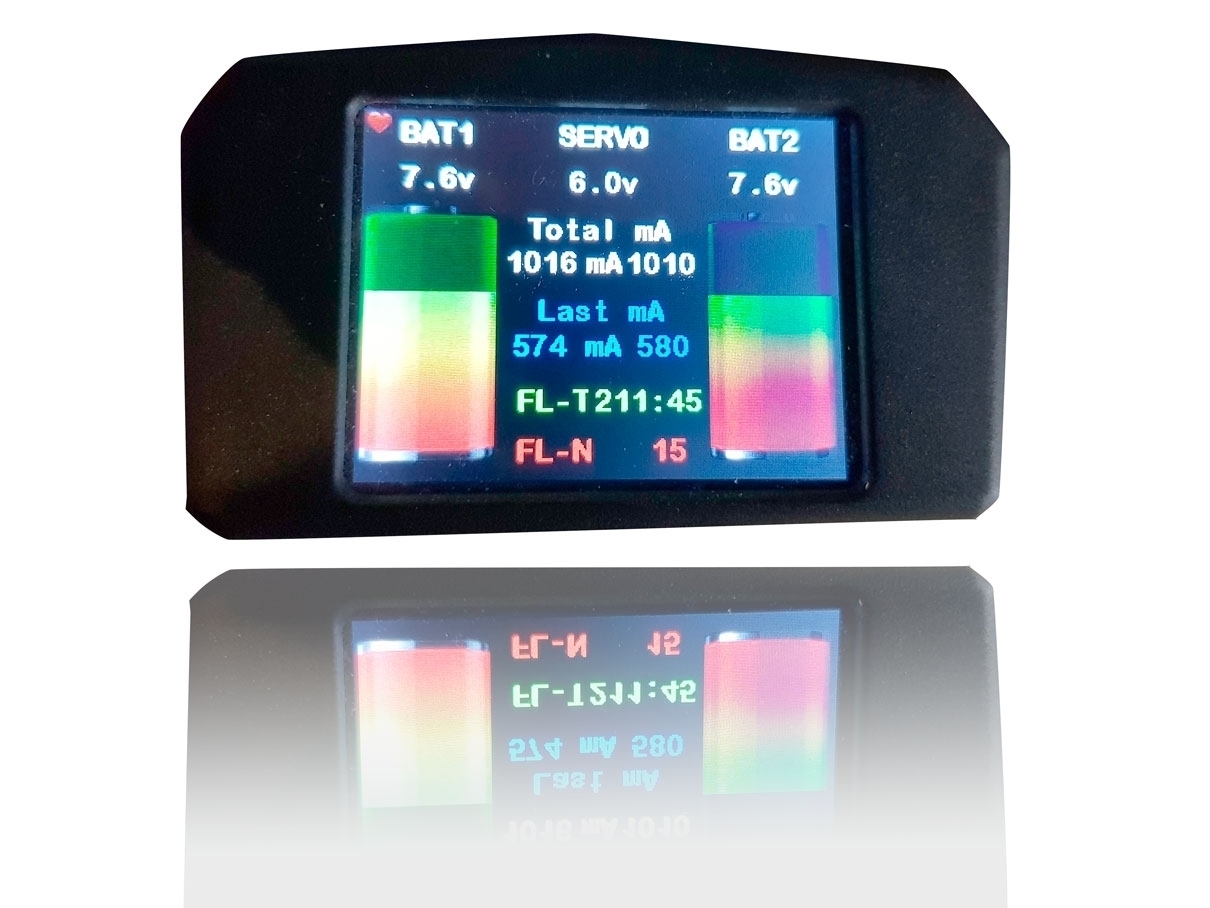

* Vibrant Colour 2.4inch diagonal touch screen with 64k colour
* Screen case dimensions 3.4 x 2.0 x 0.5 inches (86 x 50 x 12)mm
* Smooth Flite dimensions 2.59 x 1.92 x 0.47 inches (66mm x 49mm x 18.5)mm
* Smooth Flite weight (55gms) without colour screen..
* Multi-match technology.
* 3 axis gyro, accelerometer, compass and a barometer.
* Advanced Radio Proprietry Smooth Flite alll
Redundant Receiver system - works with dual or single receiver system
* Mutli-protocol support SBus2,SRXL,XBus,HoTT, EXBus, SRXL2, SBus
* Telemetry ready
* 16 fully programmable and assignable channels
* Works with single or dual battery configuration.
* Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD.
* Full Dual Battery Redundancy - If one battery fails the other battery takes full control..
* Vibrant Colour 2.4inch diagonal touch screen with 64k colour
* Screen case dimensions 3.4 x 2.0 x 0.5 inches (86 x 50 x 12)mm
* Smooth Flite dimensions 2.59 x 1.92 x 0.47 inches (66mm x 49mm x 18.5)mm
* Smooth Flite weight (55gms) without colour screen..
* Multi-match technology.
* 3 axis gyro, accelerometer, compass and a barometer.
* Advanced Radio Proprietry Smooth Flite alll
The price are in Euro ( € ) include 25% VAT. Delivery cost it´ll be add
|
|
||
|
In stock
Price: 390 €
Price: 390 €

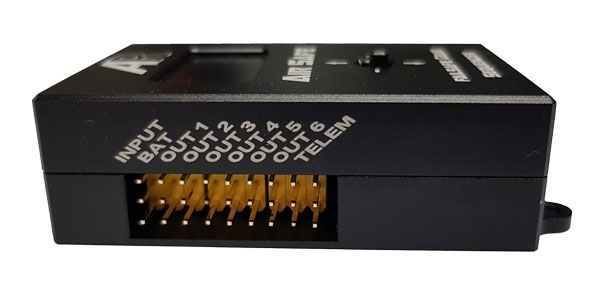

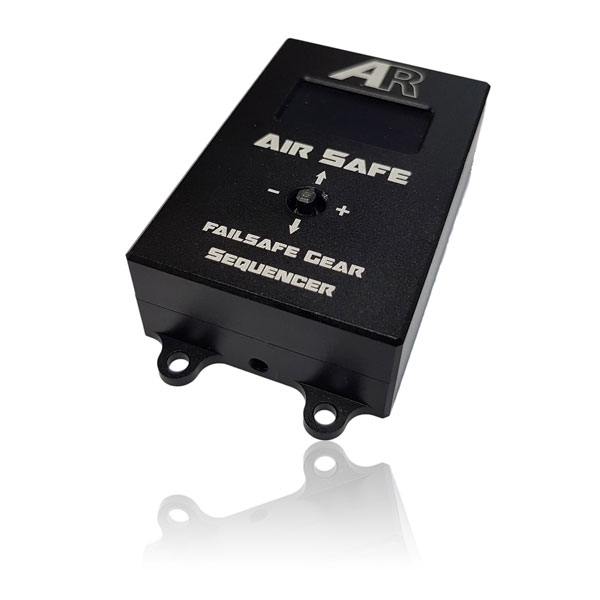

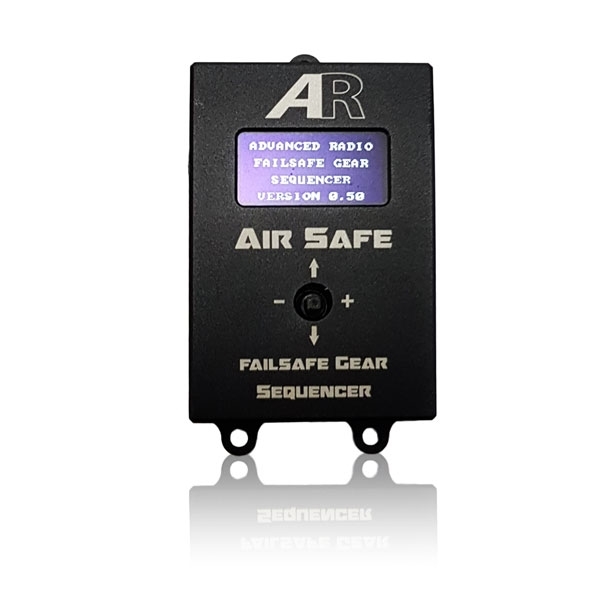

200psi Air Safe - Fail safe Gear Sequencer
Specification:
Size57*38*20mm (2.2*1.5*0.8 inch)
Weight45g (1.6oz)
Max PSI200psi (13.8 bar)
Thread sizem3
Barb size3.5mm
Max voltage8.4v
Channels6
Gear steps5
Advance Radio is proud to bring another innovative product to the RC scene.Air Safe is a six channel gear sequencer, pressure monitor and failsafe device that is small enough to fit into the palm of your hand. With the size and scale detail of todays models, it make sense to upgrade them with a system that will ensure a gear down and locked landing every flight.
The six channel sequencer has been specially designed with all the features to setup both large and small models alike. Giving the user a huge amounts of programmability for any model from scale F-16s, to sports plane and WW2 warbirds. Everything is quick and easy to setup via the built in joystick and easy ready screen.
It is always frustrating when you take off a model and you have a small air leak, by the end of the flight your air system is completely empty, meaning you gear wont move and you are forced to belly land, damaging models, props or paint on your model. Air Safe fixes this problem by motioning the air pressure in the system and automatically activating the gear down function when the pressure drops too low, guaranteeing a safe landing on all 3 wheels.
The Air Safe has been designed for air systems up to 200PSI and allows for easy monitoring of the air pressure inside your system at any time. Using the easy to ready on board screen, you can check your air system at a simple glance. Giving you peace of mind before every flight.
Designed for all 2S systems the Air Safe is compatible with all battery chemistries and can be powered by the receiver or a power Expander. Air safe includes an additional battery input for use of high powered servos or valves on larger systems. It is compatible with all servos and air valves currently available on the market.
Specification:
Size57*38*20mm (2.2*1.5*0.8 inch)
Weight45g (1.6oz)
Max PSI200psi (13.8 bar)
Thread sizem3
Barb size3.5mm
Max voltage8.4v
Channels6
Gear steps5
Advance Radio is proud to bring another innovative product to the RC scene.Air Safe is a six channel gear sequencer, pressure monitor and failsafe device that is small enough to fit into the palm of your hand. With the size and scale detail of todays models, it make sense to upgrade them with a system that will ensure a gear down and locked landing every flight.
The six channel sequencer has been specially designed with all the features to setup both large and small models alike. Giving the user a huge amounts of programmability for any model from scale F-16s, to sports plane and WW2 warbirds. Everything is quick and easy to setup via the built in joystick and easy ready screen.
It is always frustrating when you take off a model and you have a small air leak, by the end of the flight your air system is completely empty, meaning you gear wont move and you are forced to belly land, damaging models, props or paint on your model. Air Safe fixes this problem by motioning the air pressure in the system and automatically activating the gear down function when the pressure drops too low, guaranteeing a safe landing on all 3 wheels.
The Air Safe has been designed for air systems up to 200PSI and allows for easy monitoring of the air pressure inside your system at any time. Using the easy to ready on board screen, you can check your air system at a simple glance. Giving you peace of mind before every flight.
Designed for all 2S systems the Air Safe is compatible with all battery chemistries and can be powered by the receiver or a power Expander. Air safe includes an additional battery input for use of high powered servos or valves on larger systems. It is compatible with all servos and air valves currently available on the market.
Price: 199 €

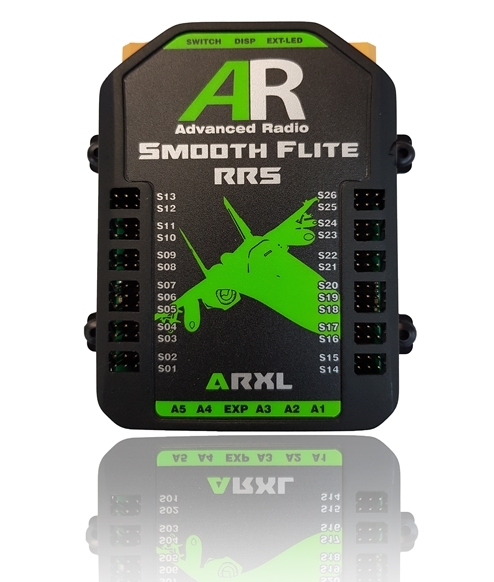

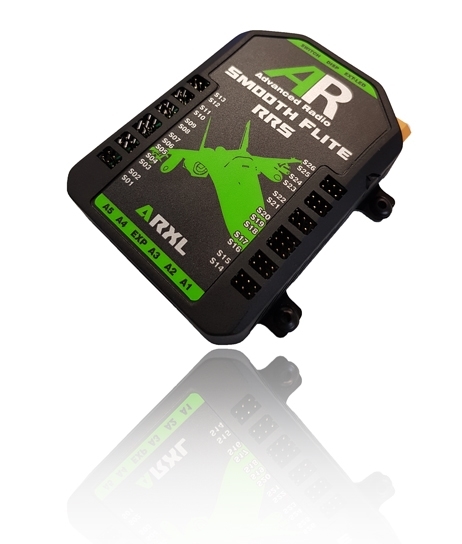

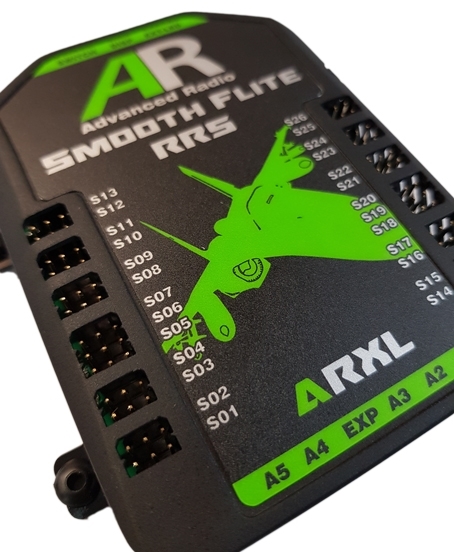

SmoothFlite ARXL ML
Redundant Receiver system - works with dual or single receiver system
SPECIFICATIONS:
* Redundant Receiver system – works with dual or single receiver system
* Mutli-protocol support SBus2,SRXL,XBus,HoTT and EXBus
* Telemetry ready
* 26 fully programmable and assignable channels
* Works with single or dual battery configuration.
* Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD.
* Full Dual Battery Redundancy - If one battery fails the other battery takes full control..
* Vibrant Colour 2.4inch diagonal touch screen with 64k colour
* Screen case dimensions 3.4 x 2.0 x 0.5 inches (86 x 50 x 12)mm
* Smooth Flite dimensions 4.2 x 3.0 x 0.9 inches (107 x 78 x 23)mm
* Smooth Flite weight (108gms) without colour screen.
* Triple regulator design with dual 100A power regulator FETS.
* Multi-match technology.
* 3 axis gyro, accelerometer, compass and a barometer.
* Advanced Radio Proprietry Smooth Flite algorithms.
* Optional sequencer package providing 3 sequencers.
Redundant Receiver system - works with dual or single receiver system
SPECIFICATIONS:
* Redundant Receiver system – works with dual or single receiver system
* Mutli-protocol support SBus2,SRXL,XBus,HoTT and EXBus
* Telemetry ready
* 26 fully programmable and assignable channels
* Works with single or dual battery configuration.
* Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD.
* Full Dual Battery Redundancy - If one battery fails the other battery takes full control..
* Vibrant Colour 2.4inch diagonal touch screen with 64k colour
* Screen case dimensions 3.4 x 2.0 x 0.5 inches (86 x 50 x 12)mm
* Smooth Flite dimensions 4.2 x 3.0 x 0.9 inches (107 x 78 x 23)mm
* Smooth Flite weight (108gms) without colour screen.
* Triple regulator design with dual 100A power regulator FETS.
* Multi-match technology.
* 3 axis gyro, accelerometer, compass and a barometer.
* Advanced Radio Proprietry Smooth Flite algorithms.
* Optional sequencer package providing 3 sequencers.
|
|
|
|||
|
SmoothFlite ARXL ML
Supports multiple Protocols
What do you fly, Futaba, JR/DFA, Spektrum, Graupner, Jeti or Multiplex. Whatever you fly, Smooth Flite has you covered. With the ability to change the protocol at the touch of a button, the Smooth Flite system can be easy changed from model to model with different receivers in each.
Twenty Six fully assignable and programmable outputs
Looking at that next big project and wondering how you’re going to power all those servos, the Smooth Flite system is equipped with 26 fully programmable outputs, all via a single cable connected to your receiver. Each channel is freely assignable to any input and can be reversed and matched to any other channel on the Smooth Flite. Building that next giant scale model Smooth Flite has got it covered.
Easy to Use
Smooth Flite comes with pre-configured channel mapping that matches your chosen radio brand so model setup is really simple. Of course for advanced setups all 26 channels can freely assigned to any transmitter channel.
Telemetry ready
Smooth Flite RRS gives you live feedback of both your batteries on your radio. Monitor the voltage and capacity used out of each of your batteries at any time during the flight. Ensure your batteries are ready for the next flight.*
The Next standard in servo Matching.
In the RC industry precision is key. How can you expect to be precise when no two servos are identical, giving you varied results no matter how well you mechanically match them. Match your servos across 15 individual points, with 8000 step resolution and you can finally achieve matched perfection on your elevators, flaps, multi-engines and more. Take the hassle out of your new setup and have a model that raises your skills.
Sub-trim and reverse on all outputs
Ever spent hours, mechanically matching servos and never being able to get them just right or had to use a separate channel on your receiver, just to reverse a servo. With our intuitive and simple setup you can easily sub-trim at the centre and end-points of all your outputs on the Smooth Flite. Using Smooth Flite you can individually reverse your servos at a touch of a button. Smooth Flite gives you ultimate power at your fingertips.
Regulated voltage gives you precise, repeatable, results.
It is hard to be the best with a model that changes. With our high powered 220A regulator FETS we remove the change and give you pure constant regulation. As batteries are used their voltage drops, changes in voltage mean changes in speed and power of your servos. Regulating ensures your model is the same time after time.
RRS - Redundant Receiver technology
Smooth Flite RRS is the safest in signal sharing technology, the redundant receiver system ensures your model by utilising two receivers. Unlike other power systems Smooth Flite reads signal from both receivers at all times and runs an intelligent algorithm to select the best signal.
In the unlikely event that a receiver fails then Smooth Flites switches to the better receiver in less than one signal frame to ensure you will have constant control of your model. Reliability is key with models today, with our redundant receiver system you can ensure your model is always reporting back to you.
With Smooth Flite all receiver events are recorded and remain even when powered down so you can review receiver health and signal strength between flights.
Vibrant colour touch screen display.
Gone are the days of fiddly buttons and rotating dial frustrations, no more bind plugs and small screw drivers needed. The vibrant Smart Display gives you feedback and simple programming all in one touch screen display. With intuitive buttons and a single setup design. Your model will be in the air before you know it.
SmoothFlite flight system (Gyro).
The SmoothFlite is much more than just a gyro. It is a complete flight system that harnesses the power of a 3 axis gyro, 3 axis accelerometer, 3 axis compass and a barometer. the combination of the state-of-the art devices and our proprietary SmoothFlite algorithms give you a very scale like flying experience.
SmoothFlite key features:
- Automatic Gain Control (AGC) takes the guess work out of setting up gain levels. Set up your gain for normal flying and SmoothFlite AGC takes it from there increasing and decreasing gain based on our proprietary algorithms. Switch to high gain for landings and know that SmoothFlite has your back with AGC reducing and increasing gain as required.
- Advanced Vibration Filtering Calculations (VFC). Every RC model has different vibration levels. A gas model will produce much more vibration than an electric or turbine powered model. SmoothFlite takes all this into consideration.
- Inertia Calculations. SmoothFlite take into account the weight of a model with advanced algorithms to give you mode la very scale like flight envelope.
- Freely Assignable SmoothFlite control to any or all 26 programmable servo channels. SmoothFlite is the only system available today that allows you assign gyro control to any and all outputs. Here is a typical example. At the touch of a button you can assign gyro control to multiple rudder servos as well as steering servo. You can then reverse, sub trim, move endpoint (all from the SmoothFlite system) The result being you then have gyro assisted control of ground steering as well as rudder.
- Second Variable Gain Control (VGC). Our engineers fly all types of models and realised that SmoothFlite will be used with many different flying styles so we decided to add in a Variable Gain Control VGC so you can boost or cut the already switchable gain settings. This is like having a variable turbo control to hyper boost or cut on the fly for super low speed flight.
- Proportional Control - is a switchable feature that reduces gain as the control stick moves away from the centre position. This give the pilot more control at outer stick positions.
Tripple Sequencer
SmoothFlite comes with an option of 3 sequencers.
- Sequencer 1 (Gear Sequencer) gives you 9 sequencer channels freely assignable to any of the 26 servo outputs.
- Sequencer 2 (Canopy Sequencer) gives you 4 sequencer channels freely assignable to any of the 26 servo outputs.
- Sequencer 3 (Aux Sequencer) maybe for bomb drop or Speed brake and chute deployment gives you an additional 4 sequencer channels freely assignable to any of the 26 servo outputs.
SmoothFlite - Giant Scale RC just got better.
To see all the Advanced Features in detail please download the user guide
Supports multiple Protocols
What do you fly, Futaba, JR/DFA, Spektrum, Graupner, Jeti or Multiplex. Whatever you fly, Smooth Flite has you covered. With the ability to change the protocol at the touch of a button, the Smooth Flite system can be easy changed from model to model with different receivers in each.
Twenty Six fully assignable and programmable outputs
Looking at that next big project and wondering how you’re going to power all those servos, the Smooth Flite system is equipped with 26 fully programmable outputs, all via a single cable connected to your receiver. Each channel is freely assignable to any input and can be reversed and matched to any other channel on the Smooth Flite. Building that next giant scale model Smooth Flite has got it covered.
Easy to Use
Smooth Flite comes with pre-configured channel mapping that matches your chosen radio brand so model setup is really simple. Of course for advanced setups all 26 channels can freely assigned to any transmitter channel.
Telemetry ready
Smooth Flite RRS gives you live feedback of both your batteries on your radio. Monitor the voltage and capacity used out of each of your batteries at any time during the flight. Ensure your batteries are ready for the next flight.*
The Next standard in servo Matching.
In the RC industry precision is key. How can you expect to be precise when no two servos are identical, giving you varied results no matter how well you mechanically match them. Match your servos across 15 individual points, with 8000 step resolution and you can finally achieve matched perfection on your elevators, flaps, multi-engines and more. Take the hassle out of your new setup and have a model that raises your skills.
Sub-trim and reverse on all outputs
Ever spent hours, mechanically matching servos and never being able to get them just right or had to use a separate channel on your receiver, just to reverse a servo. With our intuitive and simple setup you can easily sub-trim at the centre and end-points of all your outputs on the Smooth Flite. Using Smooth Flite you can individually reverse your servos at a touch of a button. Smooth Flite gives you ultimate power at your fingertips.
Regulated voltage gives you precise, repeatable, results.
It is hard to be the best with a model that changes. With our high powered 220A regulator FETS we remove the change and give you pure constant regulation. As batteries are used their voltage drops, changes in voltage mean changes in speed and power of your servos. Regulating ensures your model is the same time after time.
RRS - Redundant Receiver technology
Smooth Flite RRS is the safest in signal sharing technology, the redundant receiver system ensures your model by utilising two receivers. Unlike other power systems Smooth Flite reads signal from both receivers at all times and runs an intelligent algorithm to select the best signal.
In the unlikely event that a receiver fails then Smooth Flites switches to the better receiver in less than one signal frame to ensure you will have constant control of your model. Reliability is key with models today, with our redundant receiver system you can ensure your model is always reporting back to you.
With Smooth Flite all receiver events are recorded and remain even when powered down so you can review receiver health and signal strength between flights.
Vibrant colour touch screen display.
Gone are the days of fiddly buttons and rotating dial frustrations, no more bind plugs and small screw drivers needed. The vibrant Smart Display gives you feedback and simple programming all in one touch screen display. With intuitive buttons and a single setup design. Your model will be in the air before you know it.
SmoothFlite flight system (Gyro).
The SmoothFlite is much more than just a gyro. It is a complete flight system that harnesses the power of a 3 axis gyro, 3 axis accelerometer, 3 axis compass and a barometer. the combination of the state-of-the art devices and our proprietary SmoothFlite algorithms give you a very scale like flying experience.
SmoothFlite key features:
- Automatic Gain Control (AGC) takes the guess work out of setting up gain levels. Set up your gain for normal flying and SmoothFlite AGC takes it from there increasing and decreasing gain based on our proprietary algorithms. Switch to high gain for landings and know that SmoothFlite has your back with AGC reducing and increasing gain as required.
- Advanced Vibration Filtering Calculations (VFC). Every RC model has different vibration levels. A gas model will produce much more vibration than an electric or turbine powered model. SmoothFlite takes all this into consideration.
- Inertia Calculations. SmoothFlite take into account the weight of a model with advanced algorithms to give you mode la very scale like flight envelope.
- Freely Assignable SmoothFlite control to any or all 26 programmable servo channels. SmoothFlite is the only system available today that allows you assign gyro control to any and all outputs. Here is a typical example. At the touch of a button you can assign gyro control to multiple rudder servos as well as steering servo. You can then reverse, sub trim, move endpoint (all from the SmoothFlite system) The result being you then have gyro assisted control of ground steering as well as rudder.
- Second Variable Gain Control (VGC). Our engineers fly all types of models and realised that SmoothFlite will be used with many different flying styles so we decided to add in a Variable Gain Control VGC so you can boost or cut the already switchable gain settings. This is like having a variable turbo control to hyper boost or cut on the fly for super low speed flight.
- Proportional Control - is a switchable feature that reduces gain as the control stick moves away from the centre position. This give the pilot more control at outer stick positions.
Tripple Sequencer
SmoothFlite comes with an option of 3 sequencers.
- Sequencer 1 (Gear Sequencer) gives you 9 sequencer channels freely assignable to any of the 26 servo outputs.
- Sequencer 2 (Canopy Sequencer) gives you 4 sequencer channels freely assignable to any of the 26 servo outputs.
- Sequencer 3 (Aux Sequencer) maybe for bomb drop or Speed brake and chute deployment gives you an additional 4 sequencer channels freely assignable to any of the 26 servo outputs.
SmoothFlite - Giant Scale RC just got better.
To see all the Advanced Features in detail please download the user guide
Price: 470 €
|
|
||
|
|

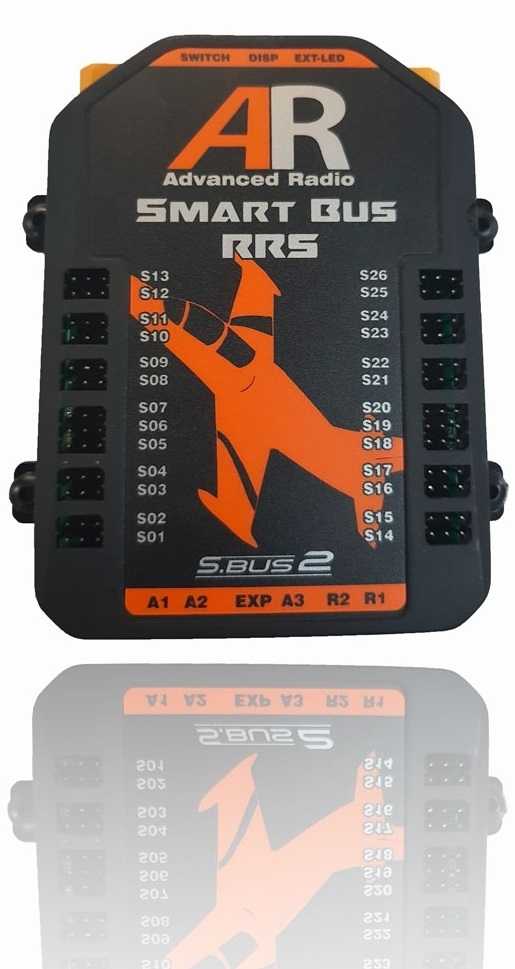

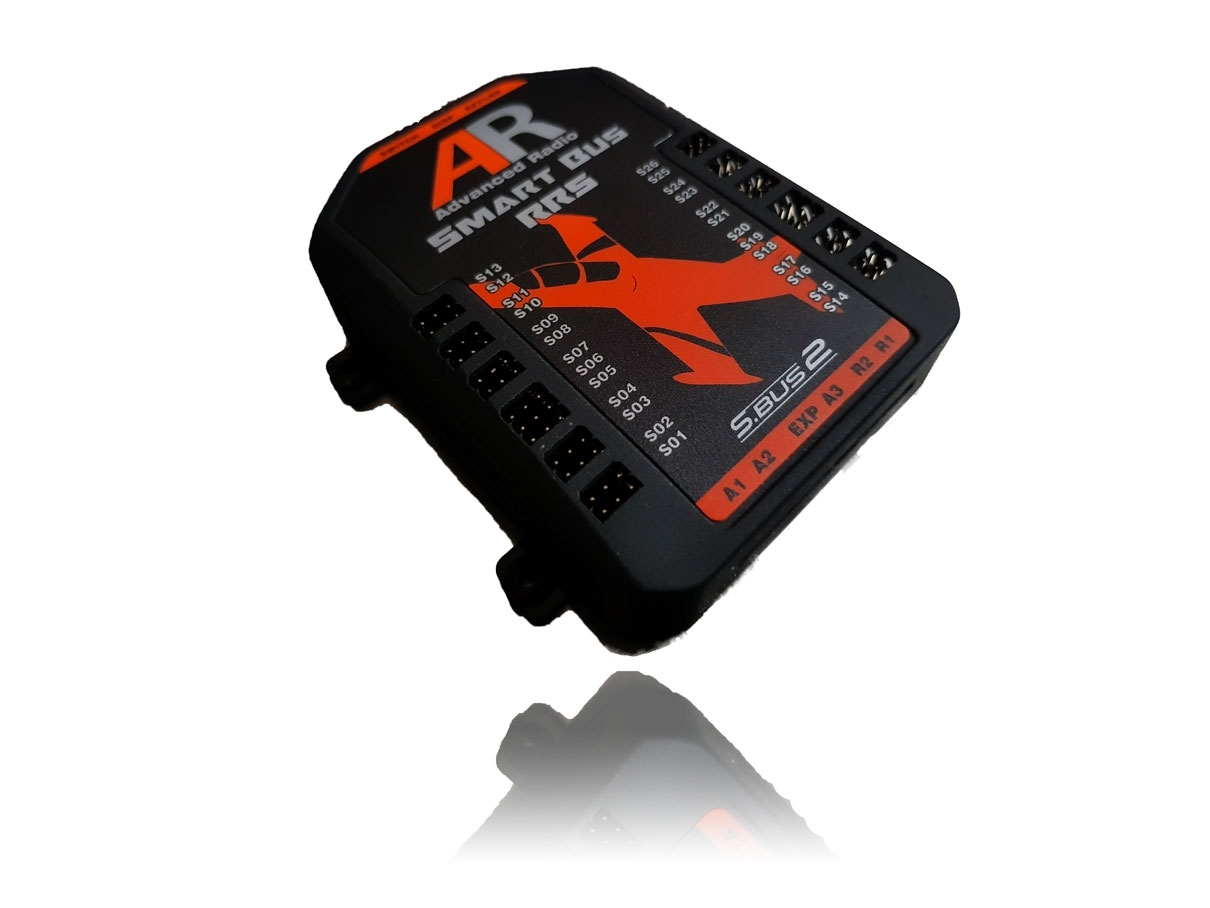

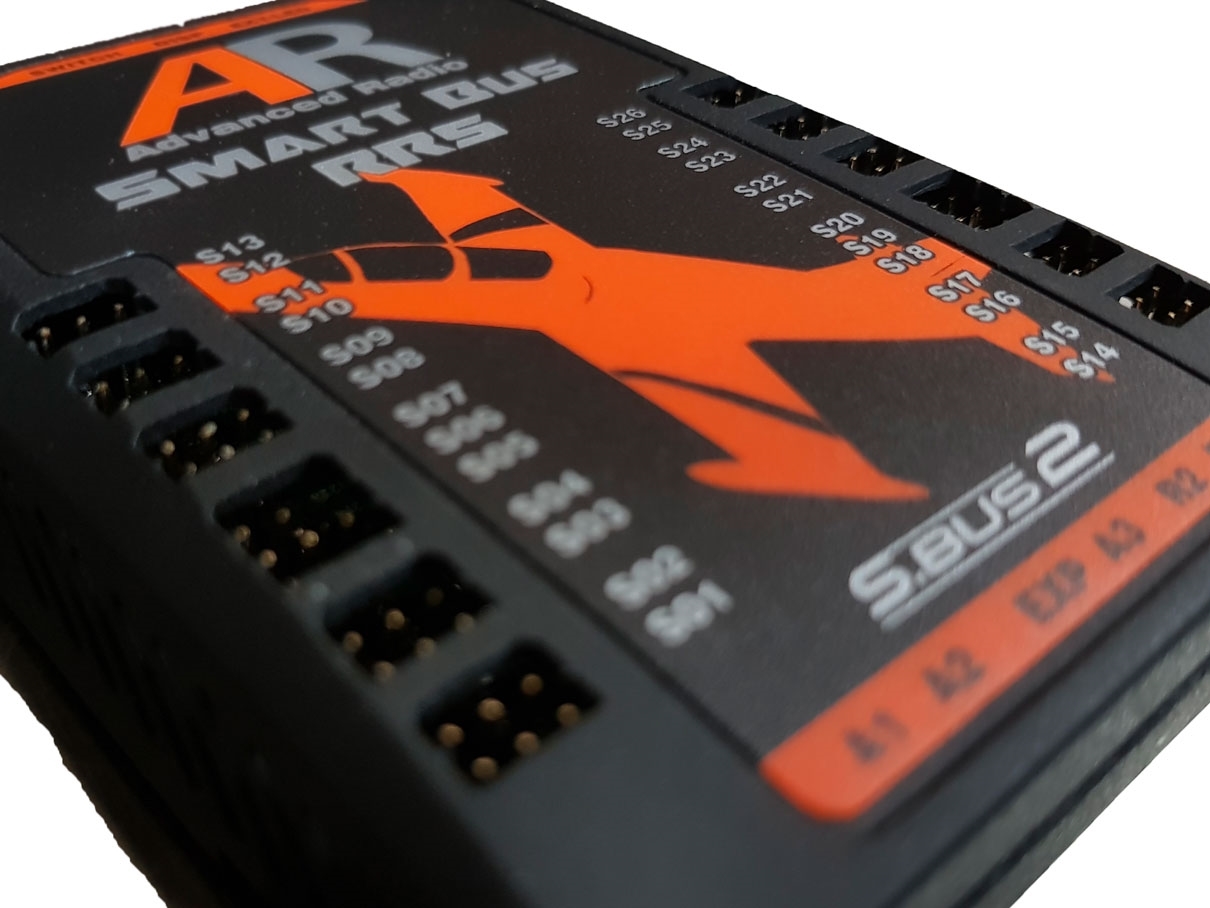

Smart Bus RRS Futaba S-Bus/S Bus2
Smart bus ARXL product
26 fully assignable and programmable outputs
Looking at that next big project and wondering how you’re going to power all those servos, the RRS system is equipped with 26 fully programmable outputs , all via the single S-Bus output on your Futaba RX. Each channel is freely assignable to any input and can be reversed and matched to any other channel on the Smart Bus. Building that next giant scale model. Smart Bus has got it covered.
Easy to Use
Smart Bus comes with pre configured channel mapping that matches your radio so model setup is really simple. Of course for advanced setups all 26 channels can freely assigned to any transmitter channel.
SBus2 telemetry ready
Smart Bus RRS gives you live feedback of both your batteries on your radio. Monitor the voltage and capacity used out of each of your batteries at any time during the flight. Ensure your batteries are ready for the next flight.
The Next standard in servo Matching.
In the RC industry precision is key. How can you expect to be precise when no two servos are identical, giving you varied results no matter how well you mechanically match them. Match your servos across 15 individual points, with 8000 step resolution and you can finally achieve matched perfection on your elevators, flaps, multi-engines and more. Take the hassle out of your new setup and have a model that raises your skills.
Sub-trim and reverse on all outputs
Ever spent hours, mechanically matching servos and never being able to get them just right or had to use a separate channel on your receiver, just to reverse a servo. With our intuitive and simple setup you can easily sub-trim at the centre and end-points of all your outputs on the Smart Bus. Using Smart Bus you can individually reverse your servos at a touch of a button. Smart bus gives you ultimate power at your fingertips.
Regulated voltage gives you precise, repeatable, results.
It is hard to be the best with a model that changes. With our high powered 220A regulator FETS we remove the change and give you pure constant regulation. As batteries are used their voltage drops, changes in voltage mean changes in speed and power of your servos. Regulating ensures your model is the same time after time.
RRS - Redundant Receiver technology
Smart Bus RRS is the safest in signal sharing technology, the redundant receiver system ensures your model by utilising two S-Bus/S-Bus2 receivers. unlike other power systems Smart Bus reads signal from both receivers at all times and runs an intelligent algorithm to select the best signal.
In the unlikely event that a receiver fails then Smart Buss switches to the better receiver in less than one signal frame to ensure you will have constant control of your model. Reliability is key with models today, with our redundant receiver system you can ensure your model is always reporting back to you.
With Smart Bus all receiver events are recorded and remain even when powered down so you can review receiver health and signal strength between flights.
Vibrant colour touch screen display.
Gone are the days of fiddly buttons and rotating dial frustrations, no more bind plugs and small screw drivers needed. The vibrant Smart Display gives you feedback and simple programming all in one touch screen display. With intuitive buttons and a single setup design. Your model will be in the air before you know it.
Smart bus ARXL product
26 fully assignable and programmable outputs
Looking at that next big project and wondering how you’re going to power all those servos, the RRS system is equipped with 26 fully programmable outputs , all via the single S-Bus output on your Futaba RX. Each channel is freely assignable to any input and can be reversed and matched to any other channel on the Smart Bus. Building that next giant scale model. Smart Bus has got it covered.
Easy to Use
Smart Bus comes with pre configured channel mapping that matches your radio so model setup is really simple. Of course for advanced setups all 26 channels can freely assigned to any transmitter channel.
SBus2 telemetry ready
Smart Bus RRS gives you live feedback of both your batteries on your radio. Monitor the voltage and capacity used out of each of your batteries at any time during the flight. Ensure your batteries are ready for the next flight.
The Next standard in servo Matching.
In the RC industry precision is key. How can you expect to be precise when no two servos are identical, giving you varied results no matter how well you mechanically match them. Match your servos across 15 individual points, with 8000 step resolution and you can finally achieve matched perfection on your elevators, flaps, multi-engines and more. Take the hassle out of your new setup and have a model that raises your skills.
Sub-trim and reverse on all outputs
Ever spent hours, mechanically matching servos and never being able to get them just right or had to use a separate channel on your receiver, just to reverse a servo. With our intuitive and simple setup you can easily sub-trim at the centre and end-points of all your outputs on the Smart Bus. Using Smart Bus you can individually reverse your servos at a touch of a button. Smart bus gives you ultimate power at your fingertips.
Regulated voltage gives you precise, repeatable, results.
It is hard to be the best with a model that changes. With our high powered 220A regulator FETS we remove the change and give you pure constant regulation. As batteries are used their voltage drops, changes in voltage mean changes in speed and power of your servos. Regulating ensures your model is the same time after time.
RRS - Redundant Receiver technology
Smart Bus RRS is the safest in signal sharing technology, the redundant receiver system ensures your model by utilising two S-Bus/S-Bus2 receivers. unlike other power systems Smart Bus reads signal from both receivers at all times and runs an intelligent algorithm to select the best signal.
In the unlikely event that a receiver fails then Smart Buss switches to the better receiver in less than one signal frame to ensure you will have constant control of your model. Reliability is key with models today, with our redundant receiver system you can ensure your model is always reporting back to you.
With Smart Bus all receiver events are recorded and remain even when powered down so you can review receiver health and signal strength between flights.
Vibrant colour touch screen display.
Gone are the days of fiddly buttons and rotating dial frustrations, no more bind plugs and small screw drivers needed. The vibrant Smart Display gives you feedback and simple programming all in one touch screen display. With intuitive buttons and a single setup design. Your model will be in the air before you know it.
Smart Bus RRS Futaba S-Bus/S Bus2
Redundant Receiver system - works with dual or single receiver system
SPECIFICATIONS:
*Redundant Receiver system – works with dual or single receiver system
*S-Bus2 telemetry ready
*26 fully programmable and assignable channels
* Works with single or dual battery configuration.
* Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD.
* Full Dual Battery Redundancy - If one battery fails the other battery takes full control..
* Screen 2.4inch diagonal touch screen with 64k colour
* Screen case dimensions 3.4 x 2.0 x 0.5 inches (86 x 50 x 12)mm
* Smart Bus dimensions 4.2 x 3.0 x 0.9 inches (107 x 78 x 23)mm
*Vibrant Colour touch Screen
*Triple regulator design with dual 100A power regulator FETS.
*Multi-match technology.
Redundant Receiver system - works with dual or single receiver system
SPECIFICATIONS:
*Redundant Receiver system – works with dual or single receiver system
*S-Bus2 telemetry ready
*26 fully programmable and assignable channels
* Works with single or dual battery configuration.
* Works with all battery chemistries. LiFe. LiPo, Lion, NiMh, NiCD.
* Full Dual Battery Redundancy - If one battery fails the other battery takes full control..
* Screen 2.4inch diagonal touch screen with 64k colour
* Screen case dimensions 3.4 x 2.0 x 0.5 inches (86 x 50 x 12)mm
* Smart Bus dimensions 4.2 x 3.0 x 0.9 inches (107 x 78 x 23)mm
*Vibrant Colour touch Screen
*Triple regulator design with dual 100A power regulator FETS.
*Multi-match technology.
In stock
Price: 90 €
Price: 90 €
|
|
||
|

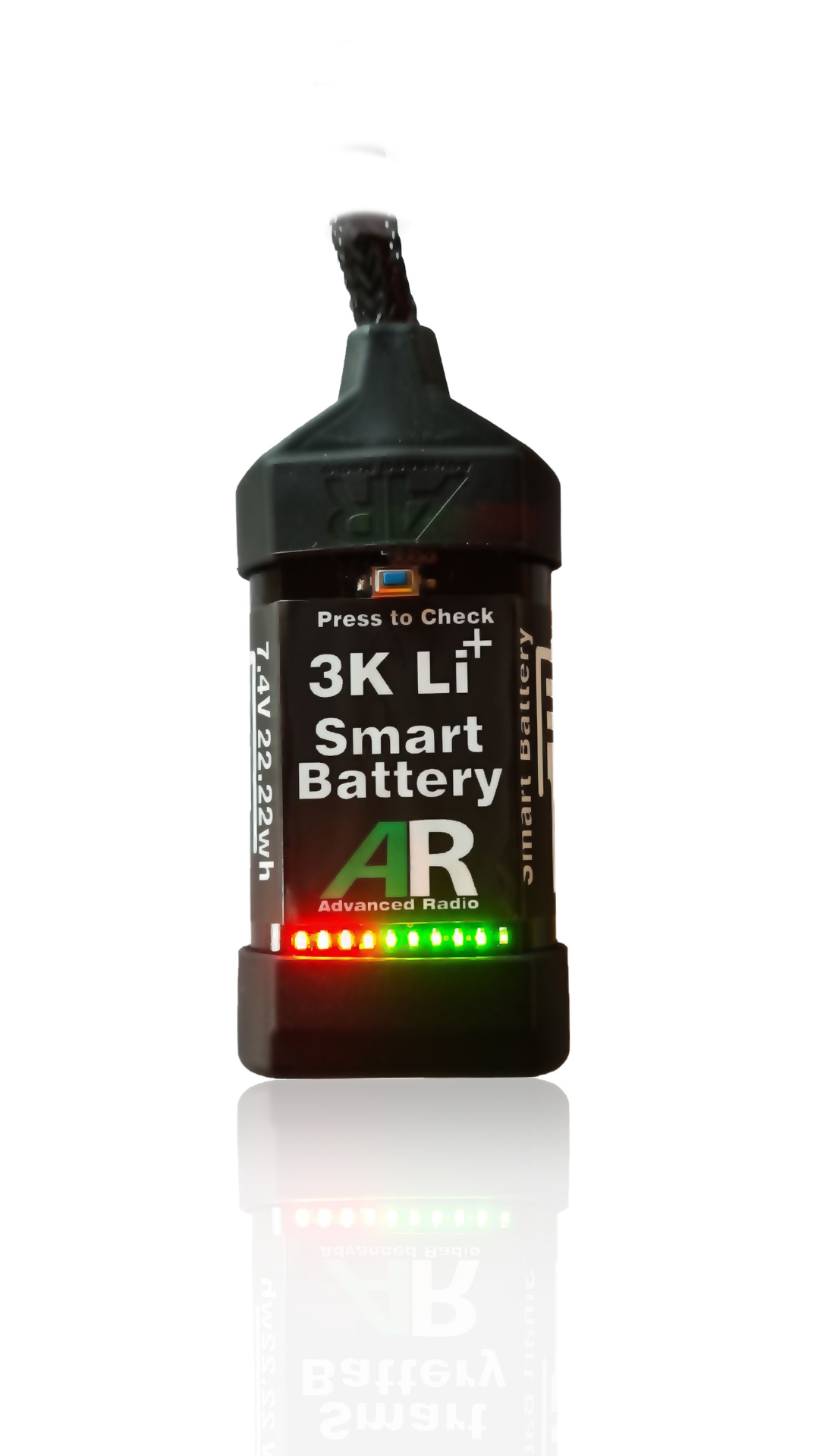

AR Li+ 3K Smart Battery
Redundant Receiver system - works with dual or single receiver system
Advanced Radio is proud to announce the all new AR Smart Battery with technology found in the computer industry and additional features specifically for the RC modeller. All this in a portable battery that can be quickly moved from model to model.
Each AR Li+ Smart Battery comes with 10 multi coloured daylight readable LEDs. As soon as your model is powered the LEDs will light up to show you the remaining capacity so you can check the health of your packs every flight. you can also check the AR Li+ Smart Battery with a simple push of a button.
AR Li+ Smart Battery is available in two sizes and capacities to suit all model types.
Each pack has a built in self balancing giving perfect balanced cells for best performance.
AR Li+ Smart Battery also provides a storage mode, by holding the button down the pack will start to discharge automatically down to storage for end of season storage.
AR Li+ Smart Battery store all pack data internally and can be read out with the AR Smart battery charger. You can of course charge the AR Li+ Smart Battery with any Lion or LiPo charger capable of fast charging.

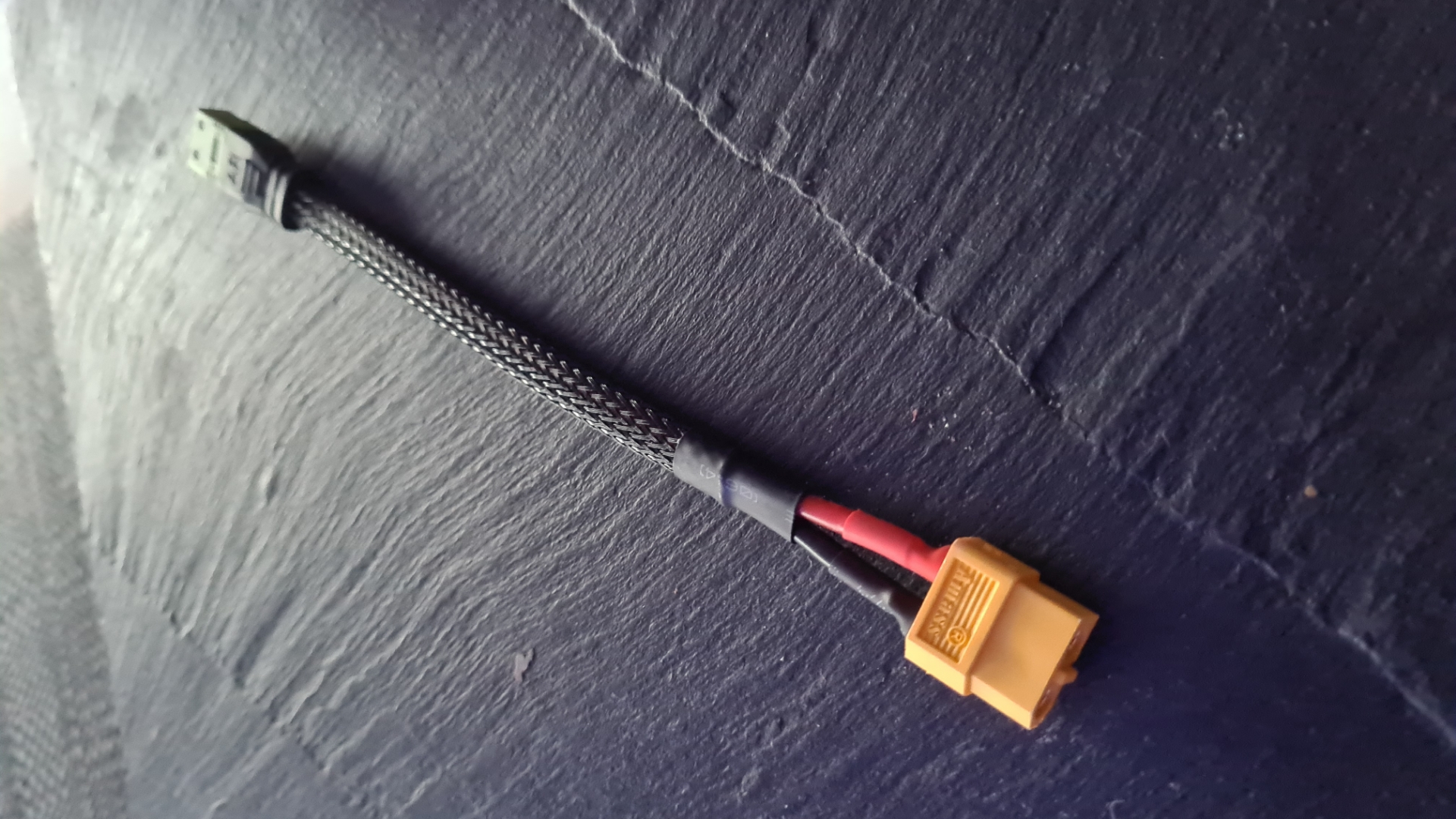

AR Li+ Smart Battery features the new high speed AR1 CAN bus connector for professional data reading by AR smart systems but can be specified with any industry connector (XT60, XT30, MPX or EC3 as adapters) so connecting to your preferred power distribution system is a breeze.

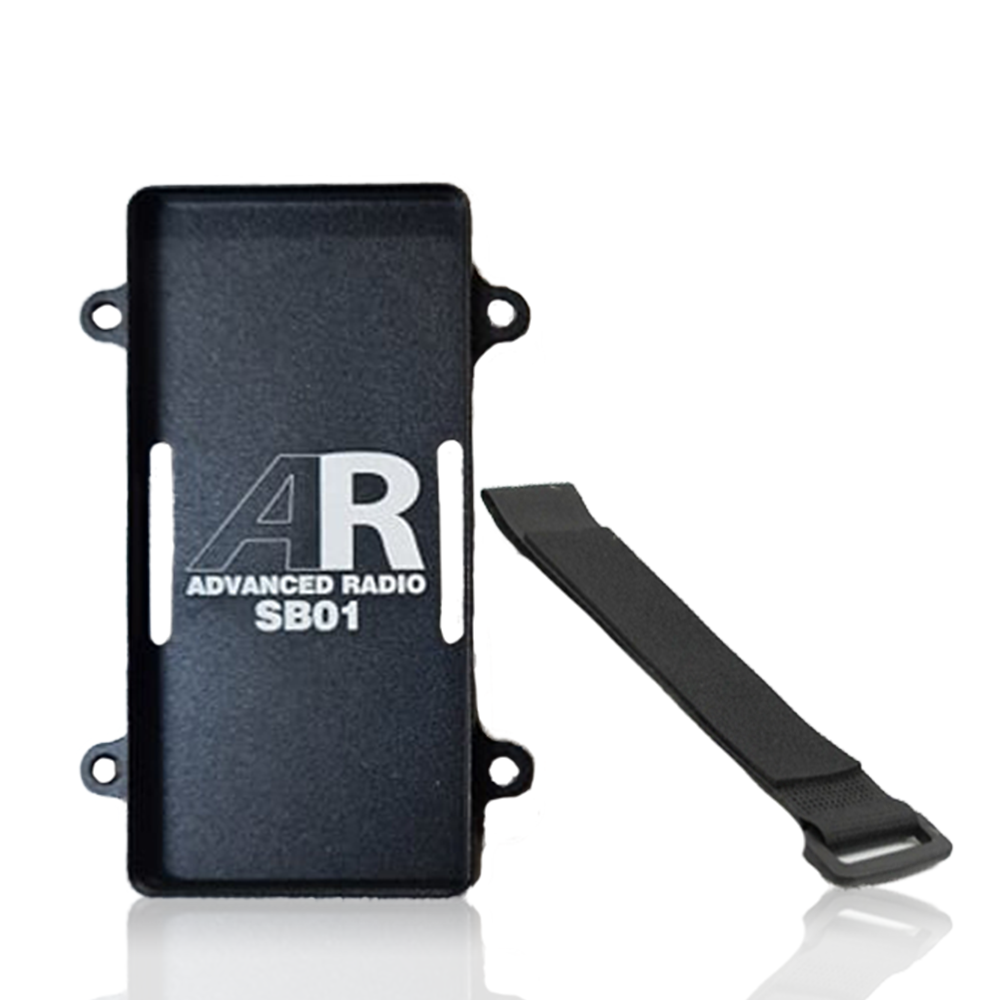

And with the optional high quality aluminium battery tray with easy release velcro strap you can easily move the AR Li+ Smart Battery between models.
Specifications
Lion 2S chemistry 7.4v to 7.6v nominal voltage.
110g 3K Li+
88 x 40 x 23 (mm) 3K Li+
210g 6K Li+
88 x 40 x 40 (mm) 6K Li+
Charge termination voltage 8.2 volts to 8.5 volts.
Built in smart self balancing.
Built in user activated Smart Storage mode.
Capacity 3K Li+ = 2S1P using high output 3200mA cells. (2600mA conservative usage monitoring)
Capacity 6K Li+ = 2S2P using high output 6400mA cells. (5200mA conservative usage monitoring)
Optional Battery Tray available.
Redundant Receiver system - works with dual or single receiver system
Advanced Radio is proud to announce the all new AR Smart Battery with technology found in the computer industry and additional features specifically for the RC modeller. All this in a portable battery that can be quickly moved from model to model.
Each AR Li+ Smart Battery comes with 10 multi coloured daylight readable LEDs. As soon as your model is powered the LEDs will light up to show you the remaining capacity so you can check the health of your packs every flight. you can also check the AR Li+ Smart Battery with a simple push of a button.
AR Li+ Smart Battery is available in two sizes and capacities to suit all model types.
Each pack has a built in self balancing giving perfect balanced cells for best performance.
AR Li+ Smart Battery also provides a storage mode, by holding the button down the pack will start to discharge automatically down to storage for end of season storage.
AR Li+ Smart Battery store all pack data internally and can be read out with the AR Smart battery charger. You can of course charge the AR Li+ Smart Battery with any Lion or LiPo charger capable of fast charging.
AR Li+ Smart Battery features the new high speed AR1 CAN bus connector for professional data reading by AR smart systems but can be specified with any industry connector (XT60, XT30, MPX or EC3 as adapters) so connecting to your preferred power distribution system is a breeze.
And with the optional high quality aluminium battery tray with easy release velcro strap you can easily move the AR Li+ Smart Battery between models.
Specifications
Lion 2S chemistry 7.4v to 7.6v nominal voltage.
110g 3K Li+
88 x 40 x 23 (mm) 3K Li+
210g 6K Li+
88 x 40 x 40 (mm) 6K Li+
Charge termination voltage 8.2 volts to 8.5 volts.
Built in smart self balancing.
Built in user activated Smart Storage mode.
Capacity 3K Li+ = 2S1P using high output 3200mA cells. (2600mA conservative usage monitoring)
Capacity 6K Li+ = 2S2P using high output 6400mA cells. (5200mA conservative usage monitoring)
Optional Battery Tray available.
