The price are in US dolla ( $ ). Delivery cost it´ll be add

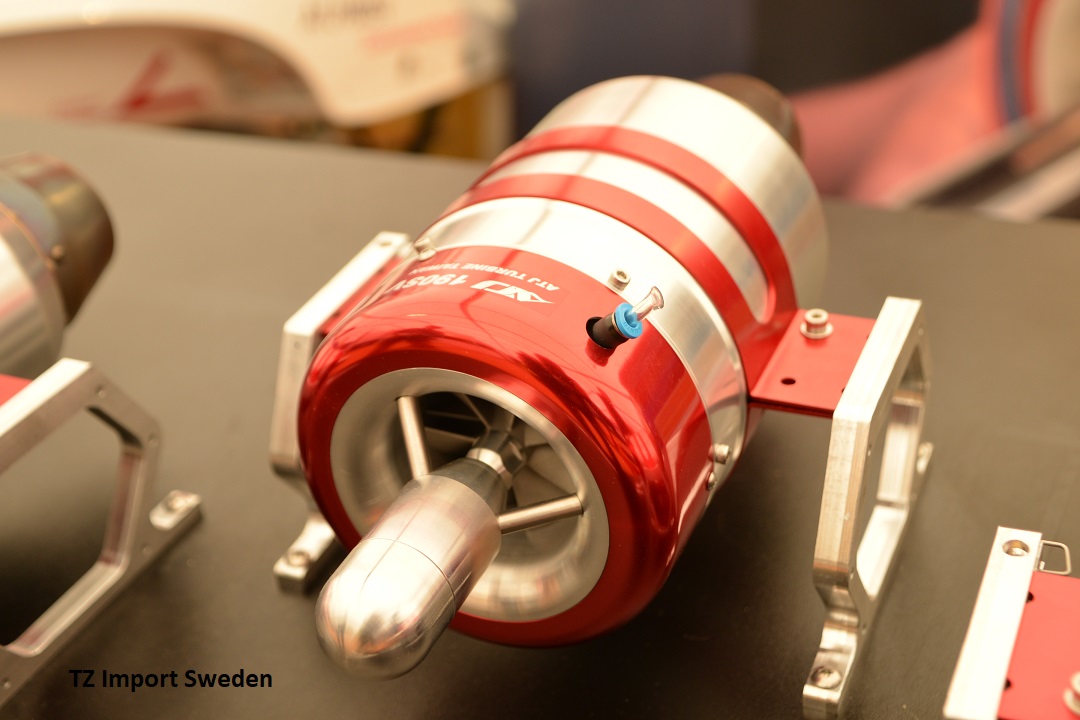

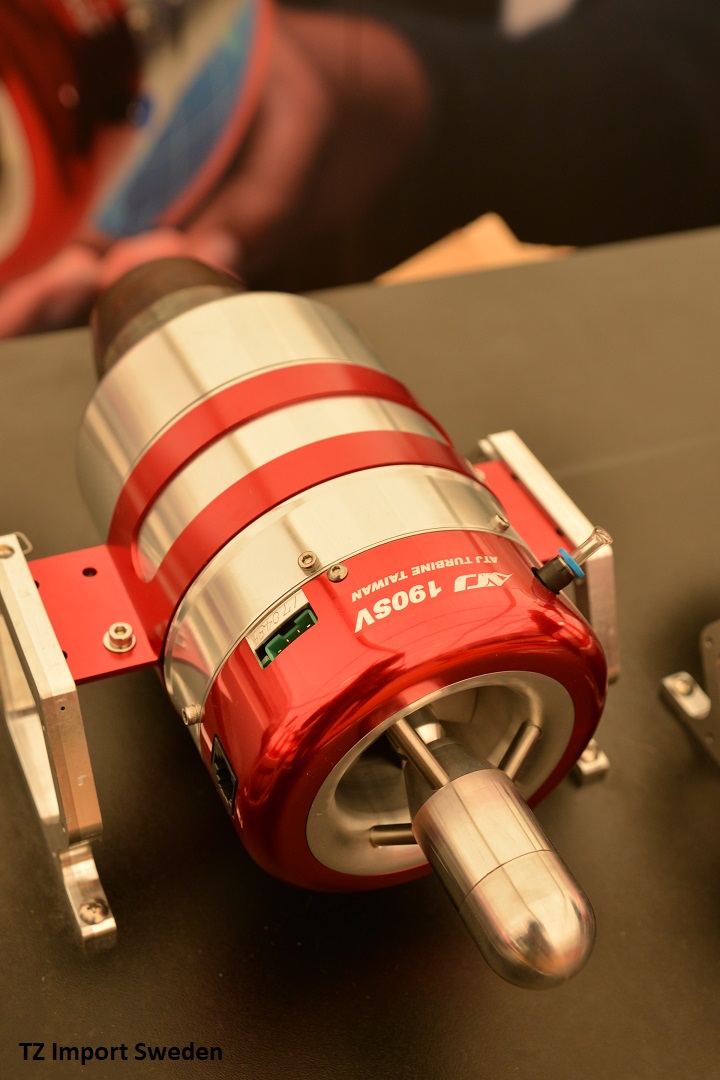

ATJ-190SV:
2015 all new version ATJ190SV , 19kg thrust turbine jet engine , ATJ190SV can cover 120 to 200 level turbine engines ,
it's super value engine in the world . This is all new design turbine , all different then old Ti series The new type V3 burner long life and fast ignition EGT sensor ,
fuel and burner valve Inside the engine front cover , one FASTO fitting for fuel inlet engine. full Inconel 600 material combustion chamber long use life over 300hr
Inconel 713 material made turbine wheel and NGV , Diffuser , intake , upper cover , engine case .. etc made by T6061 aviation level aluminum rod barCNC machine to finish product ,
long life starter motor low working temperature
We also keep aluminum starter case not use plastic starter case
Xicoy V10 kerostart ECU and GSU easy to use .
ATJ190SV Turbine engine Specifications
Dimensions : Outer Diameter 112mm; Length: 298mm
Weight : 1780grams (including starter)
Maximum thrust : 18.8KG @ 123,000rpm
Idle RPM : 35,000 Idle
thrust @ 35,000 : 0.75KG
EGT : 550 - 690 degree C
Fuel Consumption : @ max rpm 580 gms/min
Fuel/ oil : Jet fuel or Kerosene or Diesel + 5% oil (synthetic turbine engine oil)

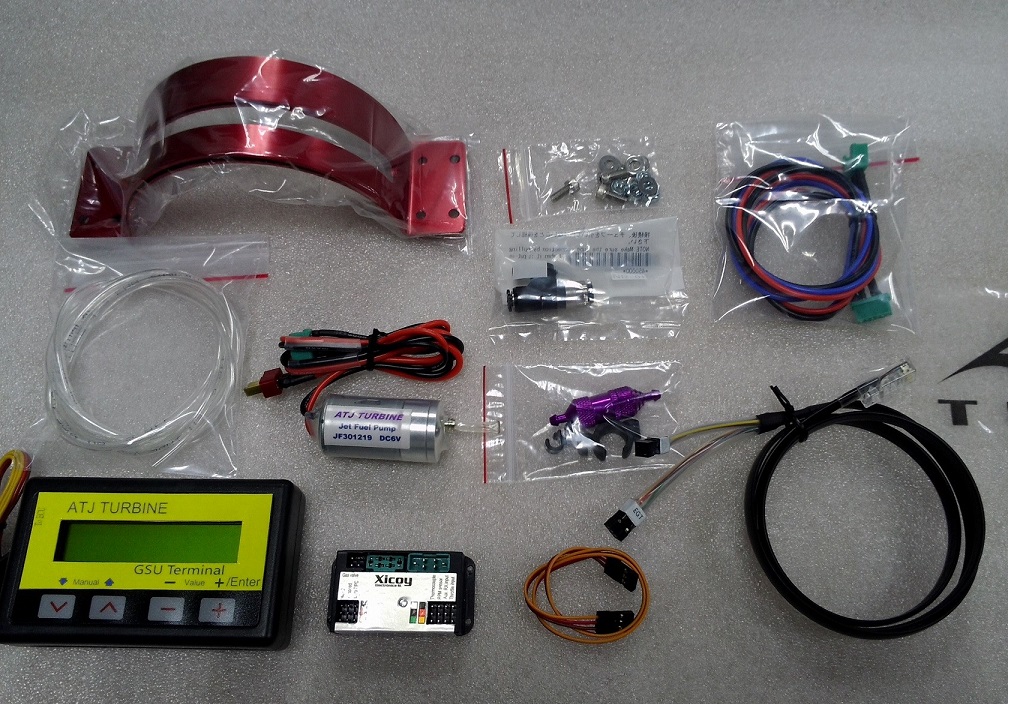

ATJ190SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. Electronic cables
10. User’s manual
Price: 2830 $
2015 all new version ATJ190SV , 19kg thrust turbine jet engine , ATJ190SV can cover 120 to 200 level turbine engines ,
it's super value engine in the world . This is all new design turbine , all different then old Ti series The new type V3 burner long life and fast ignition EGT sensor ,
fuel and burner valve Inside the engine front cover , one FASTO fitting for fuel inlet engine. full Inconel 600 material combustion chamber long use life over 300hr
Inconel 713 material made turbine wheel and NGV , Diffuser , intake , upper cover , engine case .. etc made by T6061 aviation level aluminum rod barCNC machine to finish product ,
long life starter motor low working temperature
We also keep aluminum starter case not use plastic starter case
Xicoy V10 kerostart ECU and GSU easy to use .
ATJ190SV Turbine engine Specifications
Dimensions : Outer Diameter 112mm; Length: 298mm
Weight : 1780grams (including starter)
Maximum thrust : 18.8KG @ 123,000rpm
Idle RPM : 35,000 Idle
thrust @ 35,000 : 0.75KG
EGT : 550 - 690 degree C
Fuel Consumption : @ max rpm 580 gms/min
Fuel/ oil : Jet fuel or Kerosene or Diesel + 5% oil (synthetic turbine engine oil)
ATJ190SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. Electronic cables
10. User’s manual
Price: 2830 $
|
|
||
|

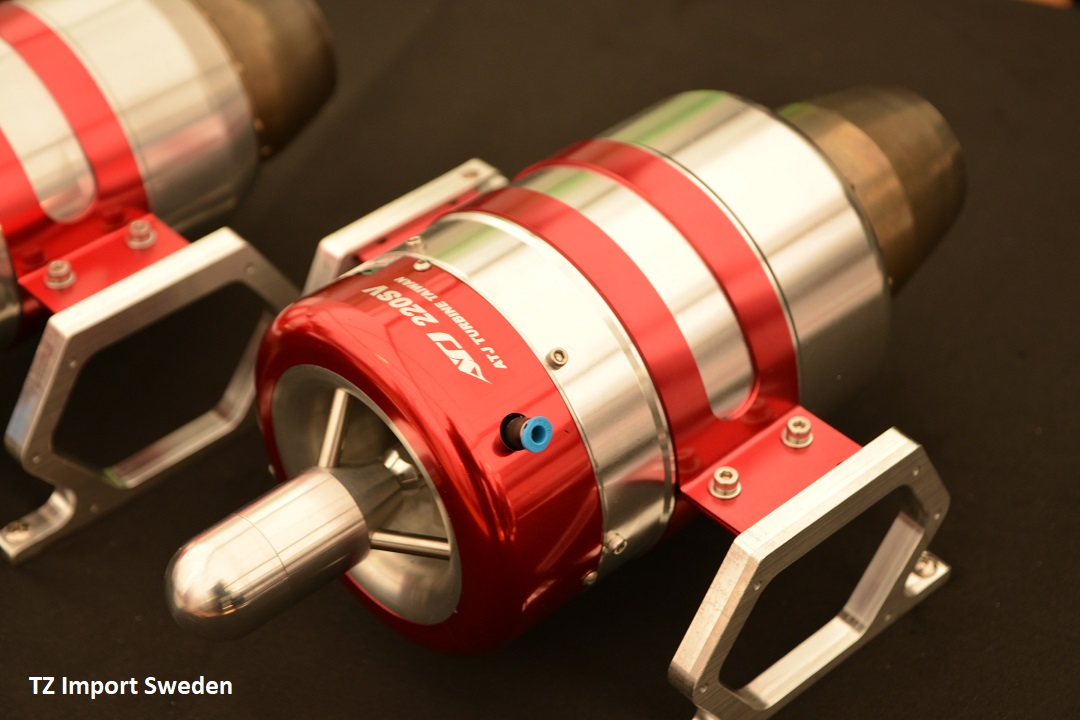

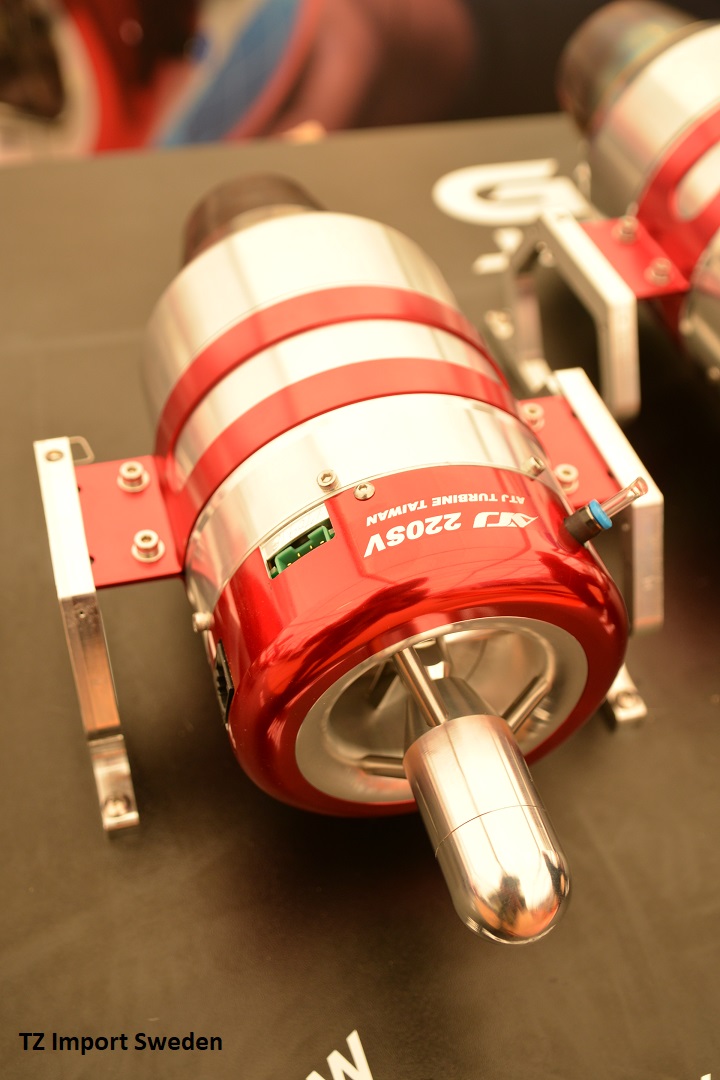

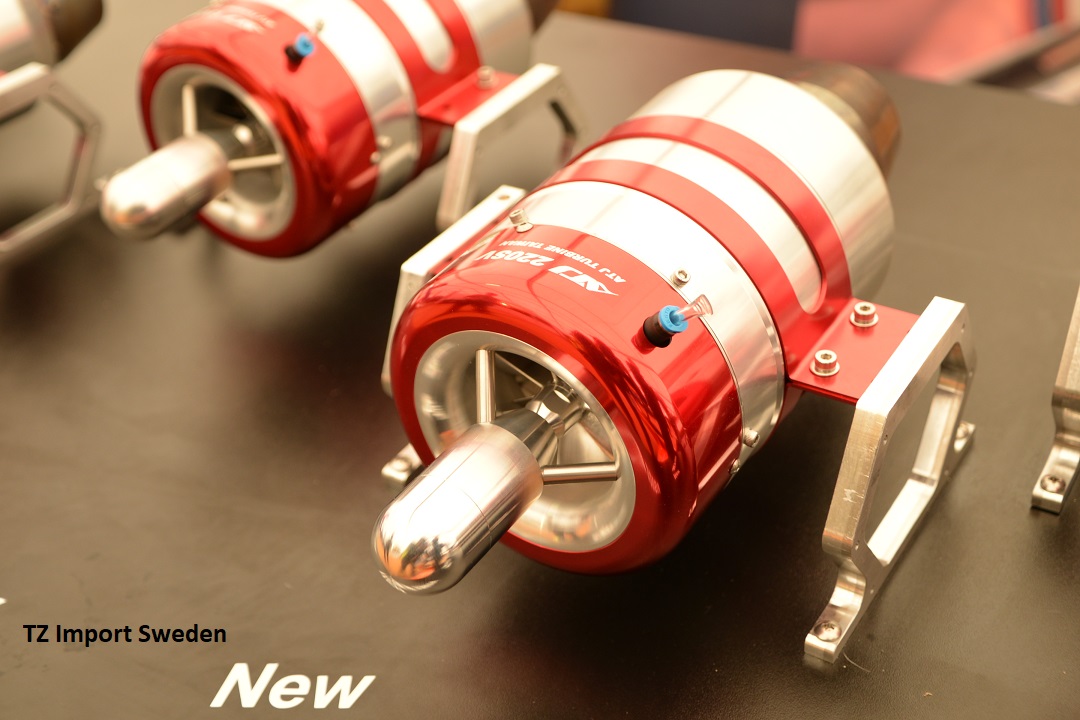

ATJ-220SV:
2015 all new version ATJ220SV , 22kg thrust turbine jet engine it's super value engine in the world .
This is all new design turbine , all different then old Ti series The new type V3 burner long life and fast ignition
EGT sensor , fuel and burner valve Inside the engine front cover , one FASTO fitting for fuel inlet engine.
full Inconel 600 material combustion chamber long life over 300hr , engine major parts turbine wheel and NGV use Inconel 713 material ,
Diffuser , intake , upper cover , engine case .. etc made by T6061 aviation level aluminum rod bar all use CNC machine to finish product ,
long life starter motor low working temperature We also keep aluminum starter case not use plastic starter case ,
Xicoy V10 kerostart ECU and GSU easy to use .
ATJ220SV Turbine engine Specifications
Dimensions : Outer Diameter 112mm; Length: 293mm
Weight : 1780grams (including starter)
Maximum thrust : 22KG @ 123,000rpm
Idle RPM : 35,000 Idle thrust @ 35,000 : 0.85KG
EGT : 430 - 630 degree C ,
Fuel Consumption : @ max rpm 650 gms/min ,
Fuel/ oil : Jet fuel or Kerosene or Diesel + 5% oil (synthetic turbine engine oil)
ATJ220SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy small type GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. FOD screen
10. Electronic cables
11. User’s manual
Price: 3117 $
2015 all new version ATJ220SV , 22kg thrust turbine jet engine it's super value engine in the world .
This is all new design turbine , all different then old Ti series The new type V3 burner long life and fast ignition
EGT sensor , fuel and burner valve Inside the engine front cover , one FASTO fitting for fuel inlet engine.
full Inconel 600 material combustion chamber long life over 300hr , engine major parts turbine wheel and NGV use Inconel 713 material ,
Diffuser , intake , upper cover , engine case .. etc made by T6061 aviation level aluminum rod bar all use CNC machine to finish product ,
long life starter motor low working temperature We also keep aluminum starter case not use plastic starter case ,
Xicoy V10 kerostart ECU and GSU easy to use .
ATJ220SV Turbine engine Specifications
Dimensions : Outer Diameter 112mm; Length: 293mm
Weight : 1780grams (including starter)
Maximum thrust : 22KG @ 123,000rpm
Idle RPM : 35,000 Idle thrust @ 35,000 : 0.85KG
EGT : 430 - 630 degree C ,
Fuel Consumption : @ max rpm 650 gms/min ,
Fuel/ oil : Jet fuel or Kerosene or Diesel + 5% oil (synthetic turbine engine oil)
ATJ220SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy small type GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. FOD screen
10. Electronic cables
11. User’s manual
Price: 3117 $
|
Dealer for Sweden and Denmark
|
|
||
|

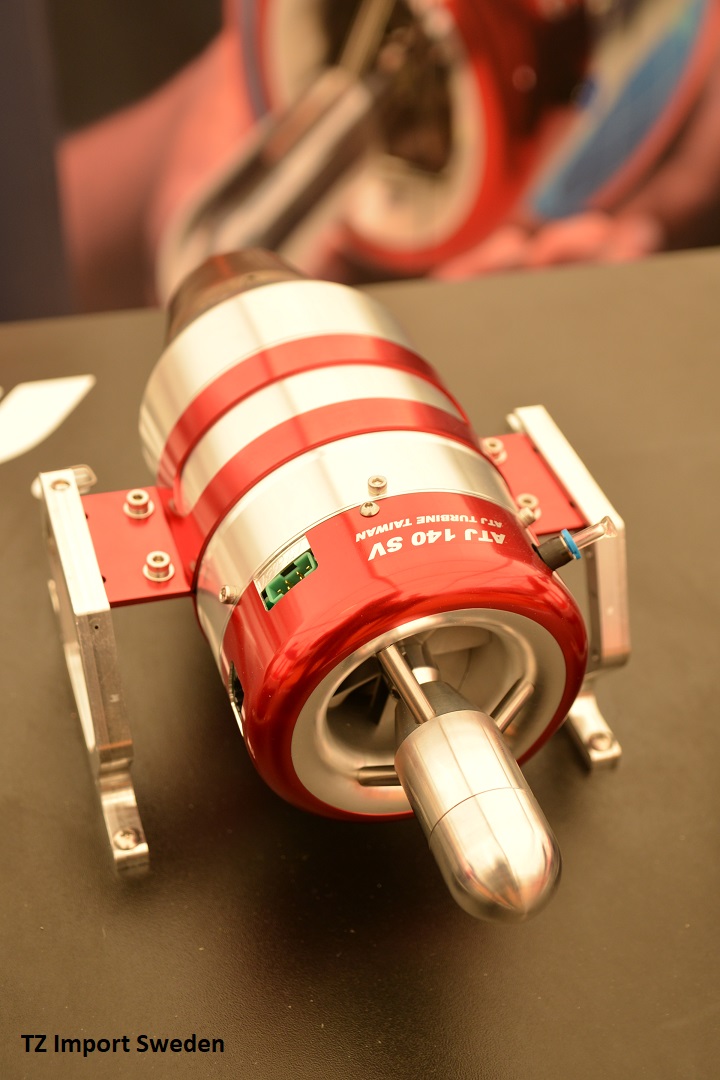

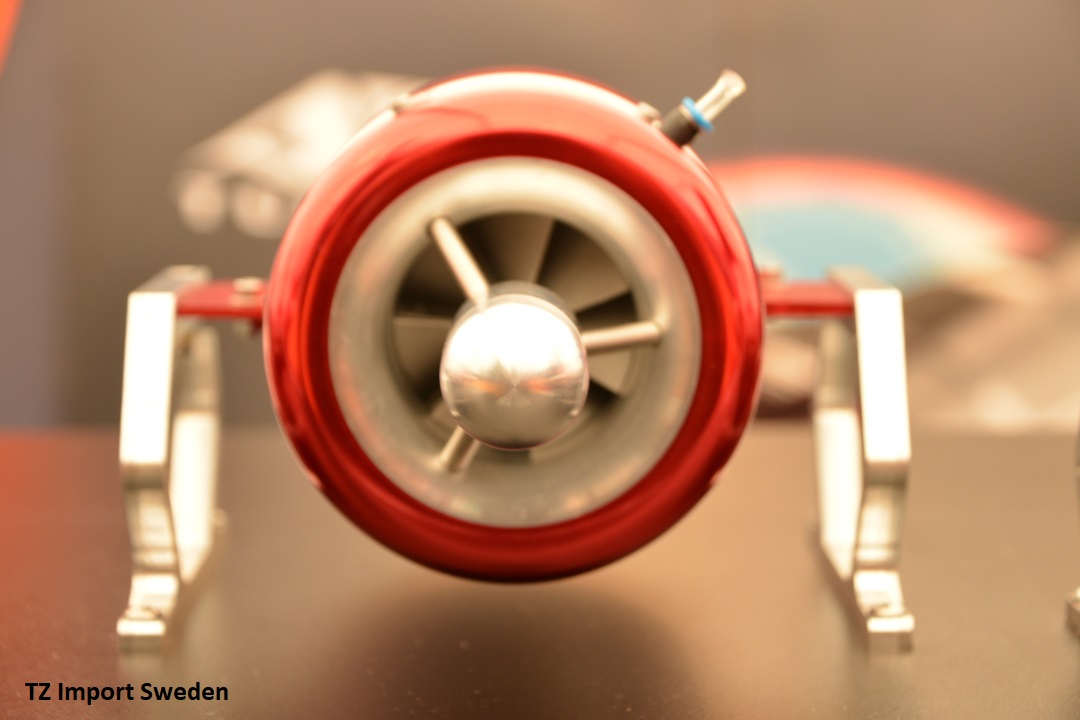

ATJ140SV:
it's super value engine in the world . This is all new design turbine , all different then old Ti series The new type V3 burner long life and fast ignition EGT sensor ,
fuel and burner valve Inside the engine front cover , one FASTO fitting for fuel inlet engine. full Inconel 600 material combustion chamber long use life over 300hr
Inconel 713 material made turbine wheel and NGV , Diffuser , intake , upper cover , engine case .. etc made by T6061 aviation level aluminum rod barCNC machine to finish product ,
long life starter motor low working temperature
We also keep aluminum starter case not use plastic starter case
Xicoy V10 kerostart ECU and GSU easy to use .
ATJ140SV Turbine engine Specifications
Dimensions : Outer Diameter 99mm; Length: 276mm
Weight : 1470grams (including starter)
Maximum thrust : 14KG @ 123,000rpm
Idle RPM : 35,000 Idle
thrust @ 35,000 : 0.6 KG
EGT : 400 - 550 degree C
Fuel Consumption : @ max rpm 490 gms/min
Fuel/ oil : Jet fuel or Kerosene or Diesel + 5% oil (synthetic turbine engine oil)
ATJ140SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. Electronic cables
10. User’s manual
Price: 2450 $
it's super value engine in the world . This is all new design turbine , all different then old Ti series The new type V3 burner long life and fast ignition EGT sensor ,
fuel and burner valve Inside the engine front cover , one FASTO fitting for fuel inlet engine. full Inconel 600 material combustion chamber long use life over 300hr
Inconel 713 material made turbine wheel and NGV , Diffuser , intake , upper cover , engine case .. etc made by T6061 aviation level aluminum rod barCNC machine to finish product ,
long life starter motor low working temperature
We also keep aluminum starter case not use plastic starter case
Xicoy V10 kerostart ECU and GSU easy to use .
ATJ140SV Turbine engine Specifications
Dimensions : Outer Diameter 99mm; Length: 276mm
Weight : 1470grams (including starter)
Maximum thrust : 14KG @ 123,000rpm
Idle RPM : 35,000 Idle
thrust @ 35,000 : 0.6 KG
EGT : 400 - 550 degree C
Fuel Consumption : @ max rpm 490 gms/min
Fuel/ oil : Jet fuel or Kerosene or Diesel + 5% oil (synthetic turbine engine oil)
ATJ140SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. Electronic cables
10. User’s manual
Price: 2450 $
|
|
||
|
|
|
||
|

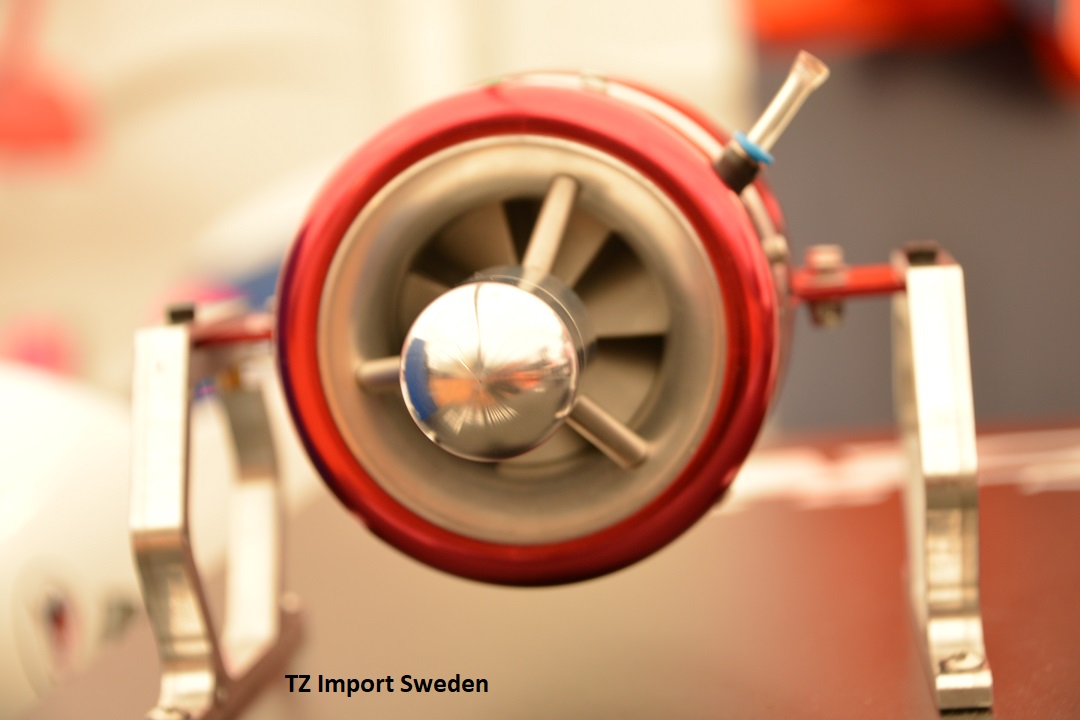

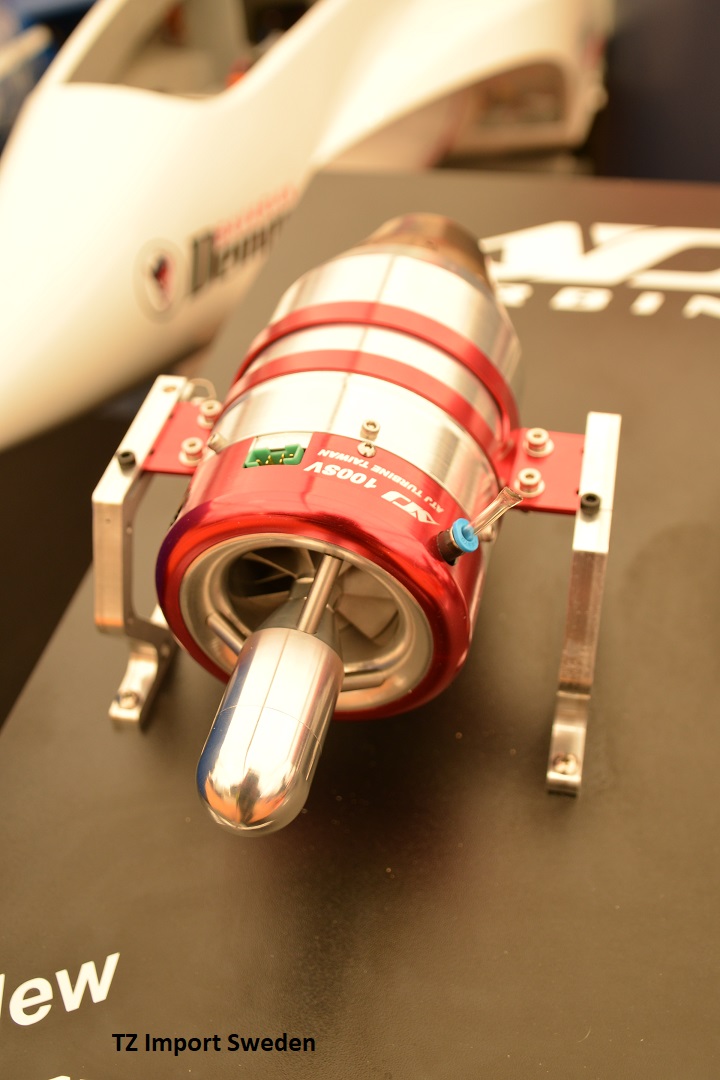

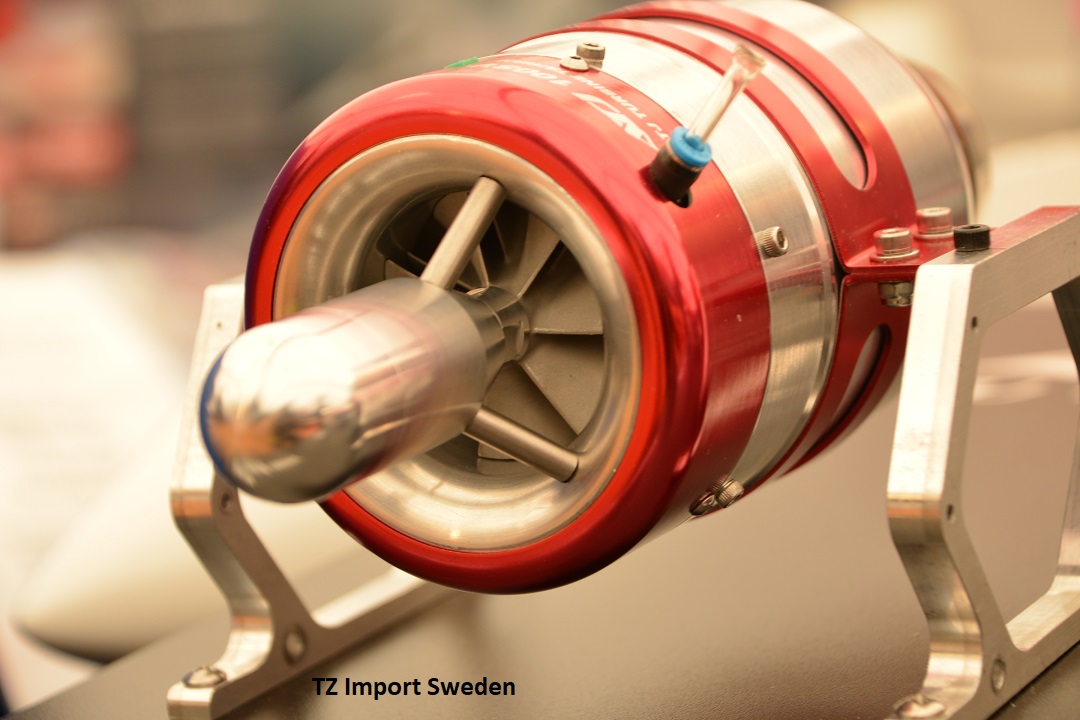

ATJ-100SV:
ATJ100SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy small type GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. FOD screen
10. Electronic cables
11. User’s manual
Price: $
ATJ100SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy small type GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. FOD screen
10. Electronic cables
11. User’s manual
Price: $
News 2017
ATJ-225SV:
ATJ100SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy small type GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. FOD screen
10. Electronic cables
11. User’s manual
Price: €
ATJ100SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy small type GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. FOD screen
10. Electronic cables
11. User’s manual
Price: €
|
|
|
|
||
|
|

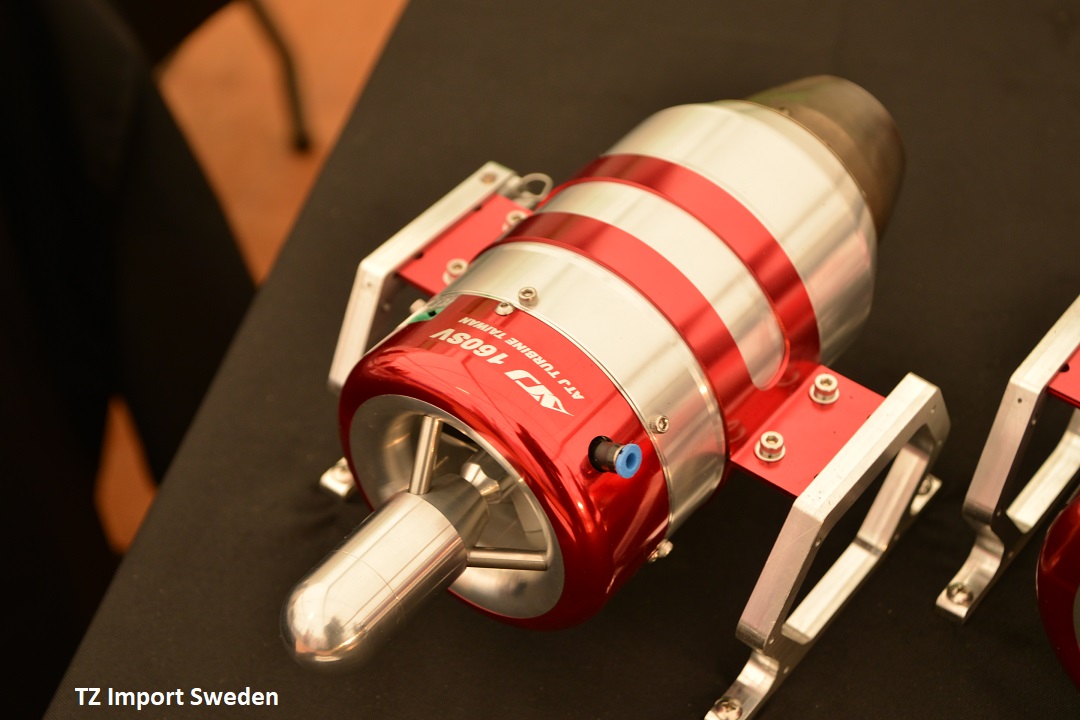

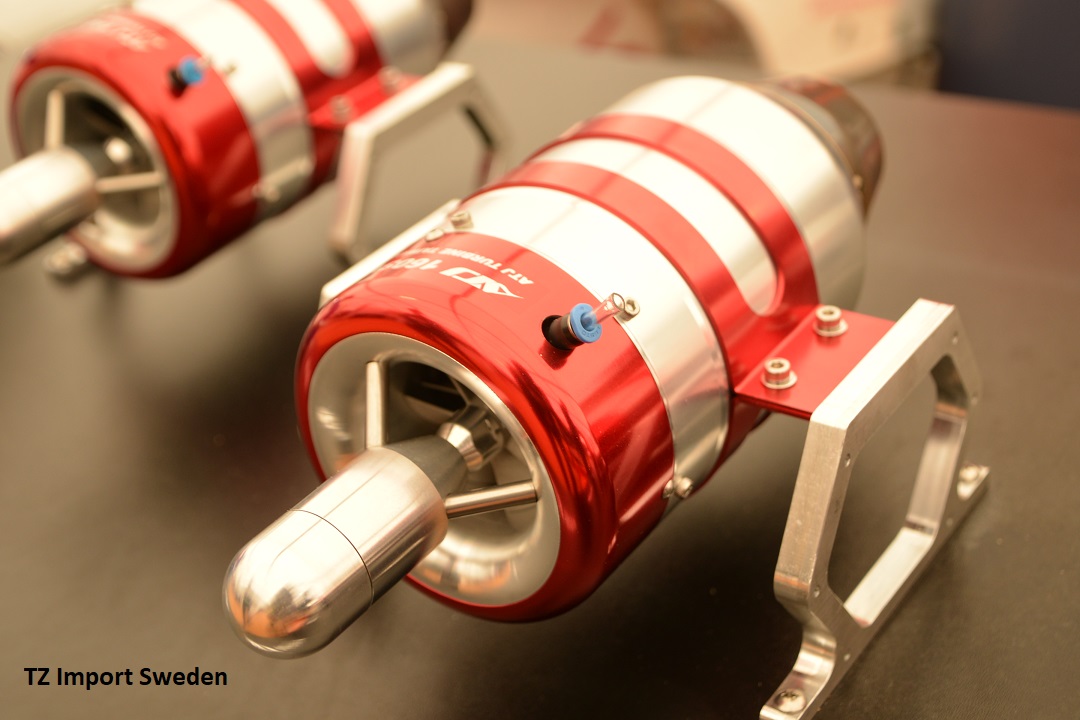

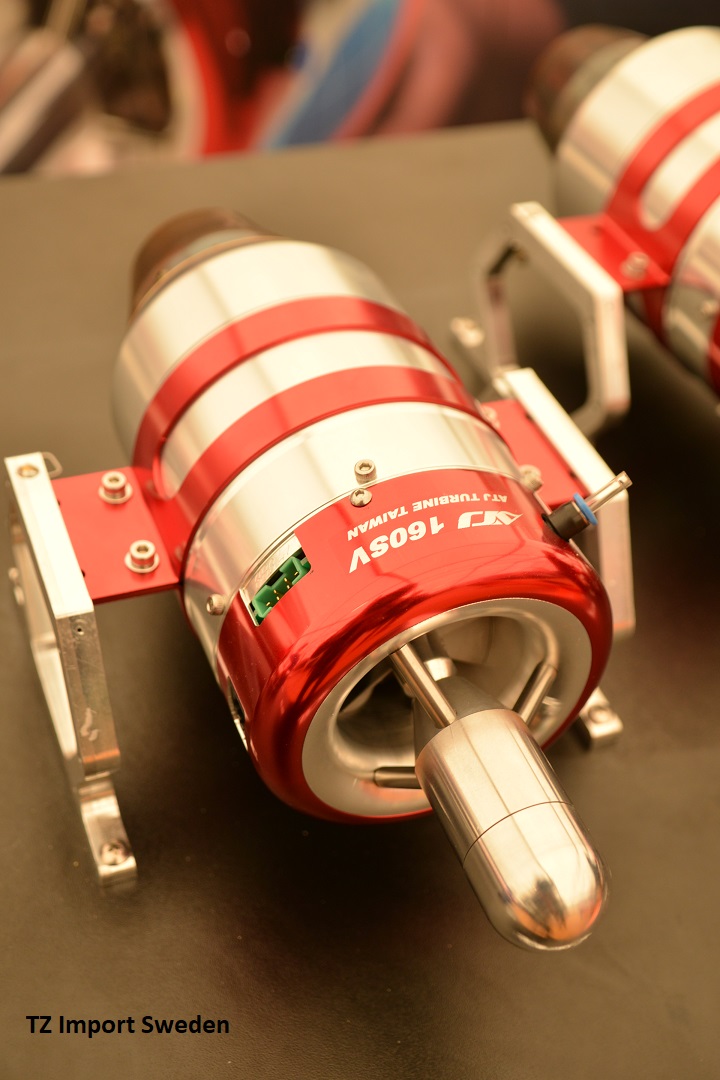

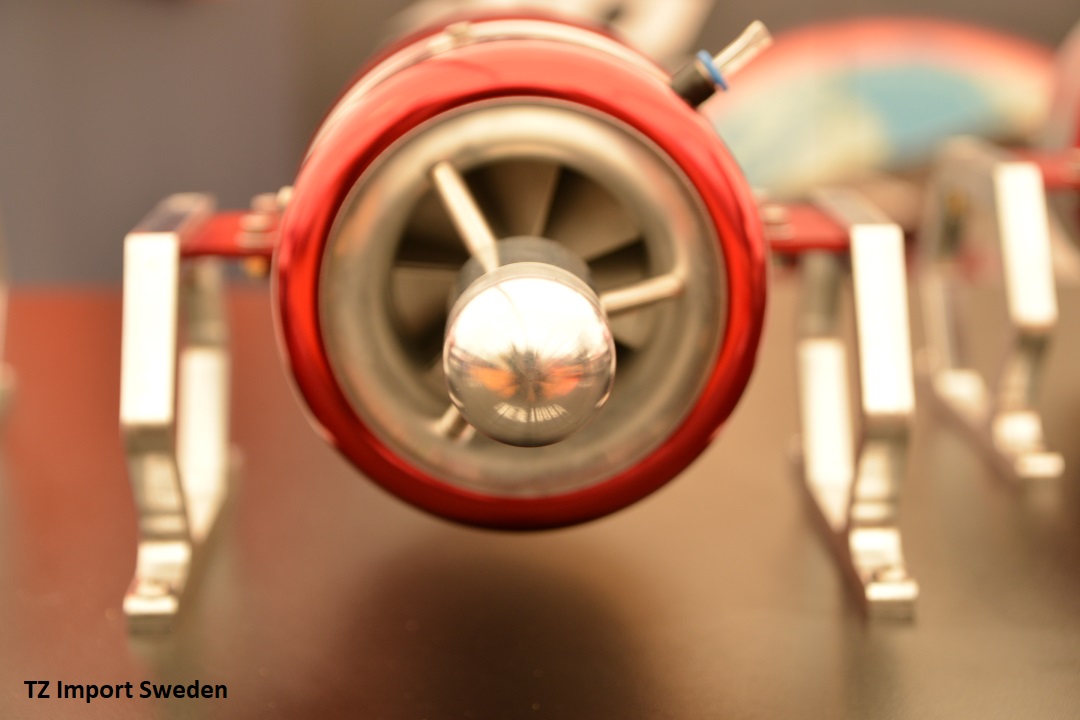

ATJ-160SV:
2017 ATJ first announce 16 kg thrust turbine jet engine
ATJ 160 SV come with new air flow impeller and diffuser , new design combusion chamber , the engine size the same as ATJ140SV and more powerful .
ATJ160SV Turbine engine Specifications
Dimensions : Outer Diameter 99mm; Length: 276mm
Weight : 1480 g
Nominal thrust : 16KG @ 124,000rpm
Idle RPM : 35,000
Idle thrust @ 35,000 : 0.7KG
EGT : 400-5500C
Fuel Consumption : @ max rpm 550 gms/min
Fuel/ oil : Jet -A1, Kerosene or Diesel + 5% oil (synthetic turbine engine oil)
Use Xicoy V10 ECU and GSU
Inside EGT sensor , solid valves , only one Fasto fitting to engine .
ATJ160SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. FOD screen
10. Electronic cables
11. User’s manual
Price: 2610 $
2017 ATJ first announce 16 kg thrust turbine jet engine
ATJ 160 SV come with new air flow impeller and diffuser , new design combusion chamber , the engine size the same as ATJ140SV and more powerful .
ATJ160SV Turbine engine Specifications
Dimensions : Outer Diameter 99mm; Length: 276mm
Weight : 1480 g
Nominal thrust : 16KG @ 124,000rpm
Idle RPM : 35,000
Idle thrust @ 35,000 : 0.7KG
EGT : 400-5500C
Fuel Consumption : @ max rpm 550 gms/min
Fuel/ oil : Jet -A1, Kerosene or Diesel + 5% oil (synthetic turbine engine oil)
Use Xicoy V10 ECU and GSU
Inside EGT sensor , solid valves , only one Fasto fitting to engine .
ATJ160SV Engine package include
1. Turbine engine
2. Engine Mount set
3. Fuel pump set
4. ECU ( Xicoy V10 Kerostart )
5. GSU (Xicoy GSU for V10 ECU )
6. 4mm Fuel tube
7. Fuel filter
8. Fuel cut off valve
9. FOD screen
10. Electronic cables
11. User’s manual
Price: 2610 $
