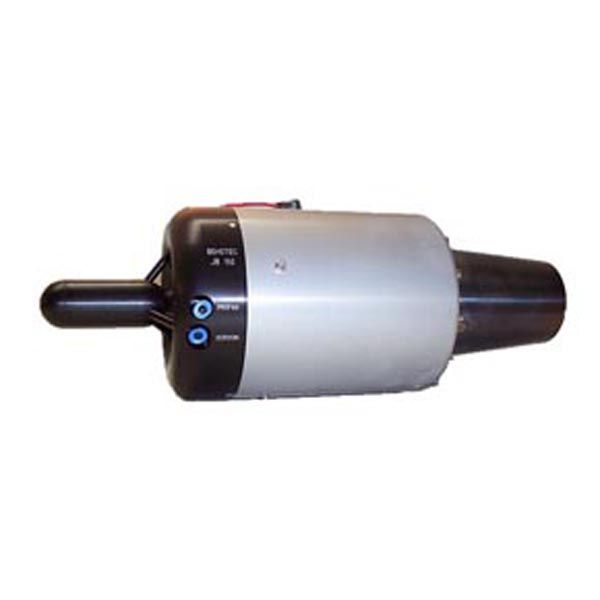

TURBINE SET CONTENTS:
JB-130 TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
SPECIFICATION:
DIAMETER: 113mm
LENGHT: 325mm
WEIGHT: 1500g
MAX THRUST: 135N TO 120.000 rpm
MIN THRUST: 7N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST: 500ml/min
EXHAUST TEMPERATURE: 650 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3199 JB-130G ( GAS START )
PRICE: 3353 JB-130K ( KEROSEN START )
JB-130 TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
SPECIFICATION:
DIAMETER: 113mm
LENGHT: 325mm
WEIGHT: 1500g
MAX THRUST: 135N TO 120.000 rpm
MIN THRUST: 7N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST: 500ml/min
EXHAUST TEMPERATURE: 650 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3199 JB-130G ( GAS START )
PRICE: 3353 JB-130K ( KEROSEN START )
TURBINE SET CONTENTS:

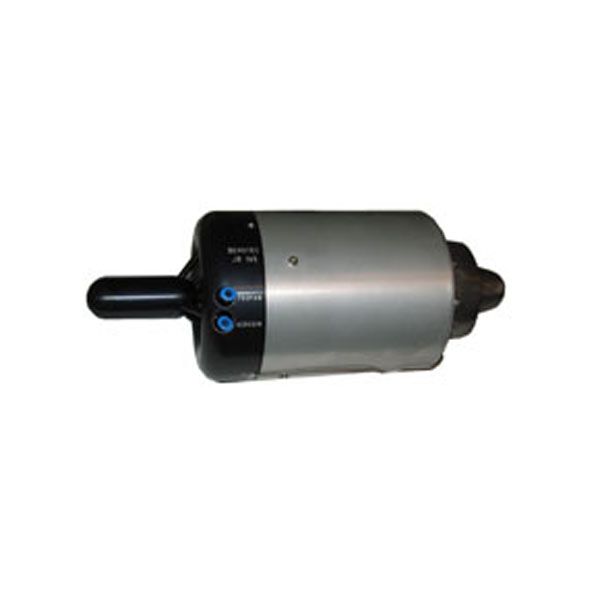

JB-165 TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
SPECIFICATION:
DIAMETER: 113mm
LENGHT: 292mm
WEIGHT: 1480g
MAX THRUST: 165N TO 120.000 rpm
MIN THRUST: 7N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST: 550ml/min
EXHAUST TEMPERATURE: 680 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3222 JB-165G ( GAS START )
PRICE: 3376 JB-165K ( KEROSEN START )
JB-165 TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
SPECIFICATION:
DIAMETER: 113mm
LENGHT: 292mm
WEIGHT: 1480g
MAX THRUST: 165N TO 120.000 rpm
MIN THRUST: 7N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST: 550ml/min
EXHAUST TEMPERATURE: 680 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3222 JB-165G ( GAS START )
PRICE: 3376 JB-165K ( KEROSEN START )
TURBINE SET CONTENTS:

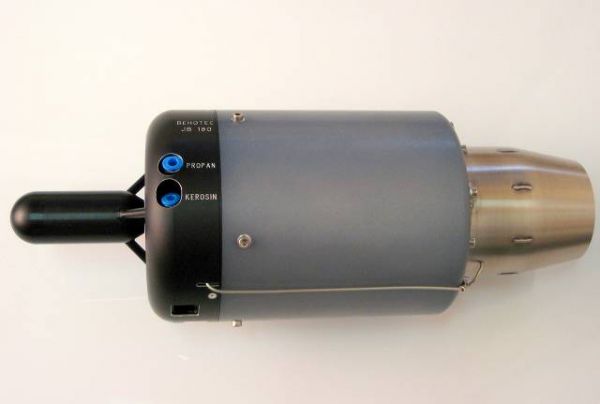

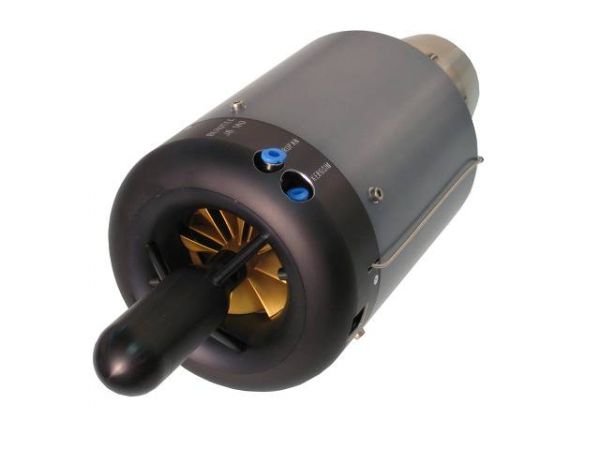

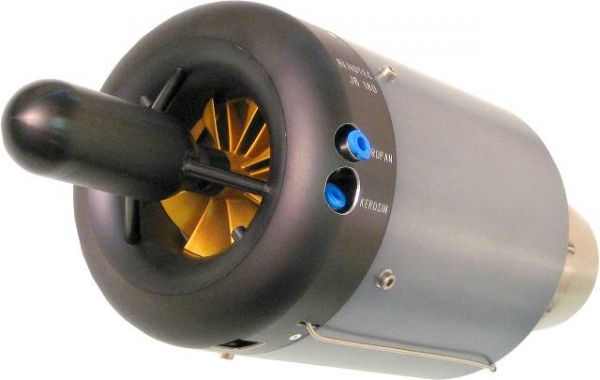

JB-180 GOLD EDITION
TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
SPECIFICATION:
DIAMETER: 113mm
LENGHT: 320mm
WEIGHT: 1580g
MAX THRUST: 180N TO 120.000 rpm
MIN THRUST: 8N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST: 550ml/min
EXHAUST TEMPERATURE: 680 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3499 JB-180K-GOLD EDITION ( KEROSEN START )
JB-180 GOLD EDITION
TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
SPECIFICATION:
DIAMETER: 113mm
LENGHT: 320mm
WEIGHT: 1580g
MAX THRUST: 180N TO 120.000 rpm
MIN THRUST: 8N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST: 550ml/min
EXHAUST TEMPERATURE: 680 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3499 JB-180K-GOLD EDITION ( KEROSEN START )
TURBINE SET CONTENTS:

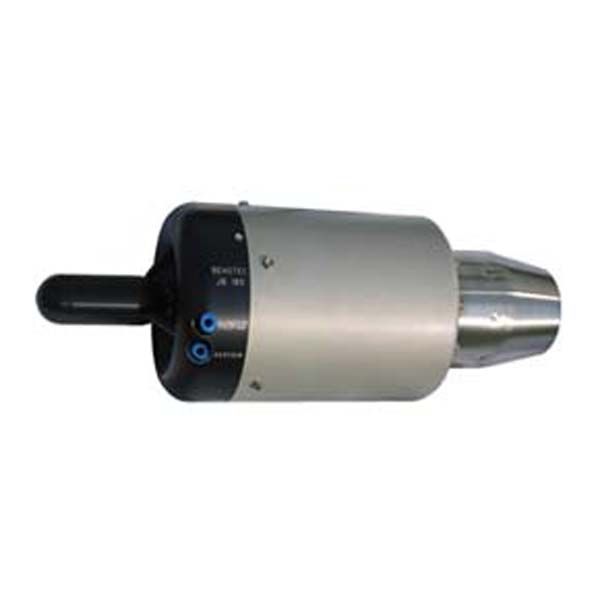

JB-180 TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
SPECIFICATION:
DIAMETER: 113mm
LENGHT: 320mm
WEIGHT: 1580g
MAX THRUST: 180N TO 125.000 rpm
MIN THRUST: 8N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST: 500ml/min
EXHAUST TEMPERATURE: 650 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3273 JB-180G ( GAS START )
PRICE: 3427 JB-180K ( KEROSEN START )
JB-180 TURBINE WITH ELECTRIC STARTER, ECU ( ENGINE CONTROL UNIT ), GSU ( GROUND SUPPORT UNIT ), SET OF CABLES, PRO JET MANUALS, KEROSENE PUMP TYPE P7-2, KEROSENE FILTER, PROPANE FILTER, FELTCLUNK, CLUNK ADAPTER, TUBING FOR KEROSENE AND PROPANE, GLOWPLUG WRENCH, TYGON TUBING, ONBOARD GAS TANK, TURBINE MOUNT, TURBINE HANDBOOK, TESTRUN CERTIFICATE.
SPECIFICATION:
DIAMETER: 113mm
LENGHT: 320mm
WEIGHT: 1580g
MAX THRUST: 180N TO 125.000 rpm
MIN THRUST: 8N TO 35.000 rpm
FUEL CONSUMPTION MAX THRUST: 500ml/min
EXHAUST TEMPERATURE: 650 *C
FUEL: JET A1, DIESEL, PARAFFIN ( +5% TURBINE OIL )
PRICE: 3273 JB-180G ( GAS START )
PRICE: 3427 JB-180K ( KEROSEN START )
The price are in Euro ( ) include 25% VAT. Delivery cost it΄ll be add
|

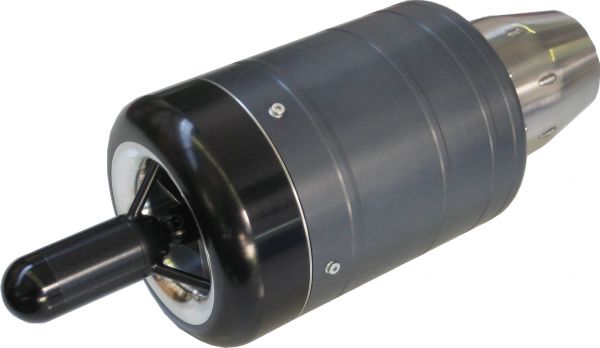

The JB220 is based up the advancement of the legendary JB180 Gold Edition. The turbine is equipped with a 5 axle CNC milled compressor. This is made of special high-strength aluminum alloy. The brand new combustion chamber technology combined with the compressor allows a very fast acceleration, excelent quiet running, as well as extraordinary dynamics to the turbine. The engine is provided as a standard with a starter and with all accessories necessary for the installation less battery. Test run certificate, delivered. The turbine is only available with kerosene start. The kerosene burner and also the temperatur probe is fully integrated. The provided ECU (Electronic Controll Unit) is using a special software for the JB220 and need only one receiving channel. The turbine electronic under the front cover is equiped with an I/D chip. For current supply we recommend a 3S Lipo with ca.2500mAh and max.12Volts. We give two years to warranty on the complete turbine.
Worldwide, the most powerful turbine in his class, if you compare diameter, weight, thrust.
This turbine is the standard for all large Jet models, which are on the weight limit of 25 kg.
This set brings a weight saving of arround 1210grams, compared with turbines of equal thrust class.
The turbine can be operated with derated thrust as well, this allows also the operation in smaller models.
If you compare the kerosene/diesel consumption at arround 160-180Newton with others
Turbines of 160-180Newton class a significantly lower fuel consumption arises also here.
Technical data:
Diameter113 mm 4,45inch
Length313 mm 12,32inch
Weight1640g 3,62lbs
max. thrust220N 49,46lbs @ 123,000 rpm
min. thrust8,05N 1,7~1,81lbs @ 35,000 rpm
Fuel consumption @max. thrustarround 720 ml/min
Exhaust gas temperature@ max. thrustarround 750°
FuelDiesel or Jet A1 (+5% turbine oil)
Acceleration 35.000 120 begin_of_the_skype_highlighting FREE 00 120 end_of_the_skype_highlighting.000 rpm4 seconds aprox.
Acceleration 60.000 120 begin_of_the_skype_highlighting FREE 00 120 end_of_the_skype_highlighting.000 rpm1 second aprox.
Turbine set JB220 JB220 3.990,00EUR
all data measured at - S.T.P. Standard Temp. & Pressure Temp: 15° Celcius / 59° Fahrenheit, Pressure: 1013 Mbar / 29.91 in
Worldwide, the most powerful turbine in his class, if you compare diameter, weight, thrust.
This turbine is the standard for all large Jet models, which are on the weight limit of 25 kg.
This set brings a weight saving of arround 1210grams, compared with turbines of equal thrust class.
The turbine can be operated with derated thrust as well, this allows also the operation in smaller models.
If you compare the kerosene/diesel consumption at arround 160-180Newton with others
Turbines of 160-180Newton class a significantly lower fuel consumption arises also here.
Technical data:
Diameter113 mm 4,45inch
Length313 mm 12,32inch
Weight1640g 3,62lbs
max. thrust220N 49,46lbs @ 123,000 rpm
min. thrust8,05N 1,7~1,81lbs @ 35,000 rpm
Fuel consumption @max. thrustarround 720 ml/min
Exhaust gas temperature@ max. thrustarround 750°
FuelDiesel or Jet A1 (+5% turbine oil)
Acceleration 35.000 120 begin_of_the_skype_highlighting FREE 00 120 end_of_the_skype_highlighting.000 rpm4 seconds aprox.
Acceleration 60.000 120 begin_of_the_skype_highlighting FREE 00 120 end_of_the_skype_highlighting.000 rpm1 second aprox.
Turbine set JB220 JB220 3.990,00EUR
all data measured at - S.T.P. Standard Temp. & Pressure Temp: 15° Celcius / 59° Fahrenheit, Pressure: 1013 Mbar / 29.91 in
|

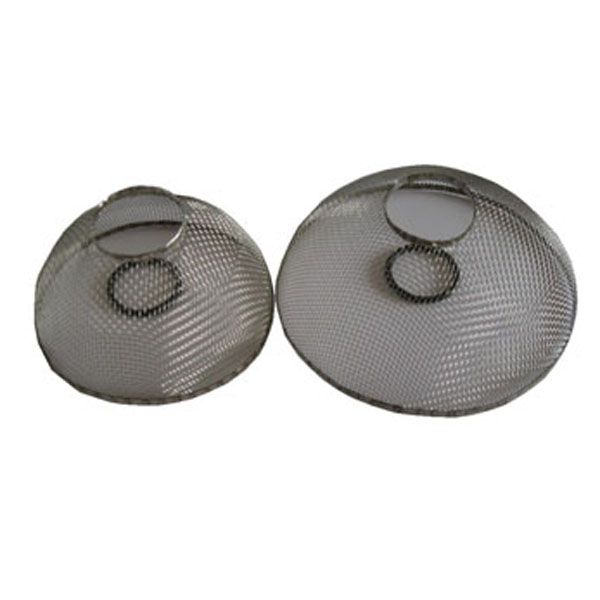

Protection Filter
To use on J66HP, JB130 - JB180GE
Protecting filters prevent the penetration of stones, protect forwards draw themselves or solving parts in the model (e.g. with models with large chassis openings). Mesh size 1,30mm, material high-grade steel. Use only original protecting filters of the manufacturer. With home built protecting filters, the turbine can overheat.
Price: 29
To use on J66HP, JB130 - JB180GE
Protecting filters prevent the penetration of stones, protect forwards draw themselves or solving parts in the model (e.g. with models with large chassis openings). Mesh size 1,30mm, material high-grade steel. Use only original protecting filters of the manufacturer. With home built protecting filters, the turbine can overheat.
Price: 29
