BF-Turbines

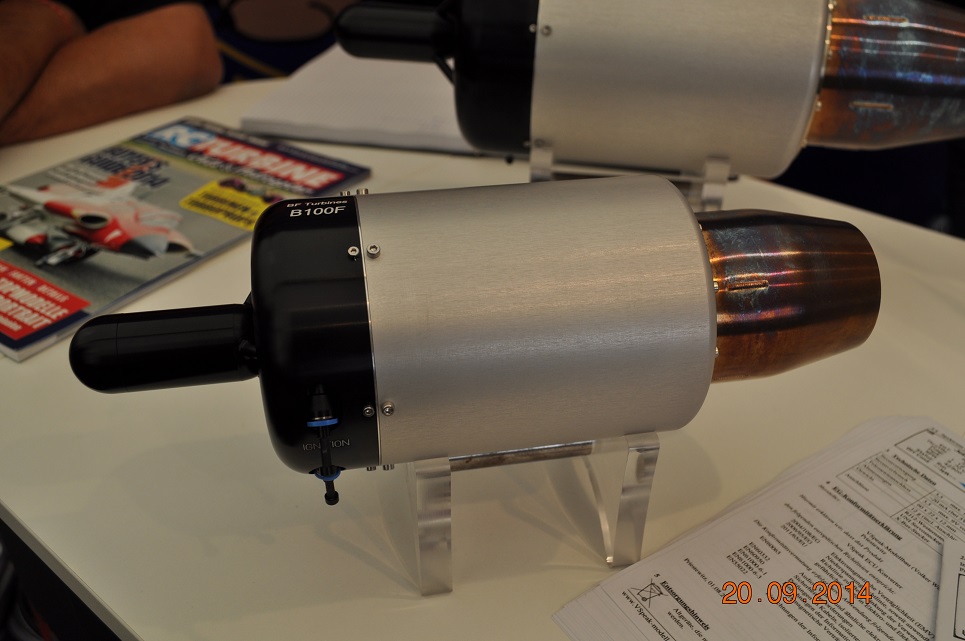

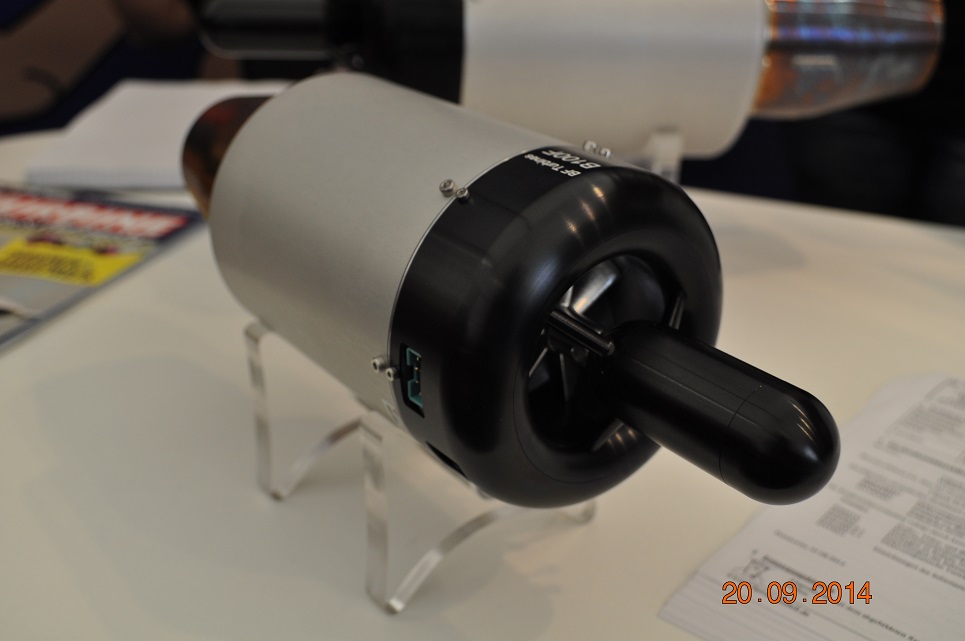

B100F TURBINE:
Diameter: 99mm
Length: 296mm
Weight Turbine: 1080g
Weight Periphery: 420g
Max Thrust: 120N at 133.000 rpm
Min Thrust: 5N at 38.000 rpm
Consumption: 365ml at 100N
Exhasut Temperature: 670 - 740 celsius
Fuel: Kerosene, Diesel, Petroleum
Acceleration 38k - 133k rpm: 2,8sec.
Pressure ratio: 2,8:1

PRICE: 2299 €

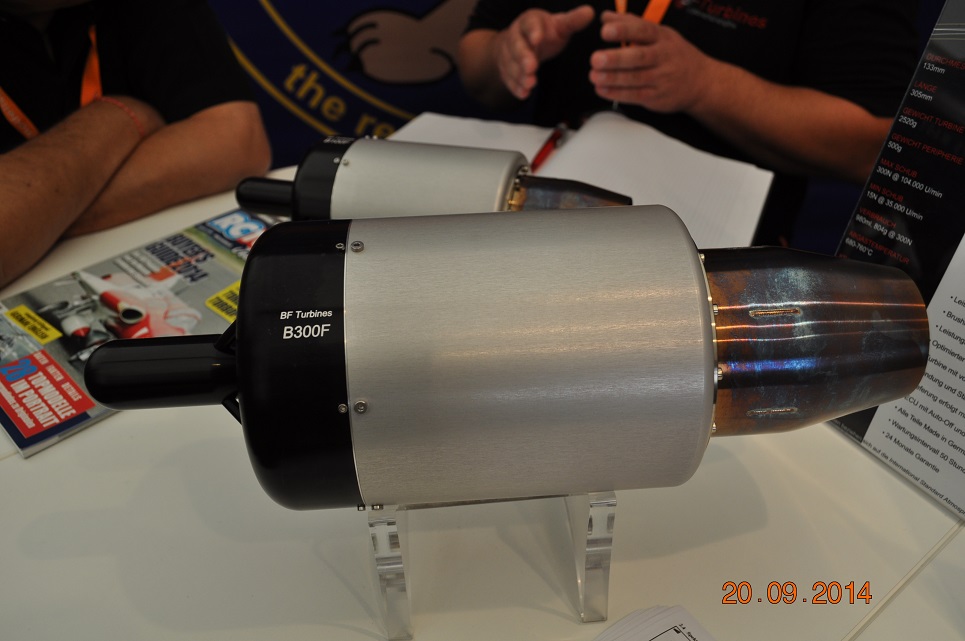

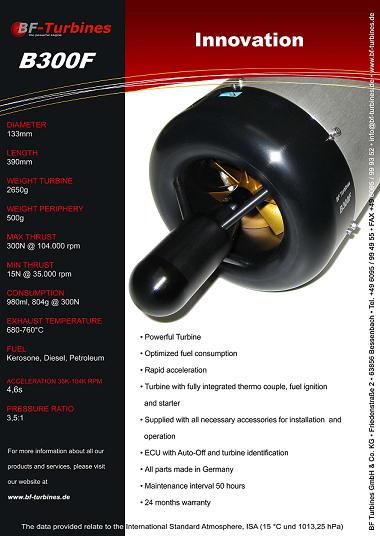

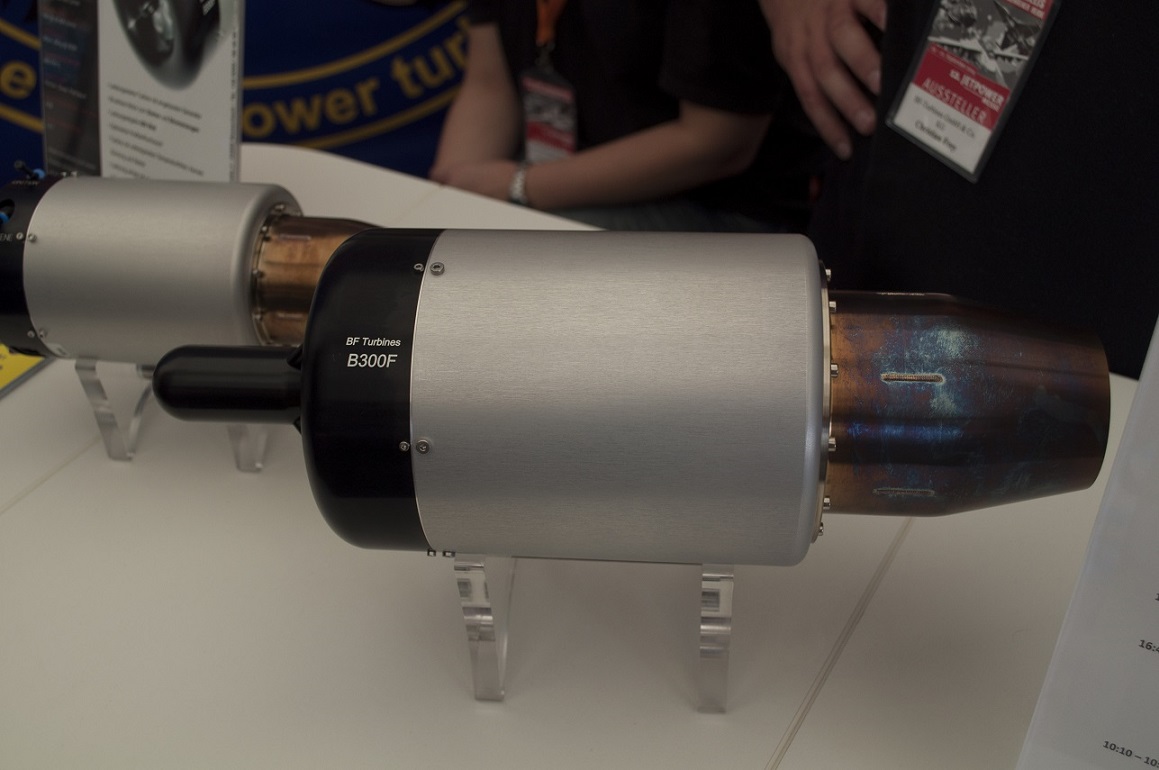

B300F TURBINE:
Diameter: 130mm
Length: 390mm
Weight Turbine: 2650g
Weight Periphery: 500g
Max Thrust: 300N at 104.000 rpm
Min Thrust: 15N at 35.000 rpm
Consumption: 980ml at 300N
Exhasut Temperature: 680 - 760 celsius
Fuel: Kerosene, Diesel, Petroleum
Acceleration 35k - 104k rpm: 4,6sec.
Pressure ratio: 3,58:1

PRICE: 5499 € BF300F
PRICE: 6399 € BF300F STG

B140F TURBINE:
Diameter: 99mm
Length: 296mm
Weight Turbine: 1240g
Weight Periphery: 360g
Max Thrust: 140N at 128.000 rpm
Min Thrust: 6N at 33.000 rpm
Consumption: 420ml at 140N
Exhasut Temperature: 760 celsius
Fuel: Kerosene, Diesel, Petroleum
Acceleration 38k - 133k rpm: 2,8sec.

PRICE: 2650 €

B160F TURBINE:
Diameter: 102mm
Length: 305mm
Weight Turbine: 1320g
Weight Periphery: 360g
Max Thrust: 161N at 126.000 rpm
Min Thrust: 8N at 37.000 rpm
Consumption: 530ml, at 161N
Exhasut Temperature: 760 celsius
Fuel: Kerosene, Diesel, Petroleum
Acceleration 38k - 133k rpm: 2,9sec.

PRICE: 3199 €

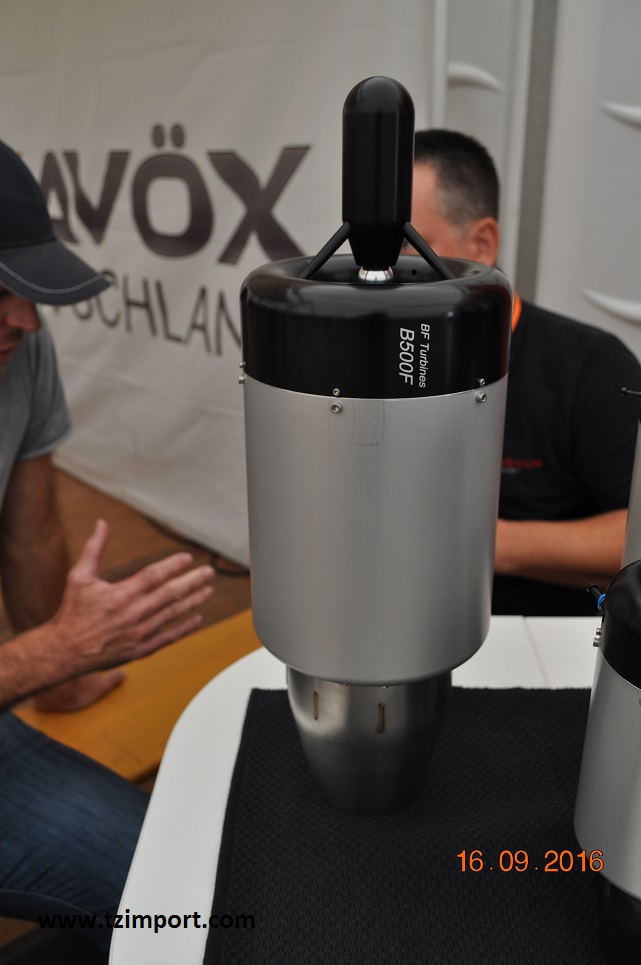

B500F TURBINE:
Diameter: 152mm
Length: 455mm
Weight Turbine: 3780g
Weight Periphery: 540g
Max Thrust: 5000N at 89.000 rpm
Min Thrust: 18N at 32.000 rpm
Consumption: 1580ml to 500N
Exhasut Temperature: 760 celsius
Fuel: Kerosene, Diesel, Petroleum
Acceleration 38k - 133k rpm: 4,8sec.

PRICE: 9.996 €
