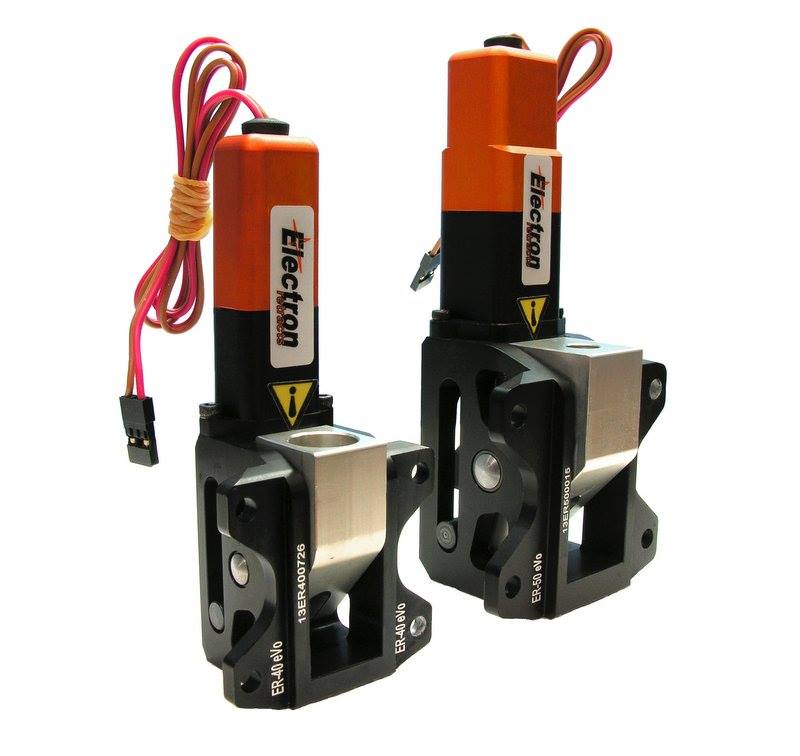

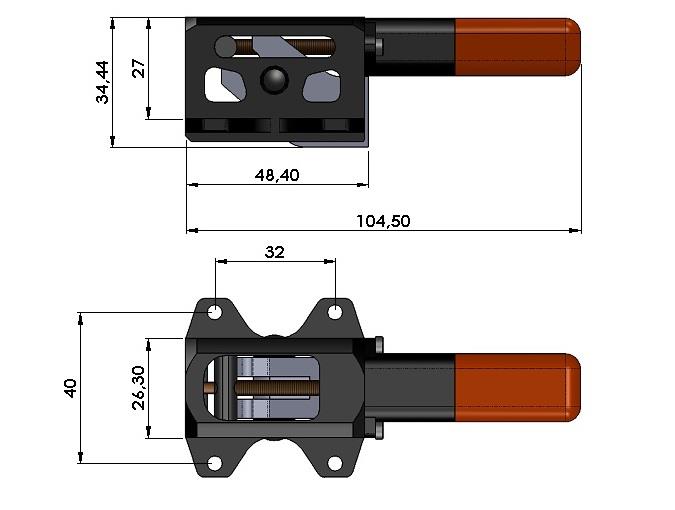

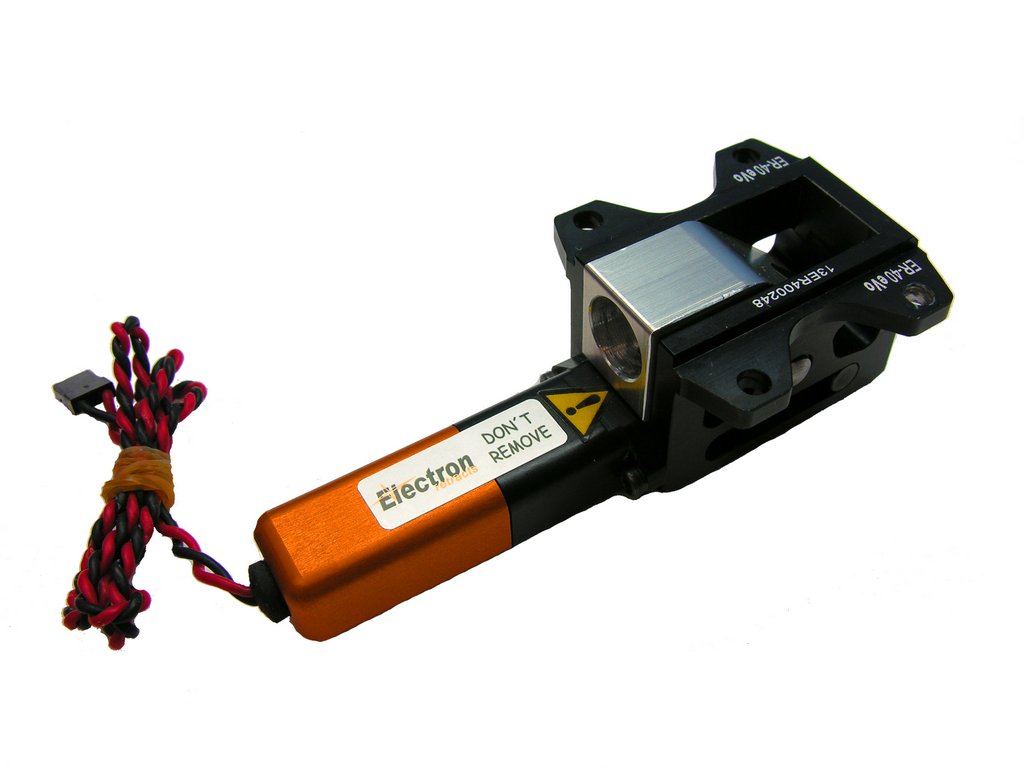

ER-40eVo
Electron retracts presents the new ER-40eVo. This standard size retract for models up to 38Lb (17kg)weight, is the result of the evolution of the ER-40, the retract most popular in the world. This new version has several improvements, resulting from extensive experience with the ER-40.
More compact design: The ER-40eVo have a new spindle system with internal absorbers mounted between three bearings, more effective and safe. Also it is combined with new software in the control unit.
Stronger: the main body, milled from aeronautical aluminium block, has been reinforced in some points.Now, it is more light and strong.
Very easy maintenance: All rotative parts are made in very strong and auto lubricated materials. Change any damaged part, will be very easy. The customer only will need remove four screws to completely disassemble the system.
Price: 125 for the main single retract
Price: 187 for the nose retract with steering system
Electron retracts presents the new ER-40eVo. This standard size retract for models up to 38Lb (17kg)weight, is the result of the evolution of the ER-40, the retract most popular in the world. This new version has several improvements, resulting from extensive experience with the ER-40.
More compact design: The ER-40eVo have a new spindle system with internal absorbers mounted between three bearings, more effective and safe. Also it is combined with new software in the control unit.
Stronger: the main body, milled from aeronautical aluminium block, has been reinforced in some points.Now, it is more light and strong.
Very easy maintenance: All rotative parts are made in very strong and auto lubricated materials. Change any damaged part, will be very easy. The customer only will need remove four screws to completely disassemble the system.
Price: 125 for the main single retract
Price: 187 for the nose retract with steering system
|
|

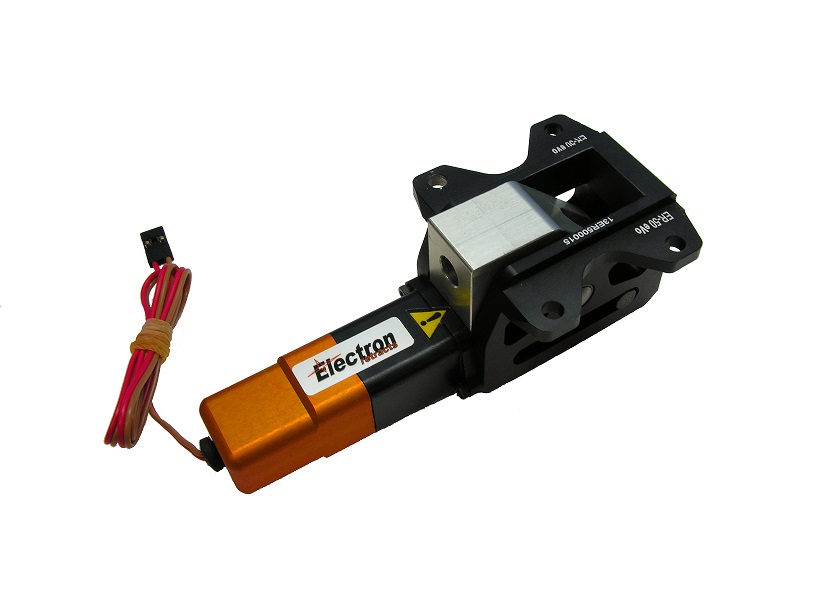

ER-50eVo
Electron retracts presents the new ER-50eVo. This standard size retract for models up to 77Lb (35kg)weight, is the result of the evolution of the ER-50.
New gear motor: The new bigger gear motor, provides more torque with realistic cycle time ( 3-4sec like ER-40). Also, the gear boxes are stronger.
More compact design: The ER-50eVo have a new spindle system with internal absorbers mounted between three bearings, more effective and safe. Also it is combined with new software in the control unit.
Stronger: the main body, milled from aeronautical aluminium block, has been reinforced in some points.
Very easy maintenance: All rotative parts are made in very strong and auto lubricated materials. Change any damaged part, will be very easy. The customer only will need remove four screws to completely disassemble the system.
Price: 145 for the main single retract
Price: 210 for the nose retract with steering system
Electron retracts presents the new ER-50eVo. This standard size retract for models up to 77Lb (35kg)weight, is the result of the evolution of the ER-50.
New gear motor: The new bigger gear motor, provides more torque with realistic cycle time ( 3-4sec like ER-40). Also, the gear boxes are stronger.
More compact design: The ER-50eVo have a new spindle system with internal absorbers mounted between three bearings, more effective and safe. Also it is combined with new software in the control unit.
Stronger: the main body, milled from aeronautical aluminium block, has been reinforced in some points.
Very easy maintenance: All rotative parts are made in very strong and auto lubricated materials. Change any damaged part, will be very easy. The customer only will need remove four screws to completely disassemble the system.
Price: 145 for the main single retract
Price: 210 for the nose retract with steering system
The price are in Euro include 25% Swedish VAT. Delivery cost it΄ll be add
|
![er-50evopic1[1]](er-50evopic1[1].jpg "er-50evopic1[1]")
|

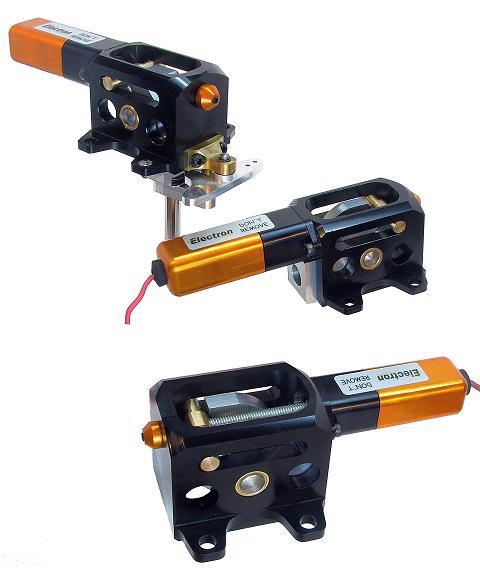

![62397_622135487803987_794625832_n[1]](62397_622135487803987_794625832_n[1].jpg "62397_622135487803987_794625832_n[1]")
ER40eVo set A
Standard size electric retract, for models up to 17kg(38Lb) (2 Retracts + RS-200);Stall Torque 25 kg*cm.
Price:368
Standard size electric retract, for models up to 17kg(38Lb) (2 Retracts + RS-200);Stall Torque 25 kg*cm.
Price:368

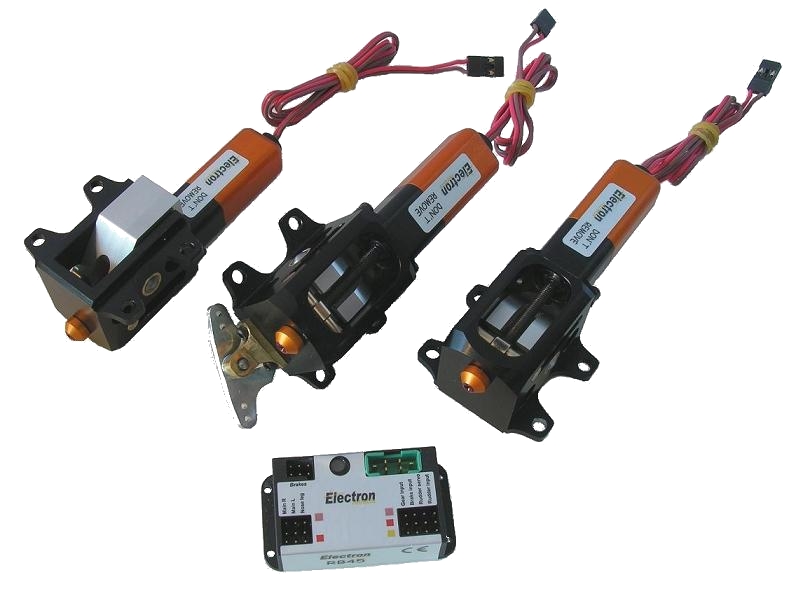

ER40eVo set B
Standard size electric retract, for models up to 17kg(38Lb) (3 Retracts, one with steering system + RS-200 + RS200-programmer );Stall Torque 25 kg*cm.
Price:534
Standard size electric retract, for models up to 17kg(38Lb) (3 Retracts, one with steering system + RS-200 + RS200-programmer );Stall Torque 25 kg*cm.
Price:534
ER50eVo set A
Standard size electric retract, for models up to 35kg(77Lb) (2 Retracts + RS-200)
Price:418
Standard size electric retract, for models up to 35kg(77Lb) (2 Retracts + RS-200)
Price:418
ER50eVo set B
Standard size electric retract, for models up to 35kg(77Lb) (3 Retracts one with steering system + RS-200 + RS-200-programmer )
Price:603
Standard size electric retract, for models up to 35kg(77Lb) (3 Retracts one with steering system + RS-200 + RS-200-programmer )
Price:603
|
|
![rs200[1]](rs200[1].jpg "rs200[1]")

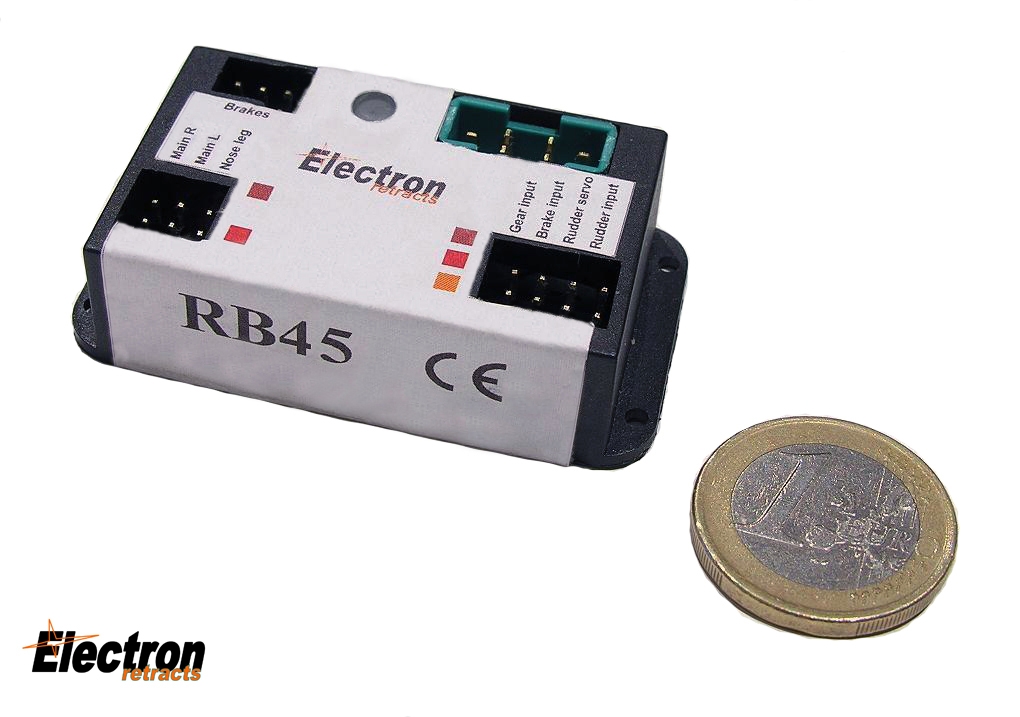

RB-45 Electronic:
Valid for control: ER-40, ER-50
Battery: LiPo 2S(7.4V)
The electronic control system is designed by Gaspar Espiell (Xicoy). This small, compact and light system (only 19gr) is able to control the 3 retractable, rudder servo, and the magnetic brake.
Price:79
Valid for control: ER-40, ER-50
Battery: LiPo 2S(7.4V)
The electronic control system is designed by Gaspar Espiell (Xicoy). This small, compact and light system (only 19gr) is able to control the 3 retractable, rudder servo, and the magnetic brake.
Price:79

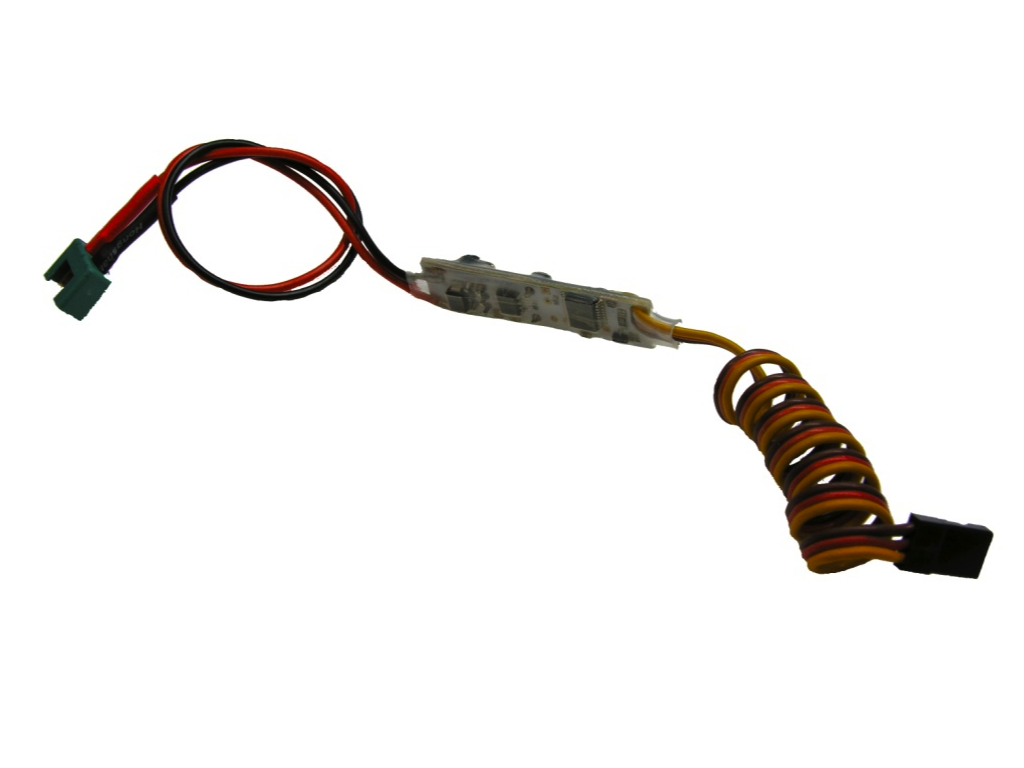

Micro controller for 2 main wheels
Weight: 12Gr
Maximum voltage: 12V
Mαximum current per Wheel: 1.5Ampers per Wheel
This small controller only manages two main brakes, it is not designed to control retracts. The RB45, and RS-200 have it integrated inside. It is recomended for planes with air retracts, only to control magnetic brakes.
This controller in combination with electron brakes, provides a full proportional braking, and you will can program 5 ABS modes with continuous or pulse modes.
Price: 30
Weight: 12Gr
Maximum voltage: 12V
Mαximum current per Wheel: 1.5Ampers per Wheel
This small controller only manages two main brakes, it is not designed to control retracts. The RB45, and RS-200 have it integrated inside. It is recomended for planes with air retracts, only to control magnetic brakes.
This controller in combination with electron brakes, provides a full proportional braking, and you will can program 5 ABS modes with continuous or pulse modes.
Price: 30
|
![rb452[1]](rb452[1].jpg "rb452[1]")
|
![ebrakes[1]](ebrakes[1].png "ebrakes[1]")

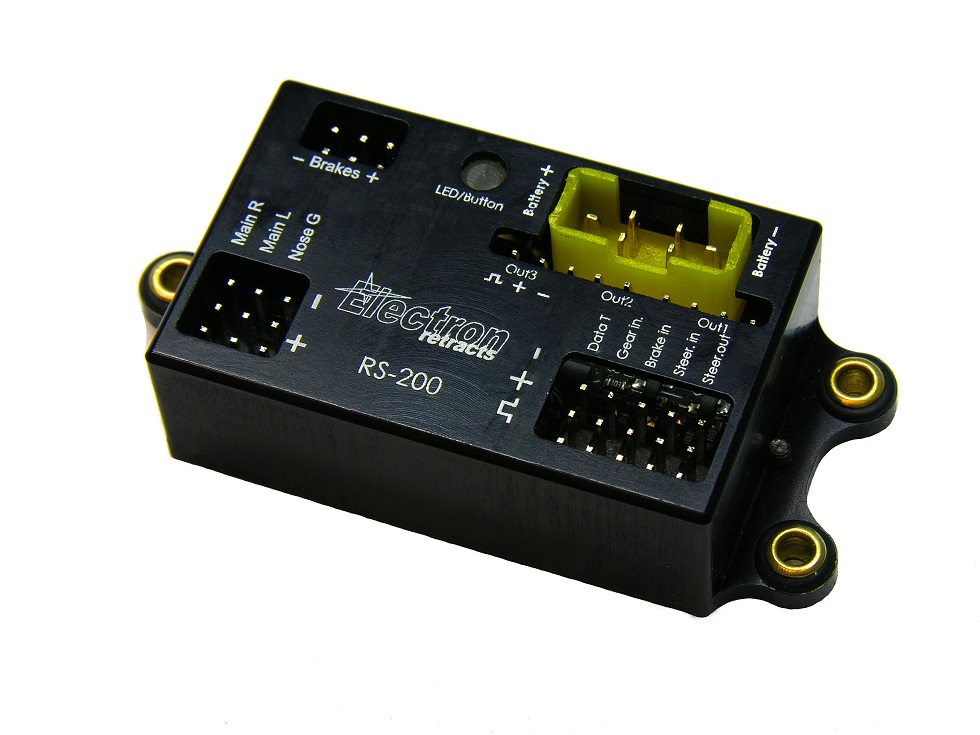

RS-200
Features: -Direct control of 3 motors. Programmable independent delay for each gear in UP and DOWN sequence. -Control of electric brake. full proportional, lineal and adjustable pulsed mode. Brake Limiter to set max brake force -3 servo outputs for the control of the doors. endpoints programmable, Each output can be programmed in 3 different positions (Gear UP, Gear Down and Gear Moving phase). Servo Switch-off. Door servos can be deactivated after movement to prevent the posibility of servo burnout on a jammed door. Deactivation time can be programmed. -Steering servo processor. Programmable position in retracted mode, programmable center, sense and gain on extended mode. -Single or dual channel mode. Gear operation and brake operation combined on single channel) or separate channels for gear and brake.
Price: 108
Features: -Direct control of 3 motors. Programmable independent delay for each gear in UP and DOWN sequence. -Control of electric brake. full proportional, lineal and adjustable pulsed mode. Brake Limiter to set max brake force -3 servo outputs for the control of the doors. endpoints programmable, Each output can be programmed in 3 different positions (Gear UP, Gear Down and Gear Moving phase). Servo Switch-off. Door servos can be deactivated after movement to prevent the posibility of servo burnout on a jammed door. Deactivation time can be programmed. -Steering servo processor. Programmable position in retracted mode, programmable center, sense and gain on extended mode. -Single or dual channel mode. Gear operation and brake operation combined on single channel) or separate channels for gear and brake.
Price: 108

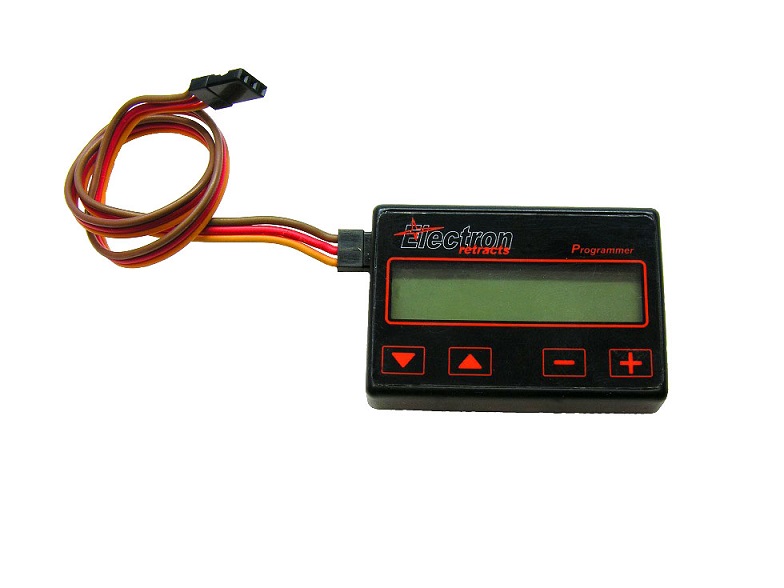

RS-200 Programmer
Manual mode. Provides the ability cycle the gear manually for testing during setup phase, movement can be stopped and reasumed in any position.
Each drive motor can be independently run in any direction and stopping in any position for checking clearance, etc.
-Easy programming trough a LCD display. All adjustments are done through a Electron programmer. Compatible with all Xicoy SBus style data terminals used with Xicoy brand ECUS.
RS200 can be programmed by LED/Buttom like RB-45 (options limited using this program method).
-Electronic switch for the main battery. Voltage 6 to 10V
-Small (same dimensions as RB45) size and lightweight.
Price: 55
Manual mode. Provides the ability cycle the gear manually for testing during setup phase, movement can be stopped and reasumed in any position.
Each drive motor can be independently run in any direction and stopping in any position for checking clearance, etc.
-Easy programming trough a LCD display. All adjustments are done through a Electron programmer. Compatible with all Xicoy SBus style data terminals used with Xicoy brand ECUS.
RS200 can be programmed by LED/Buttom like RB-45 (options limited using this program method).
-Electronic switch for the main battery. Voltage 6 to 10V
-Small (same dimensions as RB45) size and lightweight.
Price: 55
|
|
|
![reversible[1]](reversible[1].jpg "reversible[1]")

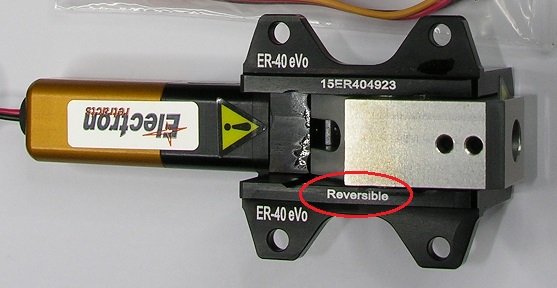

ER-40 and ER-50 reverse version available
|
|
||
|
|

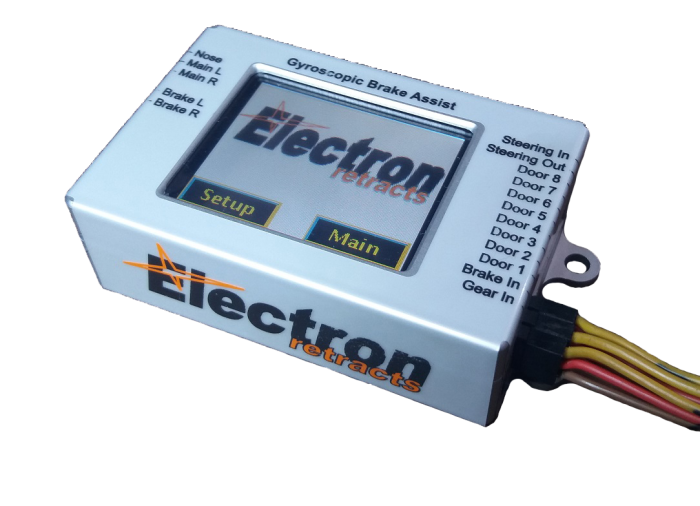

GS-200
Features:
Programmable trough integrated color touchscreen.
Internal Gyro. It can be mixed with the steering servo output and to the differential brakes.
Dual control of electric brakes, full proportional, lineal and adjustable pulsed mode.
Differential brake mode, to steer the model using the brakes.
Steering servo processor. Gain, sense and center can be adjusted. The steering servo is centered during retraction.
8 servo outputs for the control of the doors. The endpoints of each servo can be programmed individually. The Servo speed can be programmed independent in the two senses in 0,1s resolution.
10 step sequencer. The position of the gears and the position of the 8 doors can be defined independent in each step. Step duration in 0,1s steps.
Wide choice of RC inputs. Single RC channel, Dual RC channel, Futaba SBUS, UDI Bus, SRXL Bus, JR Mode A Bus, JETI EX Bus.
SD card slot to save the settings and upgrade the software.
Battery Acording to the retract model: up to 13V for ER-30 and ER-40, and up to 10V for ER-50
Box measures: 65X45X20mm
Weight: 67gr
Price: 182
Features:
Programmable trough integrated color touchscreen.
Internal Gyro. It can be mixed with the steering servo output and to the differential brakes.
Dual control of electric brakes, full proportional, lineal and adjustable pulsed mode.
Differential brake mode, to steer the model using the brakes.
Steering servo processor. Gain, sense and center can be adjusted. The steering servo is centered during retraction.
8 servo outputs for the control of the doors. The endpoints of each servo can be programmed individually. The Servo speed can be programmed independent in the two senses in 0,1s resolution.
10 step sequencer. The position of the gears and the position of the 8 doors can be defined independent in each step. Step duration in 0,1s steps.
Wide choice of RC inputs. Single RC channel, Dual RC channel, Futaba SBUS, UDI Bus, SRXL Bus, JR Mode A Bus, JETI EX Bus.
SD card slot to save the settings and upgrade the software.
Battery Acording to the retract model: up to 13V for ER-30 and ER-40, and up to 10V for ER-50
Box measures: 65X45X20mm
Weight: 67gr
Price: 182
