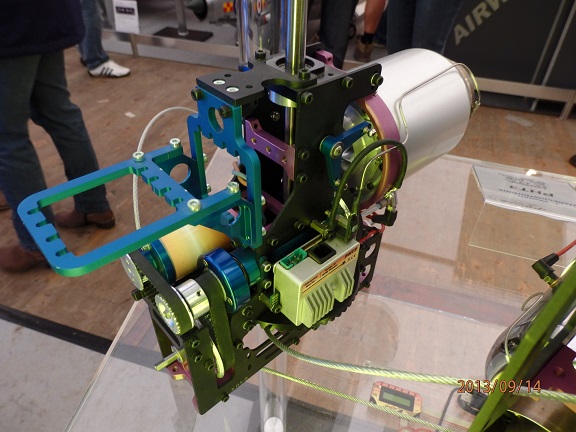

Jet-Cat PHT2:
Engine power: 2,7Kw
Weight : 2222g
Dimension: Length 290mm, wide: 100mm
Height: 195mm ( 290mm including rotor shaft )
Idle RPM: 60000
Flight RPM: 125000
Starting device: Kerosene Start Standard
Exhaust temp.: 480 - 730 C
Fuel consumption: 60ml - 230ml per minute
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 50 Hours
Application: model helicopter with main rotor diameter of about 1600-1700mm and a maximum takeoff weight of 9Kg.
Price: 3890
Engine power: 2,7Kw
Weight : 2222g
Dimension: Length 290mm, wide: 100mm
Height: 195mm ( 290mm including rotor shaft )
Idle RPM: 60000
Flight RPM: 125000
Starting device: Kerosene Start Standard
Exhaust temp.: 480 - 730 C
Fuel consumption: 60ml - 230ml per minute
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 50 Hours
Application: model helicopter with main rotor diameter of about 1600-1700mm and a maximum takeoff weight of 9Kg.
Price: 3890
|
|
||
|
|
|
|

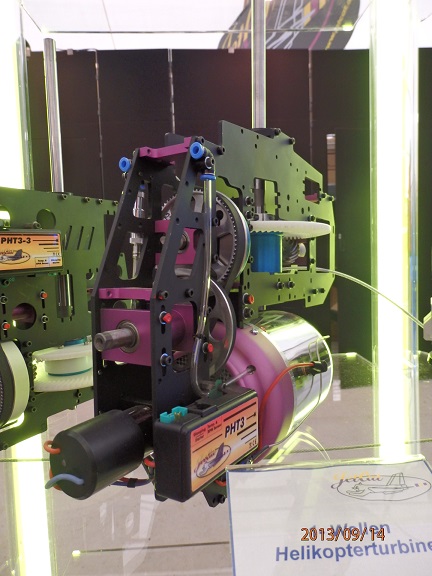

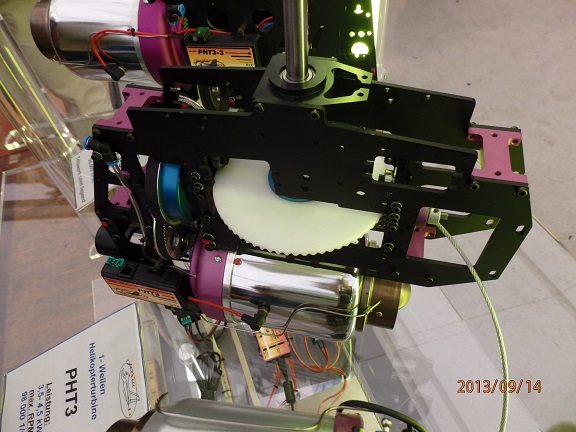

Jet-Cat PHT3:
Engine power: 3,5 to 5KW
/Weight : 3450g to 3670g
Dimension: Length 330mm, wide: 130mm,
Height: 275mm ( 365mm including rotor shaft )
Idle RPM: 33000
Flight RPM: 103000
Starting device: Kerosene start standard
Main rotor RPM: 962 to 1024
Tail rotor RPM: 4493 to 4782
Exhaust temp.: 480 - 620 C
Fuel consumption: 195ml - 230ml per minute
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 50 Hours
Price: 3990
Engine power: 3,5 to 5KW
/Weight : 3450g to 3670g
Dimension: Length 330mm, wide: 130mm,
Height: 275mm ( 365mm including rotor shaft )
Idle RPM: 33000
Flight RPM: 103000
Starting device: Kerosene start standard
Main rotor RPM: 962 to 1024
Tail rotor RPM: 4493 to 4782
Exhaust temp.: 480 - 620 C
Fuel consumption: 195ml - 230ml per minute
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 50 Hours
Price: 3990

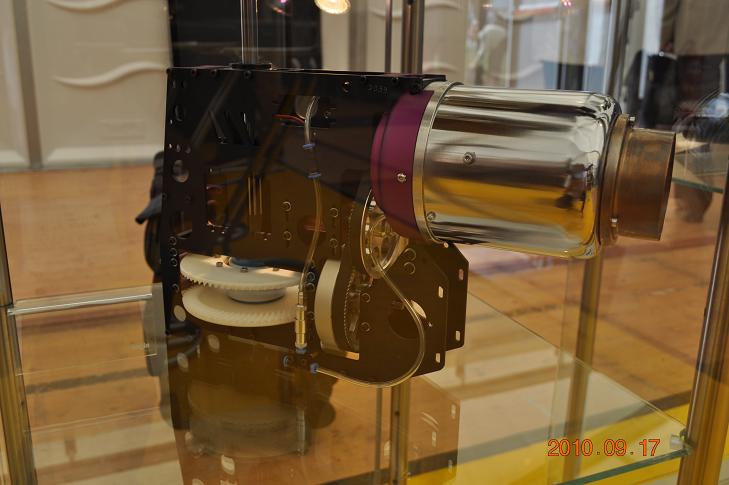

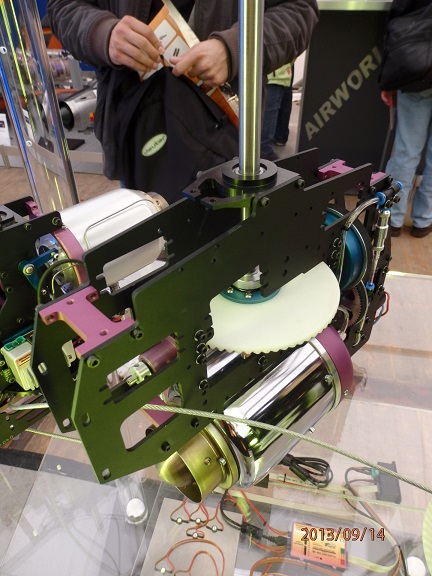

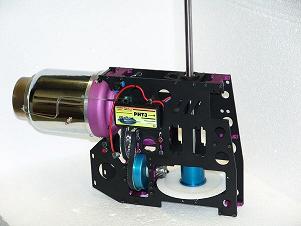

Jet-Cat PHT3-3:
Engine power: 3,5 to 5KW
Weight : 3670g
Dimension: Length 390mm, wide: 130mm
Height: 230mm ( 390mm including rotor shaft )
Idle RPM: 33000
Flight RPM: 98000
Starting device: kerosene start standard
Main rotor RPM: 962 to 1024
Tail rotor RPM: 4493 to 4782
Exhaust temp.: 480 - 620 C
Fuel consumption: 195ml to 230ml per minute
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 50 Hours
Price: 3990
Engine power: 3,5 to 5KW
Weight : 3670g
Dimension: Length 390mm, wide: 130mm
Height: 230mm ( 390mm including rotor shaft )
Idle RPM: 33000
Flight RPM: 98000
Starting device: kerosene start standard
Main rotor RPM: 962 to 1024
Tail rotor RPM: 4493 to 4782
Exhaust temp.: 480 - 620 C
Fuel consumption: 195ml to 230ml per minute
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 50 Hours
Price: 3990
|
|
||
|

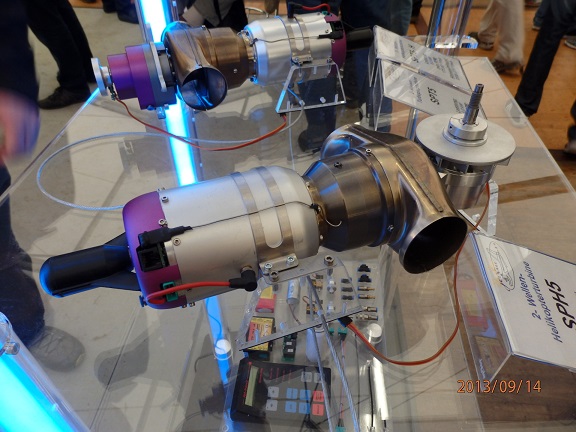

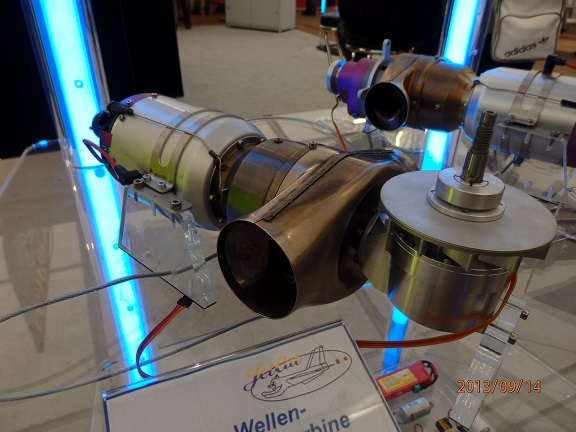

Jet-Cat SPH5:
Engine power: 6KW
Weight : 2200g
Dimension: Length 360mm, Wide: 140mm
Idle RPM: 50000
Flight RPM: 165.000
Main rotor RPM: 7000-8500
Exhaust temp.: 400 to 690 C
Fuel consumption: 180ml to 220 per minute
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 50 Hours
Price: 4095
Engine power: 6KW
Weight : 2200g
Dimension: Length 360mm, Wide: 140mm
Idle RPM: 50000
Flight RPM: 165.000
Main rotor RPM: 7000-8500
Exhaust temp.: 400 to 690 C
Fuel consumption: 180ml to 220 per minute
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 50 Hours
Price: 4095
Samtliga priser δr in Euro ( ) inklusiv 25% moms. Fraktkostanader tillkommer
The price are in Euro ( ) inclusive 25% VAT. Delivery cost it΄ll be add.
The price are in Euro ( ) inclusive 25% VAT. Delivery cost it΄ll be add.
Jet Cat Helicopter Turbine
|
|
||
|
|
||
|
.JPG "SPT-HMS-3 (4)")

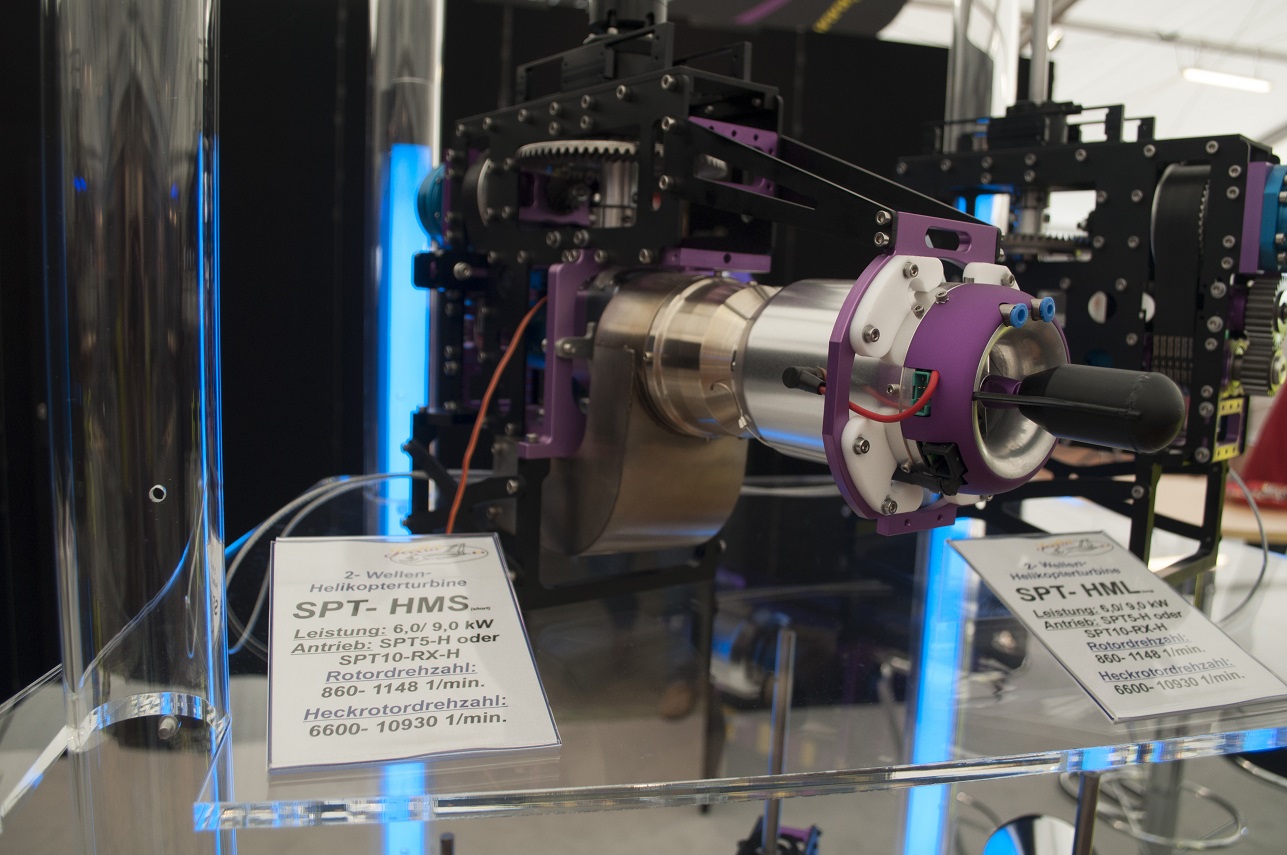

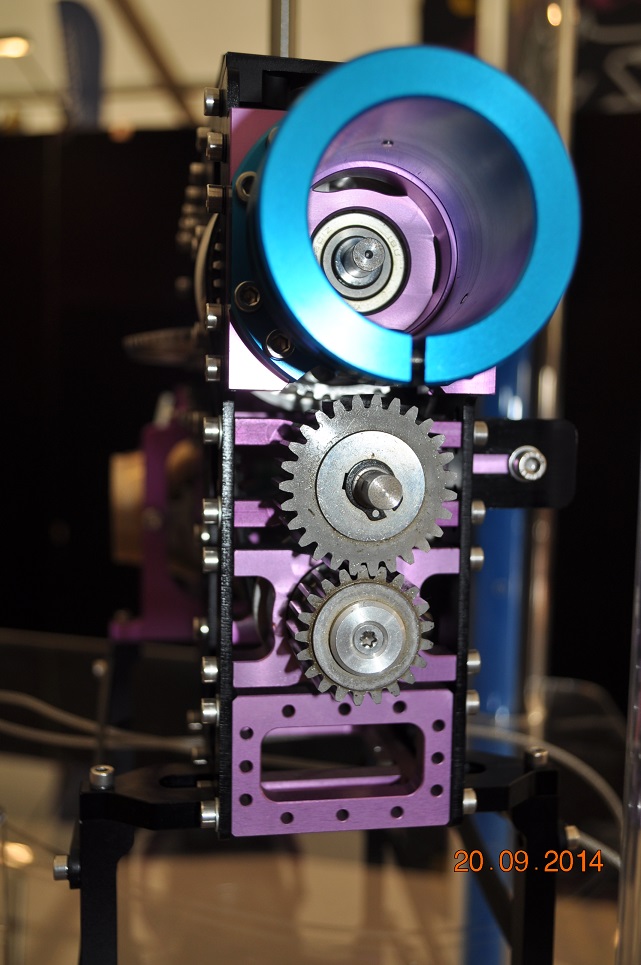

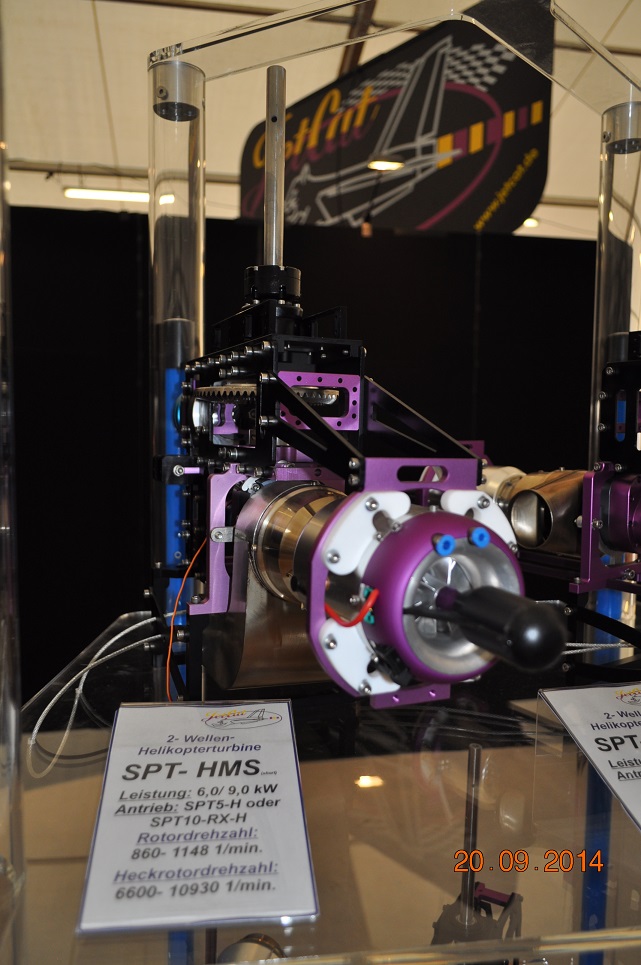

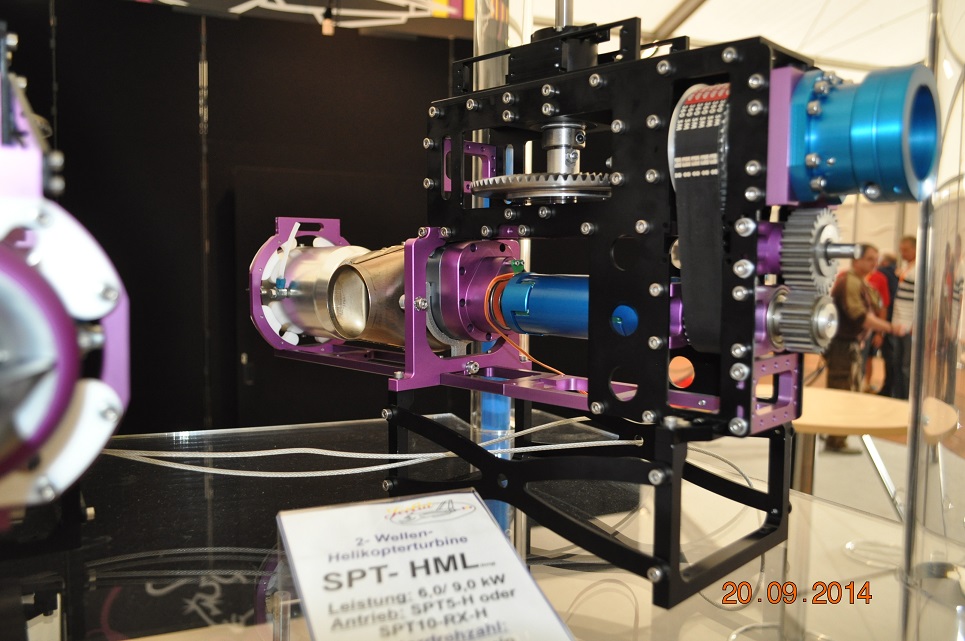

Jet-Cat SPT-HMS:
Engine power: 6/9kW

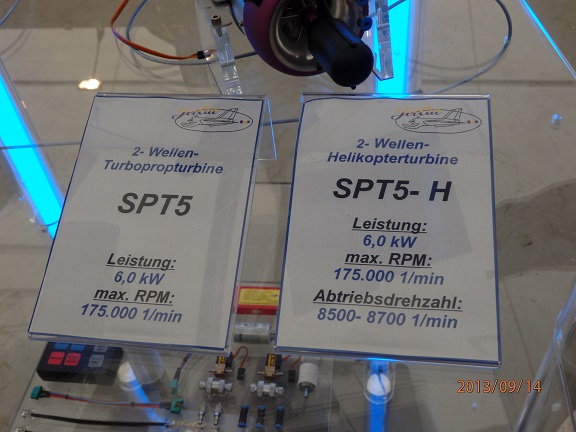

Drive option is SPT5-H or SPT10-RX-H
Main Rotor Speed RPM: 860-1148
Tail rotor Speed RPM: 6600-10930
Exhaust temp.: 400 to 690 C
Price: 6495 SPT10-RX-H
Price: 6099 SPT5-H
Engine power: 6/9kW
Drive option is SPT5-H or SPT10-RX-H
Main Rotor Speed RPM: 860-1148
Tail rotor Speed RPM: 6600-10930
Exhaust temp.: 400 to 690 C
Price: 6495 SPT10-RX-H
Price: 6099 SPT5-H
