The price are in Euro ( ). Delivery cost it΄ll be add

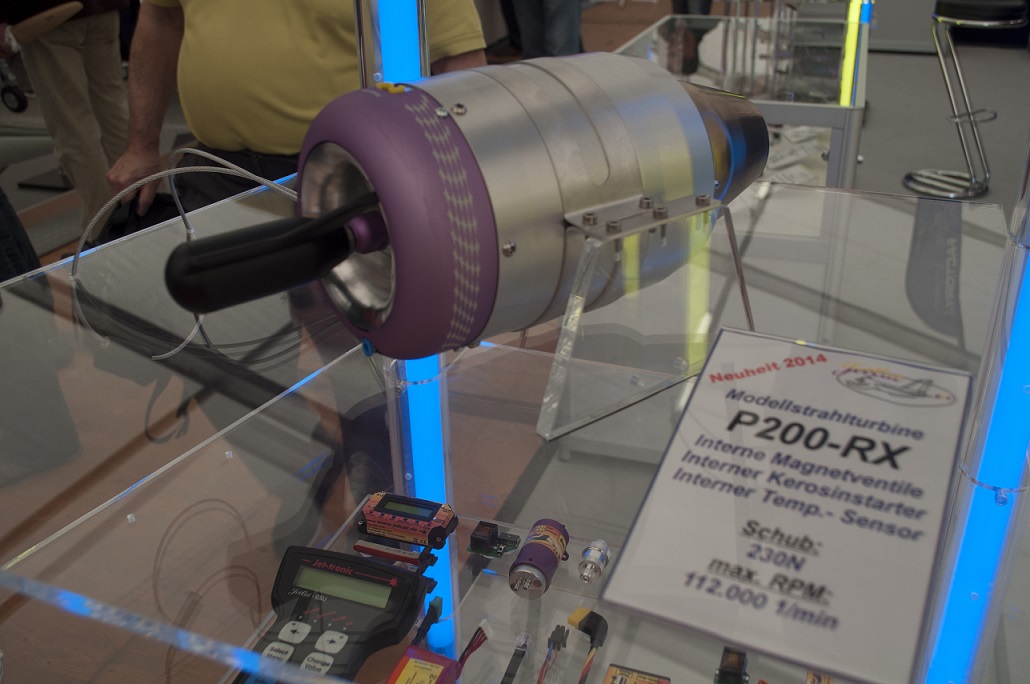

Jet-Cat P 200 RX:
Thrust: 23Kg
Weight: 2530g
Diameter: 132mm
Length: 350mm
RPM range: 33000 - 112000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 730ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 4195
Thrust: 23Kg
Weight: 2530g
Diameter: 132mm
Length: 350mm
RPM range: 33000 - 112000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 730ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 4195
|

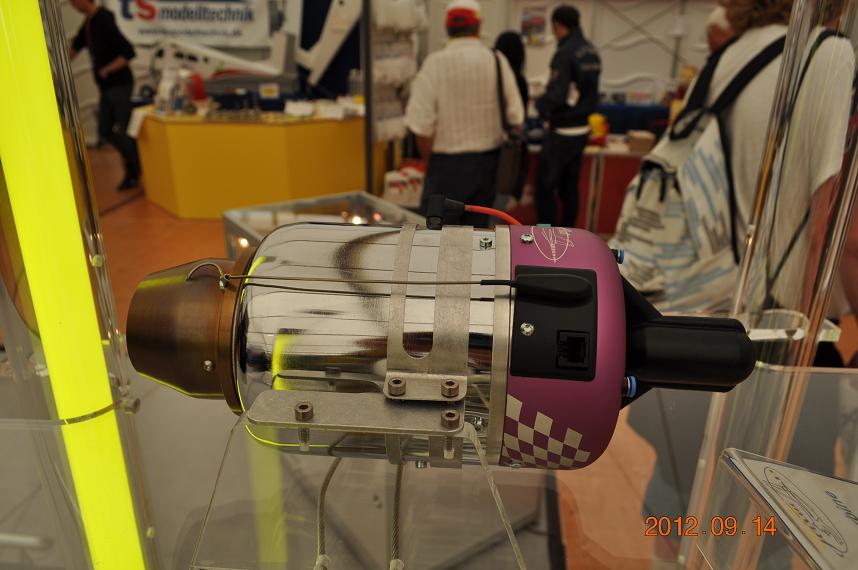

Jet-Cat P 80 SE:
Thrust: 9,7Kg
Weight: 1360g
Diameter: 112mm
Length: 315mm
RPM range: 35000 - 125000 RP/min
Exhaust: max 750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 205ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 1799
Thrust: 9,7Kg
Weight: 1360g
Diameter: 112mm
Length: 315mm
RPM range: 35000 - 125000 RP/min
Exhaust: max 750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 205ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 1799
|

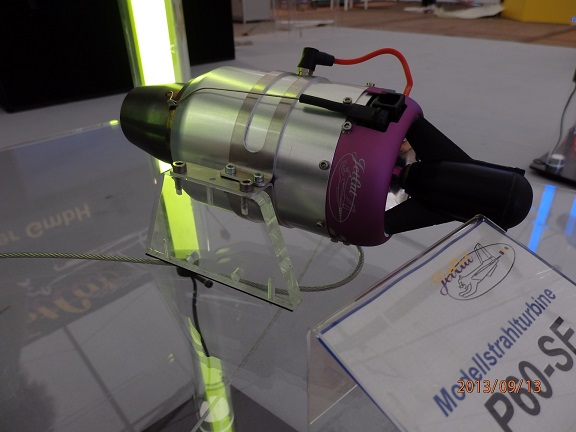

Jet-Cat P 60 SE:
Thrust: 6,2Kg
Weight: 845g
Diameter: 83mm
Length: 254mm
RPM range: 55000 - 175000 RP/min
Exhaust: max 730 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 190ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 1995
Thrust: 6,2Kg
Weight: 845g
Diameter: 83mm
Length: 254mm
RPM range: 55000 - 175000 RP/min
Exhaust: max 730 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 190ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 1995
|
|

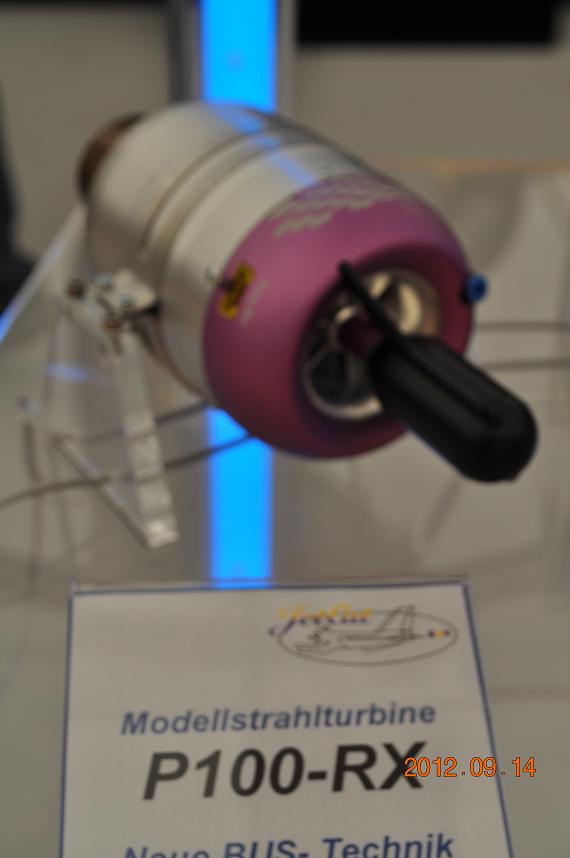

Jet-Cat P 100 RX:
Thrust: 10Kg - 152000 RPM
Weight: 1080g
Diameter: 97mm
Length: 245mm
RPM range: 42000 - 152000 RP/min
Exhaust: max 730 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 350ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Internal kerosene start
Pris: 2295
Thrust: 10Kg - 152000 RPM
Weight: 1080g
Diameter: 97mm
Length: 245mm
RPM range: 42000 - 152000 RP/min
Exhaust: max 730 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 350ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Internal kerosene start
Pris: 2295
|
|

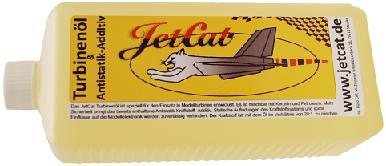

Jet-Cat Turbine Oil:
1 liter turbine oil included antistatic additiv
Pris: 18
1 liter turbine oil included antistatic additiv
Pris: 18
In stock, ready for delivery

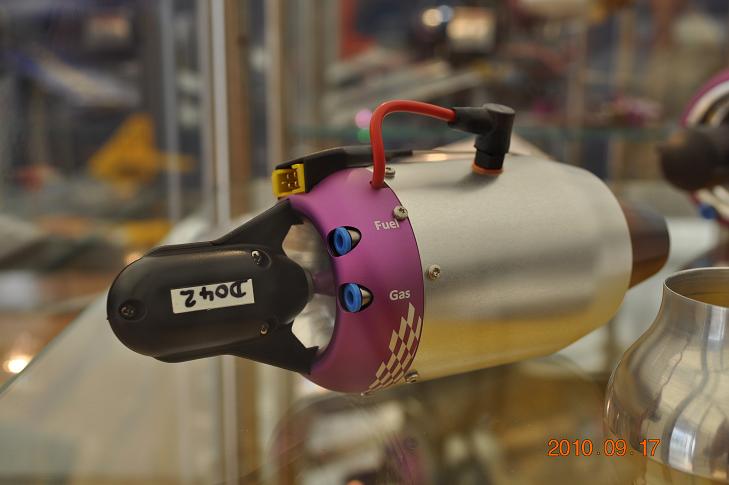

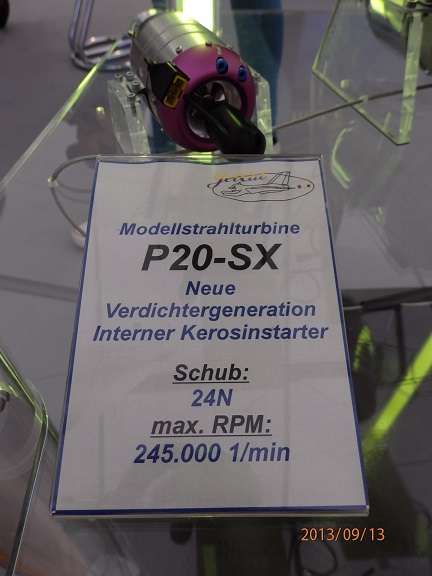

Jet-Cat P 20 SX:
Thrust: 2,4Kg
Weight: 350g
Diameter: 60mm
Length: 180mm
RPM range: 85000 - 245000 RP/min
Exhaust: max 690 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 90ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2545
Thrust: 2,4Kg
Weight: 350g
Diameter: 60mm
Length: 180mm
RPM range: 85000 - 245000 RP/min
Exhaust: max 690 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 90ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2545
|
|
|
|

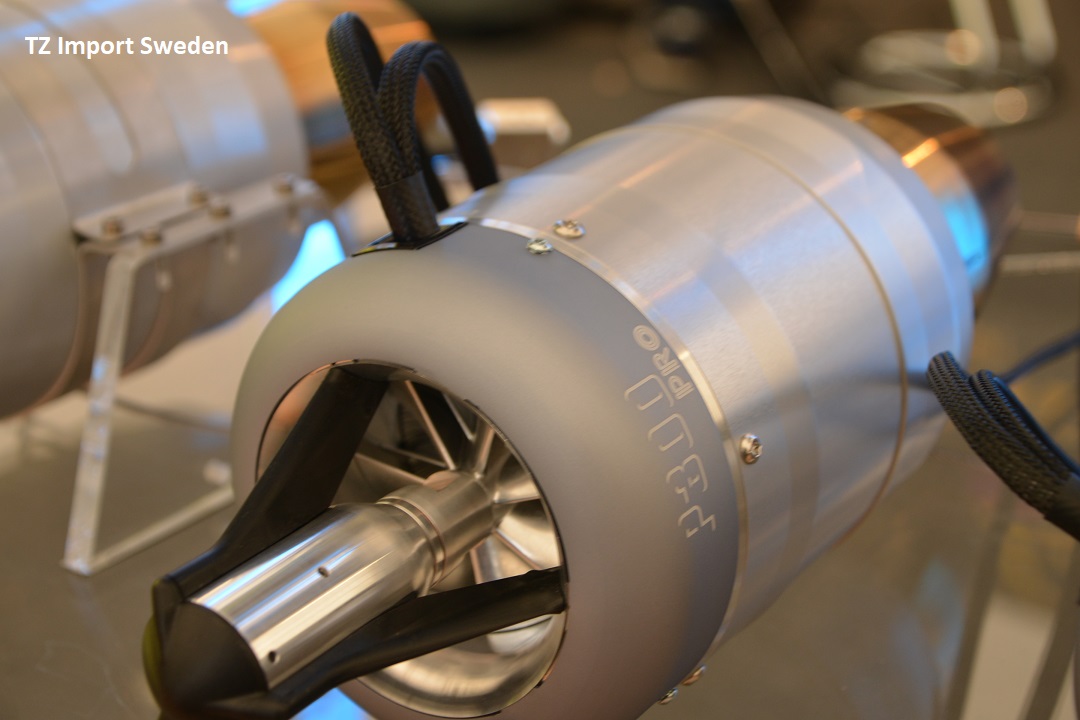

Jet-Cat P300 PRO-GL:
Thrust: 30Kg
Weight: 2730g
Diameter: 132mm
Length: 381mm
RPM range: 35000 - 106000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 980ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 6128
Thrust: 30Kg
Weight: 2730g
Diameter: 132mm
Length: 381mm
RPM range: 35000 - 106000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 980ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 6128

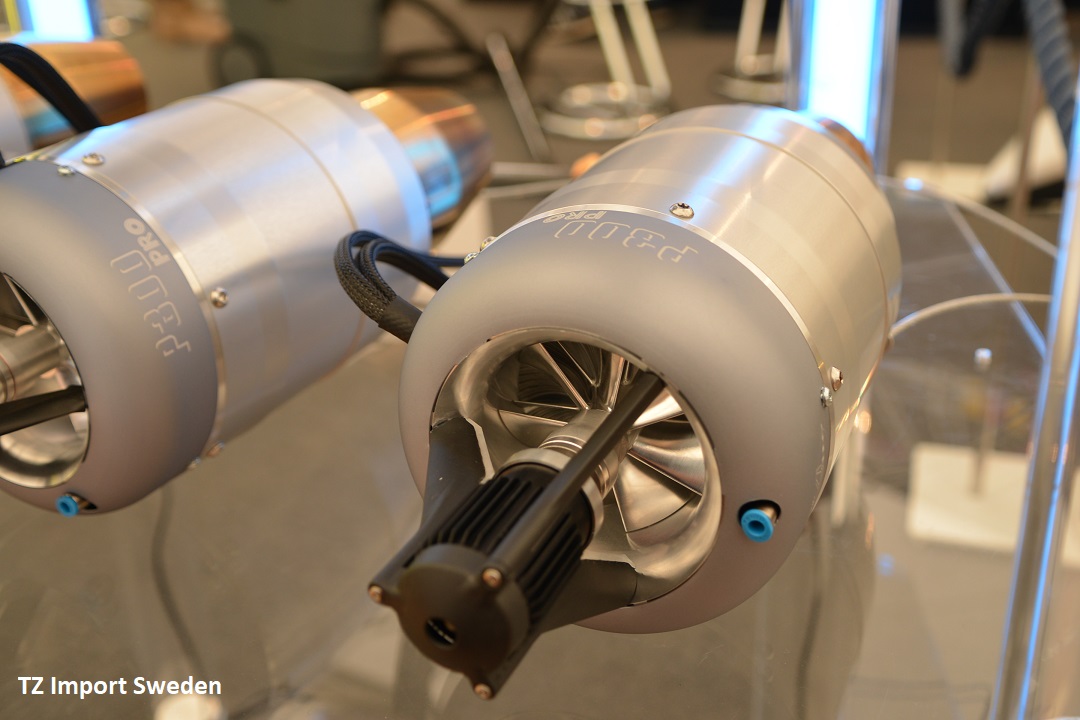

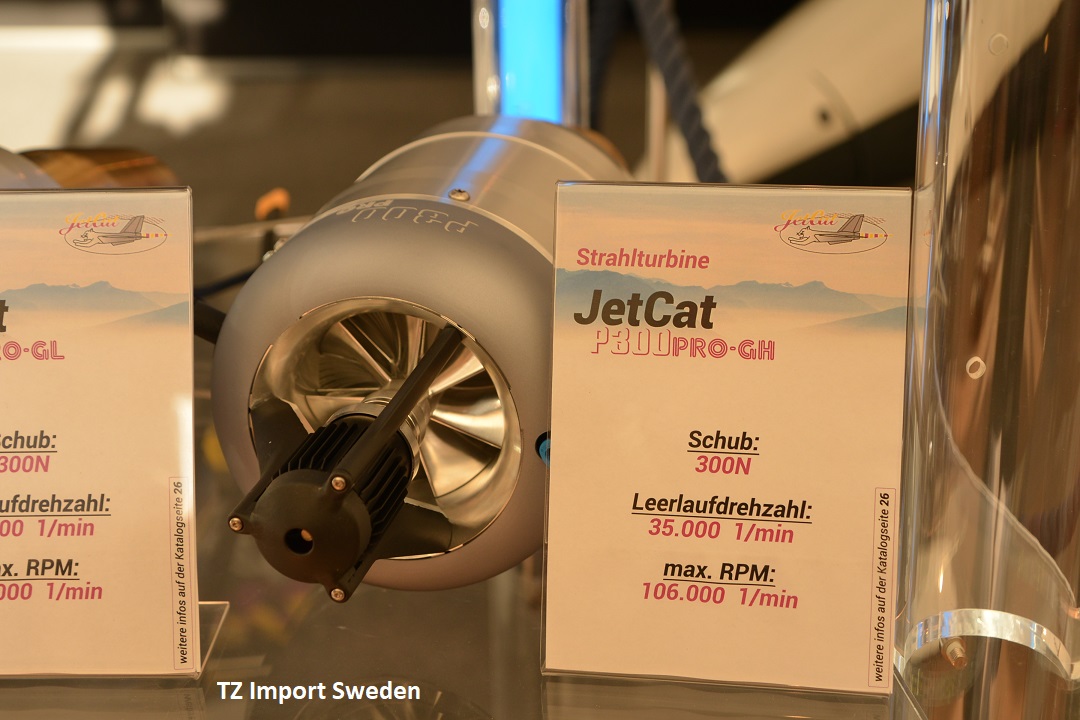

Jet-Cat P300 PRO GH:
Thrust: 30Kg
Weight: 2730g
Diameter: 132mm
Length: 377mm
RPM range: 35000 - 106000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 980ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 6842
Thrust: 30Kg
Weight: 2730g
Diameter: 132mm
Length: 377mm
RPM range: 35000 - 106000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 980ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 6842

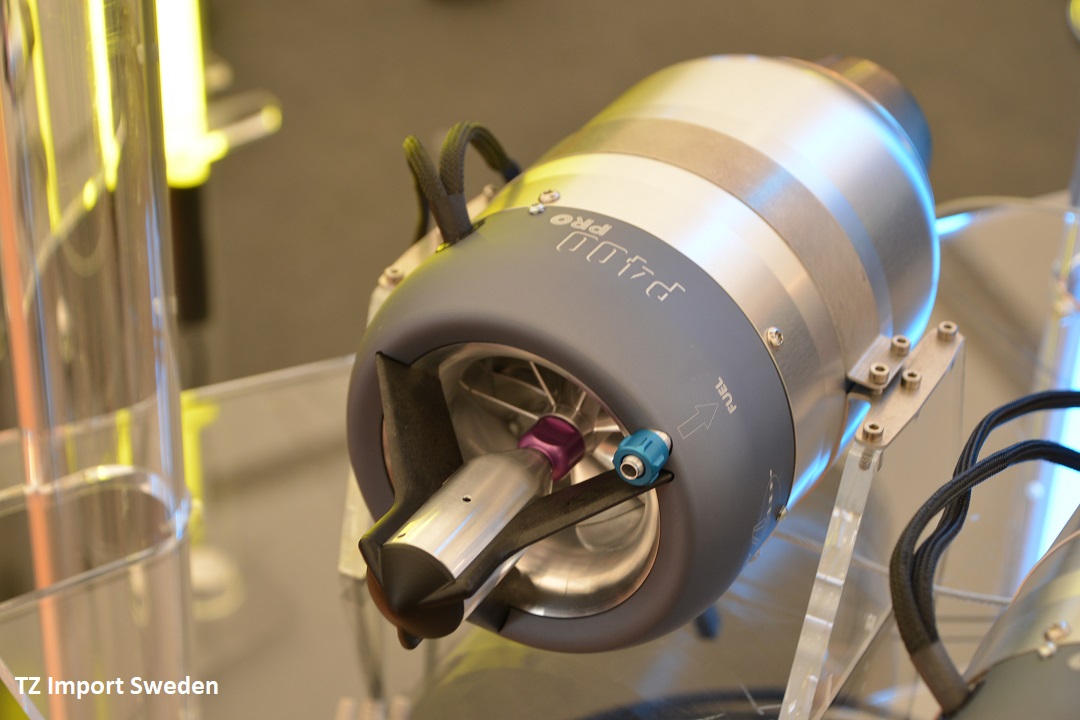

Jet-Cat P400 PRO-GL:
Thrust: 39.7Kg
Weight: 3550g
Diameter: 148,4mm
Length: 346mm
RPM range: 33000 - 98000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1300ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 12.080
Thrust: 39.7Kg
Weight: 3550g
Diameter: 148,4mm
Length: 346mm
RPM range: 33000 - 98000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1300ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 12.080
Jet-Cat P400 PRO-GH:
Thrust: 39.7Kg
Weight: 3550g
Diameter: 148,4mm
Length: 342mm
RPM range: 33000 - 98000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1300ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 12.794
Thrust: 39.7Kg
Weight: 3550g
Diameter: 148,4mm
Length: 342mm
RPM range: 33000 - 98000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1300ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 12.794
|
|
|
Intairco: Fuel Pump Mount for JetCat RX Pump
PRICE: : 38
PRICE: : 38
In stock, ready for delivery
|
|
||
|
|
JetCat Turbine
News 2017

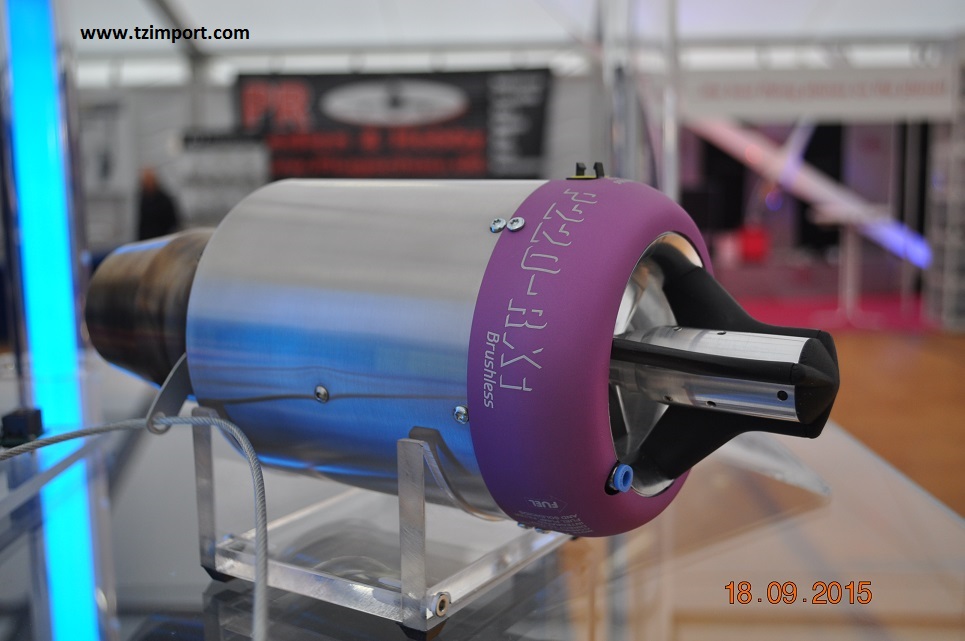

Jet-Cat P 220 RXi:
Thrust: 22Kg
Weight: 1850g
Diameter: 116,8mm
Length: 309mm
RPM range: 35000 - 117000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 725ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 3950
Thrust: 22Kg
Weight: 1850g
Diameter: 116,8mm
Length: 309mm
RPM range: 35000 - 117000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 725ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 3950
|
|

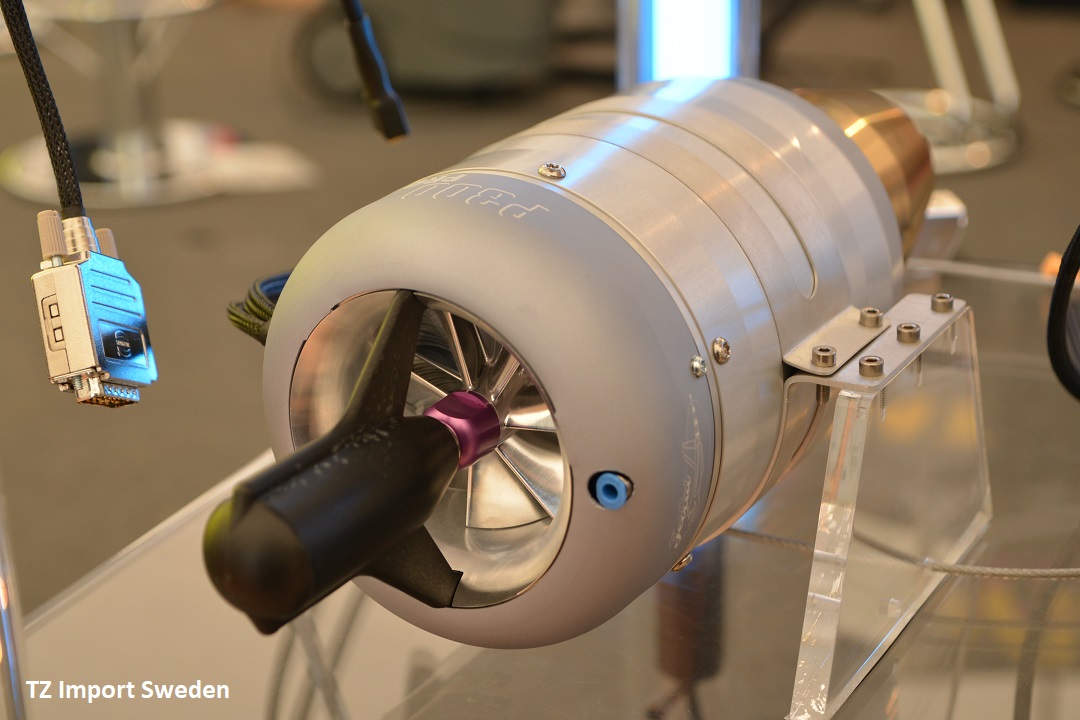

Jet-Cat P 300 PRO:
Thrust: 30Kg
Weight: 2730g
Diameter: 132mm
Length: 381mm
RPM range: 35000 - 106000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 980ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 4988
Thrust: 30Kg
Weight: 2730g
Diameter: 132mm
Length: 381mm
RPM range: 35000 - 106000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 980ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 4988
|
|
Jet-Cat P 400 PRO:
Thrust: 39.7Kg
Weight: 3550g
Diameter: 148,4mm
Length: 355mm
RPM range: 30000 - 98000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1300ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 10.950
Thrust: 39.7Kg
Weight: 3550g
Diameter: 148,4mm
Length: 355mm
RPM range: 30000 - 98000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1300ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 10.950
|

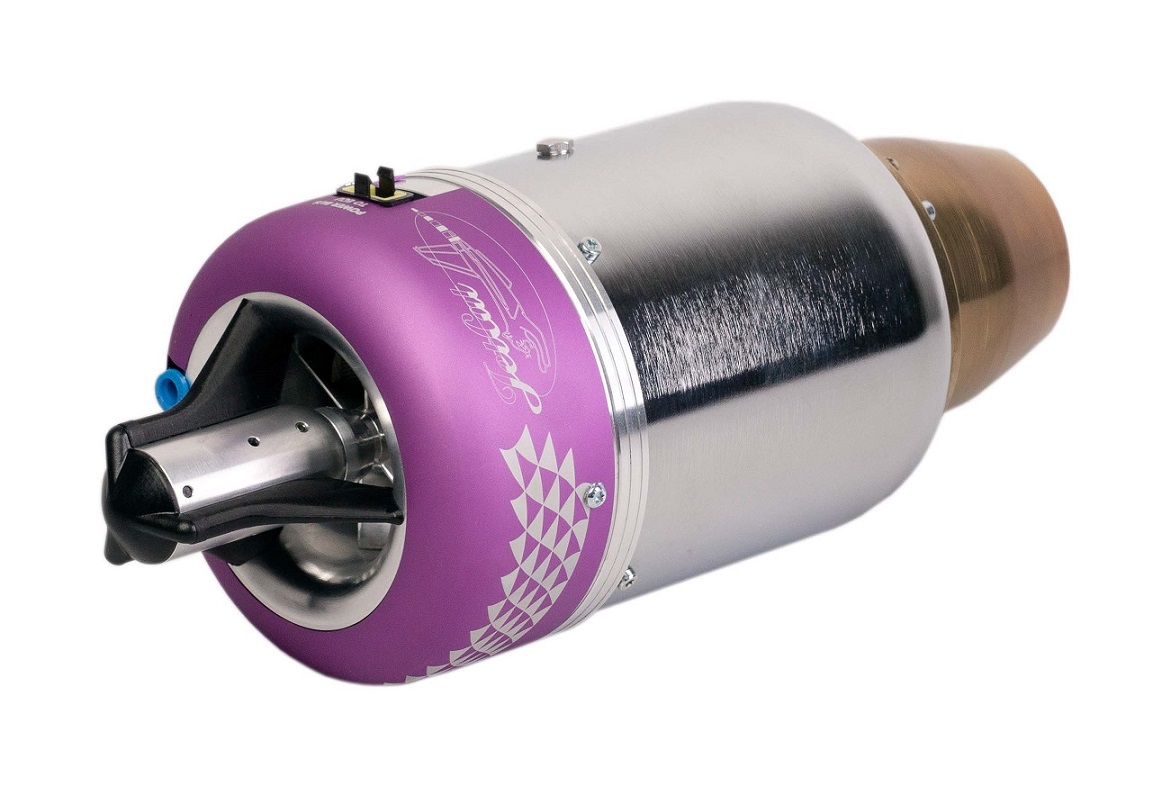

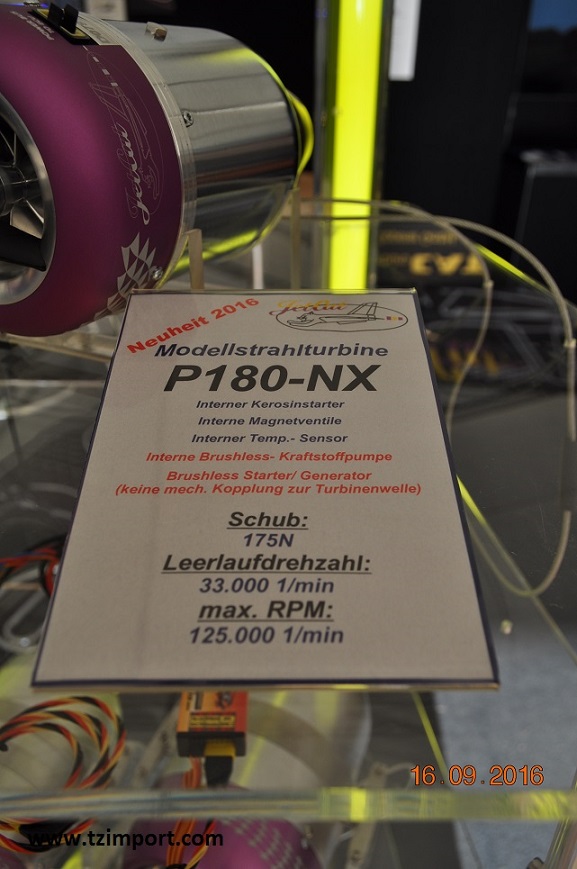

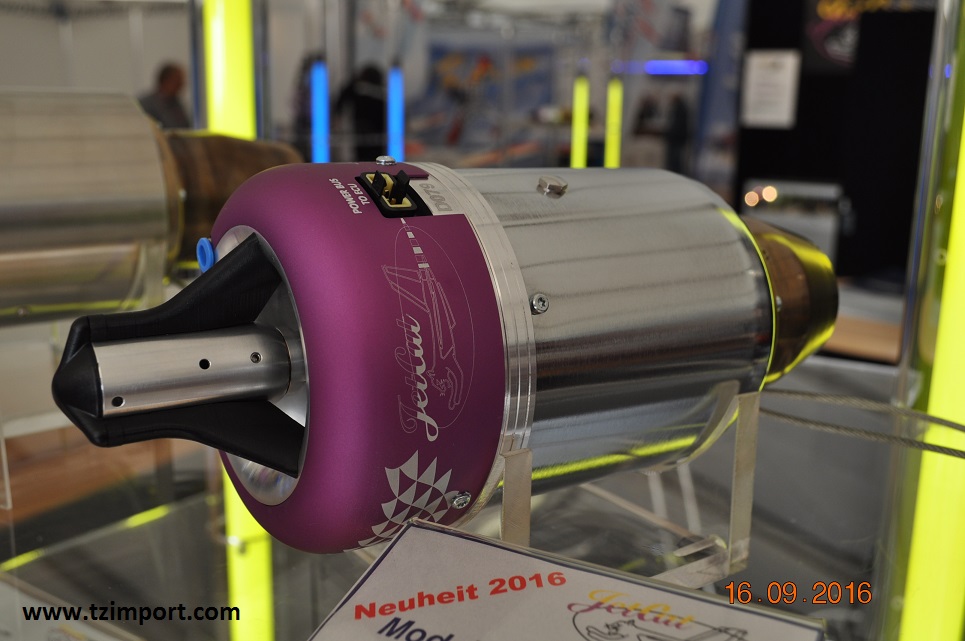

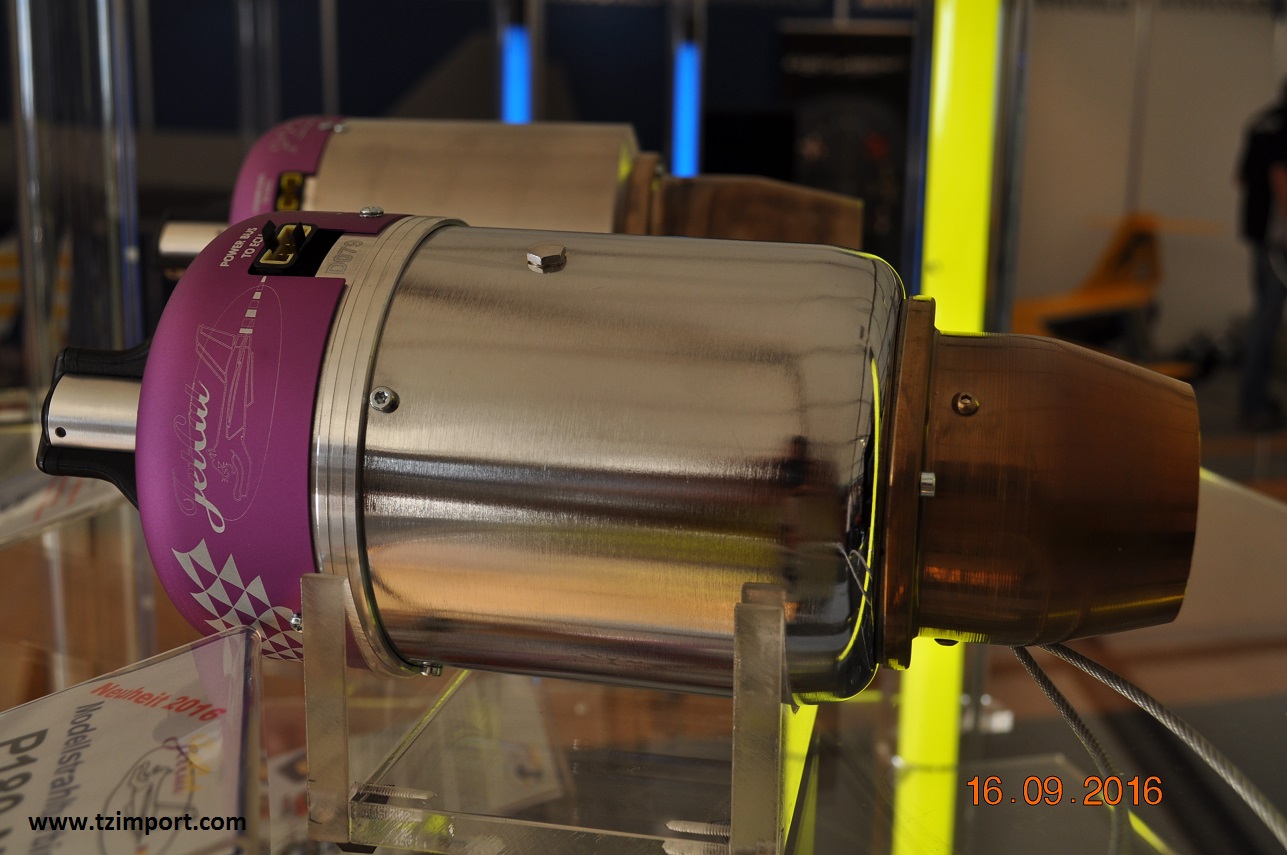

Jet-Cat P 180-NX:
Thrust: 17,5Kg
Weight: 2250g
Diameter: 112mm
Length: 283mm
RPM range: 33000 - 110000 RP/min
Exhaust: 520750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 585ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 3550
Thrust: 17,5Kg
Weight: 2250g
Diameter: 112mm
Length: 283mm
RPM range: 33000 - 110000 RP/min
Exhaust: 520750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 585ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 3550
Jet-Cat P550 PRO-GL:
Thrust: 55Kg/83.000 r/min
Weight: 4900g
Diameter: 178,6mm
Length: 353mm
RPM range: 26000 - 83000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1650ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Price: 15.351
Thrust: 55Kg/83.000 r/min
Weight: 4900g
Diameter: 178,6mm
Length: 353mm
RPM range: 26000 - 83000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1650ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Price: 15.351
News
Since the beginning of this year, 2017, the following turbine are out of production:
P90 Rxi
P90 Rxi-B
P140 Rxi
P140 Rxi-B
P180 Rxi
P180 Rxi-B
Still in the Jetcat stock is the P180 Nx and the new P160 Rxi-B
Since the beginning of this year, 2017, the following turbine are out of production:
P90 Rxi
P90 Rxi-B
P140 Rxi
P140 Rxi-B
P180 Rxi
P180 Rxi-B
Still in the Jetcat stock is the P180 Nx and the new P160 Rxi-B
|
|

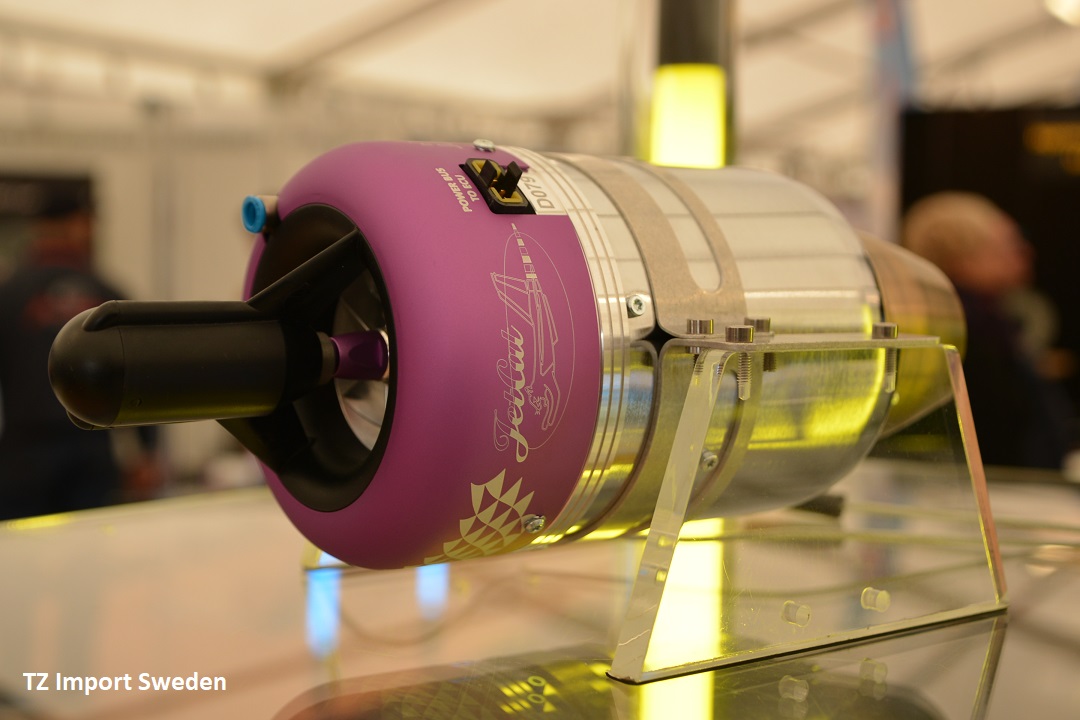

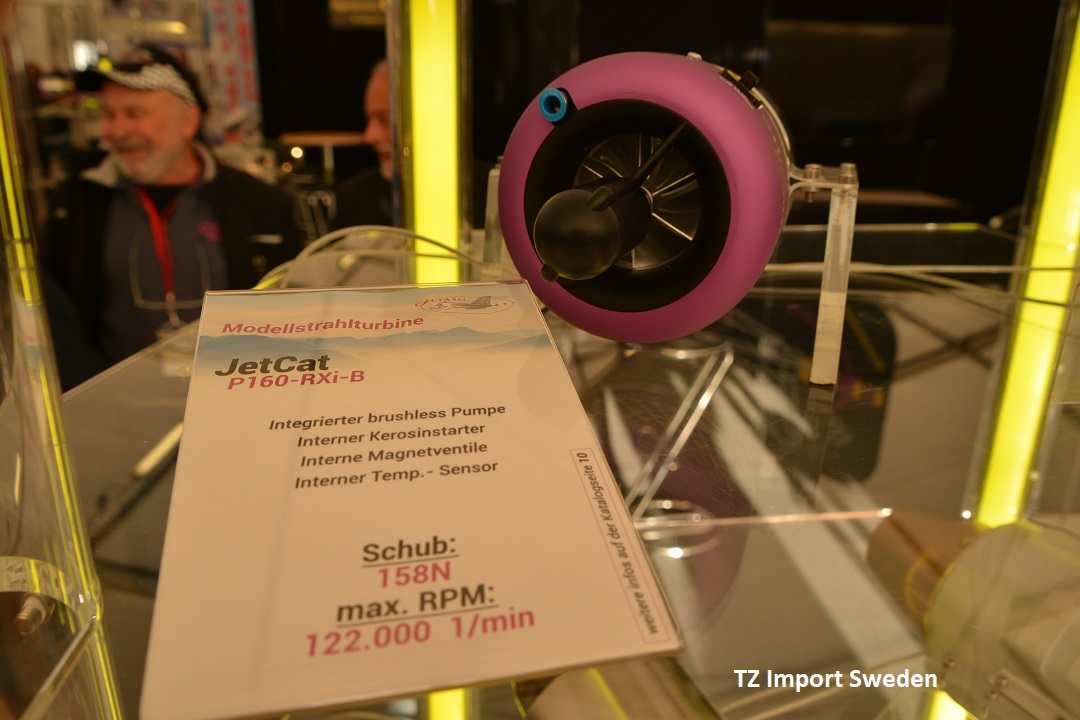

Jet-Cat P 160 RXi-B:
Thrust: 15,8Kg
Weight: 1670g
Diameter: 112mm
Length: 297mm
RPM range: 33000 - 122000 RP/min
Exhaust: 520-750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 725ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2850
Thrust: 15,8Kg
Weight: 1670g
Diameter: 112mm
Length: 297mm
RPM range: 33000 - 122000 RP/min
Exhaust: 520-750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 725ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2850
|
|
|
Jet-Cat P550 PRO-Gh:
Thrust: 55Kg/83.000 r/min
Weight: 4900g
Diameter: 178,6mm
Length: 353mm
RPM range: 26000 - 83000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1650ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Price: 16.065
Thrust: 55Kg/83.000 r/min
Weight: 4900g
Diameter: 178,6mm
Length: 353mm
RPM range: 26000 - 83000 RP/min
Exhaust: 480-750 C
Fuel: Jet-A1 med 5% oilmix
( turbinoil )
Fuel consumpsion: 1650ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Price: 16.065
