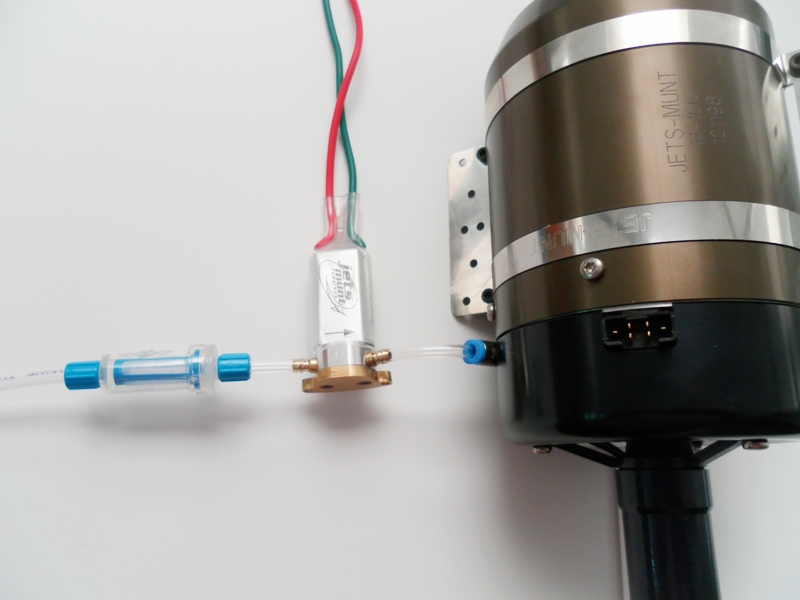

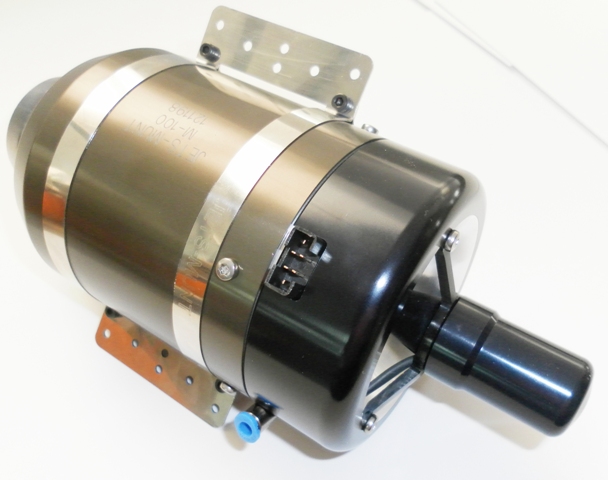

Merlin 100XBL
Specifications:
Nominal thrust: 100N (22,5lb) at 152.000 RPM
Idle thrust: 5N
Idle RPM: 42,000
Diameter: 90mm (3.5)
Engine weight: 985g (2.2lb) (including mounting strap)
Installed weight: 1,100g (2,4lb) including ecu, pump, valves.
Fuel: Kerosene + 3% - 5% oil (synthetic 2T motorcycle oil or turbine oil).
EGT typ: 650ēC
Fuel comsumption: 360ml/min
Start mode: Direct Kerosene, internal ignitor.
Price: 2140
Specifications:
Nominal thrust: 100N (22,5lb) at 152.000 RPM
Idle thrust: 5N
Idle RPM: 42,000
Diameter: 90mm (3.5)
Engine weight: 985g (2.2lb) (including mounting strap)
Installed weight: 1,100g (2,4lb) including ecu, pump, valves.
Fuel: Kerosene + 3% - 5% oil (synthetic 2T motorcycle oil or turbine oil).
EGT typ: 650ēC
Fuel comsumption: 360ml/min
Start mode: Direct Kerosene, internal ignitor.
Price: 2140

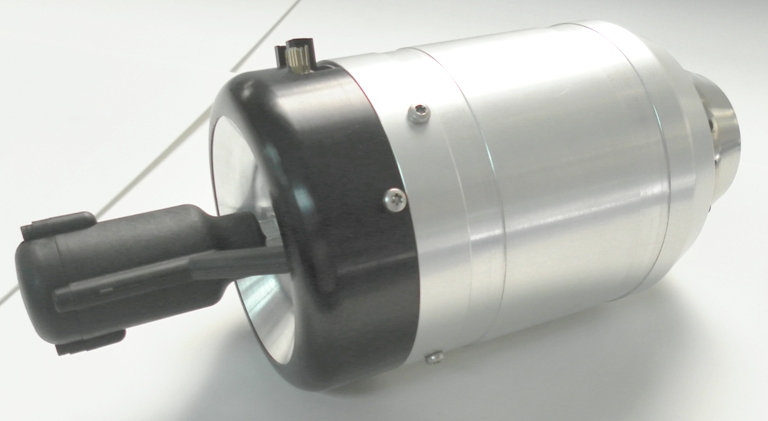

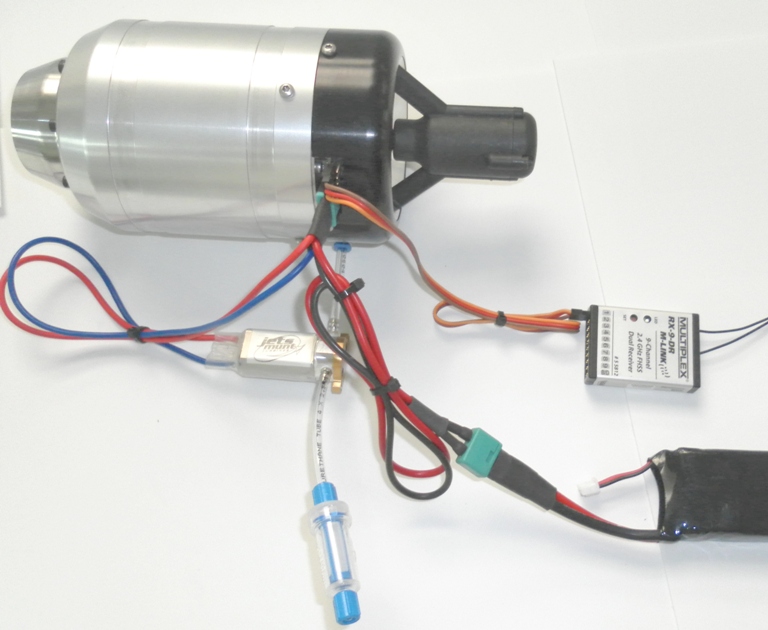

VT80BL
Specifications:
Guaranteed thrust in ISA conditions: 80N (18lb) at 150.000 RPM
Idle thrust: 4.5N (1lb)
Idle RPM: 45,000
Size: Diameter: 90.5mm (3.56) Length 217mm (8,5")
Engine weight: 950g (2.1lb) . Including integrated ecu and valves
Installed weight: 1,075g (2,37lb) all included less battery.
Fuel: Kerosene + 4% oil.
Fuel consumption at 80N: 220g/min
Starting mode: Direct Kerosene .
Price 1650
Specifications:
Guaranteed thrust in ISA conditions: 80N (18lb) at 150.000 RPM
Idle thrust: 4.5N (1lb)
Idle RPM: 45,000
Size: Diameter: 90.5mm (3.56) Length 217mm (8,5")
Engine weight: 950g (2.1lb) . Including integrated ecu and valves
Installed weight: 1,075g (2,37lb) all included less battery.
Fuel: Kerosene + 4% oil.
Fuel consumption at 80N: 220g/min
Starting mode: Direct Kerosene .
Price 1650

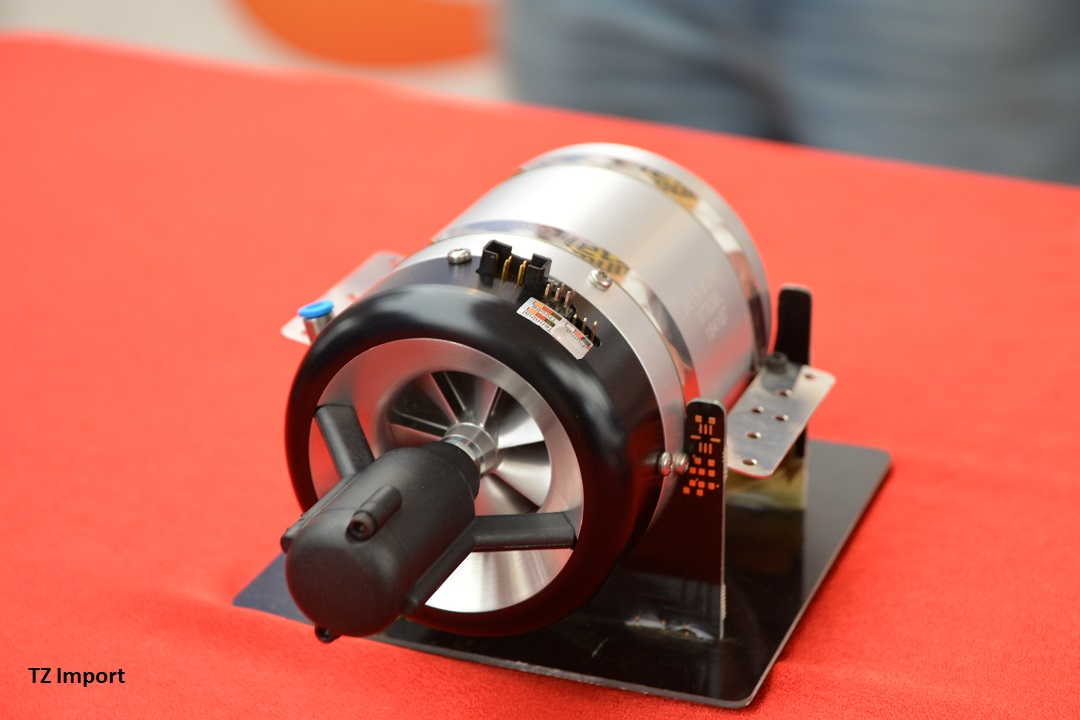

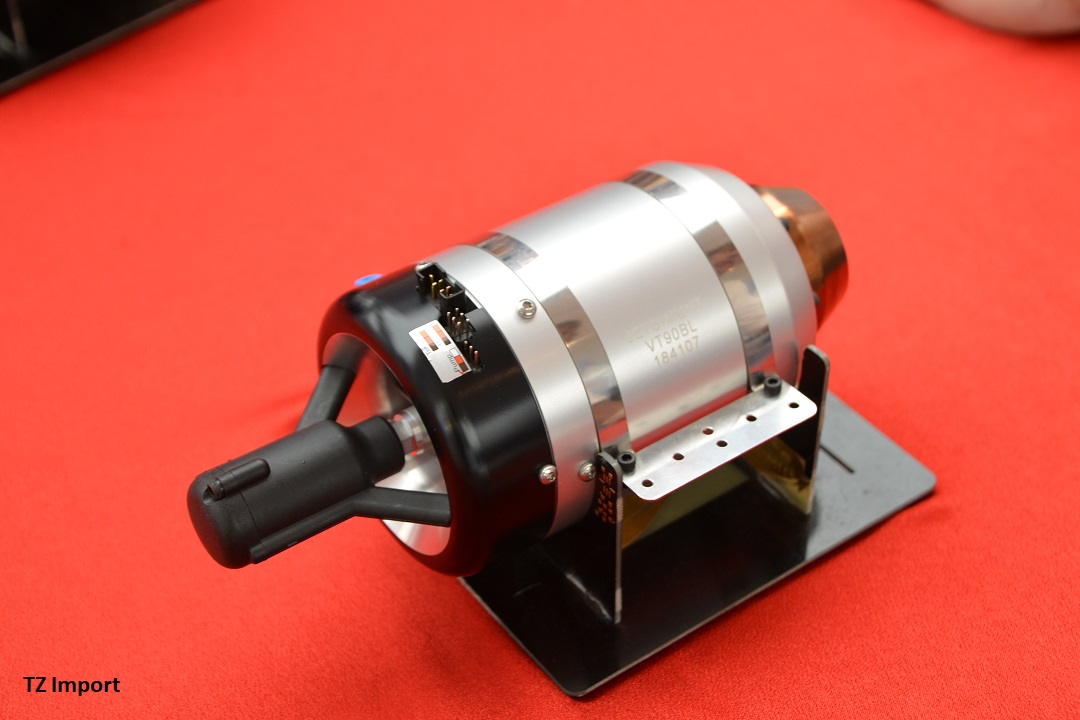

VT90BLR
Specifications:
Nominal thrust: 90N at 154.000 RPM
Idle thrust: 3,8N (<1lb)
Idle RPM: 42,000
Diameter: 90,5mm (3.56)
Engine weight: 950g (2.1lb)
Installed weight: 1,075 (2,37lb)
Fuel: Kerosene/Diesel + 3% oil
Fuel comsumption: 240g/min
Starting mode: Direct kerosine
Price: 1875
Specifications:
Nominal thrust: 90N at 154.000 RPM
Idle thrust: 3,8N (<1lb)
Idle RPM: 42,000
Diameter: 90,5mm (3.56)
Engine weight: 950g (2.1lb)
Installed weight: 1,075 (2,37lb)
Fuel: Kerosene/Diesel + 3% oil
Fuel comsumption: 240g/min
Starting mode: Direct kerosine
Price: 1875
|
|
|
|
|

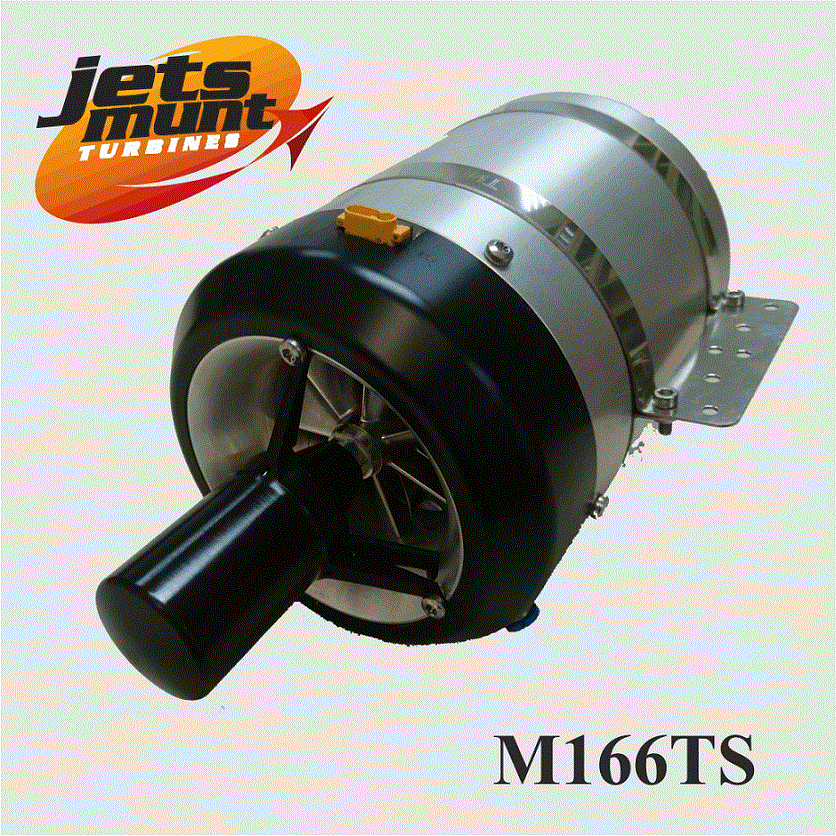

M166TS
Specifications:
Nominal thrust: Typ. 166N (37,4 LB) at 124.000 RPM
Idle thrust: 5,5N
Idle RPM: 32,000
Diameter: 102mm (4)
Engine weight: 1,420g (3,12 Lb)
Installed weight: 1,535g (3,4 Lb) including ecu, pump, valves and tubes.
Fuel: Kerosene/Diesel + 3%-5%
Fuel consumption at 160N: 460g/min; at 100N: 290g/min
Start mode: Fast start, dual glow plug direct kerosene.
Fast restart, typical <15 seconds.
Easily programmable maximum thrust in newton or Pound
Price: 2500
Specifications:
Nominal thrust: Typ. 166N (37,4 LB) at 124.000 RPM
Idle thrust: 5,5N
Idle RPM: 32,000
Diameter: 102mm (4)
Engine weight: 1,420g (3,12 Lb)
Installed weight: 1,535g (3,4 Lb) including ecu, pump, valves and tubes.
Fuel: Kerosene/Diesel + 3%-5%
Fuel consumption at 160N: 460g/min; at 100N: 290g/min
Start mode: Fast start, dual glow plug direct kerosene.
Fast restart, typical <15 seconds.
Easily programmable maximum thrust in newton or Pound
Price: 2500
|
|
|
![M166TS_1[1]](M166TS_1[1].gif "M166TS_1[1]")
|
|

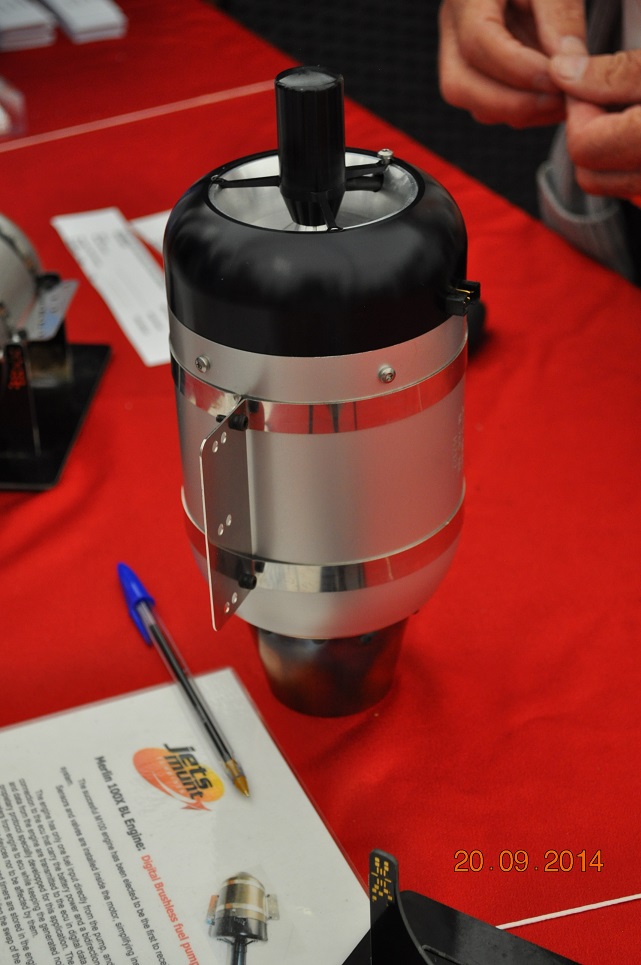

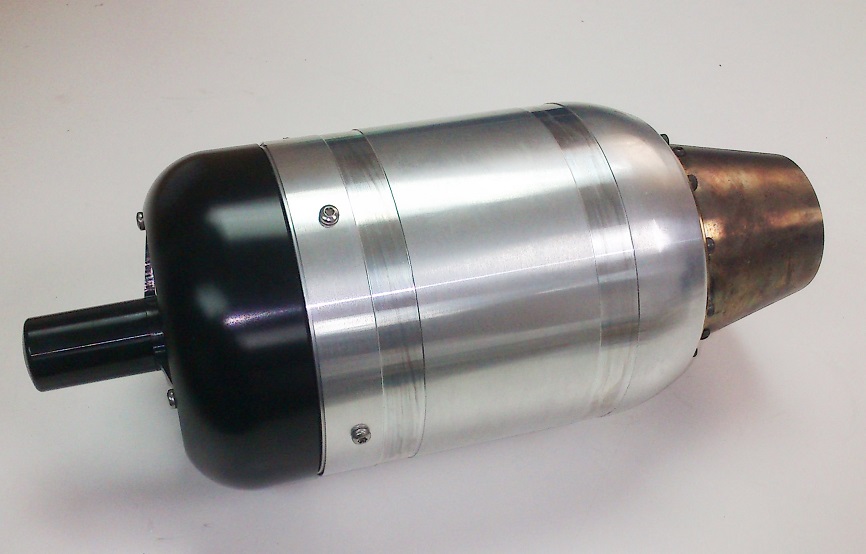

Merlin 200XBL
Specifications:
Nominal thrust: 200N (45lb) at 115.000 RPM
Idle thrust: 7N
Idle RPM: 30,000
Diameter: 110mm (4.3)
Lenght: 266mm (10,47")
Engine weight: 1.530g (3.3lb)
Installeed weight: 1,650g (3,65 lb)
Fuel: Kerosene + 3% - 5% oil
Fuel consumption: 550g/min
Start mode: Direct Kerosene
Price: 2975
Specifications:
Nominal thrust: 200N (45lb) at 115.000 RPM
Idle thrust: 7N
Idle RPM: 30,000
Diameter: 110mm (4.3)
Lenght: 266mm (10,47")
Engine weight: 1.530g (3.3lb)
Installeed weight: 1,650g (3,65 lb)
Fuel: Kerosene + 3% - 5% oil
Fuel consumption: 550g/min
Start mode: Direct Kerosene
Price: 2975

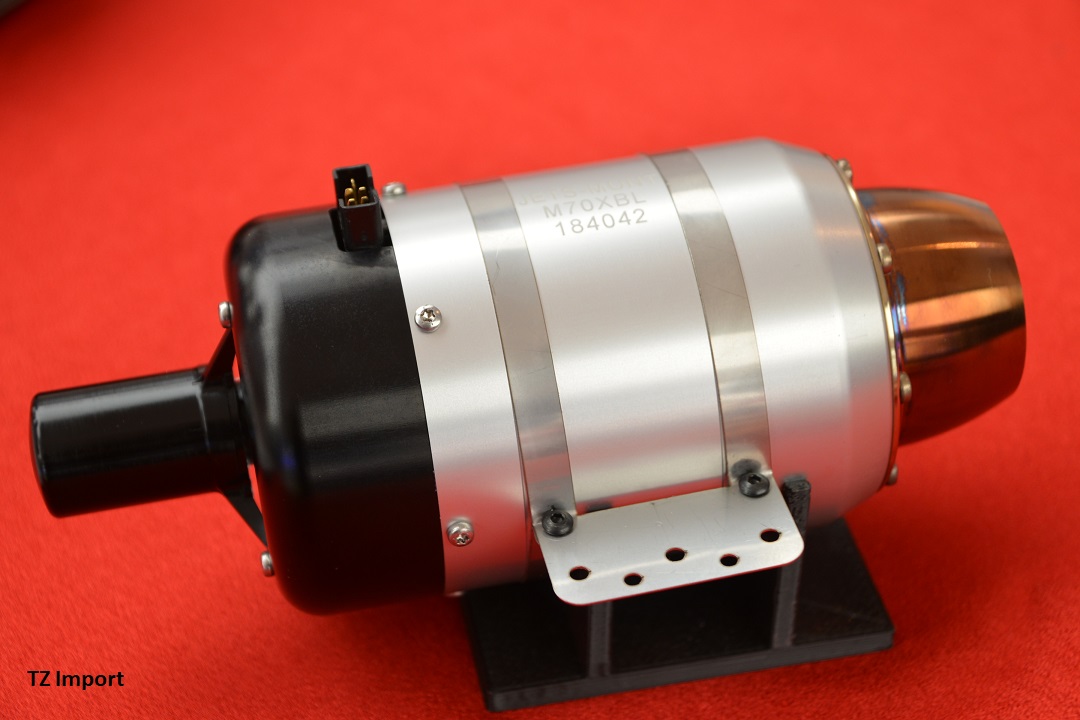

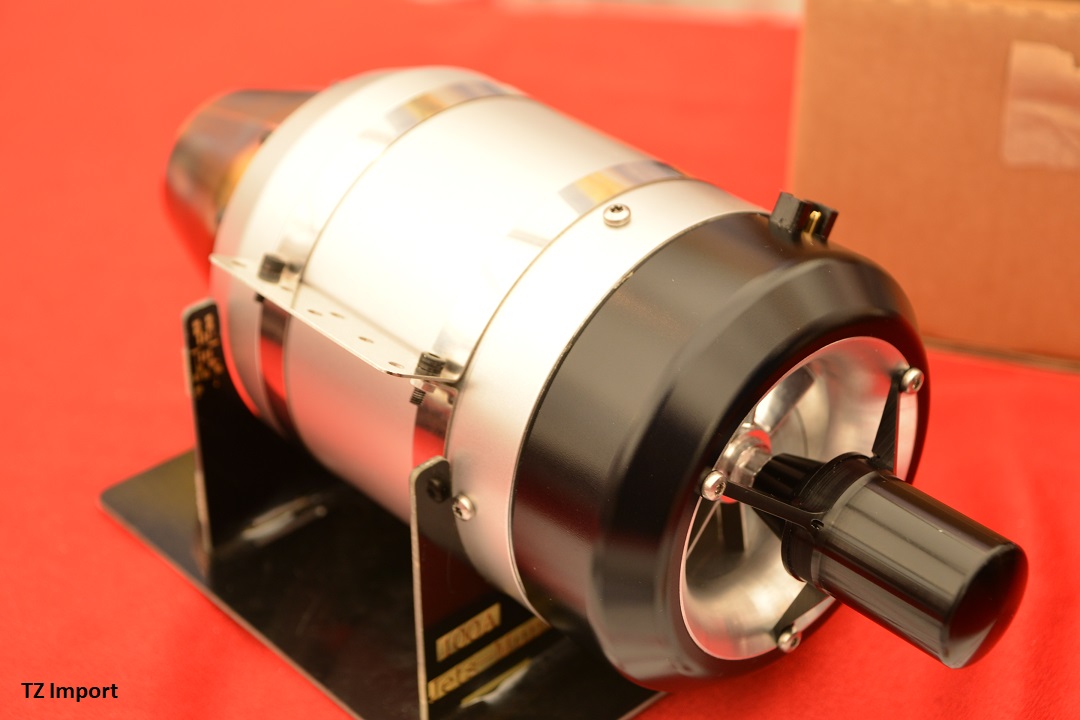

VT70XBL
Specifications:
Nominal thrust: 70N/15,8 Lb at 172.000 RPM
Idle thrust: 2,8N (0,6 Lb) at 50.000 rpm
Diameter: 75mm (3)
Length: 185mm (7,28")
Engine weight: 832g (1,83 Lb)
Installed weight: 1,075 (2,37lb)
Fuel: Kerosene/Diesel + 4% oil
Fuel consumption: 200g/min at 70N; 155g/min at 50N; 109g/min at 30N
Starting mode: Direct kerosene
Price: 1600
Specifications:
Nominal thrust: 70N/15,8 Lb at 172.000 RPM
Idle thrust: 2,8N (0,6 Lb) at 50.000 rpm
Diameter: 75mm (3)
Length: 185mm (7,28")
Engine weight: 832g (1,83 Lb)
Installed weight: 1,075 (2,37lb)
Fuel: Kerosene/Diesel + 4% oil
Fuel consumption: 200g/min at 70N; 155g/min at 50N; 109g/min at 30N
Starting mode: Direct kerosene
Price: 1600
|
|
|
