The price are in Euro ( € ). Delivery cost it´ll be add

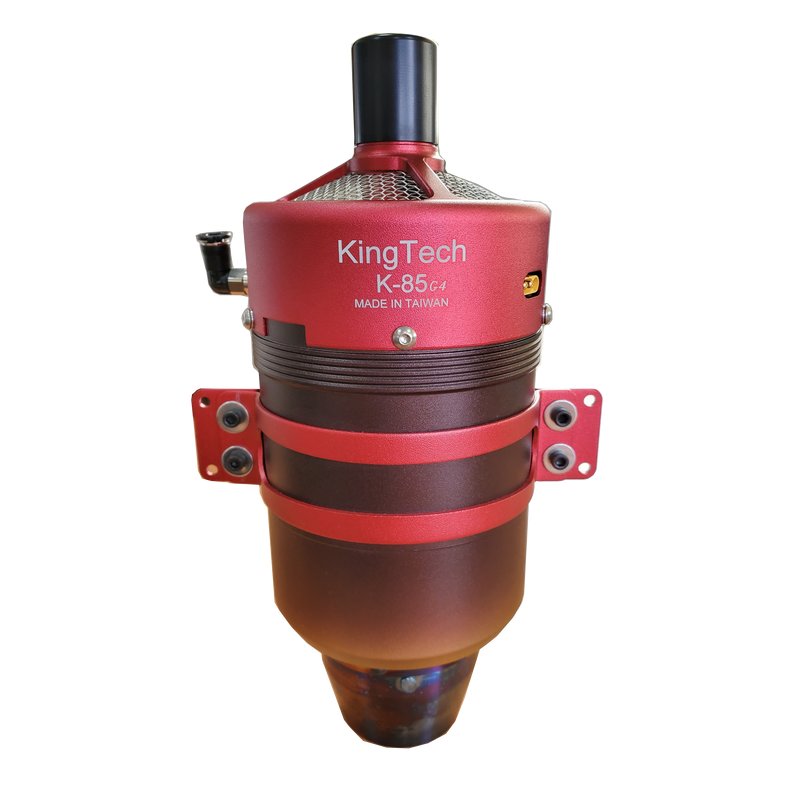

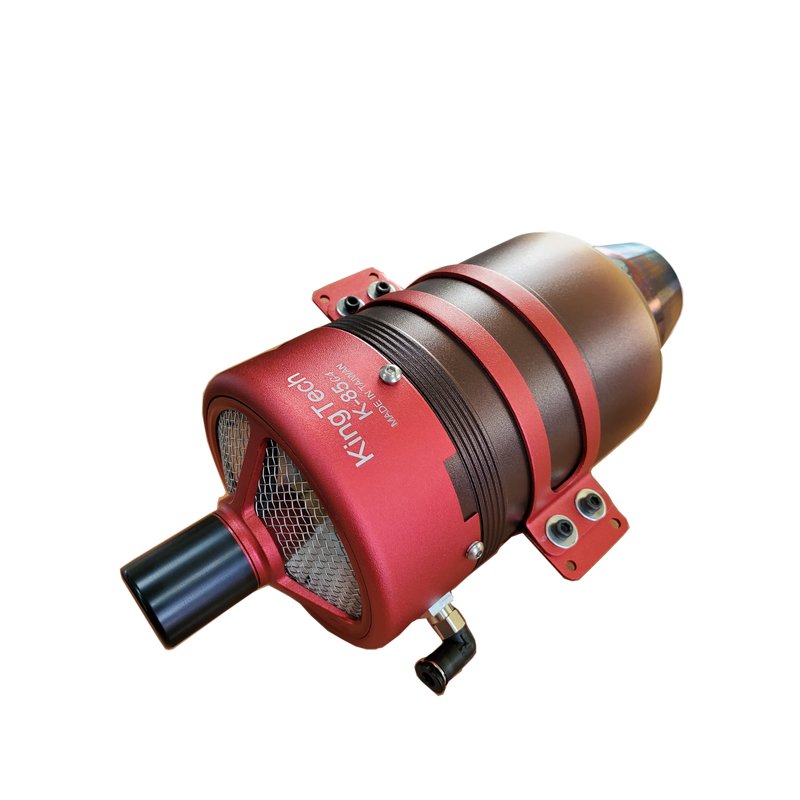

K85 G4:
Diameter: 82mm
Lenght: 205mm
Weight: 880g
Max. RMP: 170000
Idle RMP: 50000
Thurst: 8,6kg @ 15°C 19,2lb
EGT: 700°C
Fuel consumption: 260g/min
Fuel: Diesel, Petroleum, Jet A1 or Kerosene
Lubrication: 5% Turbine oil
Pris: € 2149
Diameter: 82mm
Lenght: 205mm
Weight: 880g
Max. RMP: 170000
Idle RMP: 50000
Thurst: 8,6kg @ 15°C 19,2lb
EGT: 700°C
Fuel consumption: 260g/min
Fuel: Diesel, Petroleum, Jet A1 or Kerosene
Lubrication: 5% Turbine oil
Pris: € 2149
|
|
|

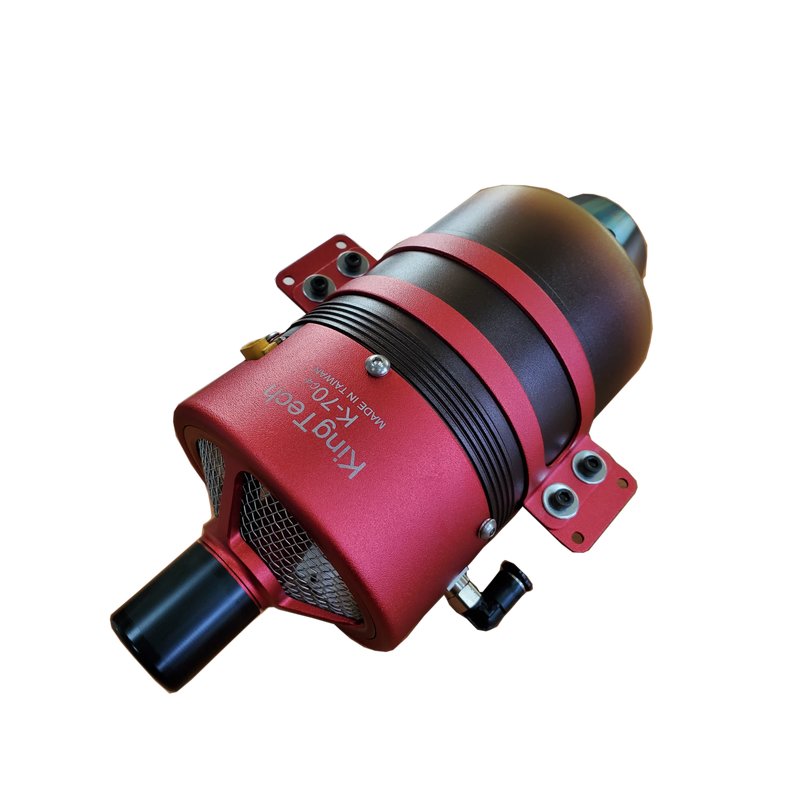

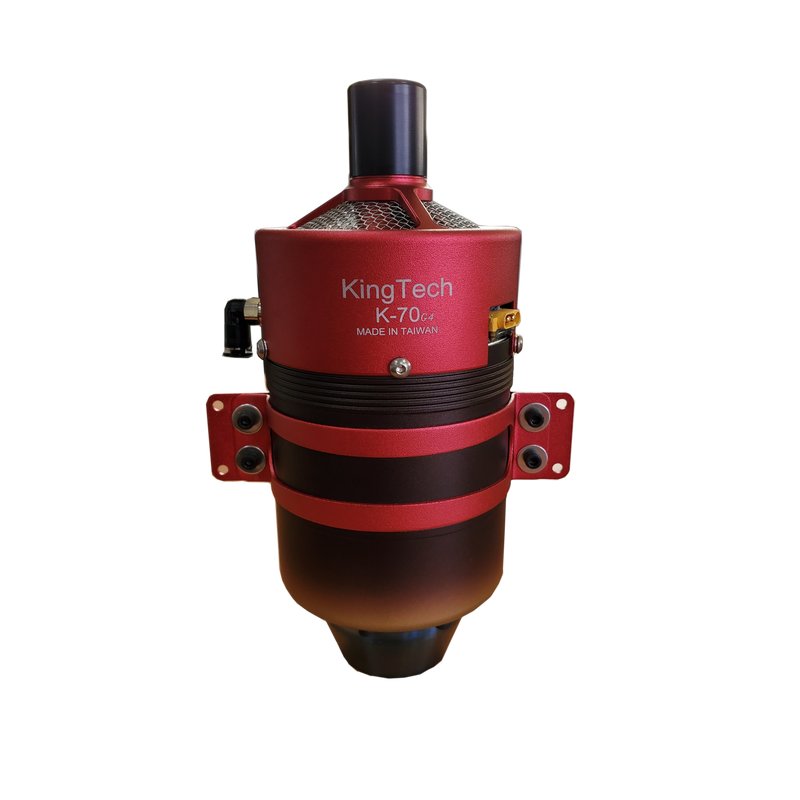

K70 G4:
Diameter: 76mm
Lenght: 180mm
Weight: 720g
Max. RMP: 180.000
Idle RMP: 55000
Thurst: 7,0kg @ 15°C
EGT: 700°C
Fuel consumption: 230g/min
Fuel: Diesel, Petroleum, Jet A1 or Kerosene
Lubrication: 5% Turbine oil
Pris: € 2099
Diameter: 76mm
Lenght: 180mm
Weight: 720g
Max. RMP: 180.000
Idle RMP: 55000
Thurst: 7,0kg @ 15°C
EGT: 700°C
Fuel consumption: 230g/min
Fuel: Diesel, Petroleum, Jet A1 or Kerosene
Lubrication: 5% Turbine oil
Pris: € 2099
|
|

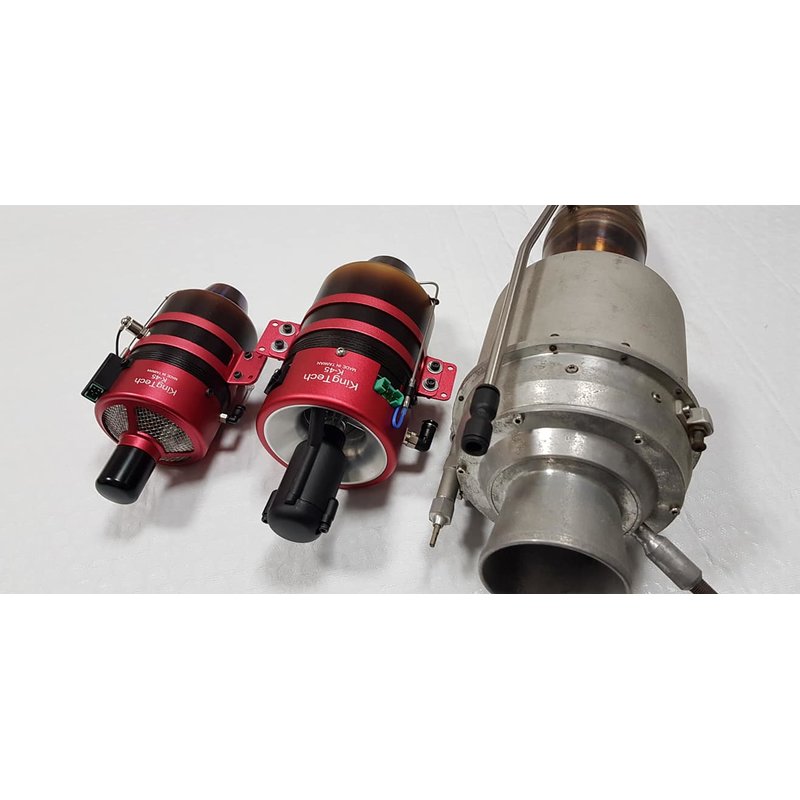

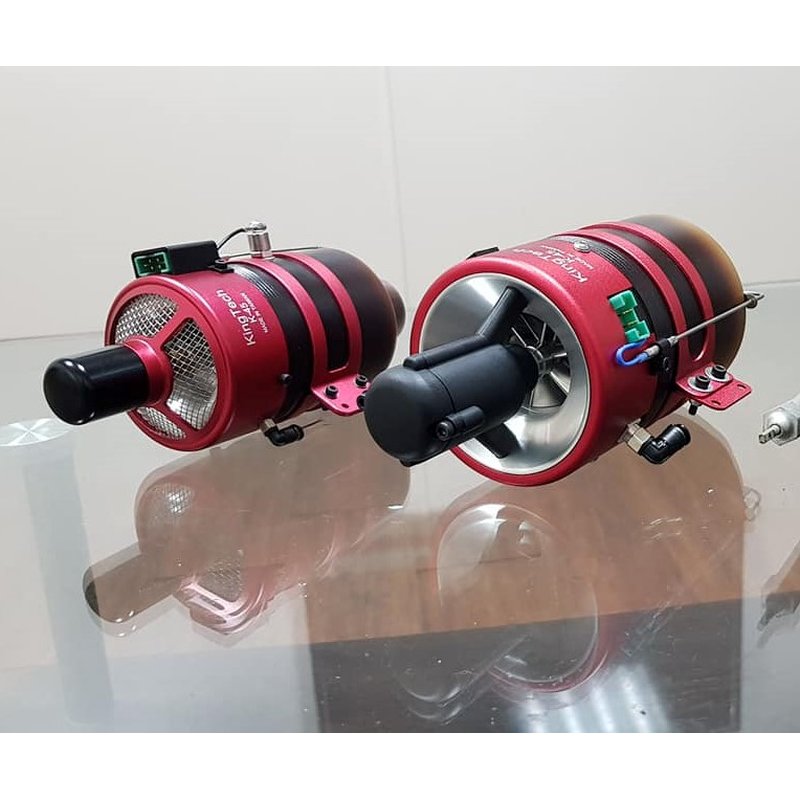

K45 G4:
Diameter: 62.9mm
Length: 158mm
Weight: 450g (Include internal valve, mount, Digital control system, FOD Screen)
Max. RPM: 232000
Thrust: 4.5kg@ 15° C
EGT: 720 °C max
Fuel consumption: 150 g / min
Fuel: Jet A1, Kerosene
Lubrication: 5%
Pris: € 1999
Diameter: 62.9mm
Length: 158mm
Weight: 450g (Include internal valve, mount, Digital control system, FOD Screen)
Max. RPM: 232000
Thrust: 4.5kg@ 15° C
EGT: 720 °C max
Fuel consumption: 150 g / min
Fuel: Jet A1, Kerosene
Lubrication: 5%
Pris: € 1999

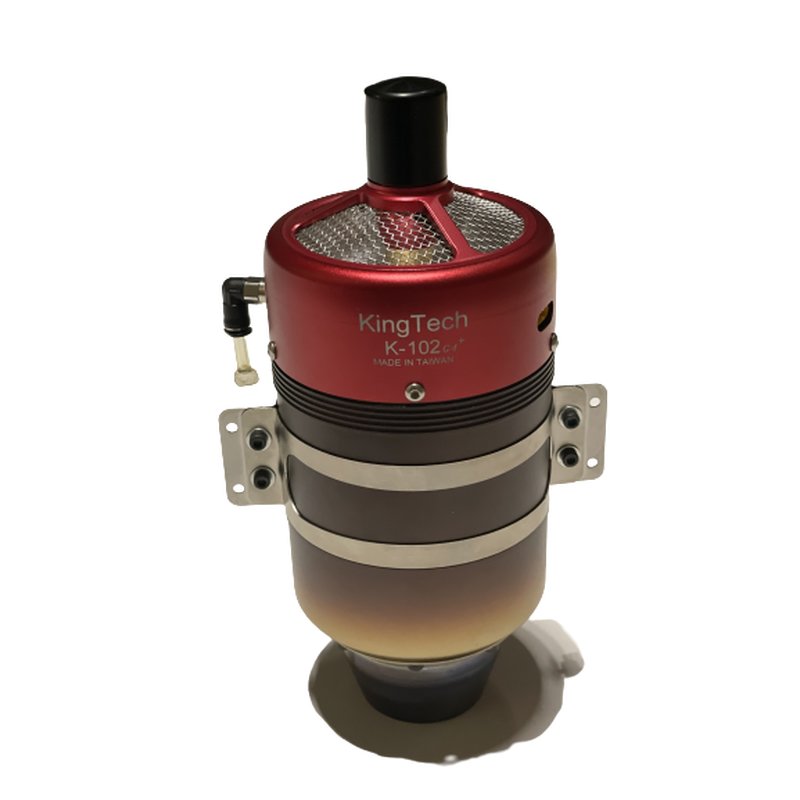

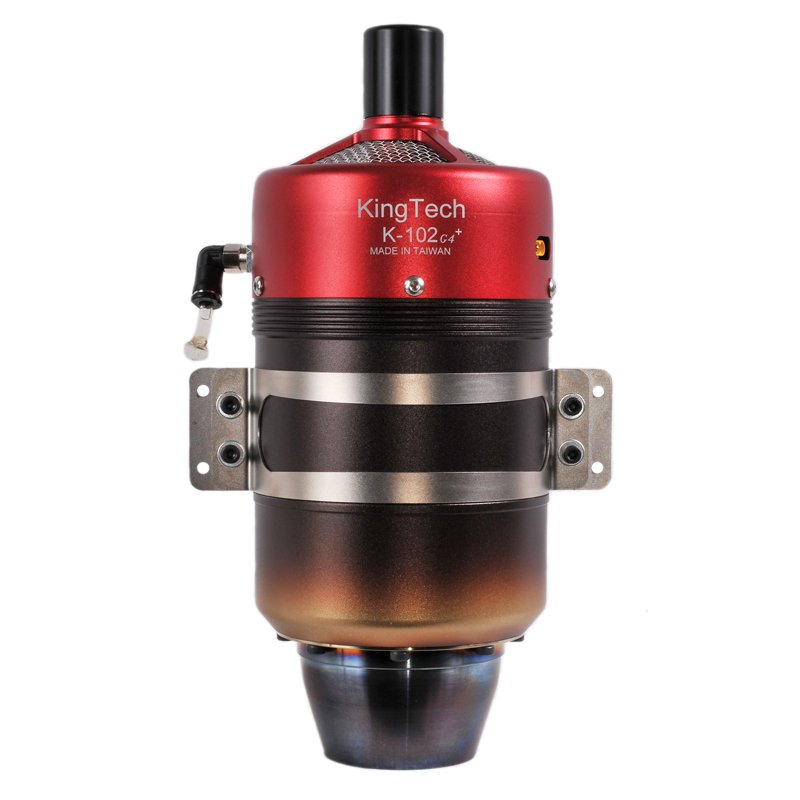

K1032 G4:
Diameter: 84mm
Length: 203.3mm
Weight: 910g
Maximum RPM: up to 160000 max
Thrust: 10 kg @ 15° C.
EGT: 750°C max
Fuel consumption: 330 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pump type: Digital sbus brushless pump
Pris: € 2399
Diameter: 84mm
Length: 203.3mm
Weight: 910g
Maximum RPM: up to 160000 max
Thrust: 10 kg @ 15° C.
EGT: 750°C max
Fuel consumption: 330 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pump type: Digital sbus brushless pump
Pris: € 2399
|
|

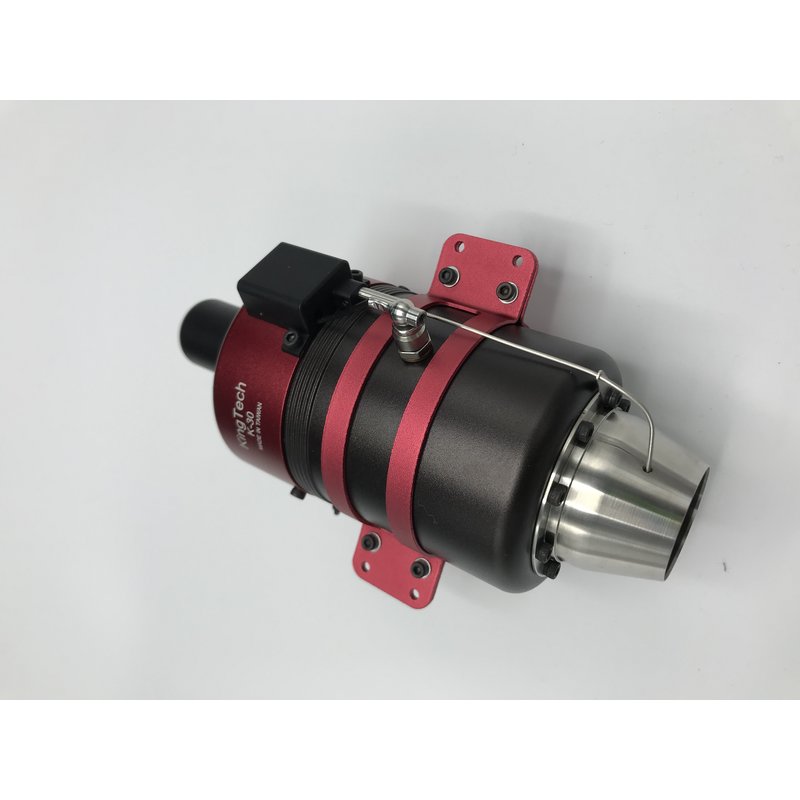

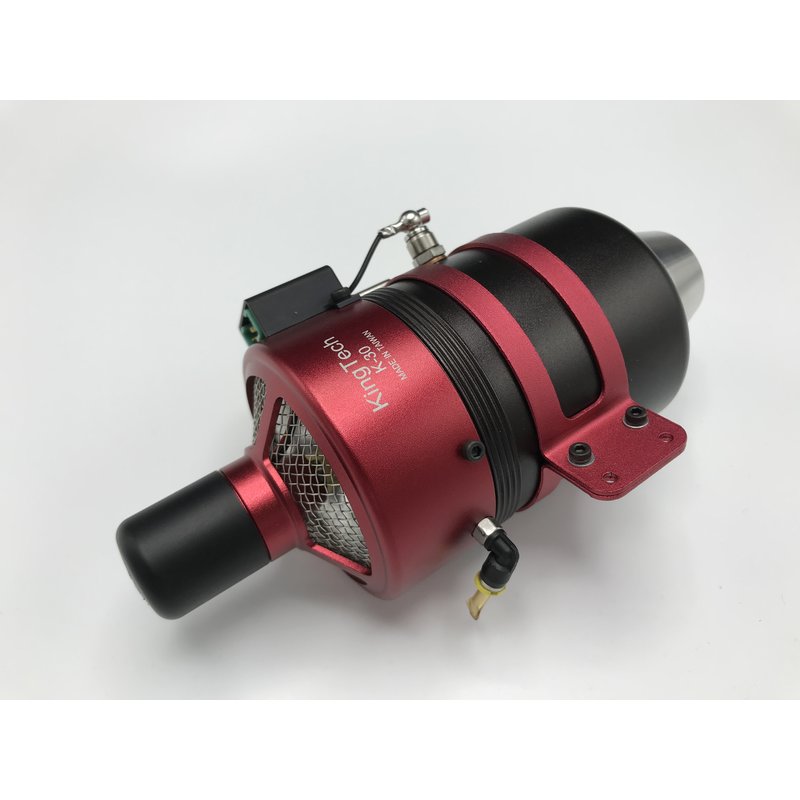

K30 G4:
Diameter: 62.9mm
Length: 160mm
Weight: 450g (Include internal valve, mount,
Digital control system, FOD Screen)
Weight with cables, pump, ECU 546g
Max. RPM: 235000
Thrust: 3kg+ @ 15° C
EGT: 720 °C max
Fuel consumption: 120 g / min
Fuel: Jet A1, Kerosene
Lubrication: 5%
Pris: € 1899
Diameter: 62.9mm
Length: 160mm
Weight: 450g (Include internal valve, mount,
Digital control system, FOD Screen)
Weight with cables, pump, ECU 546g
Max. RPM: 235000
Thrust: 3kg+ @ 15° C
EGT: 720 °C max
Fuel consumption: 120 g / min
Fuel: Jet A1, Kerosene
Lubrication: 5%
Pris: € 1899
K180 G4:
Diameter: 103mm
Length: 251 mm
Weight: 1540 g
Maximum RPM: up to 130000
Thrust: 18 KG @ 15°C (35lb @ 59°F )
EGT: 700°C max
Fuel consumption: 490g / min ( 17.28oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 2999
Diameter: 103mm
Length: 251 mm
Weight: 1540 g
Maximum RPM: up to 130000
Thrust: 18 KG @ 15°C (35lb @ 59°F )
EGT: 700°C max
Fuel consumption: 490g / min ( 17.28oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 2999

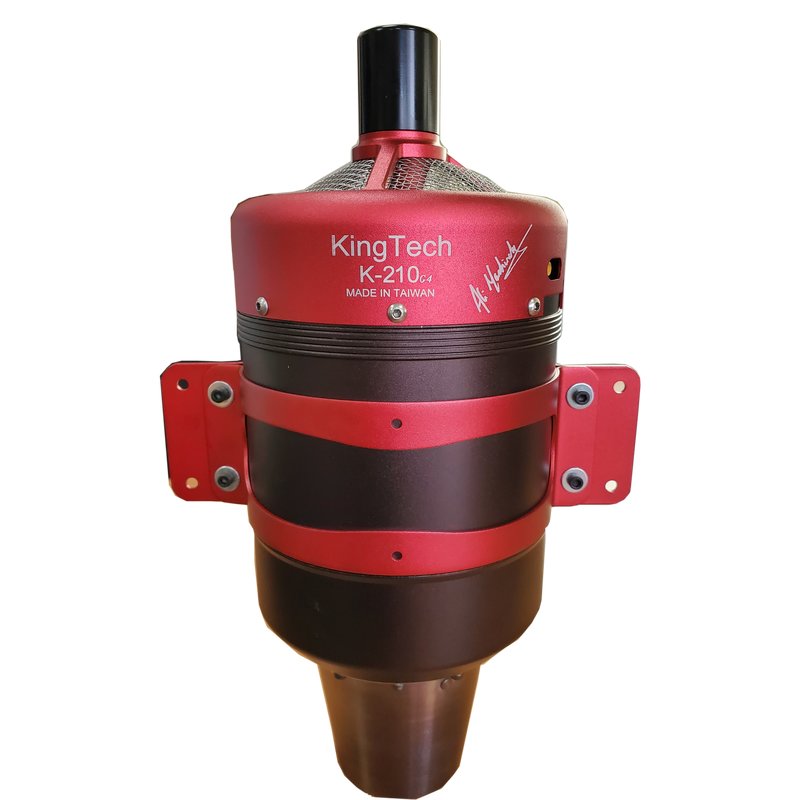

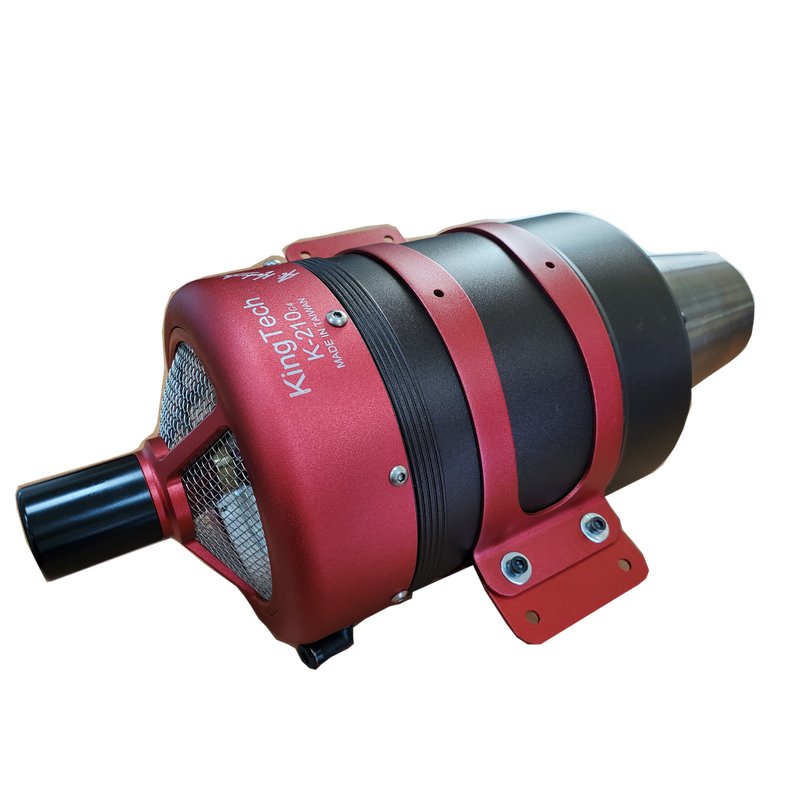

K210 G4:
Diameter: 112.6 mm
Length: 280 mm
Weight: 1740g
RPM Range: up to 33,000-120,000RPM
Thrust: 21 kg @ max RPM ( 46.3 lbs at max RPM)
EGT: 650°C max
Fuel consumption: 590 g / min ( 20.8 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 3299
Diameter: 112.6 mm
Length: 280 mm
Weight: 1740g
RPM Range: up to 33,000-120,000RPM
Thrust: 21 kg @ max RPM ( 46.3 lbs at max RPM)
EGT: 650°C max
Fuel consumption: 590 g / min ( 20.8 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 3299
|
|
||
|

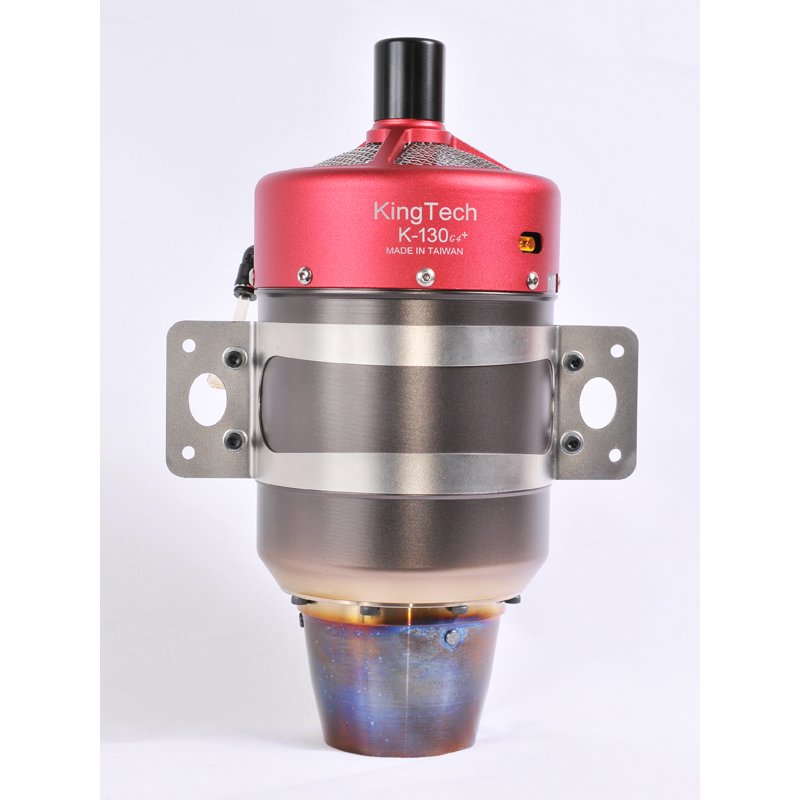

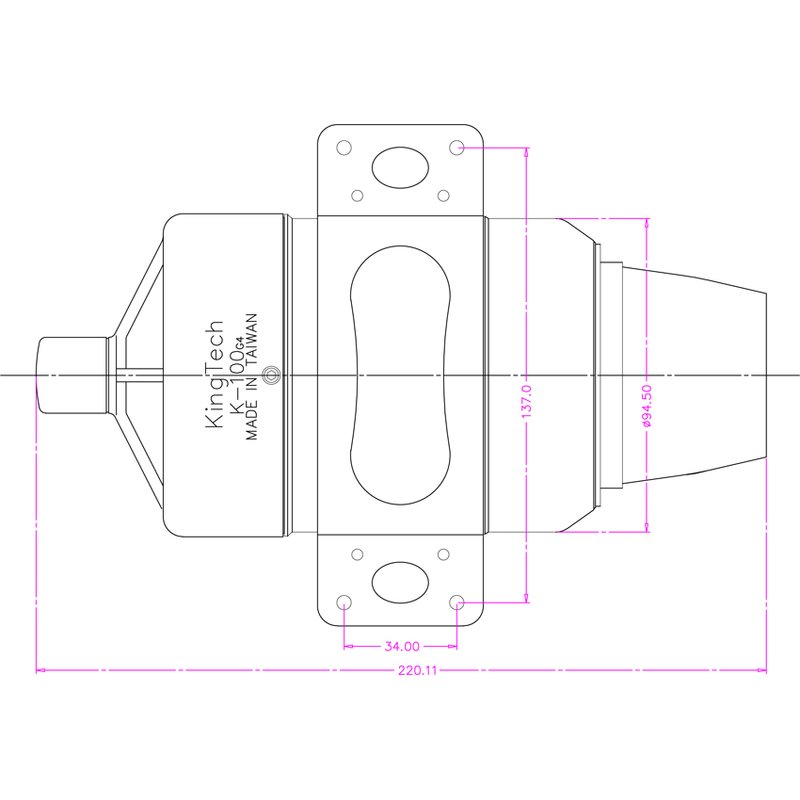

K130 G4:
Diameter: 94.5mm
Length: 220mm
Weight: 1200g(include mount 1270g)
Max. RPM: 142000
Thrust: 13 KG @ 15° C
EGT: 700°C
Fuel consumption: 410 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 2499
Diameter: 94.5mm
Length: 220mm
Weight: 1200g(include mount 1270g)
Max. RPM: 142000
Thrust: 13 KG @ 15° C
EGT: 700°C
Fuel consumption: 410 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 2499
|

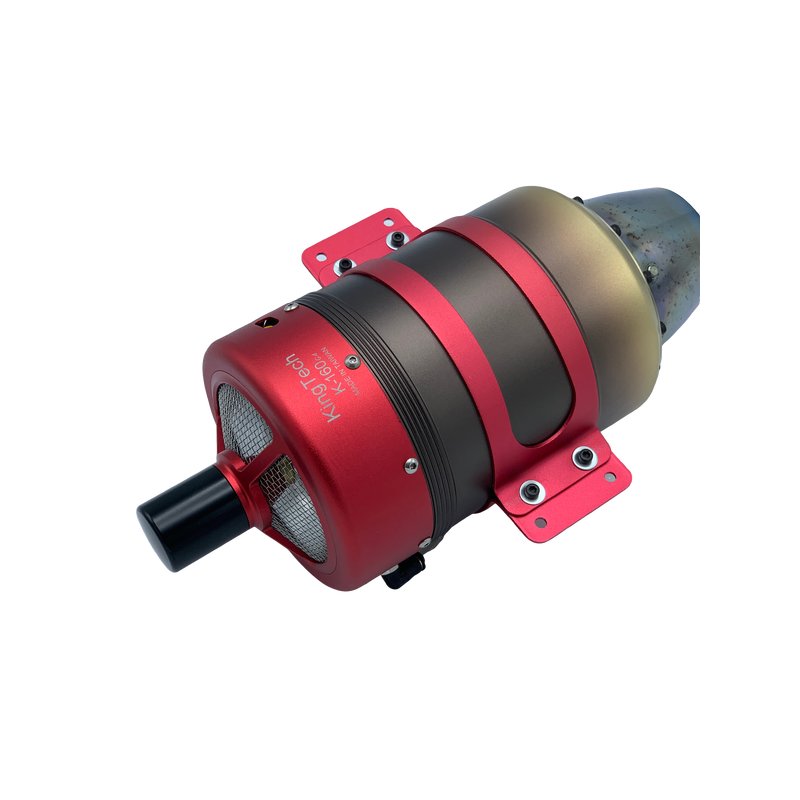

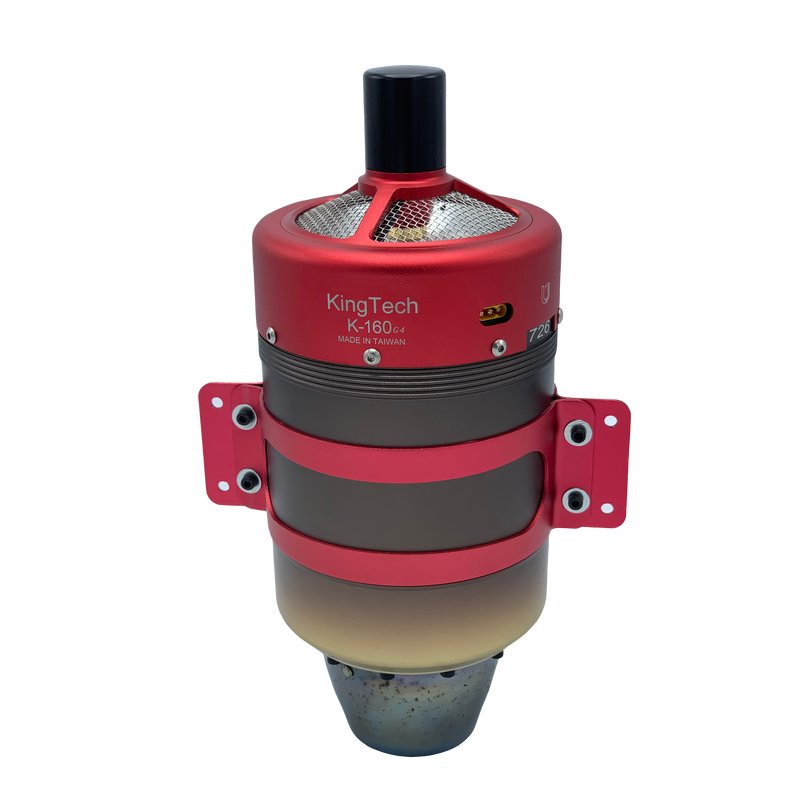

K160 G4:
Diameter: 103mm
Length: 255 mm
Weight: 1540 g
Maximum RPM: up to 130000
Thrust: 16 KG @ 15°C (35lb @ 59°F )
EGT: 700°C max
Fuel consumption: 490g / min ( 17.28oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 2799
Diameter: 103mm
Length: 255 mm
Weight: 1540 g
Maximum RPM: up to 130000
Thrust: 16 KG @ 15°C (35lb @ 59°F )
EGT: 700°C max
Fuel consumption: 490g / min ( 17.28oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 2799
|
|

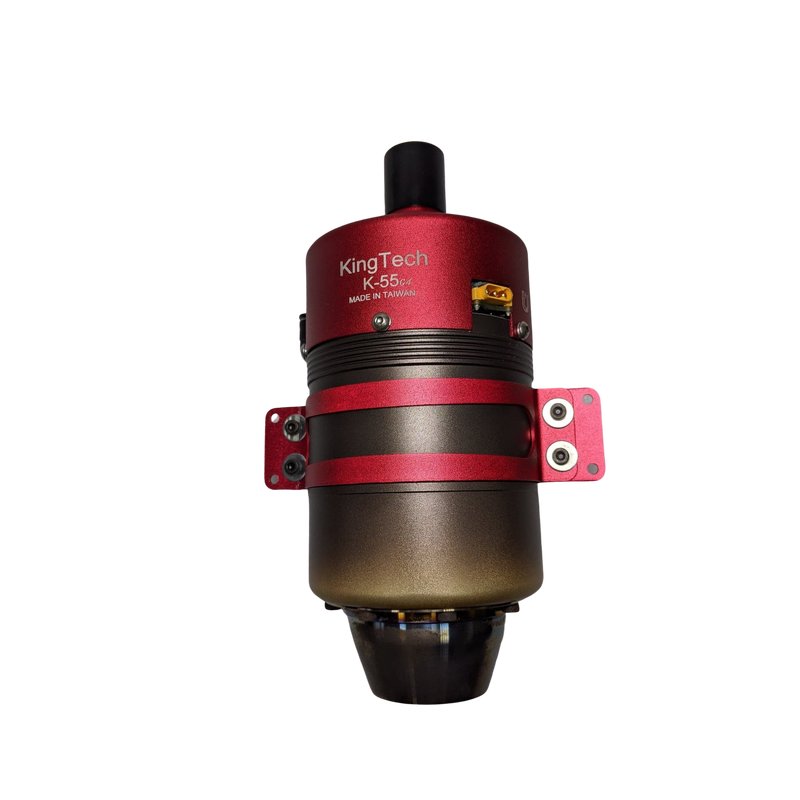

K55 G4:
Diameter: 76mm (2.99?)
Length: 195mm (7.68?)
Weight: 700g (1 lb. 8.6 oz. )
Max. RPM: up to 170000
Thrust: 5.5 kg @ 15° C
EGT: 730°C max
Fuel consumption: 200g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 1835
Diameter: 76mm (2.99?)
Length: 195mm (7.68?)
Weight: 700g (1 lb. 8.6 oz. )
Max. RPM: up to 170000
Thrust: 5.5 kg @ 15° C
EGT: 730°C max
Fuel consumption: 200g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 1835
|
|

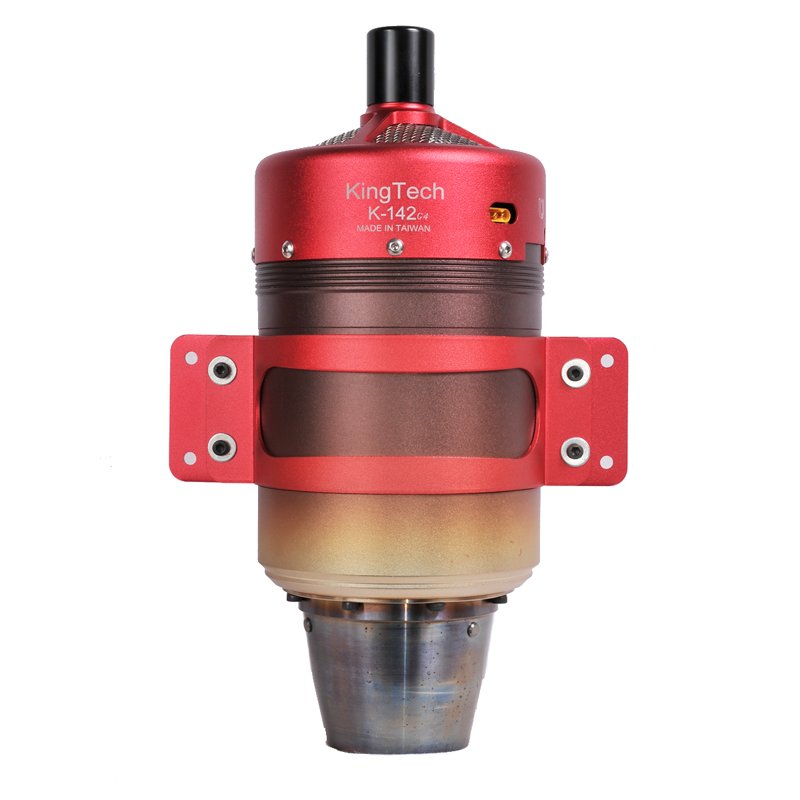

K142 G4:
Diameter: 95.25mm
Length: 235,5 mm
Weight: 1300 g
Maximum RPM: up to 140000
Thrust: 14 KG @ 15° C. ( 27 lb. @59° F.)
EGT: 700°C max
Fuel consumption: 440 g / min ( 11.84 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 2599
Diameter: 95.25mm
Length: 235,5 mm
Weight: 1300 g
Maximum RPM: up to 140000
Thrust: 14 KG @ 15° C. ( 27 lb. @59° F.)
EGT: 700°C max
Fuel consumption: 440 g / min ( 11.84 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 2599
|
|
|
|
|
|
|
|

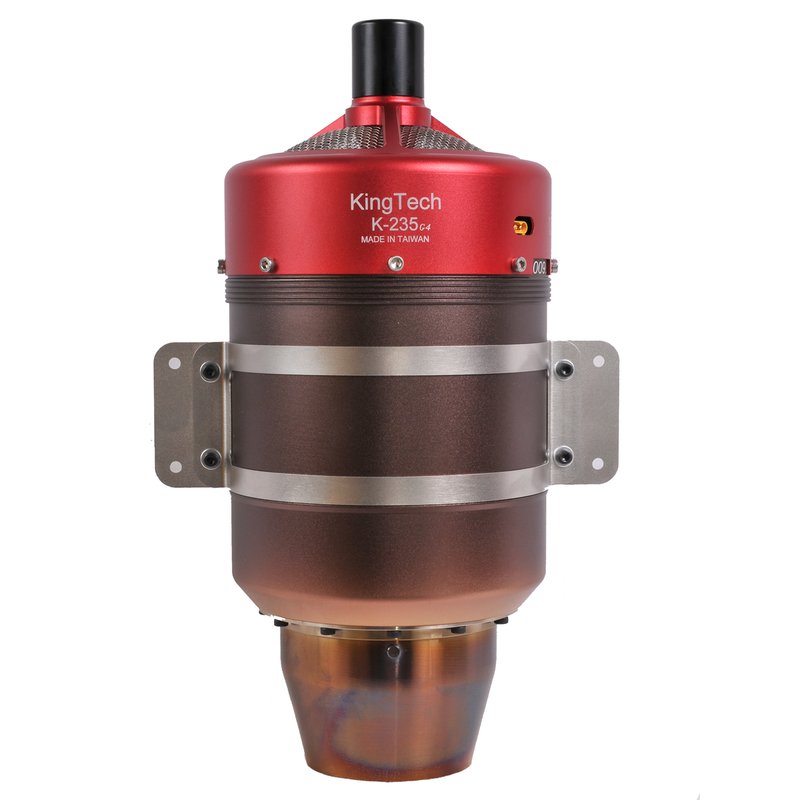

K235 G4:
Diameter: 119 mm
Length: 278 mm
Weight: 2.0 kg
RPM Range: up to 33,000-109,000RPM
Max Thrust: 23.5 kg
EGT: 750°C max
Fuel consumption: 680 g / min
Lubrication: 5%
Pris: € 3599
Diameter: 119 mm
Length: 278 mm
Weight: 2.0 kg
RPM Range: up to 33,000-109,000RPM
Max Thrust: 23.5 kg
EGT: 750°C max
Fuel consumption: 680 g / min
Lubrication: 5%
Pris: € 3599

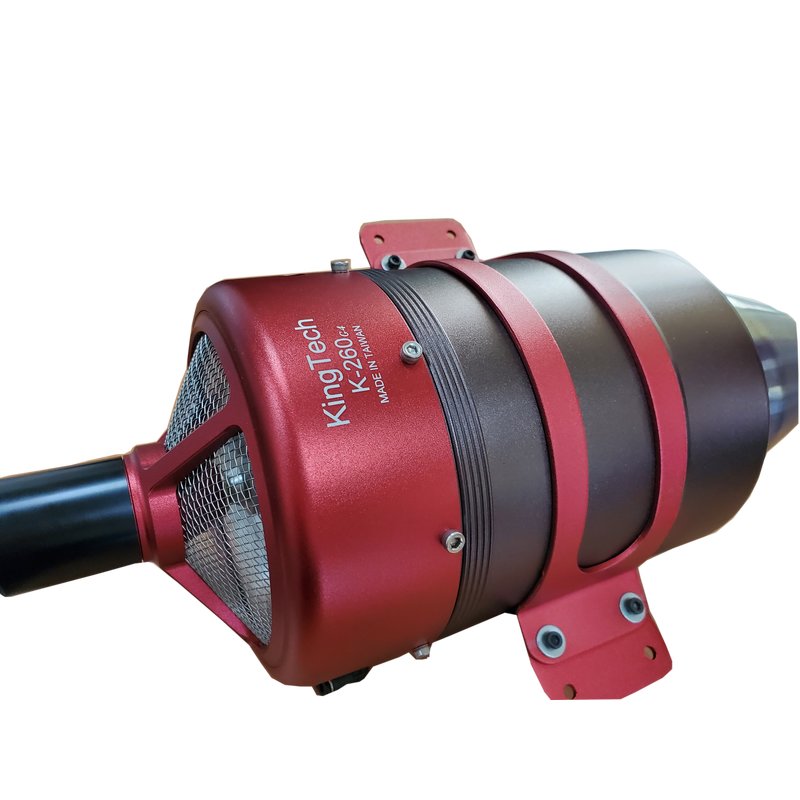

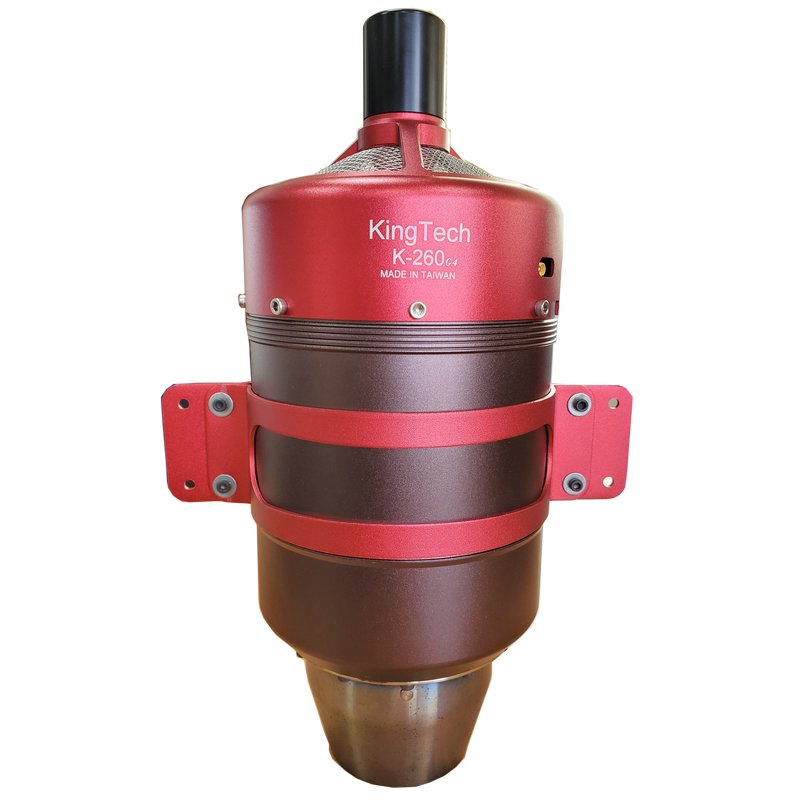

K260 G4:
Diameter: 120 mm
Length: 300 mm
Weight: 2.2 kg
RPM Range: up to 33,000-112,000RPM
Max Thrust: 26 kg ±0.5
EGT: 700°C max
Fuel consumption: 760 g / min (26.80 oz / min)
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 3899
Diameter: 120 mm
Length: 300 mm
Weight: 2.2 kg
RPM Range: up to 33,000-112,000RPM
Max Thrust: 26 kg ±0.5
EGT: 700°C max
Fuel consumption: 760 g / min (26.80 oz / min)
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 3899
|
|
|

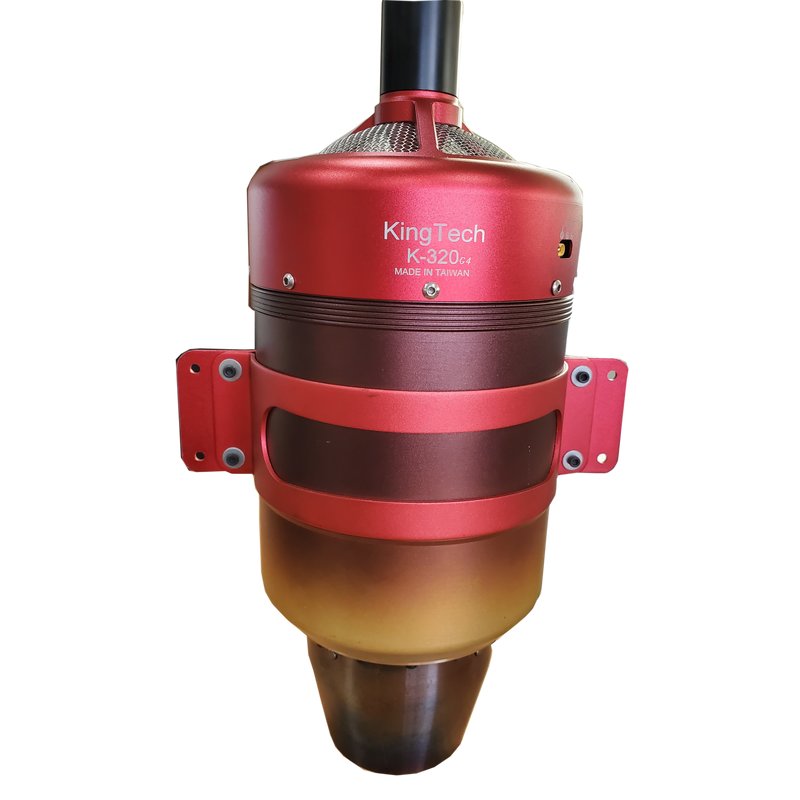

K320 G4:
Diameter: 132.5 mm ( 5-1/4? )
Length: 330 mm ( 13-1/4? )
Weight: 2.8 kg ( 6.4 lb )
RPM Range: up to 30,000-100,000RPM
Max Thrust: 32 kg ( 71 lb )
EGT: 700°C max
Fuel consumption: 870 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 4499
Diameter: 132.5 mm ( 5-1/4? )
Length: 330 mm ( 13-1/4? )
Weight: 2.8 kg ( 6.4 lb )
RPM Range: up to 30,000-100,000RPM
Max Thrust: 32 kg ( 71 lb )
EGT: 700°C max
Fuel consumption: 870 g / min
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 4499
|

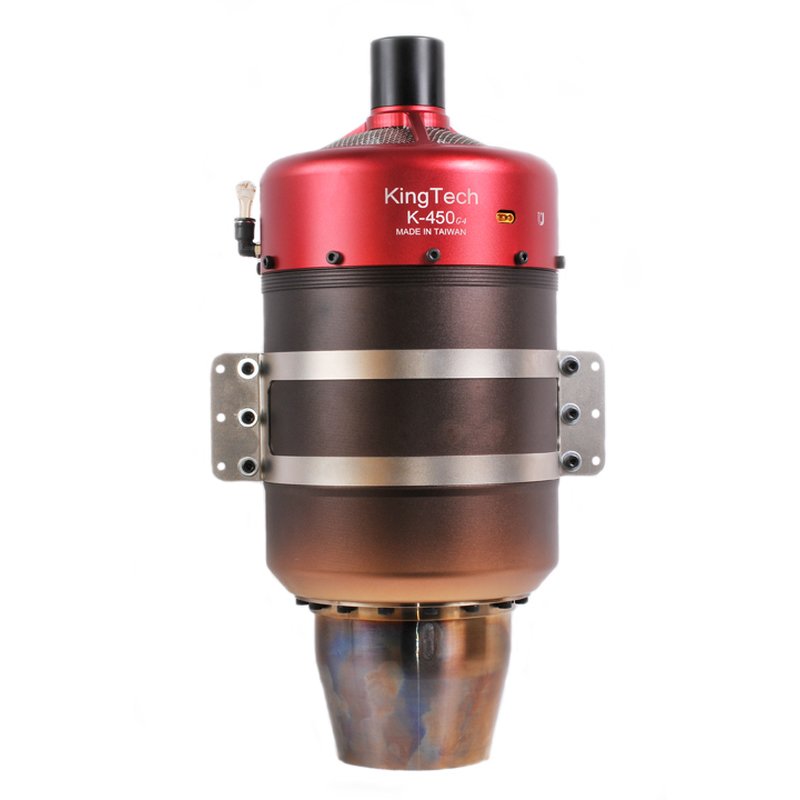

K450 G4:
Diameter: 152.6mm
Length: 374 mm
Weight: 4.0kg
RPM Range: up to 25,000-90,000RPM
Max Thrust: 45 kg
EGT: 760°C max
Fuel consumption: 1100 g / min Fuel:
Petroleum, Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 6499
Diameter: 152.6mm
Length: 374 mm
Weight: 4.0kg
RPM Range: up to 25,000-90,000RPM
Max Thrust: 45 kg
EGT: 760°C max
Fuel consumption: 1100 g / min Fuel:
Petroleum, Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 6499
|
|
|
K300TP G4:
Length: 276.5mm
Weight: 1200g
Max. RPM: 230000
Pump type:Digital sbus brushless pump(KP200BL)
Fuel consumption: 145 g / min
Fuel: Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr 500€
Pris: € 3009
Length: 276.5mm
Weight: 1200g
Max. RPM: 230000
Pump type:Digital sbus brushless pump(KP200BL)
Fuel consumption: 145 g / min
Fuel: Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr 500€
Pris: € 3009
|

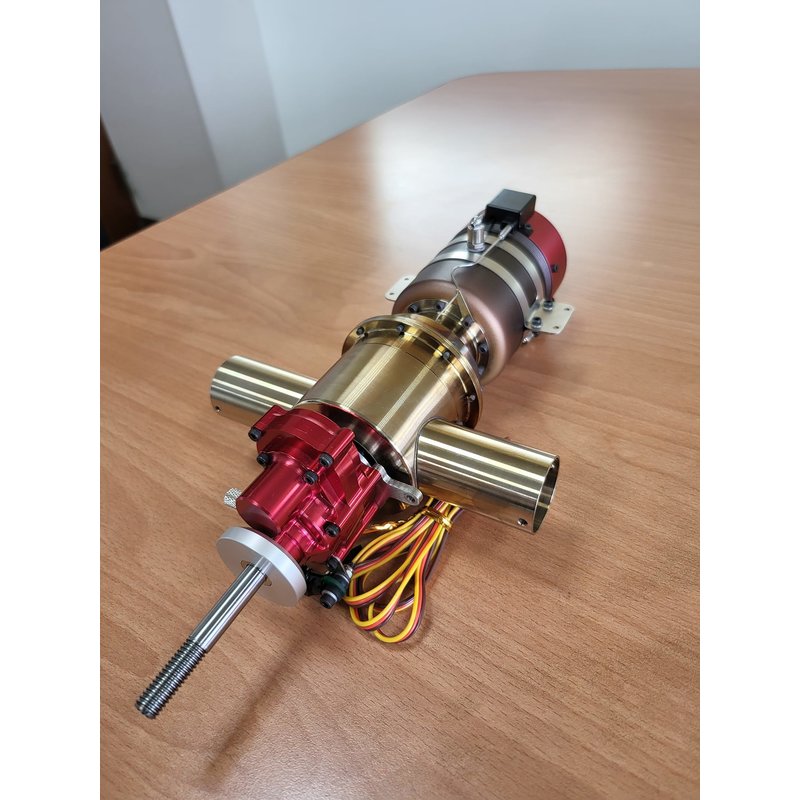

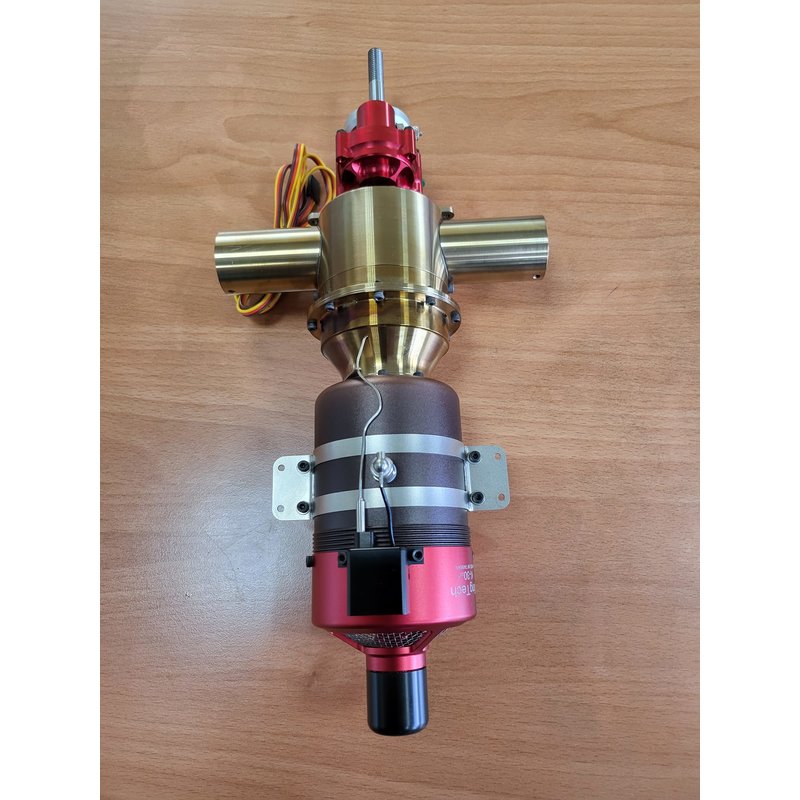

K30TP G4:
Length: 316mm( 12.44" )
Weight: 1800g ( 3 lb. 15.5 oz )
Max. RPM: up to 170000
Power: 5.2KW EGT: 700°C max ( 1292°F max)
Fuel consumption: 180 g / min ( 8.46 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 3420
Length: 316mm( 12.44" )
Weight: 1800g ( 3 lb. 15.5 oz )
Max. RPM: up to 170000
Power: 5.2KW EGT: 700°C max ( 1292°F max)
Fuel consumption: 180 g / min ( 8.46 oz / min )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 3420
|

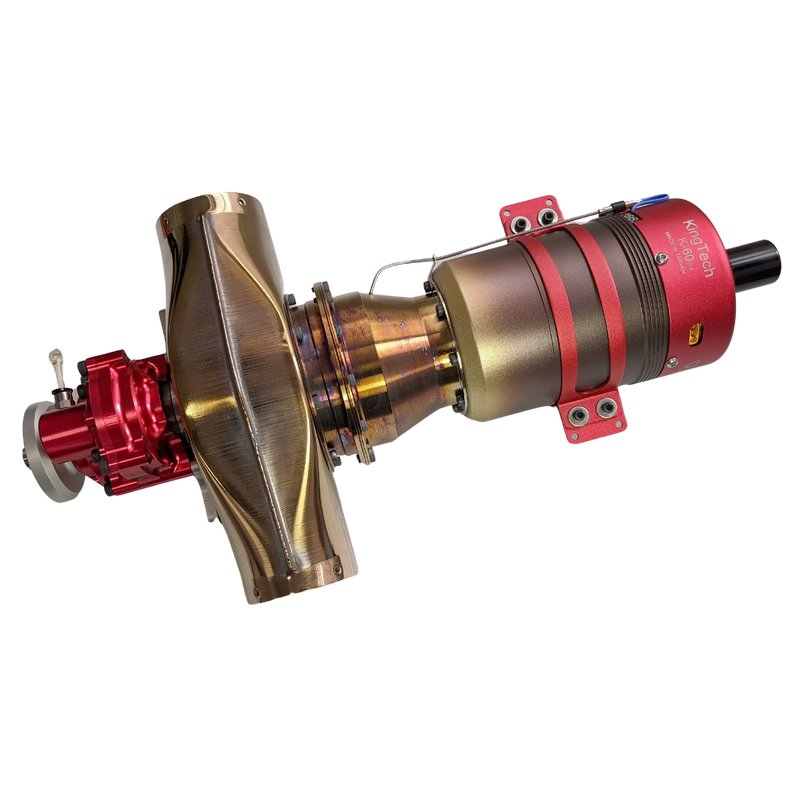

K60TP G4:
Length: 362mm ( 14.25" )
Weight: 2400g ( 5 lb 4 oz )
Maximum Turbine RPM: up to 160,000
Power:7.3KW (5,000 to 7,000 RPM Dynamically )
EGT: 700°C max ( 1292°F max )
Fuel consumption: 240 g / min ( 8.46 oz. ) Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 3969
Length: 362mm ( 14.25" )
Weight: 2400g ( 5 lb 4 oz )
Maximum Turbine RPM: up to 160,000
Power:7.3KW (5,000 to 7,000 RPM Dynamically )
EGT: 700°C max ( 1292°F max )
Fuel consumption: 240 g / min ( 8.46 oz. ) Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 3969
|

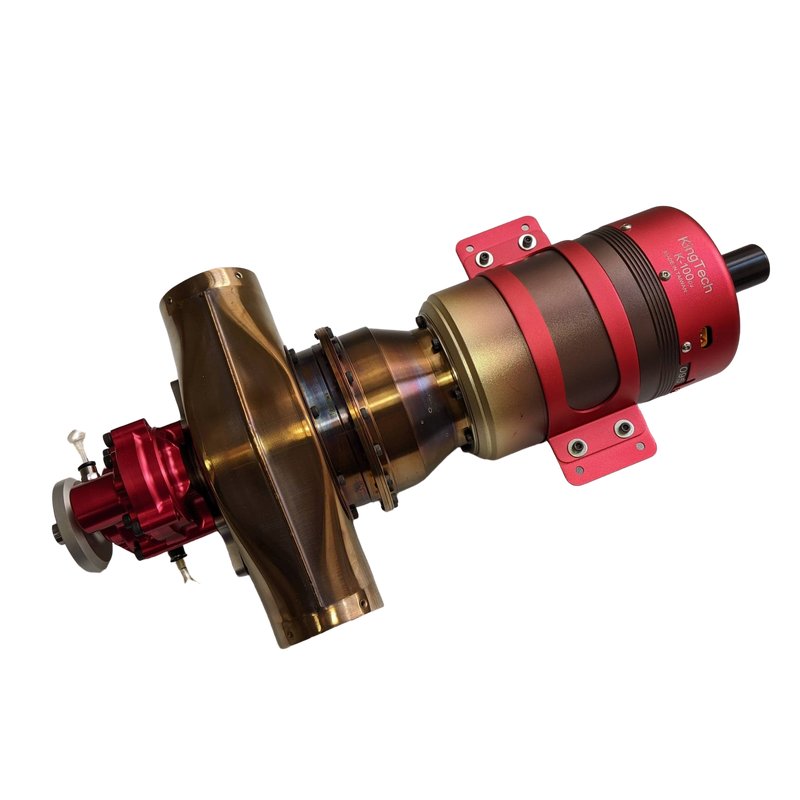

K100TP G4:
Length: 384.55mm ( 15.139" )
Weight: 2850g ( 6 lb 4.5 oz )
Maximum Turbine RPM: up to 140,000
Power:13KW ( 6200 RPM )
EGT: 700°c max ( 1292°f max )
Fuel consumption: 360 g / min ( 12.69 oz. )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 4510
Length: 384.55mm ( 15.139" )
Weight: 2850g ( 6 lb 4.5 oz )
Maximum Turbine RPM: up to 140,000
Power:13KW ( 6200 RPM )
EGT: 700°c max ( 1292°f max )
Fuel consumption: 360 g / min ( 12.69 oz. )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Pris: € 4510
|
|
|
|
|

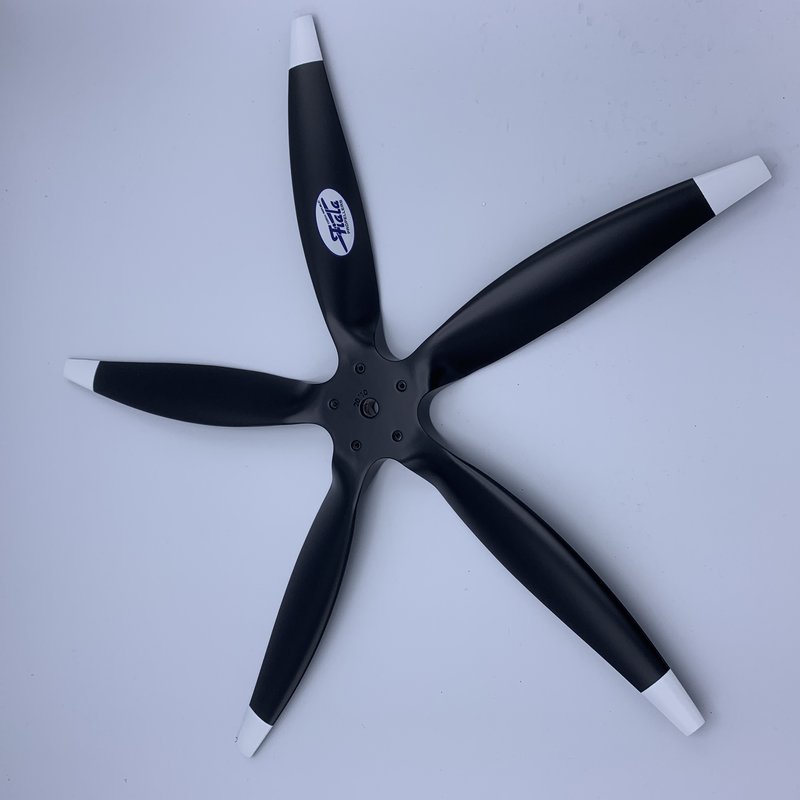

Propeller Fiala 5 blad, 18x22 for K30TP
Pris: € 149
Pris: € 149

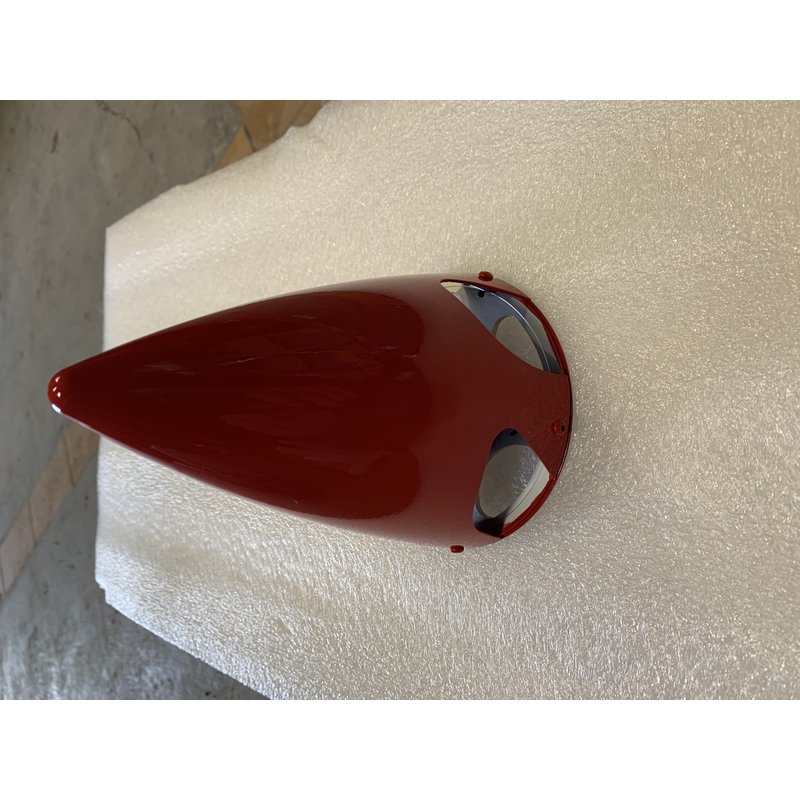

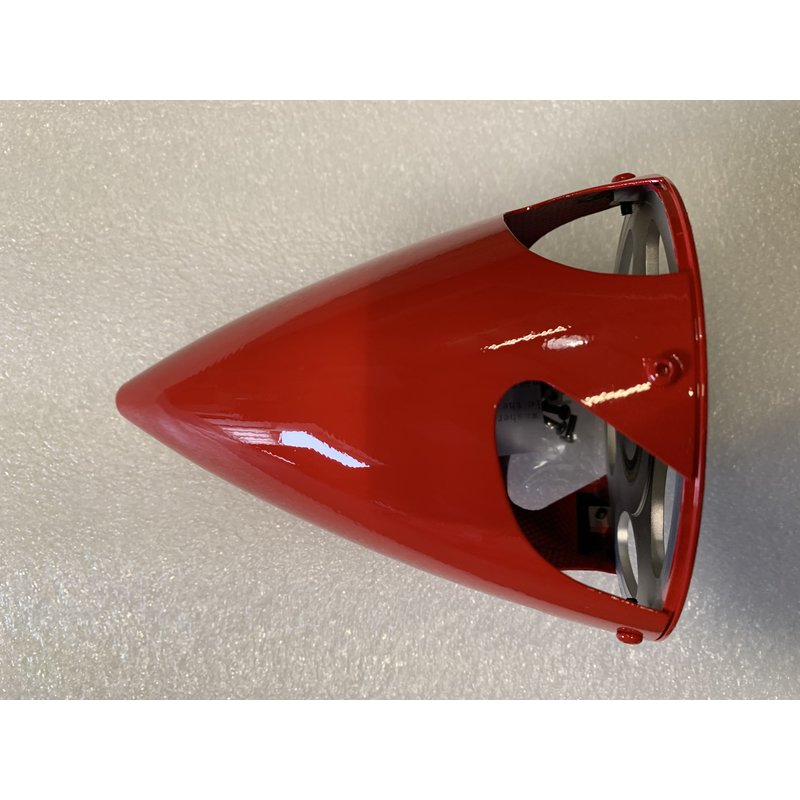

JMB-jets High Precision 5 Blad Spinner for JMB-jets PC21, 115mm
Pris: € 89
Pris: € 89

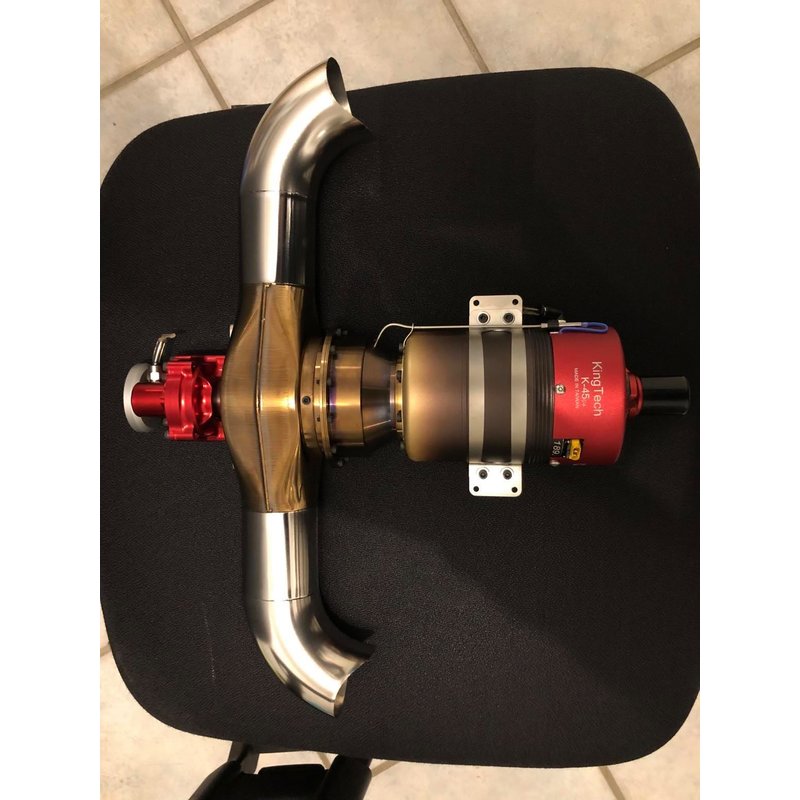

Scale Exhaust for K60TP and K100TP
Pris: € 279
Pris: € 279
