SERVO
In stock, ready for delivery

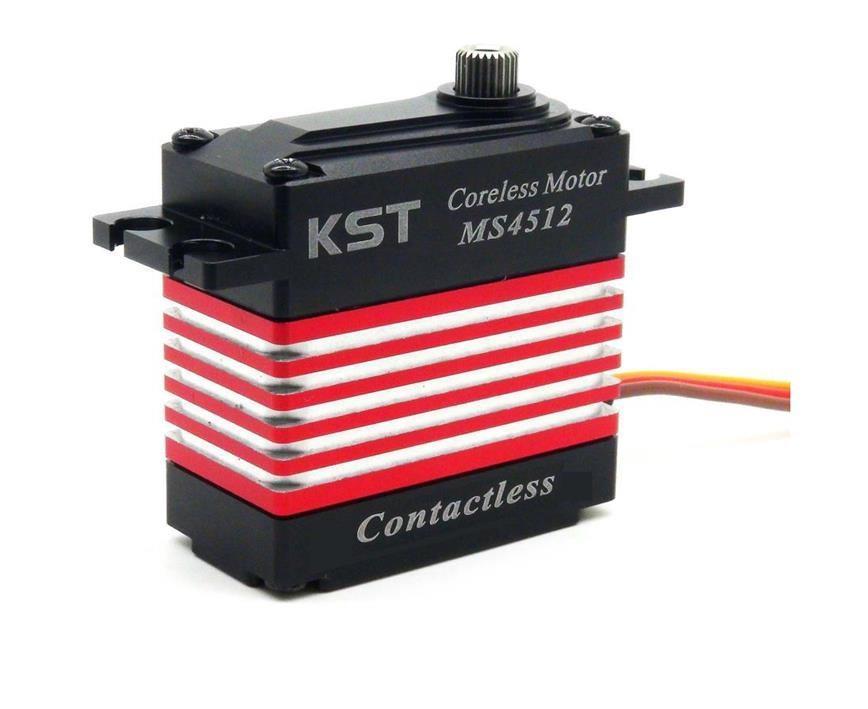

KST MS4512 V8.0 45kg.cm@8.4V
Technical Data
Operating Voltage (max.) [V]: 8.4
Stalling Torque[kg.cm]@6.0V: 38.0
Stalling Torque[kg.cm]@7.4V: 42.0
Stalling Torque[kg.cm]@8.4V: 45.0
Actuation Time [s/60°]@6.0V:0.180
Actuation Time [s/60°]@7.4V:0.160
Actuation Time [s/60°]@8.4V:0.140
Width [mm]:20.0
Length [mm]:40.5
Height [mm]:42.0
Weight [g]:81.0
Motor Type: Coreless
Frequency Range:
1520us/333Hz, 900us-2100us
Gear Type: Metal
Bearing Type: 2BB
Electronics: Digital Position Sensor: Contactless
Price: 106 €.
Technical Data
Operating Voltage (max.) [V]: 8.4
Stalling Torque[kg.cm]@6.0V: 38.0
Stalling Torque[kg.cm]@7.4V: 42.0
Stalling Torque[kg.cm]@8.4V: 45.0
Actuation Time [s/60°]@6.0V:0.180
Actuation Time [s/60°]@7.4V:0.160
Actuation Time [s/60°]@8.4V:0.140
Width [mm]:20.0
Length [mm]:40.5
Height [mm]:42.0
Weight [g]:81.0
Motor Type: Coreless
Frequency Range:
1520us/333Hz, 900us-2100us
Gear Type: Metal
Bearing Type: 2BB
Electronics: Digital Position Sensor: Contactless
Price: 106 €.

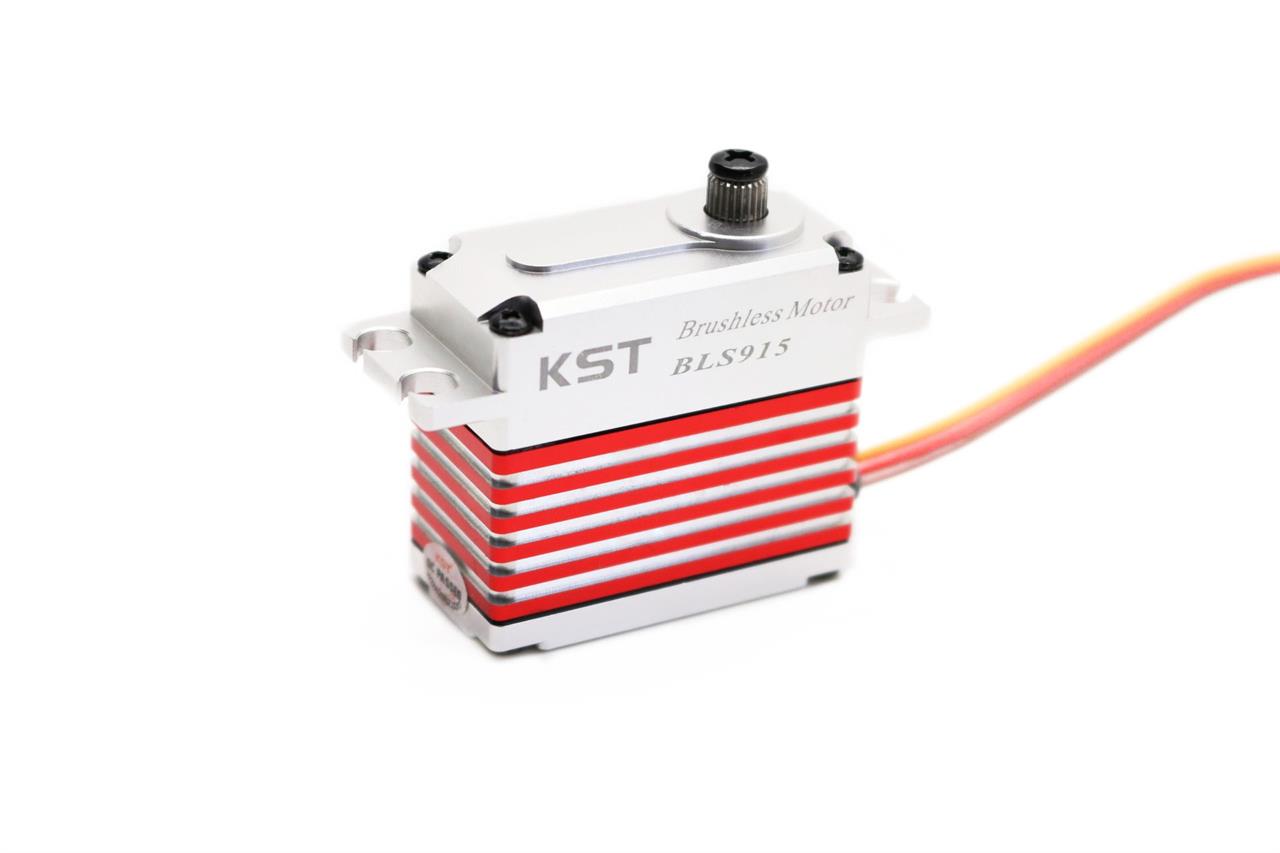

Product information "KST BLS915 V8.0 HV 25kg.cm@8.4V"
BLS915 V8.0 Technical Details:
Operating Voltage (Max) [V]: 6-8.4V
Stalling Torque[kg.cm]@4.8V: --
Stalling Torque[kg.cm]@6.0V: 18
Stalling Torque[kg.cm]@7.4V: 22
Stalling Torque[kg.cm]@8.4V: 25
Actuation Time [s/60°]@4.8V: --
Actuation Time [s/60°]@6.0V: 0.09
Actuation Time [s/60°]@7.4V: 0.08 Stalling Torque[s/60°]@8.4V: 0.07
Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 78.0
Motor Type: Brushless
Frequency Range: 1520us/333Hz, 900us-2100us
Gear Type: Steel
Bearing Type: 2BB
Gearing: 25T-6
Servo Type Aircraft/ Heli
Electronics: Digital
Position Sensor: Potentiometer
Waterproof: No
Manufacturer: KST
Price: 91 €
BLS915 V8.0 Technical Details:
Operating Voltage (Max) [V]: 6-8.4V
Stalling Torque[kg.cm]@4.8V: --
Stalling Torque[kg.cm]@6.0V: 18
Stalling Torque[kg.cm]@7.4V: 22
Stalling Torque[kg.cm]@8.4V: 25
Actuation Time [s/60°]@4.8V: --
Actuation Time [s/60°]@6.0V: 0.09
Actuation Time [s/60°]@7.4V: 0.08 Stalling Torque[s/60°]@8.4V: 0.07
Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 78.0
Motor Type: Brushless
Frequency Range: 1520us/333Hz, 900us-2100us
Gear Type: Steel
Bearing Type: 2BB
Gearing: 25T-6
Servo Type Aircraft/ Heli
Electronics: Digital
Position Sensor: Potentiometer
Waterproof: No
Manufacturer: KST
Price: 91 €
|

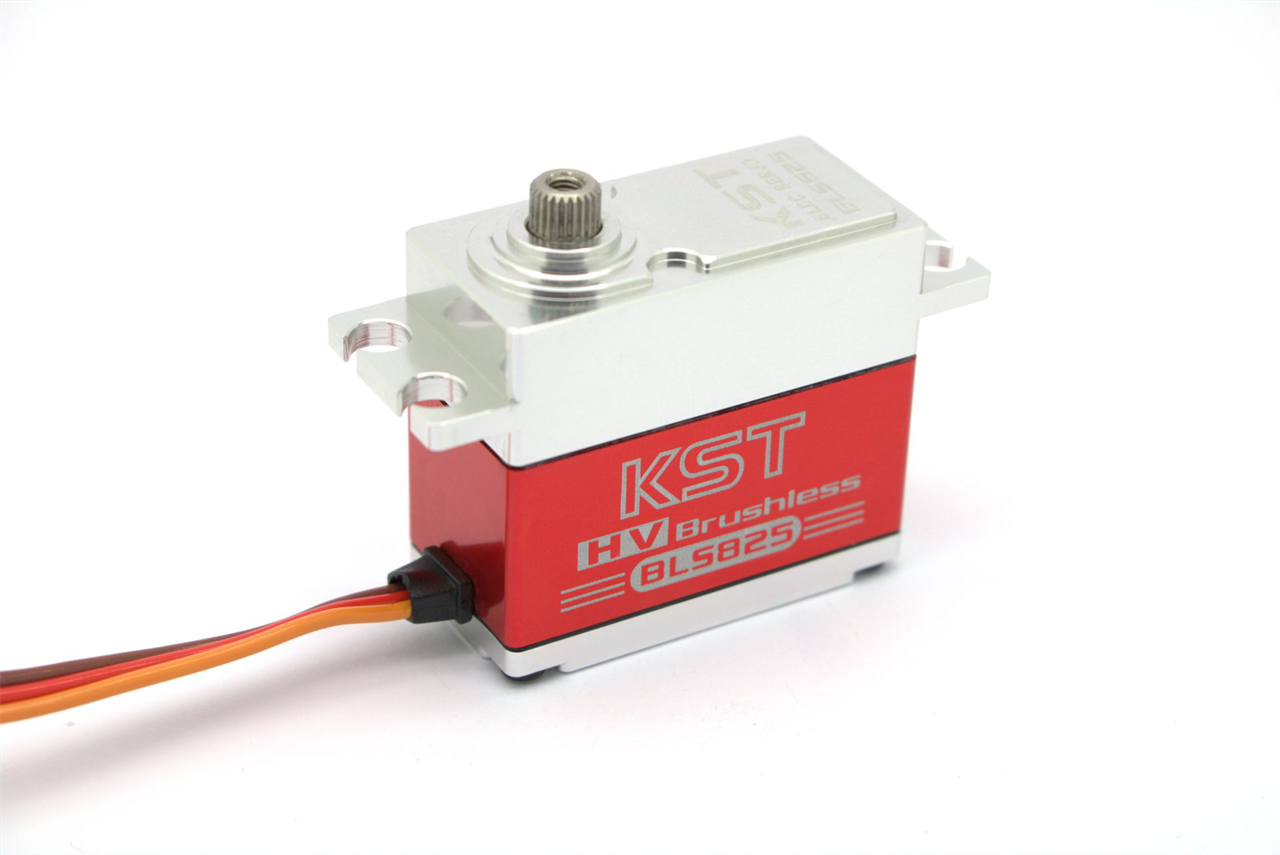

Product information "KST BLS825 V8.0 HV 35kg.cm@8.4V 180°"
Technical Details:
Operating Voltage (Max) [V]: 8.4
Stalling Torque[kg.cm]@4.8V: --
Stalling Torque[kg.cm]@6.0V: 25.0
Stalling Torque[kg.cm]@7.4V: 30.0
Stalling Torque[kg.cm]@8.4V: 35.0
Stalling Time [s/60°]@4.8V: --
Stalling Time [s/60°]@6.0V: 0.150
Stalling Time [s/60°]@7.4V: 0.130
Stalling Time [s/60°]@8.4V: 0.110
Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 70.0
Motor Type: Brushless
Frequency Range: 1520us/333Hz, 900us-2100us
Gear Type: Metal
Bearing Type: 2BB
Gearing: 25T-6
Servo Type: Standard
Electronics: Digital
Position Sensor: Potentiometer
Waterproof: No
Manufacturer: KST
Price: 81 €.
Technical Details:
Operating Voltage (Max) [V]: 8.4
Stalling Torque[kg.cm]@4.8V: --
Stalling Torque[kg.cm]@6.0V: 25.0
Stalling Torque[kg.cm]@7.4V: 30.0
Stalling Torque[kg.cm]@8.4V: 35.0
Stalling Time [s/60°]@4.8V: --
Stalling Time [s/60°]@6.0V: 0.150
Stalling Time [s/60°]@7.4V: 0.130
Stalling Time [s/60°]@8.4V: 0.110
Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 70.0
Motor Type: Brushless
Frequency Range: 1520us/333Hz, 900us-2100us
Gear Type: Metal
Bearing Type: 2BB
Gearing: 25T-6
Servo Type: Standard
Electronics: Digital
Position Sensor: Potentiometer
Waterproof: No
Manufacturer: KST
Price: 81 €.
|
|

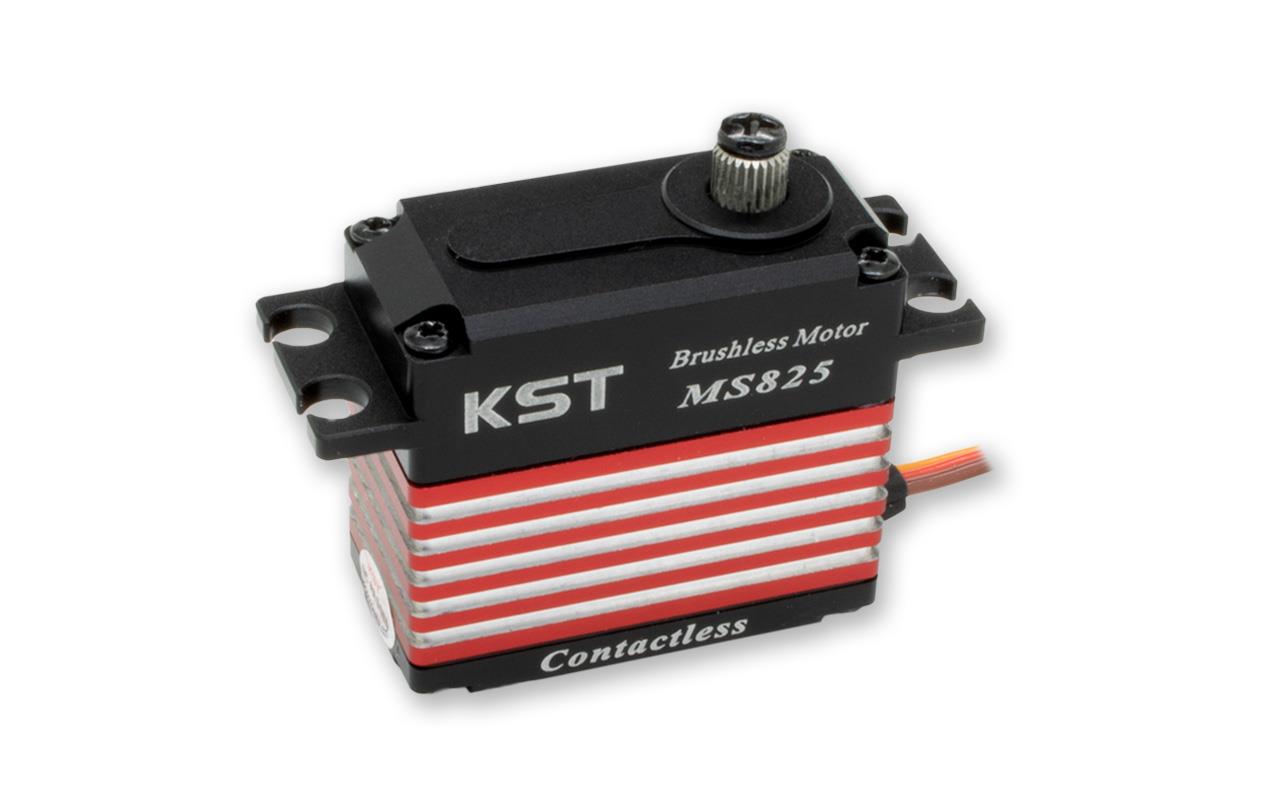

KST MS825 V8.0 35kg.cm@8.4V
Specifications:
Operating voltage (max.) [V]: 8.4
Stalling Torque[kg.cm]@4.8V: --
Stalling Torque[kg.cm]@6.0V: 25.0
Stalling Torque[kg.cm]@7.4V: 30.0
Stalling Torque[kg.cm]@8.4V: 35.0
Actuation time [s/60°]@4.8V: --
Stalling torque [s/60°]@6.0V: 0.150
Stalling time [s/60°]@7.4V: 0.130
Stalling torque [s/60°]@8.4V: 0.110
Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 74.0
Motor Type: Brushless
Frequency Range: 1520us/333Hz
Gear Type: Metal
Bearing Type: 2BB
Gearing: 25T-6
Servo Type: Standard
Electronics: Digital
Position Sensor: Contactless
Waterproof: No
Soft Start: Programmable
Price: 84 €.
Specifications:
Operating voltage (max.) [V]: 8.4
Stalling Torque[kg.cm]@4.8V: --
Stalling Torque[kg.cm]@6.0V: 25.0
Stalling Torque[kg.cm]@7.4V: 30.0
Stalling Torque[kg.cm]@8.4V: 35.0
Actuation time [s/60°]@4.8V: --
Stalling torque [s/60°]@6.0V: 0.150
Stalling time [s/60°]@7.4V: 0.130
Stalling torque [s/60°]@8.4V: 0.110
Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 74.0
Motor Type: Brushless
Frequency Range: 1520us/333Hz
Gear Type: Metal
Bearing Type: 2BB
Gearing: 25T-6
Servo Type: Standard
Electronics: Digital
Position Sensor: Contactless
Waterproof: No
Soft Start: Programmable
Price: 84 €.
In stock, ready for delivery
|

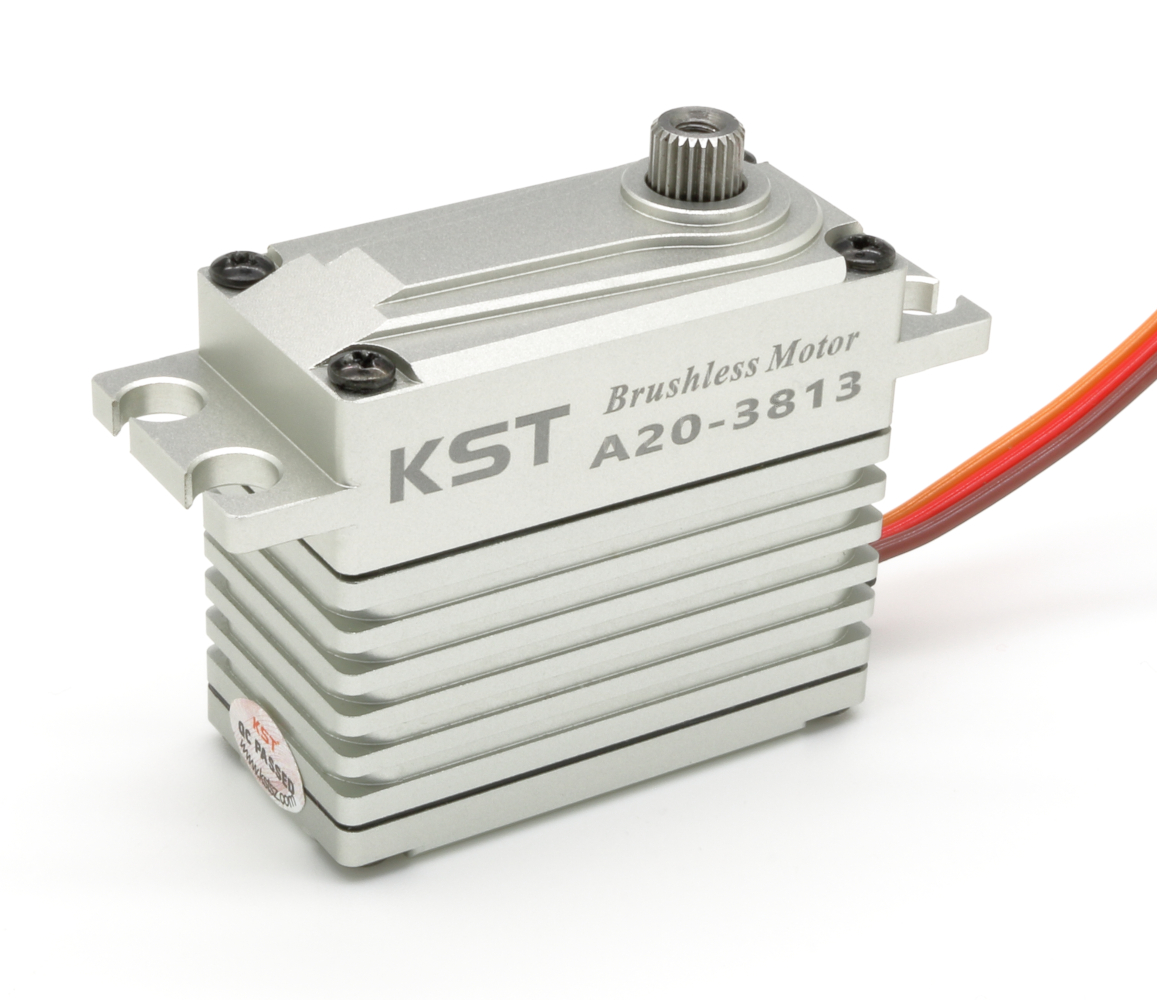

KST A20-3813 V8.0 43kg.cm@8.4V
Technical details:
Operating voltage (max.) [V]: 6.0 - 8.4
Stalling Torque[kg.cm]@6.0V: 30.0
Stalling Torque[kg.cm]@7.4V: 38.0
Stalling Torque[kg.cm]@8.4V: 43.0
Actuation time [s/60°]@6.0V: 0.15
Actuation time [s/60°]@7.4V: 0.13
Actuation time [s/60°]@8.4V: 0.12
Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 72.0
Motor Type: Brushless
Frequency Range: 900-2100us
Gear Type: Metal
Gearing: 25T-6
Servo Type: Wings Electronics
: Digital
Position Sensor: Potentiometer
Waterproof: No
Soft Start: Programmablet
Price: 100 €.
Technical details:
Operating voltage (max.) [V]: 6.0 - 8.4
Stalling Torque[kg.cm]@6.0V: 30.0
Stalling Torque[kg.cm]@7.4V: 38.0
Stalling Torque[kg.cm]@8.4V: 43.0
Actuation time [s/60°]@6.0V: 0.15
Actuation time [s/60°]@7.4V: 0.13
Actuation time [s/60°]@8.4V: 0.12
Width [mm]: 20.0
Length [mm]: 40.5
Height [mm]: 38.0
Weight [g]: 72.0
Motor Type: Brushless
Frequency Range: 900-2100us
Gear Type: Metal
Gearing: 25T-6
Servo Type: Wings Electronics
: Digital
Position Sensor: Potentiometer
Waterproof: No
Soft Start: Programmablet
Price: 100 €.

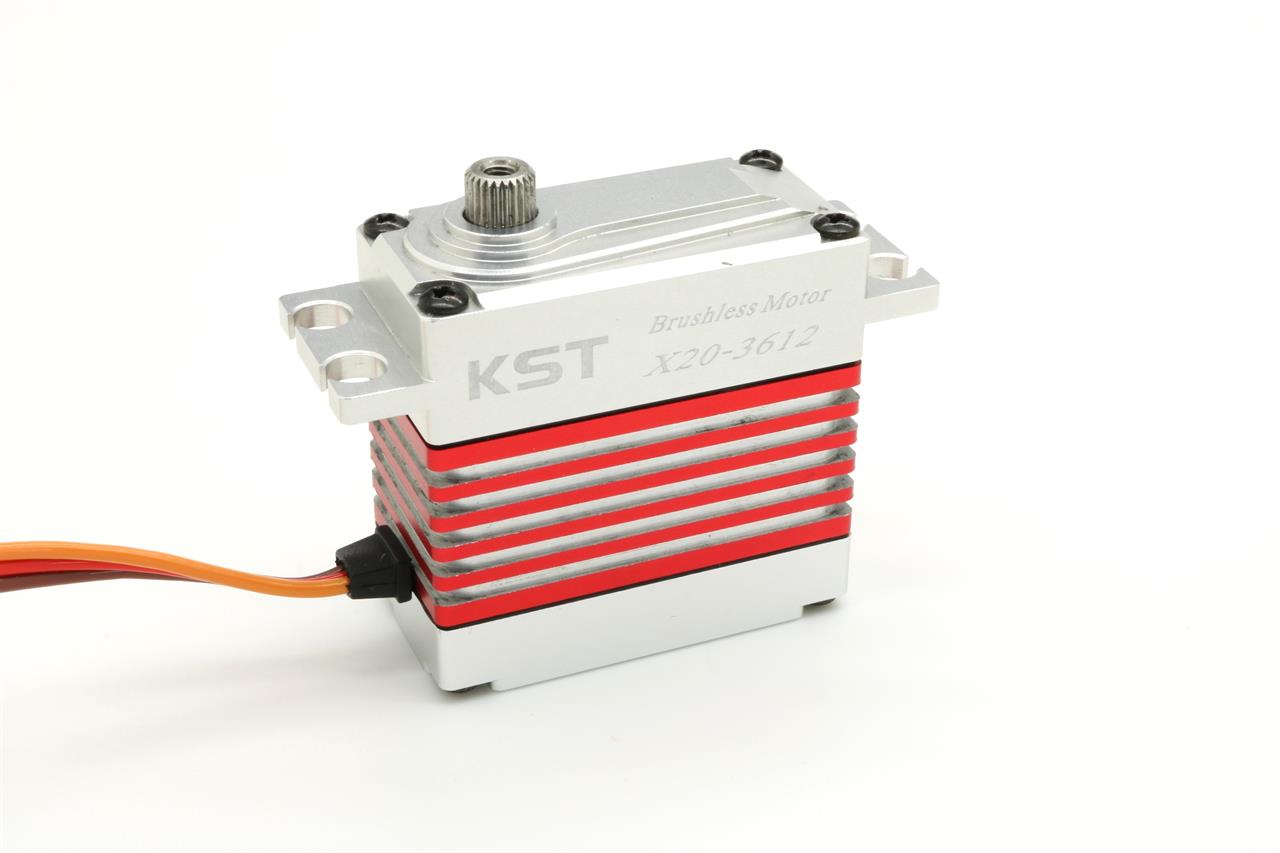

KST X20-3612 V8.0 HV 40kg.cm@8.4V
Technical Details:
Operating Voltage (Max) [V]: 6.0-8.4
Stalling Torque[kg.cm]@4.8V: --
Stalling Torque[kg.cm]@6.0V: 28.0
Stalling Torque[kg.cm]@7.4V: 36.0
Stalling Torque[kg.cm]@8.4V: 40.0
Stalling Torque [s/60°]@4.8V: --
Stalling Torque [s/60°]@6.0V: 0.150
Stalling Torque [s/60°]@7.4V: 0.120
Stalling Torque [s/60°]@8.4V: 0.110
Width: 20.0
Length: 40.5
Height: 42.0
Weight: 78.0
Motor Type: Brushless
Frequency Range: 1520us/333Hz, 900us-2100us
Gear Type: Metal
Bearing Type: 2BB
Output Shaft Type: 25T-6
Servo Type: Standard
Electronics: Digital
Position Sensor: Potentiometer
Water Resistant: No
Manufacturer: KST
Soft Start: Programmable
Price: 95 €.
Technical Details:
Operating Voltage (Max) [V]: 6.0-8.4
Stalling Torque[kg.cm]@4.8V: --
Stalling Torque[kg.cm]@6.0V: 28.0
Stalling Torque[kg.cm]@7.4V: 36.0
Stalling Torque[kg.cm]@8.4V: 40.0
Stalling Torque [s/60°]@4.8V: --
Stalling Torque [s/60°]@6.0V: 0.150
Stalling Torque [s/60°]@7.4V: 0.120
Stalling Torque [s/60°]@8.4V: 0.110
Width: 20.0
Length: 40.5
Height: 42.0
Weight: 78.0
Motor Type: Brushless
Frequency Range: 1520us/333Hz, 900us-2100us
Gear Type: Metal
Bearing Type: 2BB
Output Shaft Type: 25T-6
Servo Type: Standard
Electronics: Digital
Position Sensor: Potentiometer
Water Resistant: No
Manufacturer: KST
Soft Start: Programmable
Price: 95 €.
|
|
|

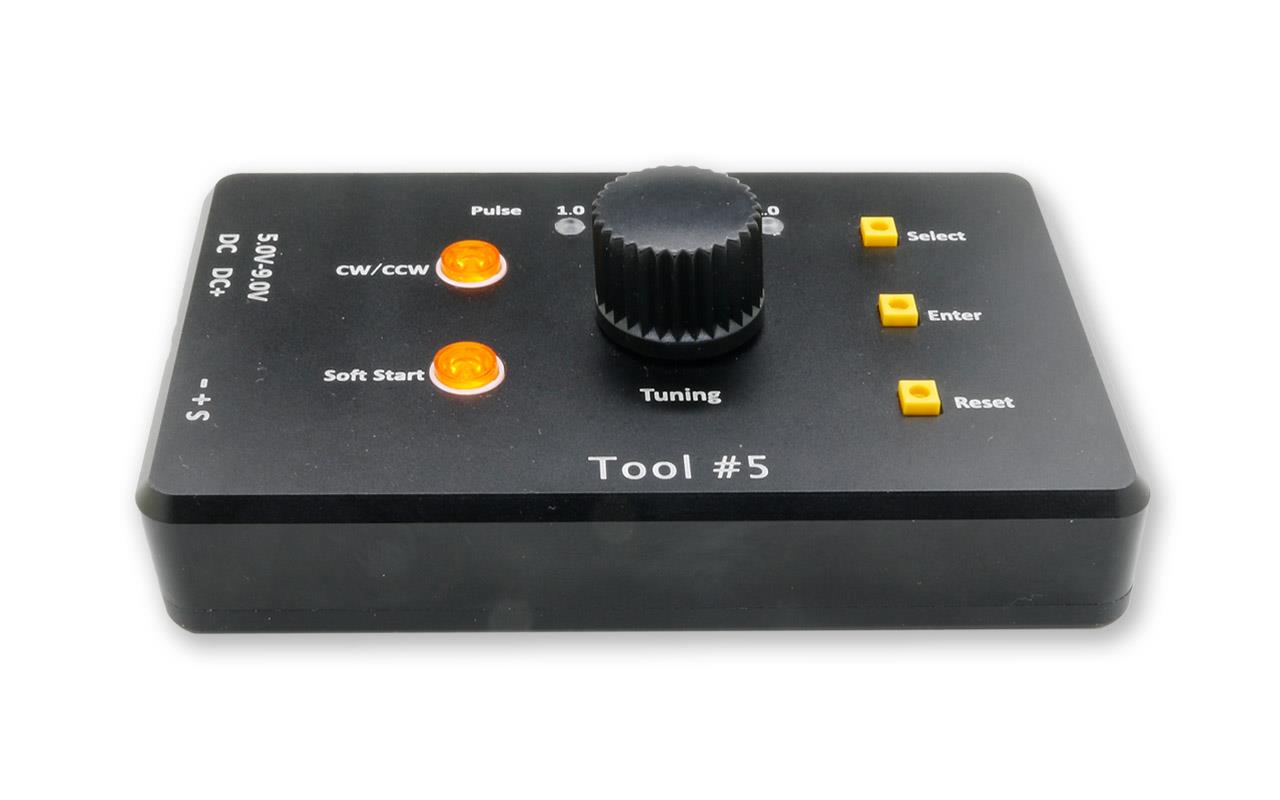

KST Programmer Tool#5 for KST
Technical details:
KST Tool#5 Professional
Programmer 5 for KST Servos
Programming Options:
Servo Travel Adjustment Right
Servo Center
Servo Travel Adjustment: Left
Servo Reverse Polarity.
Soft start: On/Off
ATTENTION INPUT VOLTAGE = OUTPUT VOLTAGE!
Price: 90 €.
Technical details:
KST Tool#5 Professional
Programmer 5 for KST Servos
Programming Options:
Servo Travel Adjustment Right
Servo Center
Servo Travel Adjustment: Left
Servo Reverse Polarity.
Soft start: On/Off
ATTENTION INPUT VOLTAGE = OUTPUT VOLTAGE!
Price: 90 €.
KST A20-3813 V8.0 43kg.cm@8.4V
Technical details:
Programmer suitable for KST servos versions V3.0, V6.0 and V8.0
(Not suitable for KST DS215 V3.0)
Exact setting of the "servo center" via POTI
Switching of the drive pulse 760/1520 us
Price: 39 €.
Technical details:
Programmer suitable for KST servos versions V3.0, V6.0 and V8.0
(Not suitable for KST DS215 V3.0)
Exact setting of the "servo center" via POTI
Switching of the drive pulse 760/1520 us
Price: 39 €.
