Data:
Length: 2450mm
Wingspan: 2300mm
Weight: 15Kg w/o fuel
Power: 12 - 16Kg Thrust
Length: 2450mm
Wingspan: 2300mm
Weight: 15Kg w/o fuel
Power: 12 - 16Kg Thrust
|
|
|
|
|

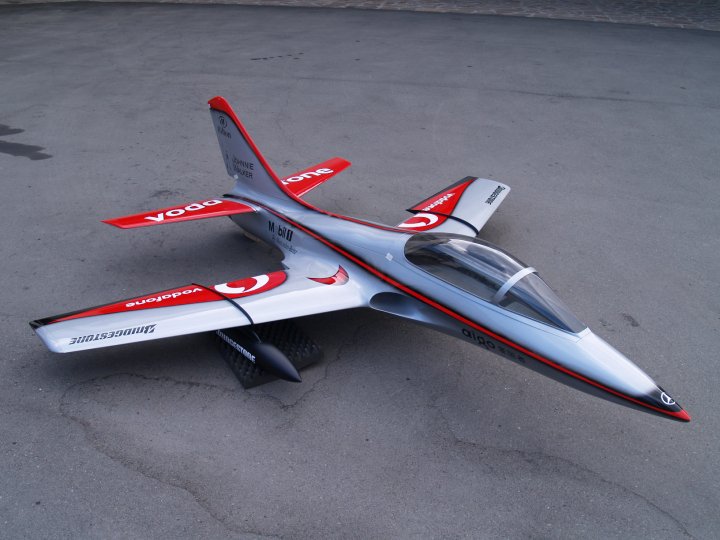

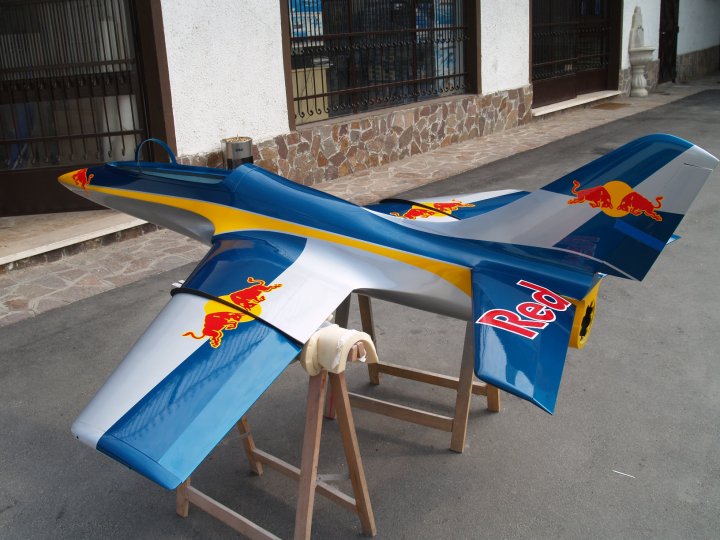

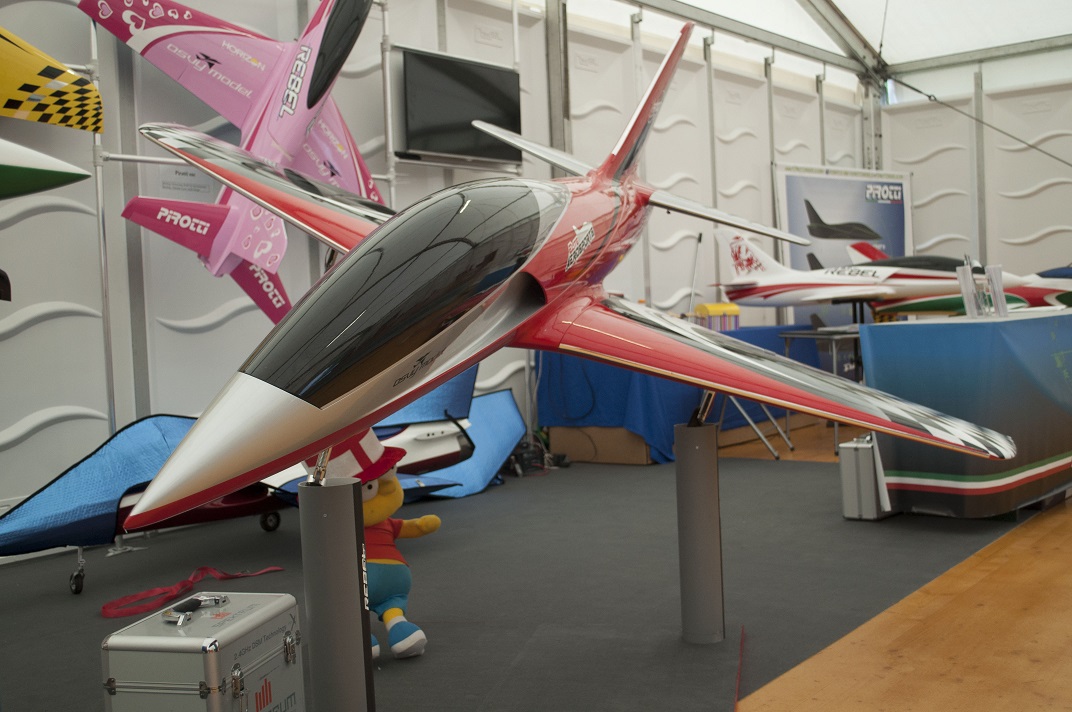

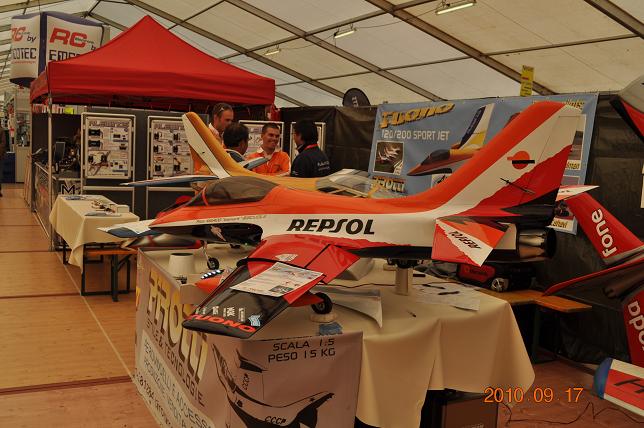

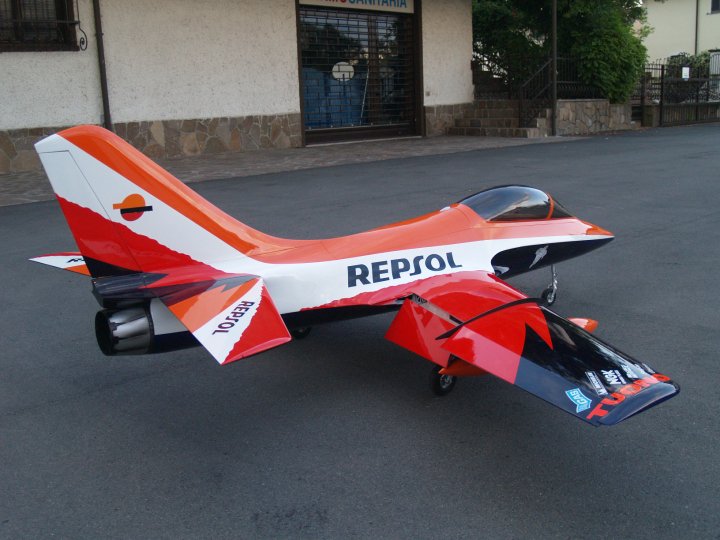

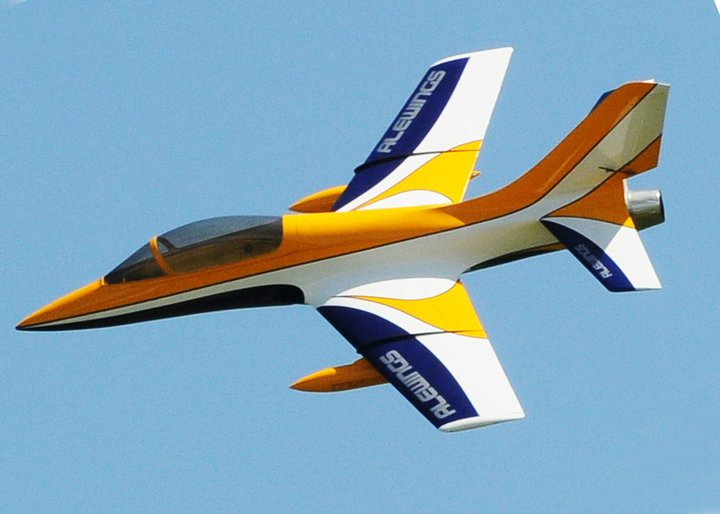

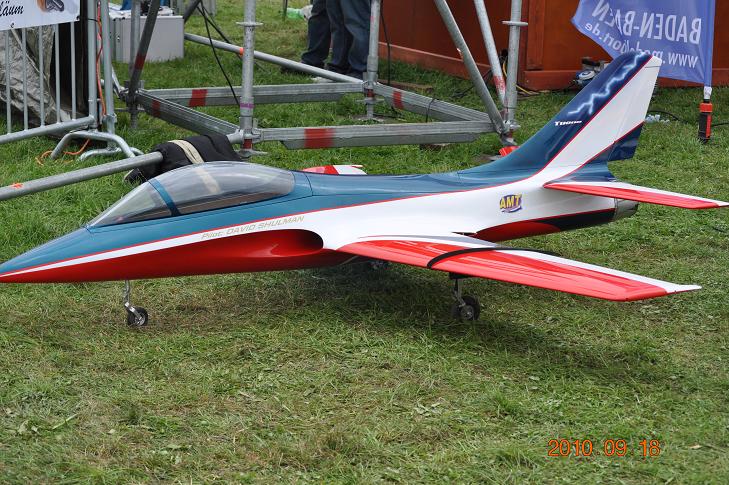

All composite " Vacuum Tecknology " Sport Jet suitable for turbines from 12 to 16 kg of thrust. Its special characteristics, including
SWEPT WINGS
LOW WING-LOADING
NEGATIVE TWIST TIPS
REDUCED LENGHT AND OVERSIZED ELEVATOR
LARGE FLAPS
confer exceptional flying qualities, even at minimum speed. By contrast, its a very low CR ( drag coefficient ) can reach very high speeds. For
these reasons, it can be used as a trainer with 12 kg turbines, but also as an exceptional air show model with 16 or 18 kg turbines. The knife flight it is extremely facilitated by the swept wings and generous rudder and canopy dimension will make his performance a highlight of the day. Easy transportation and installation, due to all removable parts, fixed in fuselage retracts:
ARF KIT CONTENTS:
CARBON REINFORCED FUSELAGE
CNC CUT FORMERS ALREADY PLACED
REINFORCED MAIN SPAR
WING TUBES ANODIZED WITH INSERTED SHEATH
SERVO MOUNTING PLATES
CUTTED AND HINGED FLAP
MAIN GEAR ASSEMBLY ALREADY INSTALLED
COLLASSABLE CARBON FIBER RETARCT PLATES
QUICK FIN FIXING SYSTEM

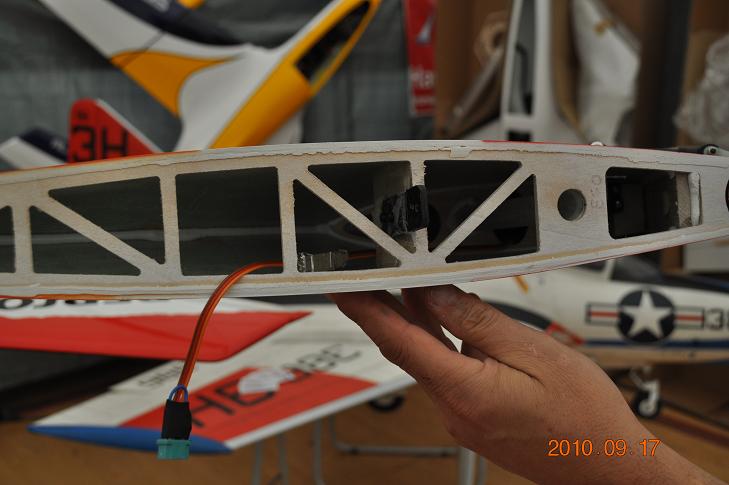

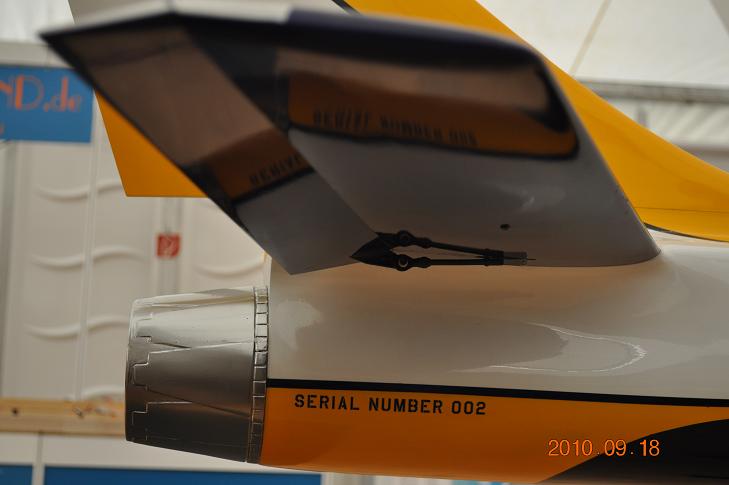

Wings and tail all-composite Vacuum Tecknology, with inserted sheath, servo mounting plates, moving parts cutted and hinged, anodized tubes diameter 16mm ( 7 pieces ). Removeables standar-wing tips fin and rudder all composite Vacuum Tecknology, already assembled, servo mount plates inserted, tail cone " F-16 style ".
OPTIONAL PARTS:
Under wing tanks with smoke cartridge
ALEWING smoke cartridge ignition system
Winglets with lights
Simulated LED afterburner
Electronics control box ALEWING
Fire prevention system " Firebag
Semi scale cockpit
Smoke colored cartridges.
SWEPT WINGS
LOW WING-LOADING
NEGATIVE TWIST TIPS
REDUCED LENGHT AND OVERSIZED ELEVATOR
LARGE FLAPS
confer exceptional flying qualities, even at minimum speed. By contrast, its a very low CR ( drag coefficient ) can reach very high speeds. For
these reasons, it can be used as a trainer with 12 kg turbines, but also as an exceptional air show model with 16 or 18 kg turbines. The knife flight it is extremely facilitated by the swept wings and generous rudder and canopy dimension will make his performance a highlight of the day. Easy transportation and installation, due to all removable parts, fixed in fuselage retracts:
ARF KIT CONTENTS:
CARBON REINFORCED FUSELAGE
CNC CUT FORMERS ALREADY PLACED
REINFORCED MAIN SPAR
WING TUBES ANODIZED WITH INSERTED SHEATH
SERVO MOUNTING PLATES
CUTTED AND HINGED FLAP
MAIN GEAR ASSEMBLY ALREADY INSTALLED
COLLASSABLE CARBON FIBER RETARCT PLATES
QUICK FIN FIXING SYSTEM
Wings and tail all-composite Vacuum Tecknology, with inserted sheath, servo mounting plates, moving parts cutted and hinged, anodized tubes diameter 16mm ( 7 pieces ). Removeables standar-wing tips fin and rudder all composite Vacuum Tecknology, already assembled, servo mount plates inserted, tail cone " F-16 style ".
OPTIONAL PARTS:
Under wing tanks with smoke cartridge
ALEWING smoke cartridge ignition system
Winglets with lights
Simulated LED afterburner
Electronics control box ALEWING
Fire prevention system " Firebag
Semi scale cockpit
Smoke colored cartridges.
PRICE LIST:
Kit " Tuono " ARF white gelcoated 1890

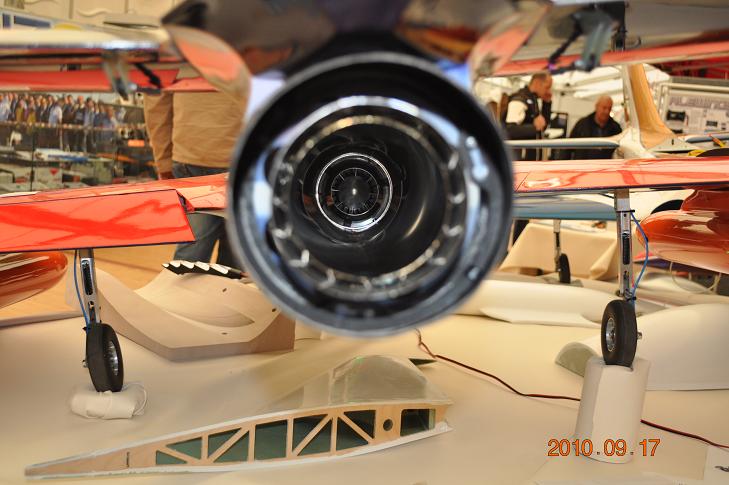

Stainless steel pipe 170

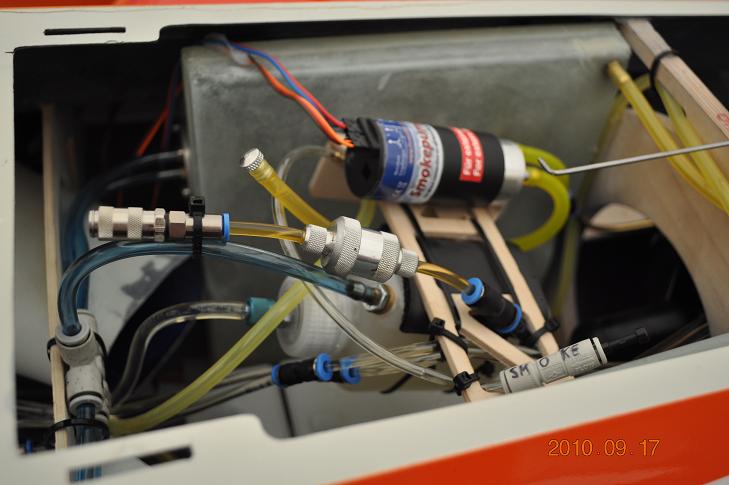

Fuel tanks 3,5 liters ( pair ) 270
Under wing tank ( pair ) 212
Landing gear set with breaks 827
Hardware linkage ( special uniball ) 63
Wiring cable set, complete with connectors 212
Painted included material 1590

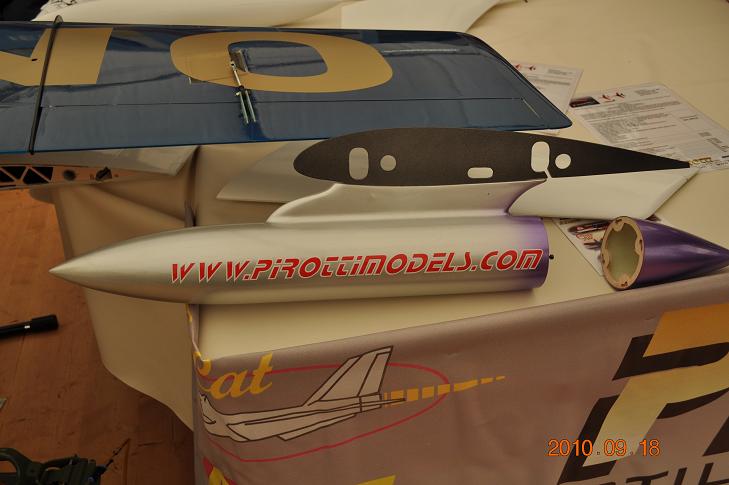

Winglet 200
Kit " Tuono " ARF white gelcoated 1890
Stainless steel pipe 170
Fuel tanks 3,5 liters ( pair ) 270
Under wing tank ( pair ) 212
Landing gear set with breaks 827
Hardware linkage ( special uniball ) 63
Wiring cable set, complete with connectors 212
Painted included material 1590
Winglet 200
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EVSD-5U-EVO-SP: The AirPower 2010 new EVSD-5U-EVO can offers everything you could possibly need or want in a gear system controller. All new software separates the sequencer timing so each setting is completely independent of each other, simplifying the sequencer programming sequence. Increase the voltage measurement function of the source and up to 3A landing lights control system.
PRICE: 470 $
PRICE: 470 $
The price is in Euro ( ) and includ 25% VAT. For more information please contact us by
e-mail to: tzimport@comhem.se
Priserna δr i Euro ( ) . Ring ( 0705438673 ) eller majla oss ( tzimport@comhem.se ). Dem lδgsta priser pε marknaden utlovas.
e-mail to: tzimport@comhem.se
Priserna δr i Euro ( ) . Ring ( 0705438673 ) eller majla oss ( tzimport@comhem.se ). Dem lδgsta priser pε marknaden utlovas.
|
|

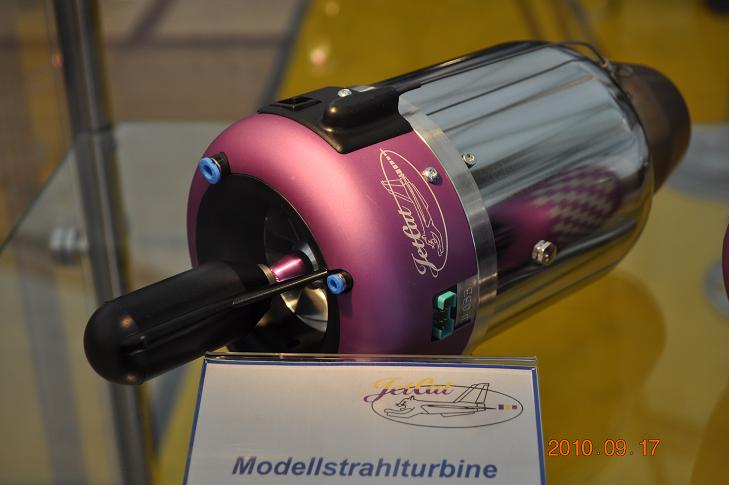

Jet-Cat P 120 SX:
Thrust: 5 - 12Kg
Weight: 1420g
Diameter: 112mm
Length: 285mm
RPM range: 33000 - 123000 RP/min
Exhaust: 500 - 710 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil
Fuel consumpsion: 100 - 380ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2590 ; before 2790
Thrust: 5 - 12Kg
Weight: 1420g
Diameter: 112mm
Length: 285mm
RPM range: 33000 - 123000 RP/min
Exhaust: 500 - 710 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil
Fuel consumpsion: 100 - 380ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2590 ; before 2790

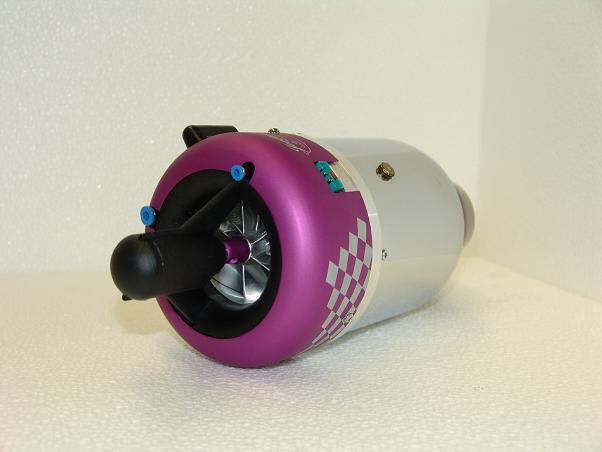

Jet-Cat P 160 SX:
Thrust: 7 - 16,3Kg
Weight: 1530g
Diameter: 112mm
Length: 285mm
RPM range: 32000 - 125000 RP/min
Exhaust: 520 - 750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 120 - 520ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2995 ; before 3295
Thrust: 7 - 16,3Kg
Weight: 1530g
Diameter: 112mm
Length: 285mm
RPM range: 32000 - 125000 RP/min
Exhaust: 520 - 750 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil )
Fuel consumpsion: 120 - 520ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2995 ; before 3295
|
|
|
|
|
|
|

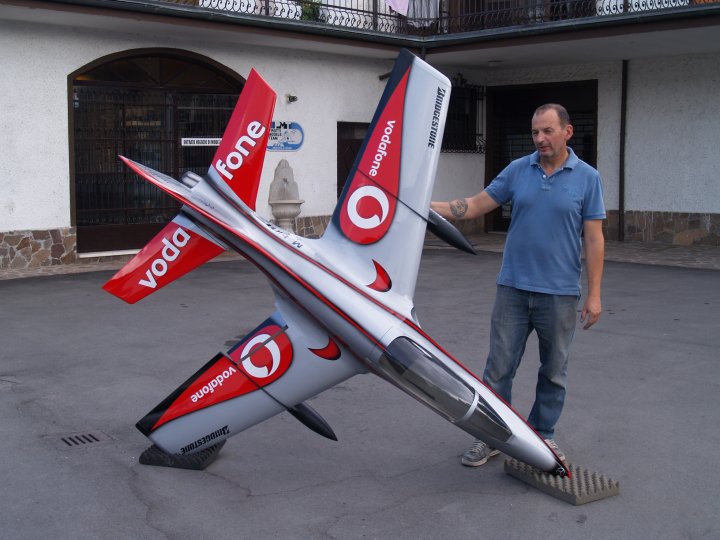

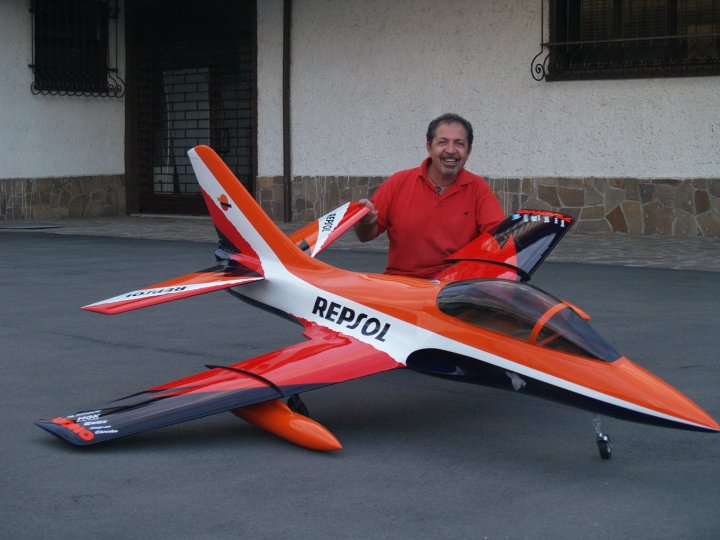

Mr Pirotti himself
|
|
|
|
|
|
|
|
|
|

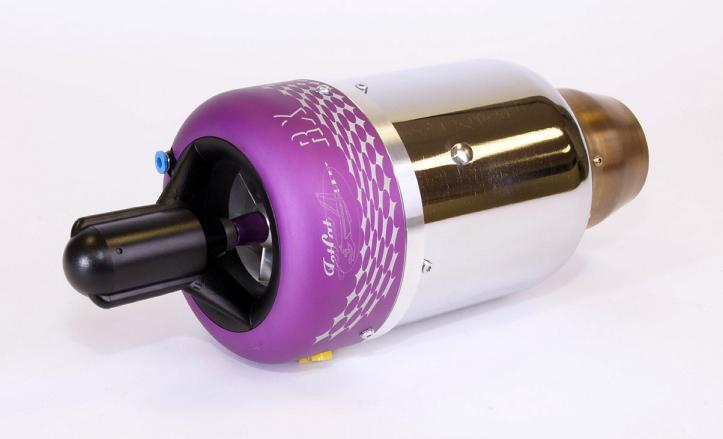

Jet-Cat P 140 RX:
Thrust: 14,2Kg
Weight: 1590g
Diameter: 112mm
Length: 320mm
RPM range: 33000 - 125000 RP/min
Exhaust: 710 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil
Fuel consumpsion: 510 ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2590 ( before 2790 )
Thrust: 14,2Kg
Weight: 1590g
Diameter: 112mm
Length: 320mm
RPM range: 33000 - 125000 RP/min
Exhaust: 710 C
Fuel: Jet-A1 med 5% oilmix ( turbinoil
Fuel consumpsion: 510 ml/min to the highest RPM
Maintenance interval: 50 timmar/Hours
Pris: 2590 ( before 2790 )
|
