Vi har hela Power Box Systems sortiment. För ytterligare information klicka pĺ logotypen sĺ kommer ni till Power Box egen webbsidan.
We have the complete range of Power Box Systems. For foward information, please click on the logo and you´ll be able to check the Power Box web site.
We have the complete range of Power Box Systems. For foward information, please click on the logo and you´ll be able to check the Power Box web site.
Samtliga priser är i Euro ( € ) inkl. 25% moms. Fraktkostnader tillkommer.
All the price are in Euro ( € ) inclusive 25% VAT. Delivery cost it´ll be add.
All the price are in Euro ( € ) inclusive 25% VAT. Delivery cost it´ll be add.

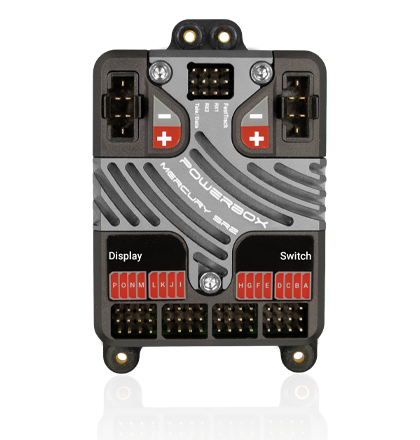

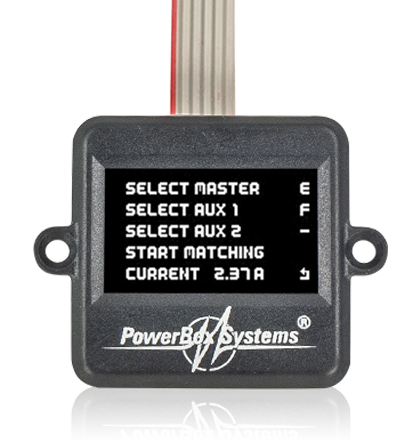

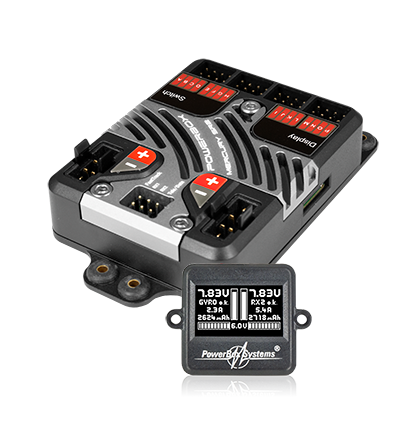

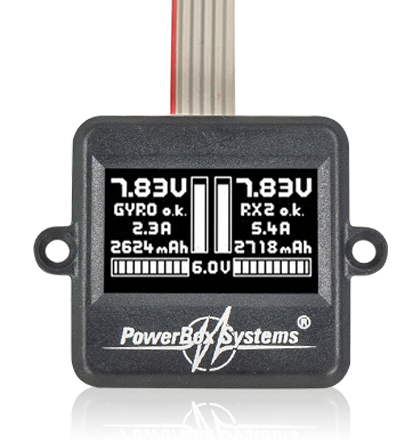

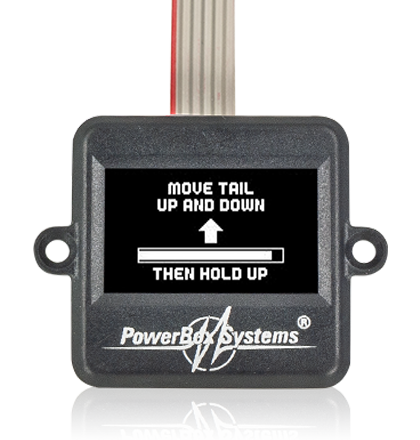

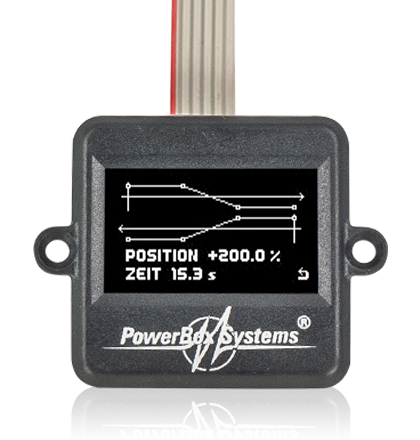

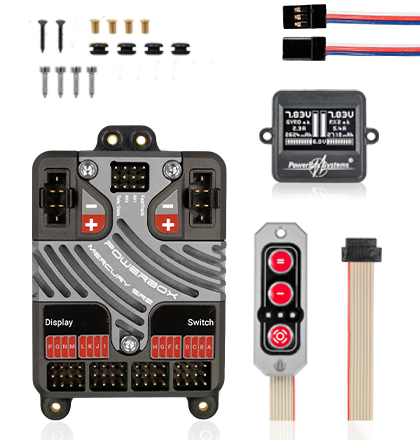

4130 PowerBox Mercury SRS
Features
16 outputs
High-performance battery backer with high continuous load capacity
OLED screen, legible in sunlight
Bi-lingual menu system
Consistent duplication of all power electronics
Redundant electronic switch
Servo matching for all 16 outputs
Auto matching function
Door sequencer with Setup Assistant
The latest integrated iGyro technology, using the iGyroSAT as gyro sensor
9 independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
Two selectable output voltages: 6.0 V or 7.8 V
Optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR X-BUS and Graupner HoTT
Transmission of battery, receiver and GPS* data
Virtually all features can be controlled from PowerBox and Jeti transmitters
Selectable servo frame rate: 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
Technical Data:
Operating voltage4.0V - 9.0V
Power supply2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state100mA
Current drain Standby30µA
Maximum load current2 x 20A (<30s)
Drop-out voltage0.3V
Output voltage6.0V, 7.8V
Signal inputserial
Supported RC systemsPowerBox, Futaba, Jeti, Spektrum, M-Link and Hott
Receiver redundancySRS
Channels26
Servo sockets16
Programmable servo outputs16
Servo signal resolution0,25µs
Signal frame rate12ms, 14ms, 16ms, 18ms
Gyro sensor typeexternal iGyro SAT
Number of sensor axes9
ScreenOLED 128x64 pixels
Integral door sequenceryes
Supported telemetry systemsP˛BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
Dimensions89 x 54 x 19 mm
Weight75g
Weight Sensor Switch15g
Weight of LCD screen34g
Temperature range-30°C to +105°C
Pris/Price: 379 €
Features
16 outputs
High-performance battery backer with high continuous load capacity
OLED screen, legible in sunlight
Bi-lingual menu system
Consistent duplication of all power electronics
Redundant electronic switch
Servo matching for all 16 outputs
Auto matching function
Door sequencer with Setup Assistant
The latest integrated iGyro technology, using the iGyroSAT as gyro sensor
9 independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
Two selectable output voltages: 6.0 V or 7.8 V
Optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR X-BUS and Graupner HoTT
Transmission of battery, receiver and GPS* data
Virtually all features can be controlled from PowerBox and Jeti transmitters
Selectable servo frame rate: 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
Technical Data:
Operating voltage4.0V - 9.0V
Power supply2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state100mA
Current drain Standby30µA
Maximum load current2 x 20A (<30s)
Drop-out voltage0.3V
Output voltage6.0V, 7.8V
Signal inputserial
Supported RC systemsPowerBox, Futaba, Jeti, Spektrum, M-Link and Hott
Receiver redundancySRS
Channels26
Servo sockets16
Programmable servo outputs16
Servo signal resolution0,25µs
Signal frame rate12ms, 14ms, 16ms, 18ms
Gyro sensor typeexternal iGyro SAT
Number of sensor axes9
ScreenOLED 128x64 pixels
Integral door sequenceryes
Supported telemetry systemsP˛BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
Dimensions89 x 54 x 19 mm
Weight75g
Weight Sensor Switch15g
Weight of LCD screen34g
Temperature range-30°C to +105°C
Pris/Price: 379 €

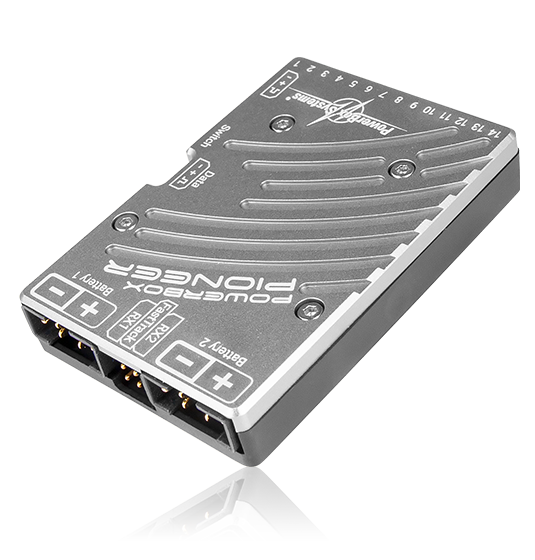

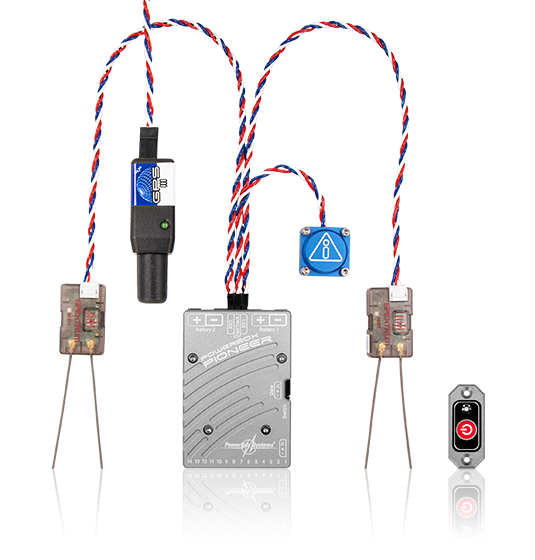

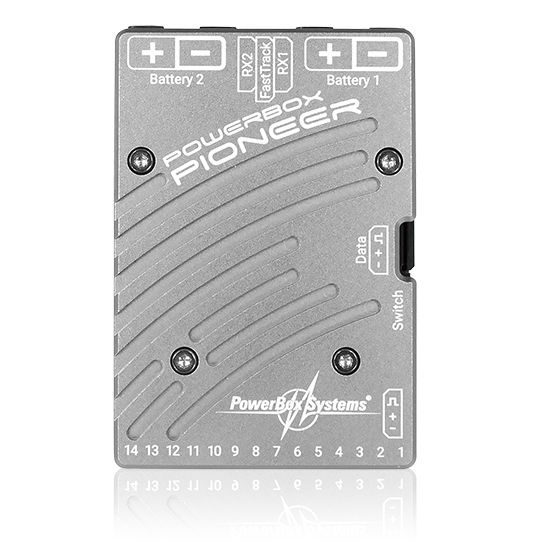

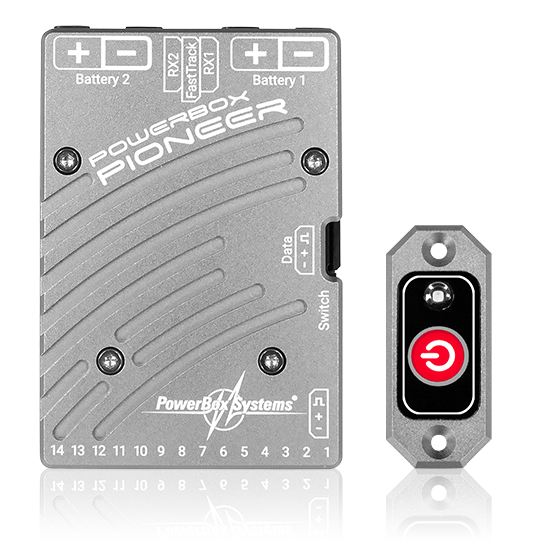

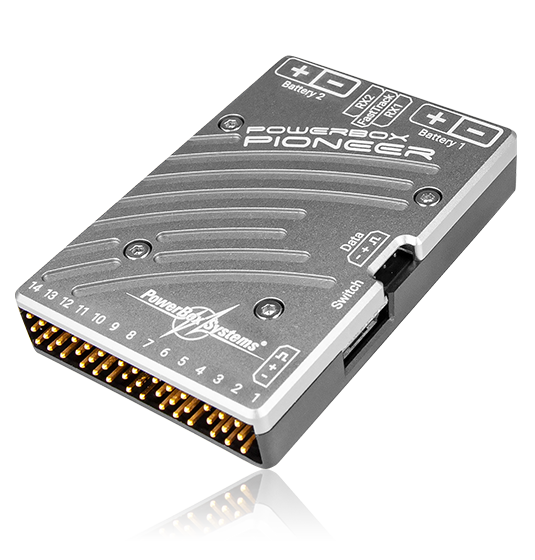

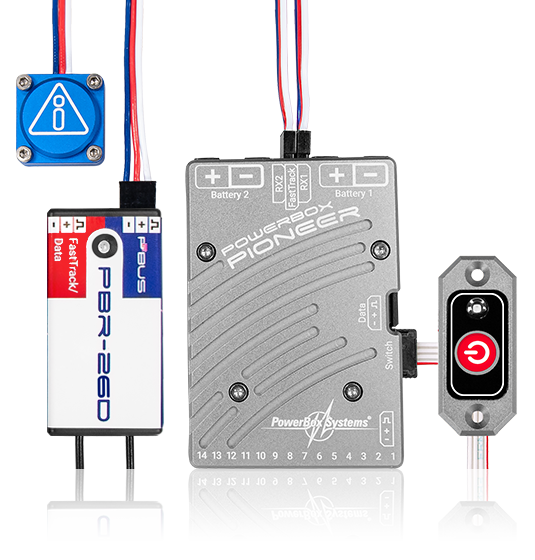

4100 PowerBox Pioneer
Features:
14 channels
High-performance battery backer with high continuous load capacity
Duplicated circuitry for the entire power electronics
Redundant electronic switch
All features can be controlled using PowerBox and Jeti transmitters
All systems can be operated using BlueCom or PowerBox USB
Integrated iGyro technology of the latest type, with iGyro SAT as gyro sensor
Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
Special regulatory algorithm for fixed-wing models
Detects all transmitter mixers
Ultra-simple gyro programming in just a few minutes
Optional GPS mode for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS and Spektrum SRXL2
Transmission of voltage, current, capacity, lost frames and holds
User-variable servo frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
Suppression of servo feedback currents
Ultra-modern 32-bit microprocessor ensures swift, accurate signal processing
Efficient heat dissipation via the high-quality machined and anodised aluminium case
Machined and anodised aluminium switch housing
Space-saving low-profile format
Ultra-lightweight construction
Technical Data:
Operating voltage4.0 V - 9.0 V
Power supply2s LiPo, 2s Lilon, 2s LiFePo, 5s NiMH
Current drain Power-on state105 mA
Current drain Standby30 µA
Maximum load currentContinuous 2x10 A (<30 s 2x 20 A)
Drop-out voltage0.3 V
Output voltageunregulated
Signal inputserial
Supported RC systemsPowerBox, Futaba, Jeti and Spektrum
Receiver redundancySRS
Channels26
Servo sockets14
Servo signal resolution0,5 µs
Signal frame rate10 ms, 12 ms, 14 ms, 16 ms, 18 ms
Gyro regulationHeading- and Normalmode
Gyro sensor typeexternal iGyro SAT
Number of sensor axes9
Supported telemetry systemsP˛BUS, S.BUS2, EX-Tele, SRXL2
Dimensions63 x 44 x 12 mm
Weight40 g
Weight Sensor Switch6 g
Temperature range-30 °C to +75 °C
Pris/Price: 219 €
Features:
14 channels
High-performance battery backer with high continuous load capacity
Duplicated circuitry for the entire power electronics
Redundant electronic switch
All features can be controlled using PowerBox and Jeti transmitters
All systems can be operated using BlueCom or PowerBox USB
Integrated iGyro technology of the latest type, with iGyro SAT as gyro sensor
Nine independent gyro outputs for: 3x aileron, 3x elevator, 3x rudder
Special regulatory algorithm for fixed-wing models
Detects all transmitter mixers
Ultra-simple gyro programming in just a few minutes
Optional GPS mode for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS and Spektrum SRXL2
Transmission of voltage, current, capacity, lost frames and holds
User-variable servo frame rate: 10 ms, 12 ms, 14 ms, 16 ms, 18 ms
Suppression of servo feedback currents
Ultra-modern 32-bit microprocessor ensures swift, accurate signal processing
Efficient heat dissipation via the high-quality machined and anodised aluminium case
Machined and anodised aluminium switch housing
Space-saving low-profile format
Ultra-lightweight construction
Technical Data:
Operating voltage4.0 V - 9.0 V
Power supply2s LiPo, 2s Lilon, 2s LiFePo, 5s NiMH
Current drain Power-on state105 mA
Current drain Standby30 µA
Maximum load currentContinuous 2x10 A (<30 s 2x 20 A)
Drop-out voltage0.3 V
Output voltageunregulated
Signal inputserial
Supported RC systemsPowerBox, Futaba, Jeti and Spektrum
Receiver redundancySRS
Channels26
Servo sockets14
Servo signal resolution0,5 µs
Signal frame rate10 ms, 12 ms, 14 ms, 16 ms, 18 ms
Gyro regulationHeading- and Normalmode
Gyro sensor typeexternal iGyro SAT
Number of sensor axes9
Supported telemetry systemsP˛BUS, S.BUS2, EX-Tele, SRXL2
Dimensions63 x 44 x 12 mm
Weight40 g
Weight Sensor Switch6 g
Temperature range-30 °C to +75 °C
Pris/Price: 219 €

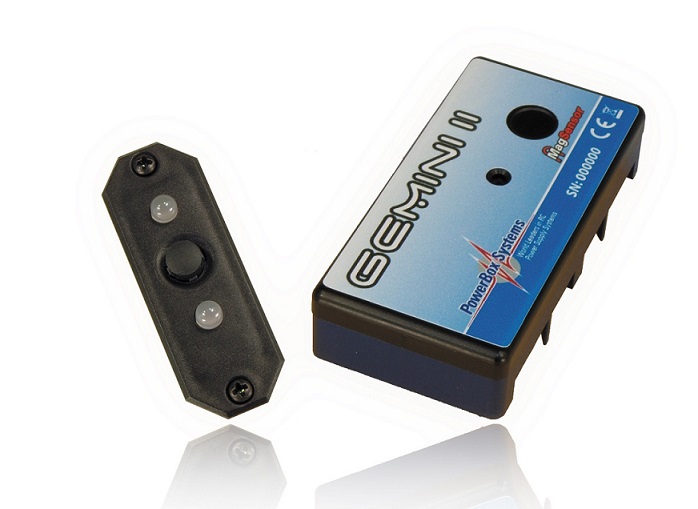

3125 Gemini II
Want to switch the unit with a SensorSwitch? Or a magnet? With the new PowerBox Gemini II the choice is yours!
Specification:
double-regulated output voltages for receivers and servos
Electronic On / Off switch, using either a magnetic trigger or the SensorSwitch
On and Off switching signalled by visual and audible indicators
Regulated output voltage of 5.9 V or 7.4 V
LED voltage indicator for each battery separately
Supports four battery types: LiPo/LiIon, NiMH/NiCd, LiFePo
Suppression of any servo feedback currents which might occur
MPX battery inputs
Large-area anodised aluminium case for high regulator capacity
Integral regulator monitor
Technical Data:
Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 56mA
Current drain Standby 16µA
Maximum load current Peak 2x6A
Drop-out voltage 0.3V
Output voltage 5.9V or 7.4V regulated
Dimensions 60 x 30 x 15 mm
Weight 33g
Weight Sensor Switch 11g
Temperature range -30°C bis +75°C
Pris/Price: 125 €
Want to switch the unit with a SensorSwitch? Or a magnet? With the new PowerBox Gemini II the choice is yours!
Specification:
double-regulated output voltages for receivers and servos
Electronic On / Off switch, using either a magnetic trigger or the SensorSwitch
On and Off switching signalled by visual and audible indicators
Regulated output voltage of 5.9 V or 7.4 V
LED voltage indicator for each battery separately
Supports four battery types: LiPo/LiIon, NiMH/NiCd, LiFePo
Suppression of any servo feedback currents which might occur
MPX battery inputs
Large-area anodised aluminium case for high regulator capacity
Integral regulator monitor
Technical Data:
Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 56mA
Current drain Standby 16µA
Maximum load current Peak 2x6A
Drop-out voltage 0.3V
Output voltage 5.9V or 7.4V regulated
Dimensions 60 x 30 x 15 mm
Weight 33g
Weight Sensor Switch 11g
Temperature range -30°C bis +75°C
Pris/Price: 125 €
|
|

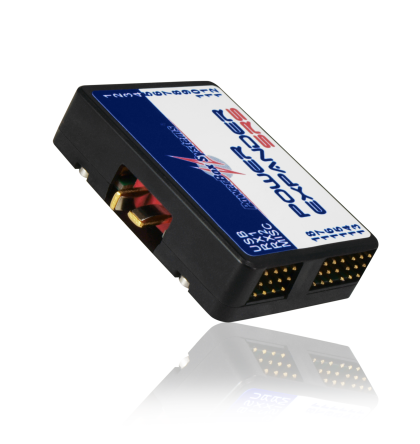

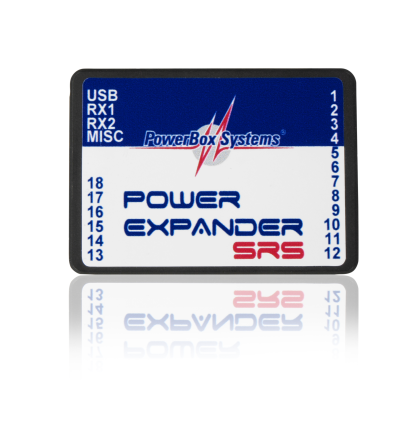

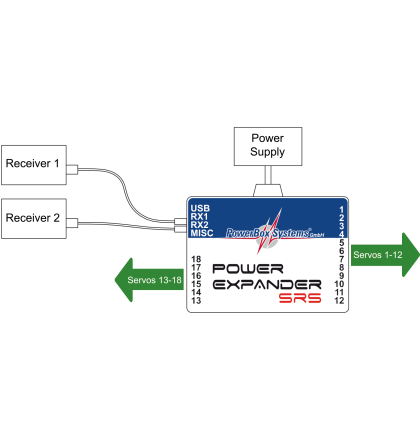

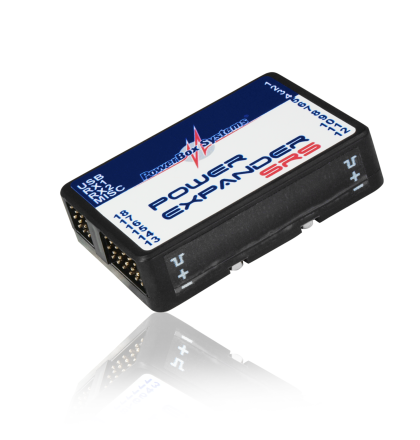

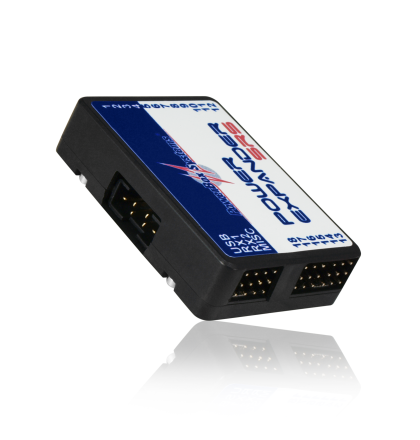

3430 PowerBox Expander SRS
Features
Access to a maximum of eighteen channels
Simple wiring: the receivers are connected using a serial link
Integral SRS, allowing the use of two receivers
Compatible with: PowerBox, Futaba, Multiplex, Jeti, Spektrum, JR and Graupner
High-current power socket MPX or Deans
S-BUS output for use in a BUS system
Hold/Failsafe option for each output individual
User-variable frame rate
Can be updated using the PowerBox USB Interface
Technical Data:
Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 25mA
Maximum load current Peak 30A
Signal input serial
Supported RC systems PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne
Receiver redundancy SRS
Channels 18
Servo sockets 18
Servo signal resolution 0.5µs
Signal frame rate 12ms, 15ms, 18ms, 21ms
Dimensions 55 x 40 x 14 mm
Weight 25g
Temperature range -30°C to +75°C
Pris/Price: € 129
Features
Access to a maximum of eighteen channels
Simple wiring: the receivers are connected using a serial link
Integral SRS, allowing the use of two receivers
Compatible with: PowerBox, Futaba, Multiplex, Jeti, Spektrum, JR and Graupner
High-current power socket MPX or Deans
S-BUS output for use in a BUS system
Hold/Failsafe option for each output individual
User-variable frame rate
Can be updated using the PowerBox USB Interface
Technical Data:
Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 25mA
Maximum load current Peak 30A
Signal input serial
Supported RC systems PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne
Receiver redundancy SRS
Channels 18
Servo sockets 18
Servo signal resolution 0.5µs
Signal frame rate 12ms, 15ms, 18ms, 21ms
Dimensions 55 x 40 x 14 mm
Weight 25g
Temperature range -30°C to +75°C
Pris/Price: € 129
|
|
||
|

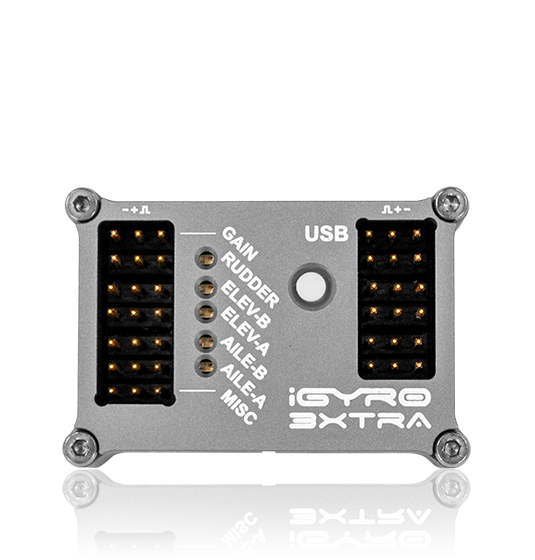

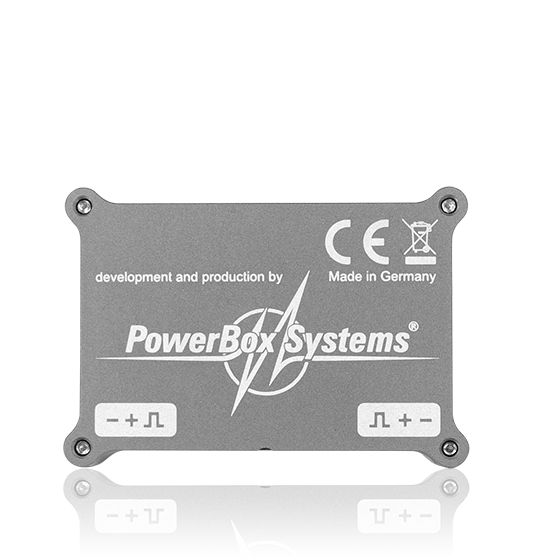

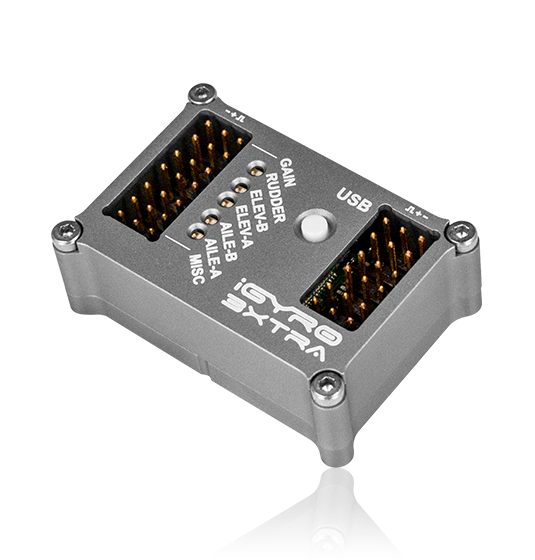

3620 PowerBox iGYRO 3xtra
Features:
Extremely accurate triple-axis MEMS sensor
New regulatory algorithm for fixed-wing model aircraft with improved performance
Optional GPS-controlled speed compensation
Freely selectable orientation in the model
Automatic detection of orientation in the model
Ultra-simple set-up procedure
Adjustment of gain on individual axes without additional devices
Delta and V-tail mixers accurately detected, including differential travels
Exact separation of control inputs when mixed inputs are in use
Flap mixer can be superimposed without affecting gyro performance
Gain adjustment at the transmitter
Selectable Attitude Assist function for precise gyro regulation
Two ranges selectable from the transmitter for different gyro functions
Selectable five-stage gyro characteristics
User-variable stick priority
User-variable lock-in feel
Input and output with PWM signals
Fine-tuning via USB or BlueCom and mobile telephone
Can be updated using the PowerBox USB interface adapter
Robust aluminium case
Technical Data:
Operating voltage4.0V - 9.0V
Current drain Power-on state40mA
Maximum load current20A
Signal inputPWM
Servo sockets5
Servo signal resolution0,5µs
Gyro regulationHeading- and Normalmode
Gyro sensor typeMEMS
Number of sensor axes3
Dimensions43 x 30 x 15 mm
Weight36g, incl. 6 Patchleads
Temperature range-30°C to +75°C
Pris/Price: 249 €
Features:
Extremely accurate triple-axis MEMS sensor
New regulatory algorithm for fixed-wing model aircraft with improved performance
Optional GPS-controlled speed compensation
Freely selectable orientation in the model
Automatic detection of orientation in the model
Ultra-simple set-up procedure
Adjustment of gain on individual axes without additional devices
Delta and V-tail mixers accurately detected, including differential travels
Exact separation of control inputs when mixed inputs are in use
Flap mixer can be superimposed without affecting gyro performance
Gain adjustment at the transmitter
Selectable Attitude Assist function for precise gyro regulation
Two ranges selectable from the transmitter for different gyro functions
Selectable five-stage gyro characteristics
User-variable stick priority
User-variable lock-in feel
Input and output with PWM signals
Fine-tuning via USB or BlueCom and mobile telephone
Can be updated using the PowerBox USB interface adapter
Robust aluminium case
Technical Data:
Operating voltage4.0V - 9.0V
Current drain Power-on state40mA
Maximum load current20A
Signal inputPWM
Servo sockets5
Servo signal resolution0,5µs
Gyro regulationHeading- and Normalmode
Gyro sensor typeMEMS
Number of sensor axes3
Dimensions43 x 30 x 15 mm
Weight36g, incl. 6 Patchleads
Temperature range-30°C to +75°C
Pris/Price: 249 €
|
|
||
|
|

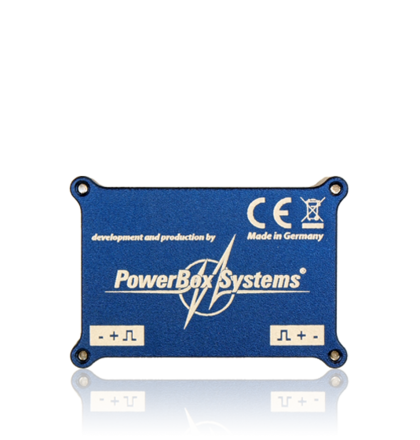

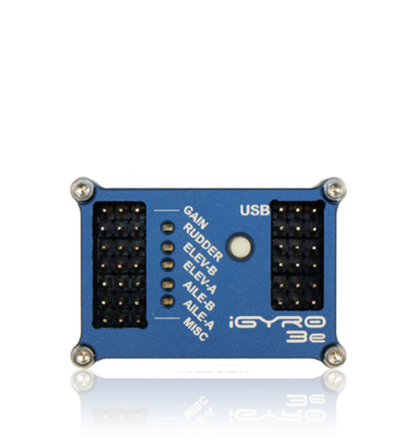

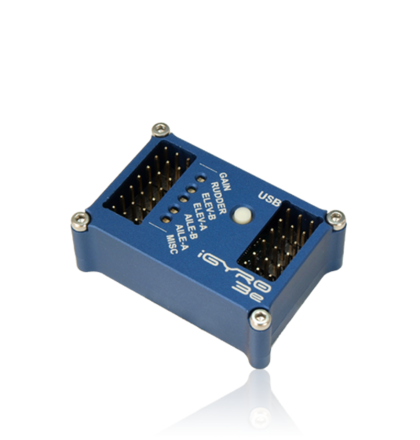

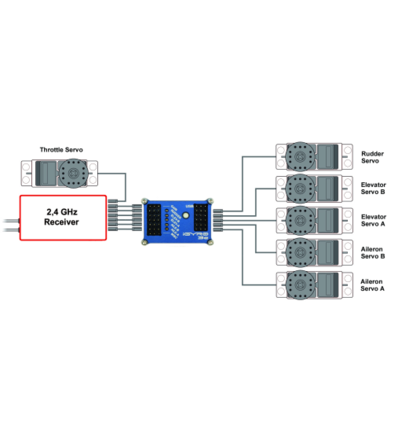

3600 PowerBox iGYRO 3e
Product description
The iGyro 3e is the little brother of the iGyro SRS, and offers an excellent performance. The control characteristics are identical to those of the iGyro SRS, and naturally the unit’s quality also reflects the very highest PowerBox standard! The iGyro 3e operates with normal PWM signals at the input and output, making it a straightforward task to install and set up the gyro in existing models. The iGyro 3e is simply looped in between the receiver and servos, and its gain can be adjusted in flight if one auxiliary channel is assigned to it. The net result is that it takes just a few minutes to install and set up the iGyro 3e. The gain adjuster is divided into two ranges, enabling the pilot to pre-define different flight modes with the transmitter. As standard the iGyro 3e can be operated in Heading or Damping mode. Heading mode has been specially developed for fixed-wing model aircraft, and provides natural handling in the air. As you would expect, Heading mode can be left active for take-off and landing! It is supremely easy to adjust the ranges of the gain adjuster using a laptop or PC, as the Heading option and the strength of the gyro effect are fully variable, separately for each output. Naturally the unit also features an integral delta and V-tail mixer, and any orientation in the model is possible.
Product description
The iGyro 3e is the little brother of the iGyro SRS, and offers an excellent performance. The control characteristics are identical to those of the iGyro SRS, and naturally the unit’s quality also reflects the very highest PowerBox standard! The iGyro 3e operates with normal PWM signals at the input and output, making it a straightforward task to install and set up the gyro in existing models. The iGyro 3e is simply looped in between the receiver and servos, and its gain can be adjusted in flight if one auxiliary channel is assigned to it. The net result is that it takes just a few minutes to install and set up the iGyro 3e. The gain adjuster is divided into two ranges, enabling the pilot to pre-define different flight modes with the transmitter. As standard the iGyro 3e can be operated in Heading or Damping mode. Heading mode has been specially developed for fixed-wing model aircraft, and provides natural handling in the air. As you would expect, Heading mode can be left active for take-off and landing! It is supremely easy to adjust the ranges of the gain adjuster using a laptop or PC, as the Heading option and the strength of the gyro effect are fully variable, separately for each output. Naturally the unit also features an integral delta and V-tail mixer, and any orientation in the model is possible.
Features:
Extremely accurate triple-axis MEMS sensor
Special regulatory algorithm designed for fixed-wing model aircraft
Three axes distributed to five servos, each adjustable independently
Input and output with PWM
Signals
Input for in-flight gain adjustment Heading or Normal mode can be selected in flight
Integral delta mixer
Installed orientation can be selected
16-bit processor for fast, high-resolution signal processing
Technical Data:
Operating voltage 4.0V - 9.0V Current drain Power-on state 40mA
Maximum load current 20A
Signal input PWM
Servo sockets 5
Servo signal resolution 0,5µs
Gyro regulation Heading- and Normalmode
Gyro sensor type MEMS
Pris/Price: € 199
Extremely accurate triple-axis MEMS sensor
Special regulatory algorithm designed for fixed-wing model aircraft
Three axes distributed to five servos, each adjustable independently
Input and output with PWM
Signals
Input for in-flight gain adjustment Heading or Normal mode can be selected in flight
Integral delta mixer
Installed orientation can be selected
16-bit processor for fast, high-resolution signal processing
Technical Data:
Operating voltage 4.0V - 9.0V Current drain Power-on state 40mA
Maximum load current 20A
Signal input PWM
Servo sockets 5
Servo signal resolution 0,5µs
Gyro regulation Heading- and Normalmode
Gyro sensor type MEMS
Pris/Price: € 199

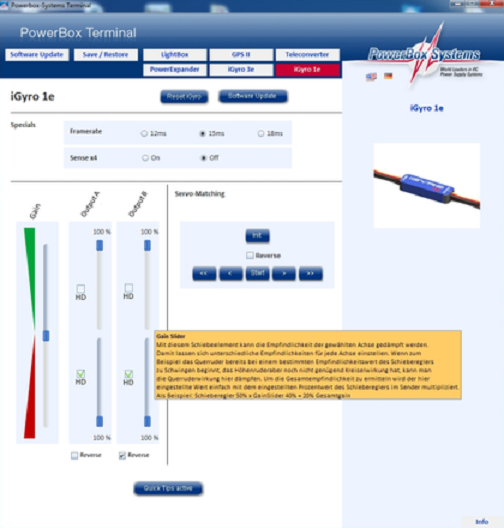

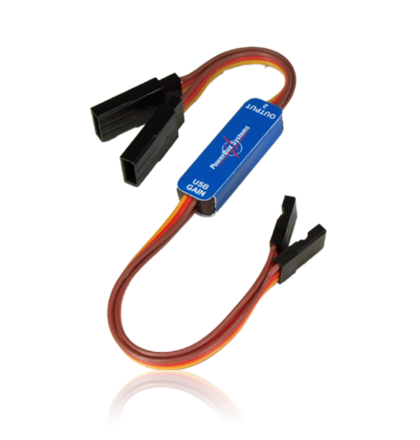

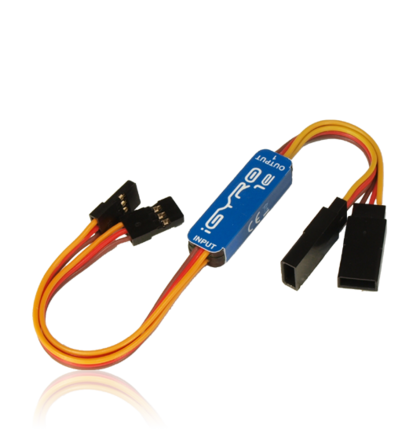

3300 PowerBox iGYRO 1e
PowerBox iGyro™1e
The new micro-size single-axis gyro with integral servo-match function
As with the iGyro 3e, the impressive feature of the iGyro 1e is just how easy it is to use. The device can be used immediately after it is unpacked: plug in, fix in place, fly.
In every respect its performance is as good as the renowned larger iGyro systems, and the little version imparts exactly the same iGyro feeling.
The additional integral features are a world’s first in this class: Two outputs can be set up independently of each other, both in terms of gyro effect and control function. This means: it is possible to adjust output 2 separately for the gyro’s direction of effect, and the servo’s direction of rotation, end-points and centre. This integral servo-match function can be exploited, for example, to use a single channel to control the rudder and steerable nosewheel, but set different gyro functions for both. Typically the nosewheel might be set up with a Heading function, but the rudder with Normal gyro function only. It is also possible to assign the gyro function to two ailerons without having to forfeit differential travel.
Another useful feature is the facility to store gyro gain automatically: if you are short of channels, you can set up the iGyro 1e once using a receiver output, then disconnect the gain input at the receiver; the set gain value is now automatically stored. The receiver output previously used is now available again for other functions. The package is rounded off by two additional functions: frame-rate adjustment and Gyro-Sense x 4, which is designed for large, sluggish models.
All the components employed in the iGyro 1e satisfy the same high quality standards as the large iGyro systems, and the device is 100% “Made in Germany”. Although the iGyro 1e is an obvious choice for small models, its quality means that it also guarantees the highest standards of precision and security in valuable High-End models.
The iGyro 1e can be installed in any model where there is only a need to stabilise one axis, whether the model is a glider, a jet or a power model. The iGyro 1e’s micro size even allows it to be squeezed into any F3B and F5J glider, and even in an RC model car, which will then maintain its exact heading with great reliability!
PowerBox iGyro™1e
The new micro-size single-axis gyro with integral servo-match function
As with the iGyro 3e, the impressive feature of the iGyro 1e is just how easy it is to use. The device can be used immediately after it is unpacked: plug in, fix in place, fly.
In every respect its performance is as good as the renowned larger iGyro systems, and the little version imparts exactly the same iGyro feeling.
The additional integral features are a world’s first in this class: Two outputs can be set up independently of each other, both in terms of gyro effect and control function. This means: it is possible to adjust output 2 separately for the gyro’s direction of effect, and the servo’s direction of rotation, end-points and centre. This integral servo-match function can be exploited, for example, to use a single channel to control the rudder and steerable nosewheel, but set different gyro functions for both. Typically the nosewheel might be set up with a Heading function, but the rudder with Normal gyro function only. It is also possible to assign the gyro function to two ailerons without having to forfeit differential travel.
Another useful feature is the facility to store gyro gain automatically: if you are short of channels, you can set up the iGyro 1e once using a receiver output, then disconnect the gain input at the receiver; the set gain value is now automatically stored. The receiver output previously used is now available again for other functions. The package is rounded off by two additional functions: frame-rate adjustment and Gyro-Sense x 4, which is designed for large, sluggish models.
All the components employed in the iGyro 1e satisfy the same high quality standards as the large iGyro systems, and the device is 100% “Made in Germany”. Although the iGyro 1e is an obvious choice for small models, its quality means that it also guarantees the highest standards of precision and security in valuable High-End models.
The iGyro 1e can be installed in any model where there is only a need to stabilise one axis, whether the model is a glider, a jet or a power model. The iGyro 1e’s micro size even allows it to be squeezed into any F3B and F5J glider, and even in an RC model car, which will then maintain its exact heading with great reliability!
Features:
·Ultra-precise single-axis MEMS sensor
·Regulatory algorithm designed specifically for fixed-wing model aircraft
·Single axis shared by two servos, each independently variable
·Conventional PWM input and output signals
·Gain input for in-flight sensitivity adjustment
·Heading or Normal mode, switchable in flight
·Integral servo-match and reverse function
·Gyro Sense x 4 function for large, sluggish models
·Variable frame-rate
·16-bit processor for fast, high-resolution signal processing
·Additional features can be set up using the USB Interface Adapter
·Can be updated using the PowerBox USB Interface Adapter
Pris/Price: 89 €
·Ultra-precise single-axis MEMS sensor
·Regulatory algorithm designed specifically for fixed-wing model aircraft
·Single axis shared by two servos, each independently variable
·Conventional PWM input and output signals
·Gain input for in-flight sensitivity adjustment
·Heading or Normal mode, switchable in flight
·Integral servo-match and reverse function
·Gyro Sense x 4 function for large, sluggish models
·Variable frame-rate
·16-bit processor for fast, high-resolution signal processing
·Additional features can be set up using the USB Interface Adapter
·Can be updated using the PowerBox USB Interface Adapter
Pris/Price: 89 €
|
|
||
|
In stock, ready for delivery
NEWS
|
|
||
|
|
||
|

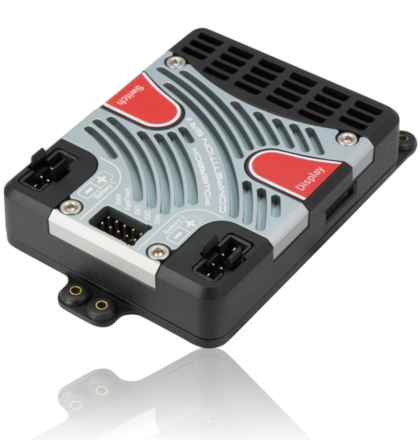

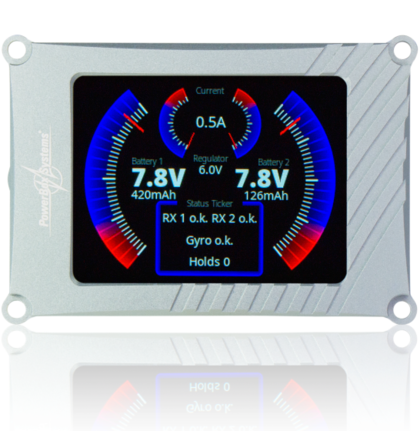

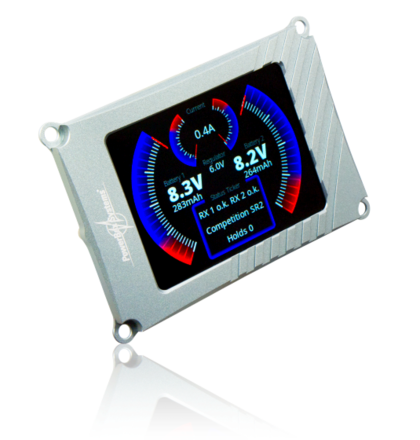

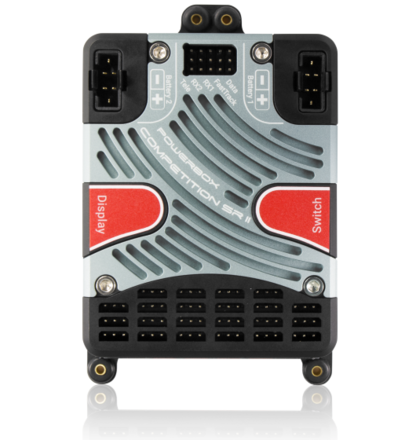

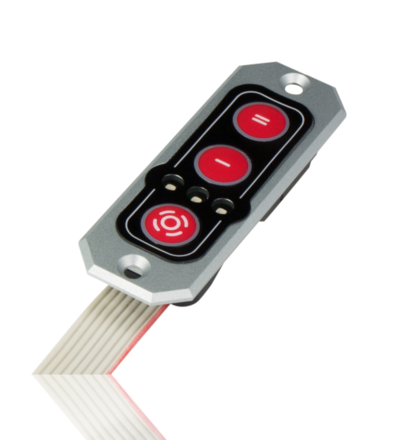

4450 PowerBox Competition SR2
Features
22 channels
High-performance battery backer with high continuous load capacity
2.4” TFT screen, legible in sunlight
Bi-lingual menu system
Consistent duplication of all power electronics
Redundant electronic switch
Servo matching for all 22 outputs
Auto matching function
Two independent door sequencers with Setup Assistant
The latest integrated iGyro technology, using the iGyroSAT as gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
Individual gain control for all twelve gyro outputs
Special regulatory algorithm for fixed-wing models
System detects all transmitter mixers
Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
Graphic menu diagrams ensure ultra-simple programming
Fast basic setup procedure using the sophisticated Assistant
Optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link and Graupner HoTT
Transmission of battery, receiver and GPS* data
Virtually all features can be controlled from PowerBox and Jeti transmitters
Selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
Latest 32-bit micro-processor for precise, high-speed signal processing
High-performance machined heat-sink for optimised heat diffusion
Machined, anodised aluminium switch and screen case
Compact dimensions
Pris/Price: 439 €
Features
22 channels
High-performance battery backer with high continuous load capacity
2.4” TFT screen, legible in sunlight
Bi-lingual menu system
Consistent duplication of all power electronics
Redundant electronic switch
Servo matching for all 22 outputs
Auto matching function
Two independent door sequencers with Setup Assistant
The latest integrated iGyro technology, using the iGyroSAT as gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
Individual gain control for all twelve gyro outputs
Special regulatory algorithm for fixed-wing models
System detects all transmitter mixers
Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
Graphic menu diagrams ensure ultra-simple programming
Fast basic setup procedure using the sophisticated Assistant
Optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link and Graupner HoTT
Transmission of battery, receiver and GPS* data
Virtually all features can be controlled from PowerBox and Jeti transmitters
Selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
Latest 32-bit micro-processor for precise, high-speed signal processing
High-performance machined heat-sink for optimised heat diffusion
Machined, anodised aluminium switch and screen case
Compact dimensions
Pris/Price: 439 €

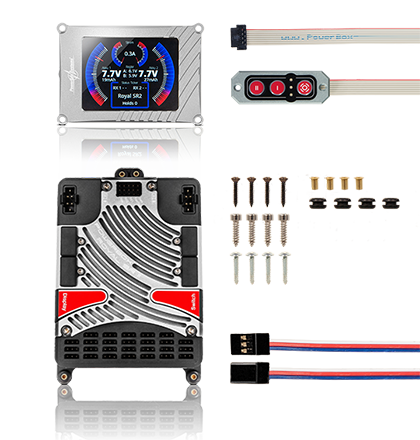

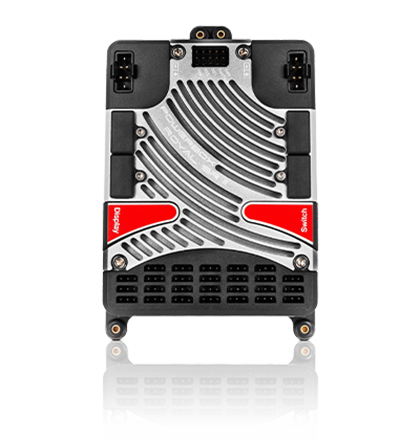

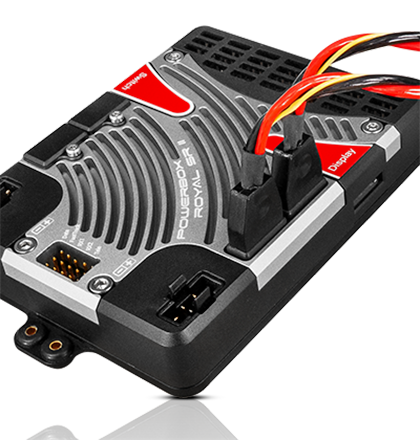

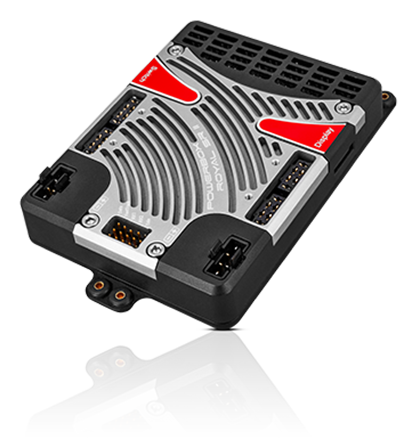

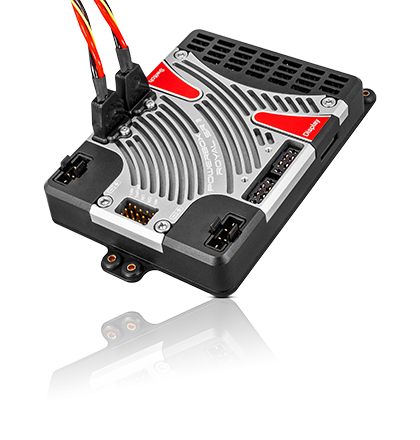

4750 PowerBox Royal SR2
Features
26 channels
High-performance battery backer with high continuous load capacity
Four P˛-BUS outputs with full telemetry support for servos

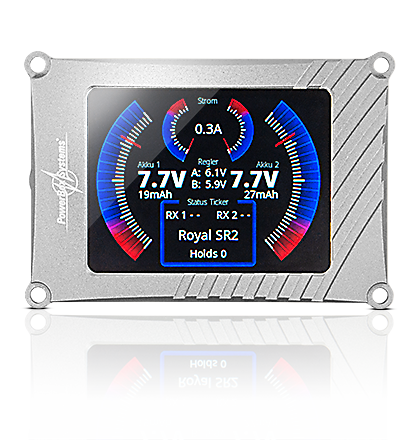

2.4" TFT screen, legible in sunlight
Bi-lingual menu system
Consistent duplication of all power electronics
Redundant electronic switch
Servo matching for all 26 outputs
Auto matching function
Two independent door sequencers with Setup Assistant
The latest integrated iGyro technology, using the iGyro SAT as gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
Individual gain control for all twelve gyro outputs
Special regulatory algorithm for fixed-wing models
System detects all transmitter mixers
Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
Two different voltage levels, separately adjustable for left and right side Graphic menu diagrams ensure ultra-simple programming
Simplest programming through graphical representation of the menus
Fast basic setup procedure using the sophisticated Assistant
Optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR DMSS and Graupner HoTT
Transmission of battery, receiver and GPS data
Virtually all features can be controlled from PowerBox and Jeti transmitters
Selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
Latest 32-bit micro-processor for precise, high-speed signal processing
High-performance machined heat-sink for optimised heat diffusion
Machined, anodised aluminium switch and screen case
Compact dimension
Technical Data:
Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 300mA (with TFT)
Current drain Standby 60µA
Maximum load current Peak 4 x 20A
Drop-out voltage 0.3V
Output voltage 6.0V, 7.4V, 7.8V, unregulated
Signal input serial
Supported RC systems PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne
Receiver redundancy SRS
Channels 26
Servo sockets 26
Programmable servo outputs 26
Servo signal resolution 0.5µs
Signal frame rate 10ms, 12ms, 14ms, 16ms, 18ms
Gyro regulation Heading- and Normalmode
Gyro sensor type extern iGyro SAT
Number of sensor axes 12
Screen TFT 320x240 Pixel
Integral door sequencer 2x
Supported telemetry systems P˛BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
Dimensions 136 x 82 x 18 mm
Weight 162g
Weight Sensor Switch 15g
Weight of LCD screen 34g
Temperature range -30°C to +105°C
Pris/Price: 599 €
Features
26 channels
High-performance battery backer with high continuous load capacity
Four P˛-BUS outputs with full telemetry support for servos
2.4" TFT screen, legible in sunlight
Bi-lingual menu system
Consistent duplication of all power electronics
Redundant electronic switch
Servo matching for all 26 outputs
Auto matching function
Two independent door sequencers with Setup Assistant
The latest integrated iGyro technology, using the iGyro SAT as gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
Individual gain control for all twelve gyro outputs
Special regulatory algorithm for fixed-wing models
System detects all transmitter mixers
Four selectable output voltages: 6.0 V, 7.4 V, 7.8 V or unregulated
Two different voltage levels, separately adjustable for left and right side Graphic menu diagrams ensure ultra-simple programming
Simplest programming through graphical representation of the menus
Fast basic setup procedure using the sophisticated Assistant
Optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR DMSS and Graupner HoTT
Transmission of battery, receiver and GPS data
Virtually all features can be controlled from PowerBox and Jeti transmitters
Selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
Latest 32-bit micro-processor for precise, high-speed signal processing
High-performance machined heat-sink for optimised heat diffusion
Machined, anodised aluminium switch and screen case
Compact dimension
Technical Data:
Operating voltage 4.0V - 9.0V
Power supply 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH
Current drain Power-on state 300mA (with TFT)
Current drain Standby 60µA
Maximum load current Peak 4 x 20A
Drop-out voltage 0.3V
Output voltage 6.0V, 7.4V, 7.8V, unregulated
Signal input serial
Supported RC systems PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne
Receiver redundancy SRS
Channels 26
Servo sockets 26
Programmable servo outputs 26
Servo signal resolution 0.5µs
Signal frame rate 10ms, 12ms, 14ms, 16ms, 18ms
Gyro regulation Heading- and Normalmode
Gyro sensor type extern iGyro SAT
Number of sensor axes 12
Screen TFT 320x240 Pixel
Integral door sequencer 2x
Supported telemetry systems P˛BUS, S.BUS2, EX-Tele, SRXL2, M-Link, Hott, X.BUS
Dimensions 136 x 82 x 18 mm
Weight 162g
Weight Sensor Switch 15g
Weight of LCD screen 34g
Temperature range -30°C to +105°C
Pris/Price: 599 €
|
|
||
|
|
||
|
|
|
|
||
|
|
||
|
|
||
|
|
|
||
|
|
||
|
|
|
|
||
|
|
||
|
|
|
||
|
|

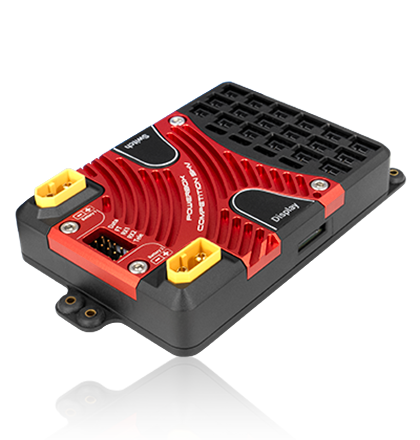

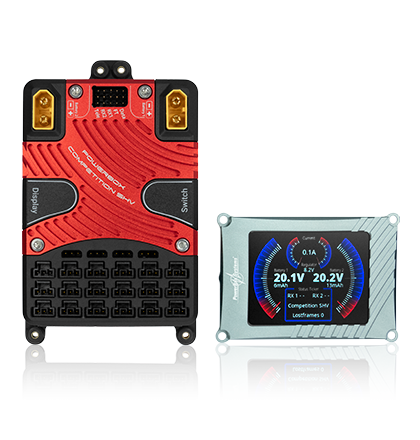

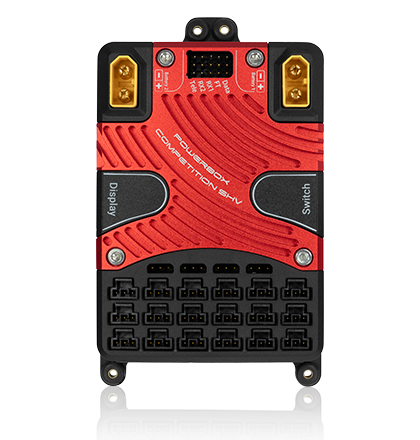

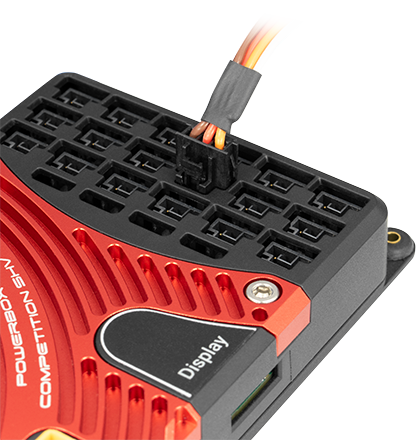

4810 PowerBox Competition SHV
Features
SHV technology: up to 35V input voltage
40A max. current load for all SHV servo outputs
regulated 8.4V / 10A for receivers, peripherals and four servos
22 channels
optional UAV version
high-performance battery backer with high continuous load capacity
2.4” TFT-screen, legible in sunlight
Bi-lingual menu system
consistent duplication of all power electronics
redundant electronic switch
Servo matching for all 22 outputs
auto matching function
two independent door sequencers with Setup Assistant
the latest integrated iGyro technology, using the iGyroSAT as gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
individual gain control for all twelve gyro outputs
special regulatory algorithm for fixed-wing models
System detects all transmitter mixers
Graphic menu diagrams ensure ultra-simple programming
fast basic setup procedure using the sophisticated Assistant
optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum, SRXL2, Multiplex M-Link and Graupner HoTT
Transmission of battery, receiver and GPS* data
virtually all features can be controlled from PowerBox and Jeti transmitters
selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
latest 32-bit micro-processor for precise, high-speed signal processing
high-performance machined heat-sink for optimised heat diffusion
machined, anodised aluminium switch and screen case
compact dimensions
Technical Data
Operating voltage10,0 V - 35,0 V
Power supply3-8s LiPo or Lilon
Current drain Power-on state170 mA by 20V
Current drain Standby40 µA
Maximum load current2x20A (<30s 2x 40A)
Output voltageSHV and 8.0V
Signal inputserial
Supported RC systemsPowerBox, Futaba, Jeti, Spektrum, Multiplex, Graup
more
Pris/Price: 499 €
Features
SHV technology: up to 35V input voltage
40A max. current load for all SHV servo outputs
regulated 8.4V / 10A for receivers, peripherals and four servos
22 channels
optional UAV version
high-performance battery backer with high continuous load capacity
2.4” TFT-screen, legible in sunlight
Bi-lingual menu system
consistent duplication of all power electronics
redundant electronic switch
Servo matching for all 22 outputs
auto matching function
two independent door sequencers with Setup Assistant
the latest integrated iGyro technology, using the iGyroSAT as gyro sensor
Twelve independent gyro outputs for: 4x aileron, 4x elevator, 4x rudder
individual gain control for all twelve gyro outputs
special regulatory algorithm for fixed-wing models
System detects all transmitter mixers
Graphic menu diagrams ensure ultra-simple programming
fast basic setup procedure using the sophisticated Assistant
optional GPS III for speed-dependent gyro compensation
Telemetry data for PowerBox P˛BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum, SRXL2, Multiplex M-Link and Graupner HoTT
Transmission of battery, receiver and GPS* data
virtually all features can be controlled from PowerBox and Jeti transmitters
selectable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms
Servo feedback current suppression
latest 32-bit micro-processor for precise, high-speed signal processing
high-performance machined heat-sink for optimised heat diffusion
machined, anodised aluminium switch and screen case
compact dimensions
Technical Data
Operating voltage10,0 V - 35,0 V
Power supply3-8s LiPo or Lilon
Current drain Power-on state170 mA by 20V
Current drain Standby40 µA
Maximum load current2x20A (<30s 2x 40A)
Output voltageSHV and 8.0V
Signal inputserial
Supported RC systemsPowerBox, Futaba, Jeti, Spektrum, Multiplex, Graup
more
Pris/Price: 499 €
