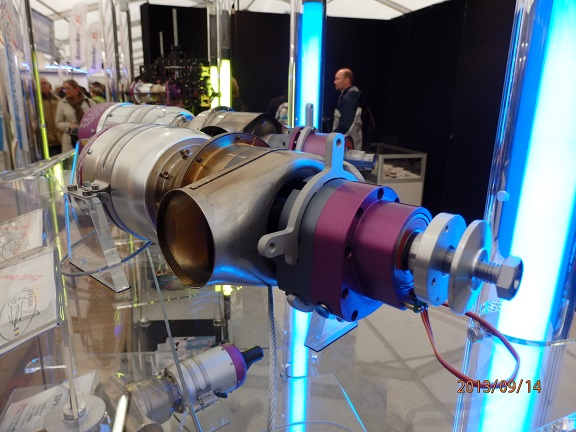

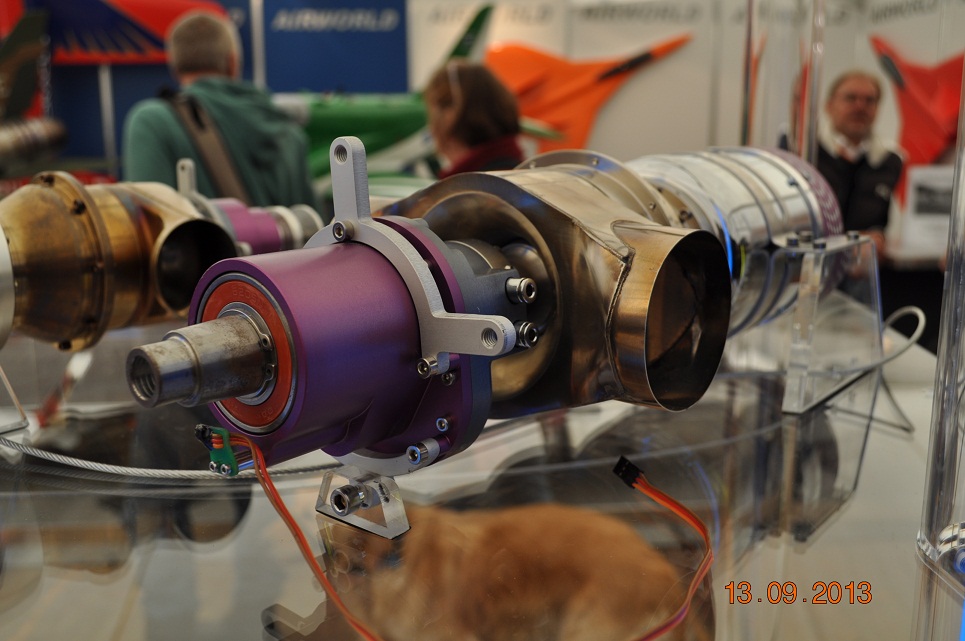

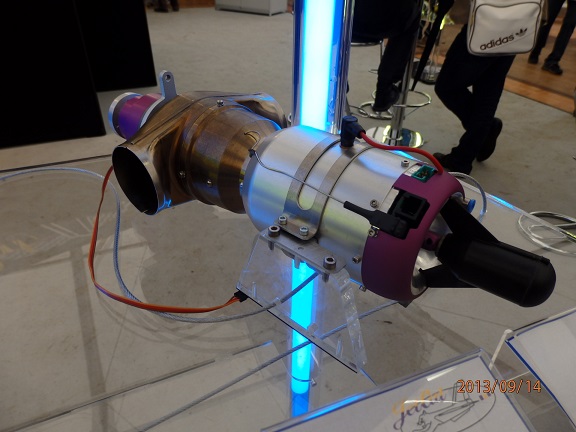

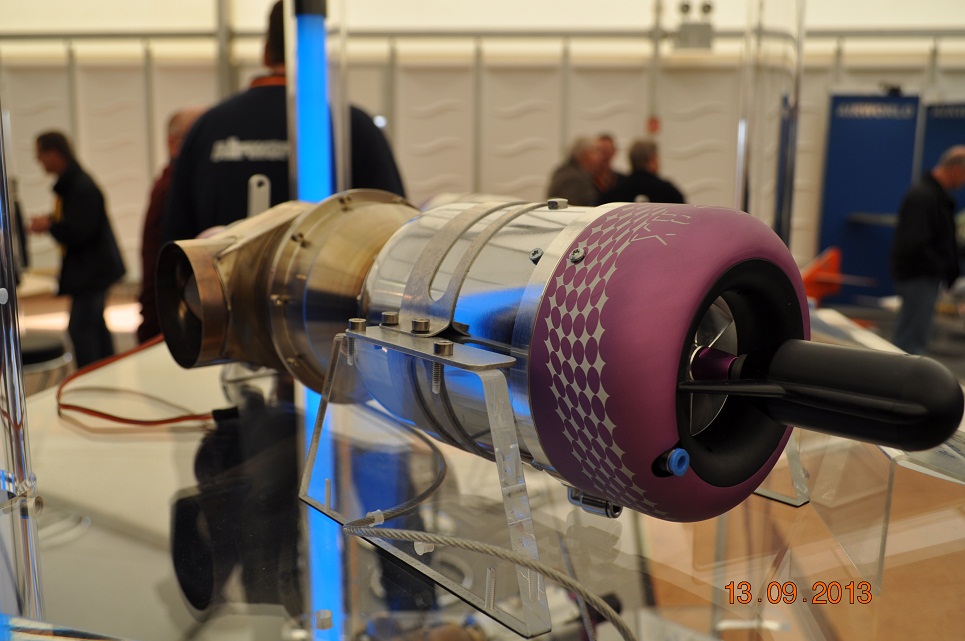

Jet-Cat SPT5-H Turboprop:
Motorkraft 6kW
Vikt/Weight: 2200g
Mått/Dimension : Längd/Length: 360mm, Bred/Wide: 140mm, Turbinedelen/Turboprop: 83mm
Varvtal/RPM range: 50000 - 175000 RP/min
Avgastemperatur/Exhaust: 400 - 690 C
Bränsleförbrukning/Fuel consumpsion:
230 ml/min
Bränsle/Fuel: Jet-A1 with 5% oljeblandning/oilmix ( turbinoil )
Serviceintervall/Maintenance interval: 50 timmar/hours
Pirs: 4095 €
Motorkraft 6kW
Vikt/Weight: 2200g
Mått/Dimension : Längd/Length: 360mm, Bred/Wide: 140mm, Turbinedelen/Turboprop: 83mm
Varvtal/RPM range: 50000 - 175000 RP/min
Avgastemperatur/Exhaust: 400 - 690 C
Bränsleförbrukning/Fuel consumpsion:
230 ml/min
Bränsle/Fuel: Jet-A1 with 5% oljeblandning/oilmix ( turbinoil )
Serviceintervall/Maintenance interval: 50 timmar/hours
Pirs: 4095 €
Jet-Cat SPH5:
Motorkraft/Engine power: 6kW
Vikt/Weight :2000g
Mått/Dimension: längd/Length 375mm, Bred/wide: 140mm, Turbinedelen/Turboprop: 83mm
Varvtal: 50000 - 170000 RP/min
Drivmoment/Drivemoment: 16Nm
Avgastemperatur/Exhaust: 400 - 730 C
Bränsleförbrukning/Fuel consumpsion: 95 - 260 ml/min
Bränsle Jet-A1 with 5% oljeblandning/oilmix ( turbinoil )
Serviceintervall/Maintenance intervalL: 50 Timmar/Hours
Liftkapacitet/Lift capacity: with a rotor diameter between 1600-1700mm the lift capacity is 25Kg
Pris: €: 4095
Motorkraft/Engine power: 6kW
Vikt/Weight :2000g
Mått/Dimension: längd/Length 375mm, Bred/wide: 140mm, Turbinedelen/Turboprop: 83mm
Varvtal: 50000 - 170000 RP/min
Drivmoment/Drivemoment: 16Nm
Avgastemperatur/Exhaust: 400 - 730 C
Bränsleförbrukning/Fuel consumpsion: 95 - 260 ml/min
Bränsle Jet-A1 with 5% oljeblandning/oilmix ( turbinoil )
Serviceintervall/Maintenance intervalL: 50 Timmar/Hours
Liftkapacitet/Lift capacity: with a rotor diameter between 1600-1700mm the lift capacity is 25Kg
Pris: €: 4095
The price are in Euro ( € ) included 25% VAT.
Delivery cost it´ll be add
Delivery cost it´ll be add
|
|
||
|
|
||
|
|
|
|

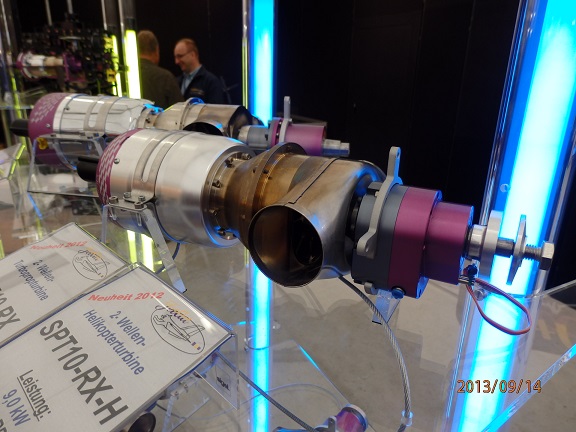

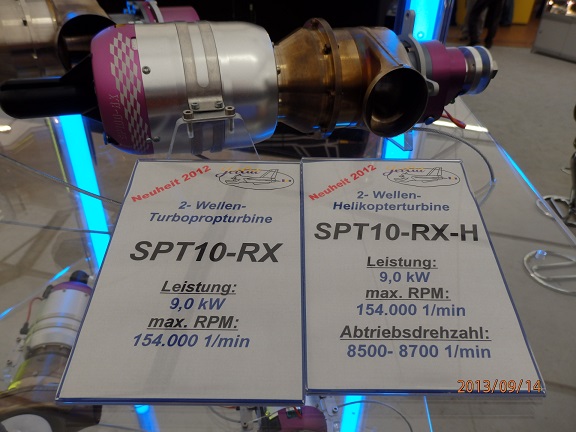

Jet-Cat SPT10-RX; RX-H:
Engine power: 9Kw
Weight : 2450g
Dimension: Length 375mm, wide: 140mm
Idle RPM: 44000
Flight RPM: 154.000
Exhaust temp.: 400 to 730 C
Main rotor speed: 8500 - 8700r/min.
Fuel consumption: 80ml - 350ml/min.
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 25/50 Hours
Price: € 4350
Engine power: 9Kw
Weight : 2450g
Dimension: Length 375mm, wide: 140mm
Idle RPM: 44000
Flight RPM: 154.000
Exhaust temp.: 400 to 730 C
Main rotor speed: 8500 - 8700r/min.
Fuel consumption: 80ml - 350ml/min.
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 25/50 Hours
Price: € 4350

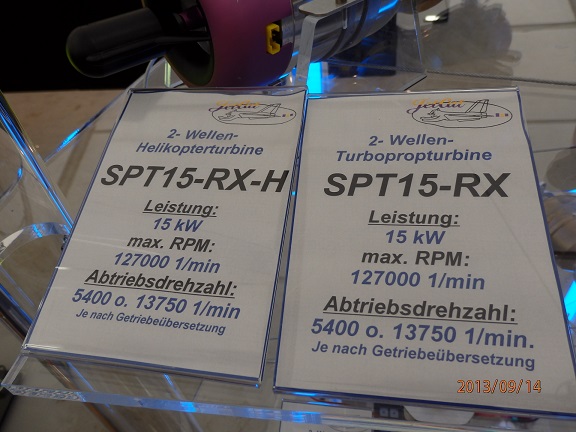

Jet-Cat SPT15-RX; RX-H:
Engine power: 15Kw
Weight : 2450g
Dimension: Length 375mm, wide: 140mm
Idle RPM: 44000
Flight RPM: 127.000
Exhaust temp.: 400 to 730 C
Main rotor speed: 5300 - 13750r/min.
Fuel consumption: 80ml - 350ml/min.
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 25/50 Hours
Price: € 5990
Engine power: 15Kw
Weight : 2450g
Dimension: Length 375mm, wide: 140mm
Idle RPM: 44000
Flight RPM: 127.000
Exhaust temp.: 400 to 730 C
Main rotor speed: 5300 - 13750r/min.
Fuel consumption: 80ml - 350ml/min.
Fuel: Jet-A1 or kerosene
Oil mix: 5% fully synthetic turbine oil
Maintenance interval: 25/50 Hours
Price: € 5990
|
|
